Article damp-proof luminaire

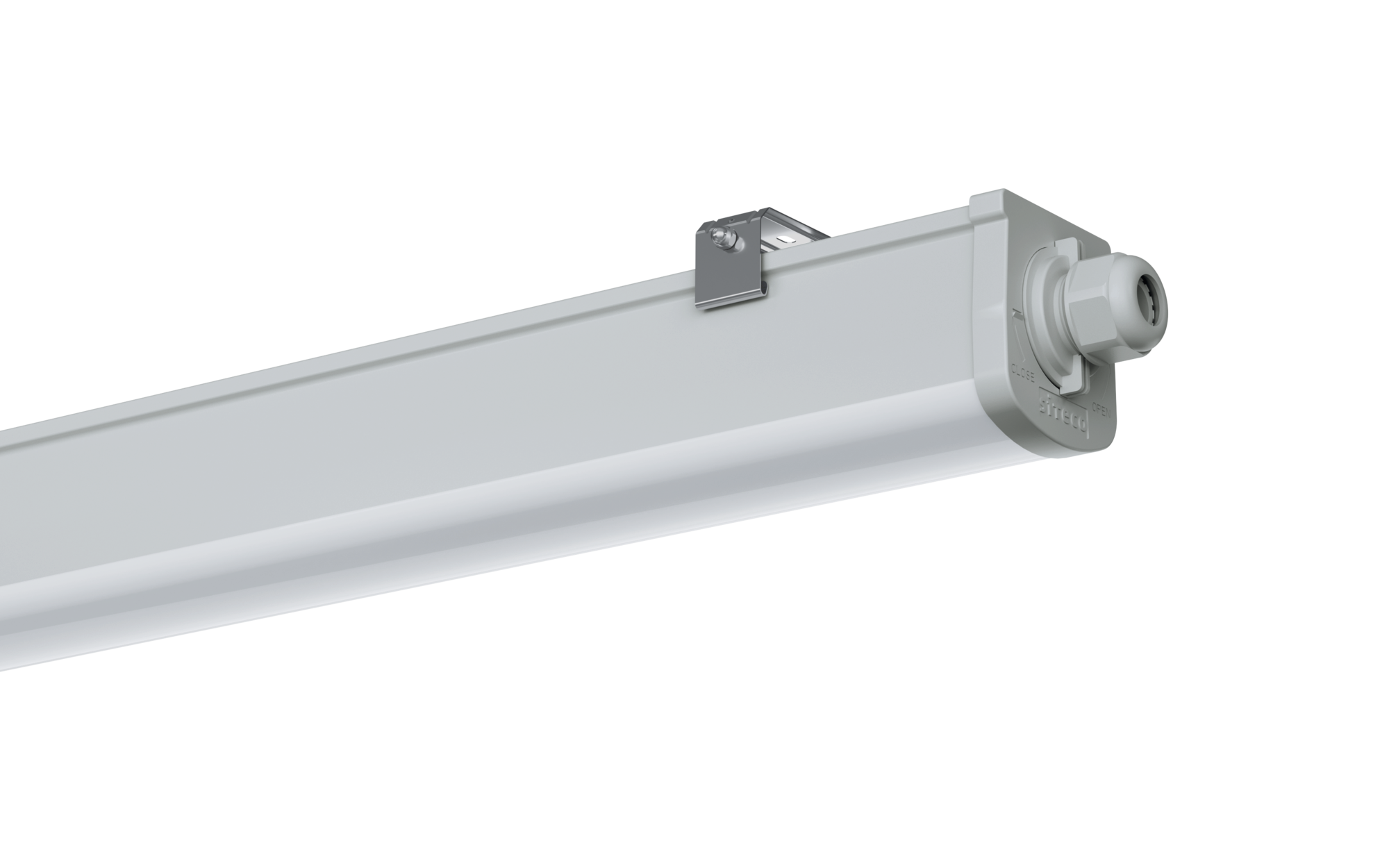

Product name Monsun® 31
Lamp LED
Rated luminous flux 3000lm
Luminous efficacy 136lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 22W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 1.3kg

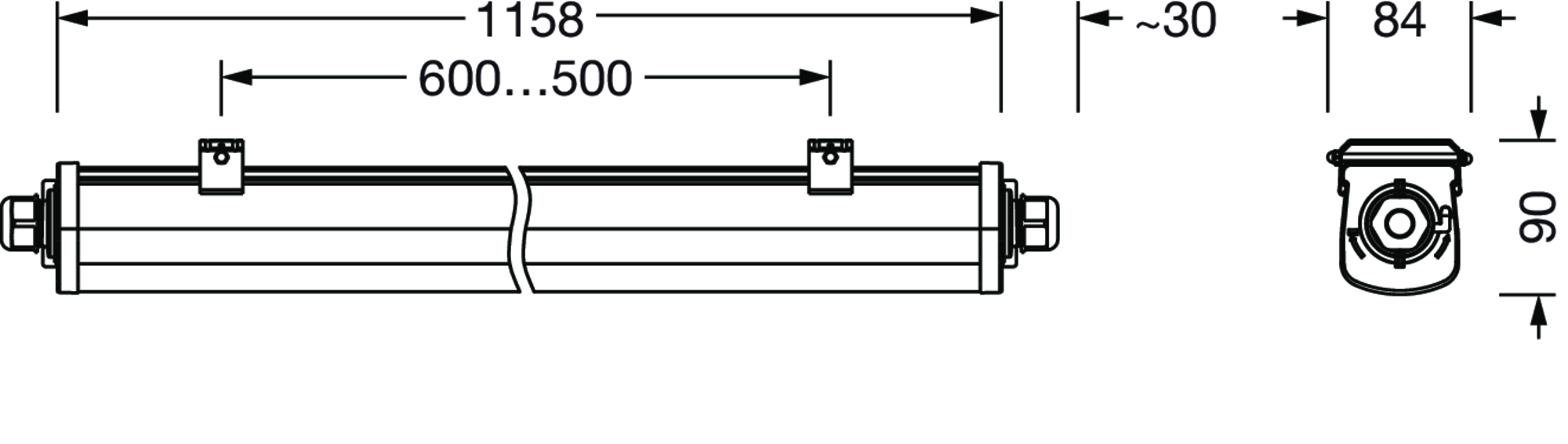

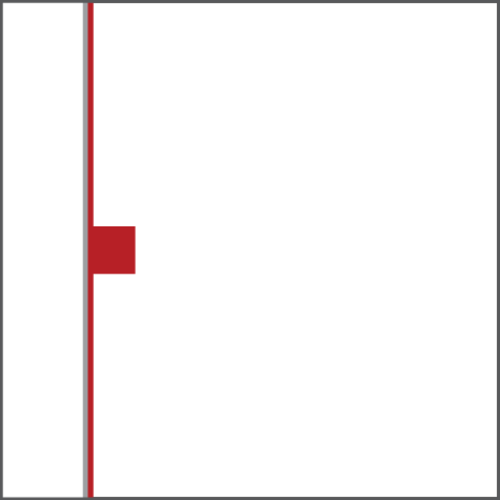

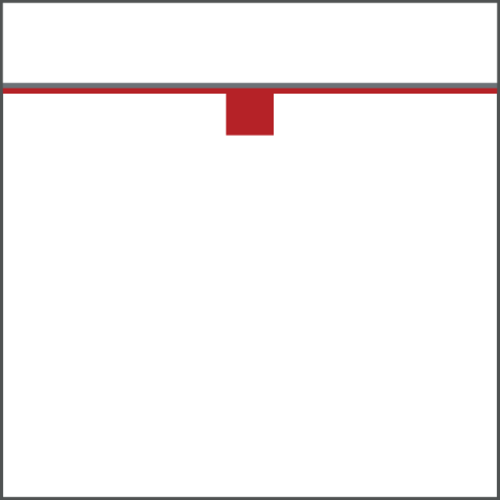

Monsun® 31, damp-proof luminaire, primary optical cover: diffuser, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.000lm, luminous efficacy: 136lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 5+1-pole, max. 2.5mm², through-wiring: 3x 2.5mm² + 3x 1.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 22W, housing, luminaire housing, of PC, light grey (RAL 7035), length: 1.158mm, width: 68mm, height: 76mm, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -20..+40°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece
Downloads
Technische Produktinformationen
Daten für Anwendungsprogramme
Produktdetails
Lichttechnischer Prüfbefund / Planungsdaten
Monsun® 31
LED, ECG, with through-wiring 3x 2.5mm² + 3x 1.5mm², diffuser, surface-mounted, L= 1158mm
Lamps: 1x LED
Bestellnr.: 51FA20DK430B
