51HN11DB3TDA

Order No.: 51HN11DB3TDA

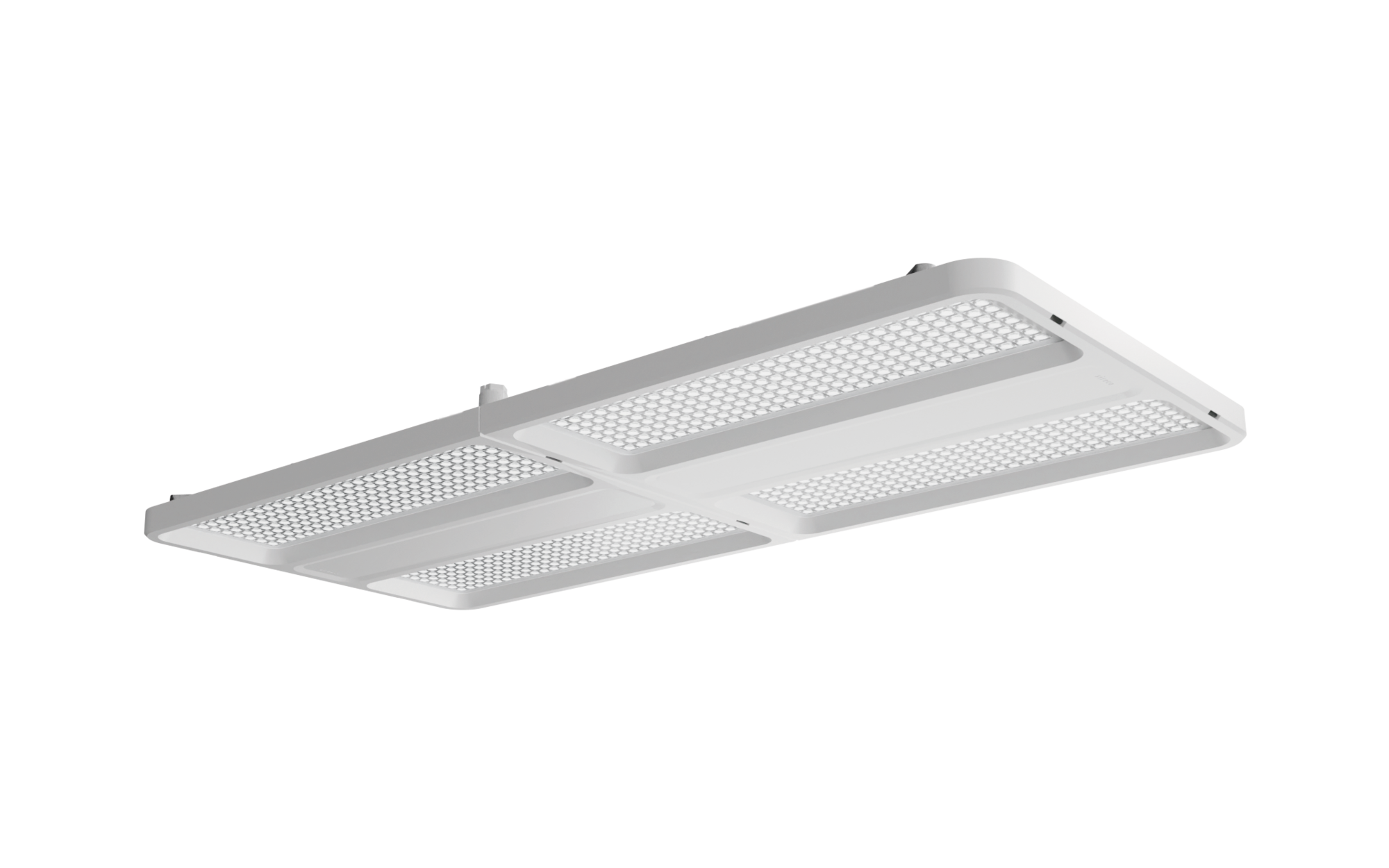

Article high bay luminaire
Product name Highbay 11 maxi
Lamp LED
Rated luminous flux 53070lm
Luminous efficacy 180lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 295.1W
Service life 100000h (L90/B50) at AT = ta max, 100000h (L95/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 7.1kg

high bay luminaire Highbay 11 maxi; direct symmetric narrow distribution, light control with lens of PMMA; UGR ≤ 22 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20); luminous flux: 53.070lm; light colour: 830, colour temperature: 3000K, MacAdam ≤ 2 SDCM (initial), colour rendering: CRI > 80; luminous efficacy: 179,8lm/W; rated service life: 100.000h (L95/B50) at AT= 25°C; control: DALI 2; luminaire connection: terminal, 5-pole, max. 2.5mm² (cable entry for one cable, Ø 8.5..16mm); mains connection: 230..240V, AC/DC 0/50..60Hz; connected load: 295,1W; protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); protection symbol: D; impact resistance: IK08; certification: CE, ENEC, VDE, UKCA; luminaire for central battery installations according to DIN EN 60598-2-22, internal wiring halogen-free; luminaire LABS conformity tested according to VDMA 24364:2018-05; corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry; housing frame of high-performance plastic PA6, matt traffic white (RAL 9016); cover of PMMA; dimension (LxWxH): 946 x 442 x 72mm; permissible operating ambient temperature: -40..+50°C (reducing of maximum allowable ambient temperature of 5°C with ceiling mounting); packaging unit: 1 piece; (delivery without accessories; please order mounting accessories separately)

mehr anzeigenweniger anzeigen

Downloads

Technical product information

Data for applications

Product details

Key data

Product type high bay luminaire
Product name Highbay 11 maxi
Order No. 51HN11DB3TDA

Component 1

Lighting technology
Light control lens of PMMA
Cover cover
Beam angle narrow distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps
Lamps with LED
Rated luminous flux 53070lm
Luminous efficacy 180lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 295.1W
Supplement internal wiring halogen-free

Operating device
Control DALI 2

Component 2

Operating device
Switching method for central battery installations according to DIN EN 60598-2-22

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -40..+50°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, LABS conformity tested according to VDMA 24364:2018-05
Standard EN 60598-2-22
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

housing frame high-performance plastic PA6, matt traffic white (RAL 9016)
Colour specification matt traffic white (RAL 9016)
Cover cover of PMMA

Mounting

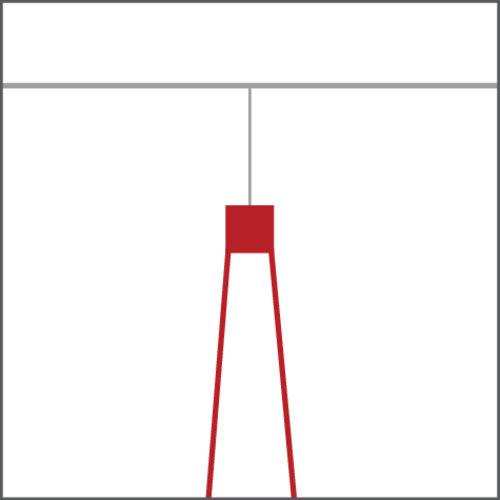

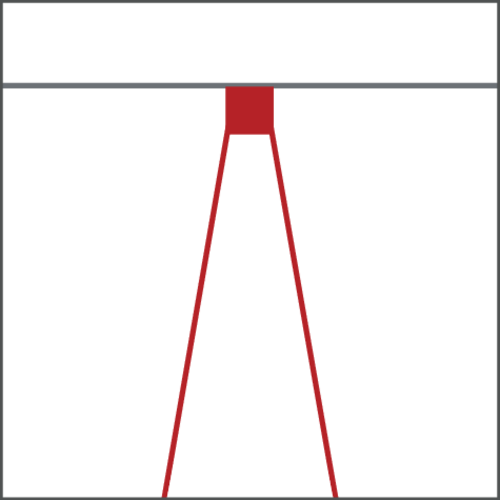

Mounting method, mounting location suspended mounting, surface-mounted, to wire, to the ceiling, to the wall, to the chain
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole, max. 2.5mm²
Nominal voltage 230..240V, 0/50..60Hz, AC/DC

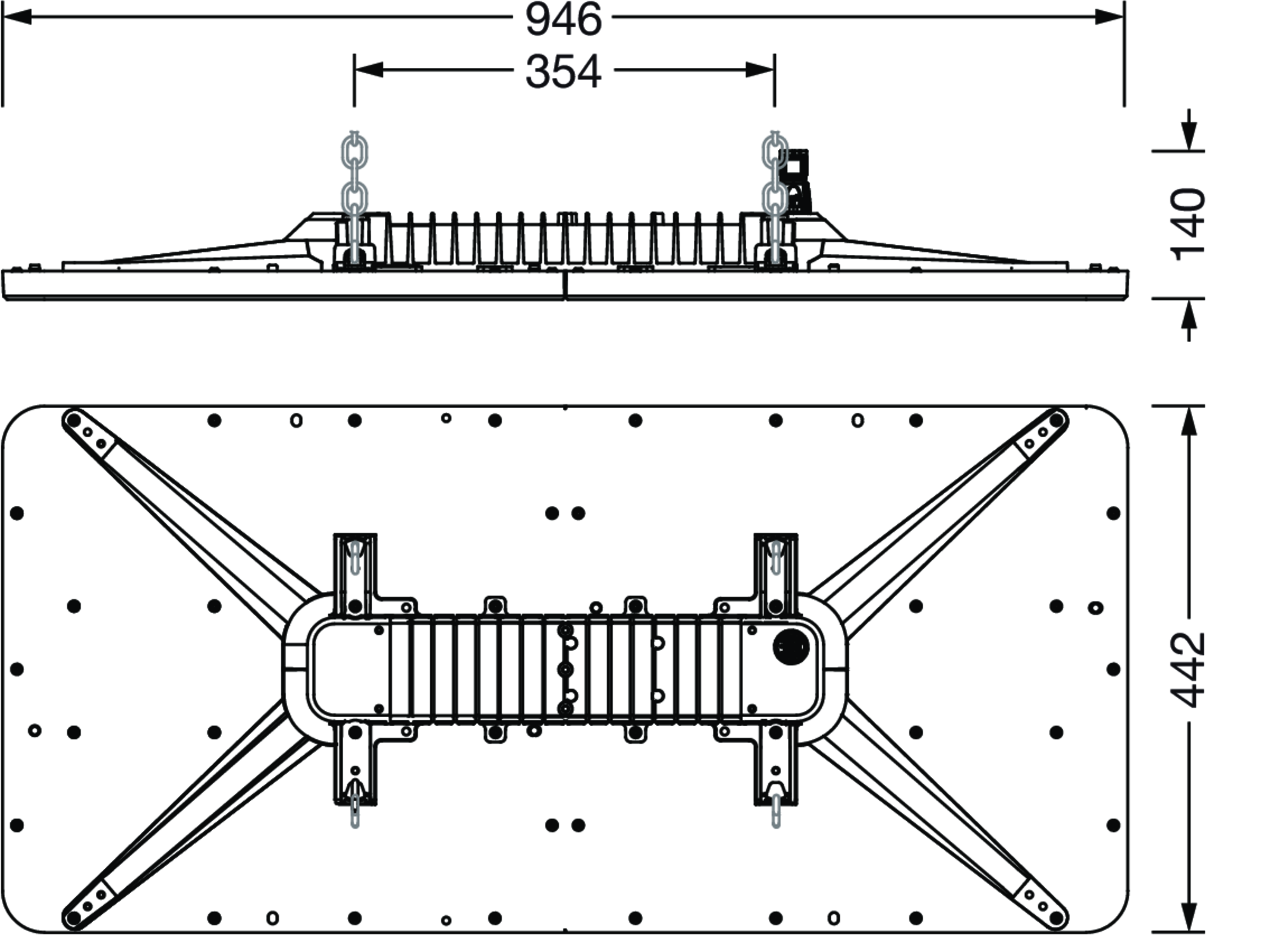

Dimensions, Weight

Length 946mm
Width 442mm
Height 72mm
Weight 7.1kg

Service life

Rated service life 100000h (L95/B50) at AT = 25°C, 100000h (L90/B50) at AT = ta max

Key data

Product type
high bay luminaire

Product name
Highbay 11 maxi

Order No.
51HN11DB3TDA

Component 1

Lighting technology

Light control
lens of PMMA

Cover
cover

Beam angle
narrow distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 22

UGR viewing direction along lateral luminaire axis
≤ 22

Lamps

Lamps
with LED

Rated luminous flux
53070lm

Luminous efficacy
180lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 2 SDCM (initial)

Rated input power
295.1W

Supplement
internal wiring halogen-free

Operating device

Control
DALI 2

Component 2

Operating device

Switching method
for central battery installations according to DIN EN 60598-2-22

Certificates, Standards

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-40..+50°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, LABS conformity tested according to VDMA 24364:2018-05

Standard
EN 60598-2-22

Certification, designation
CE, ENEC, VDE, UKCA

Material, Colour

housing frame
high-performance plastic PA6, matt traffic white (RAL 9016)

Colour specification
matt traffic white (RAL 9016)

Cover
cover of PMMA

Mounting

Mounting method, mounting location
suspended mounting, surface-mounted, to wire, to the ceiling, to the wall, to the chain

Arrangement
single arrangement

Electrical connection

Connection
terminal, 5-pole, max. 2.5mm²

Nominal voltage
230..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

Length
946mm

Width
442mm

Height
72mm

Weight
7.1kg

Service life

Rated service life
100000h (L95/B50) at AT = 25°C, 100000h (L90/B50) at AT = ta max

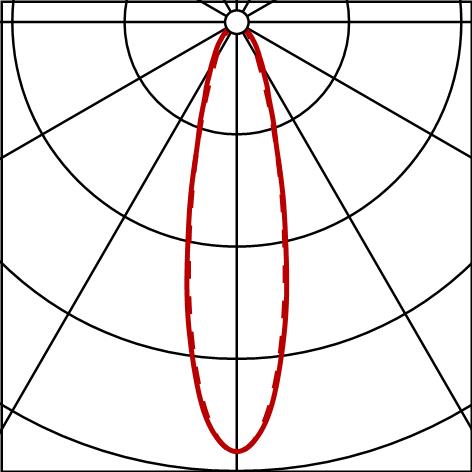

Photometric report / planning data

HB11mx
nrrw,53070lm830,DA2,f.c-bat
Lamps: 1x LED, factory setting AC mode: AC-mode
Order No.: 51HN11DB3TDA
