Order No.: 5NYHALRL182
Remember articleRemember article

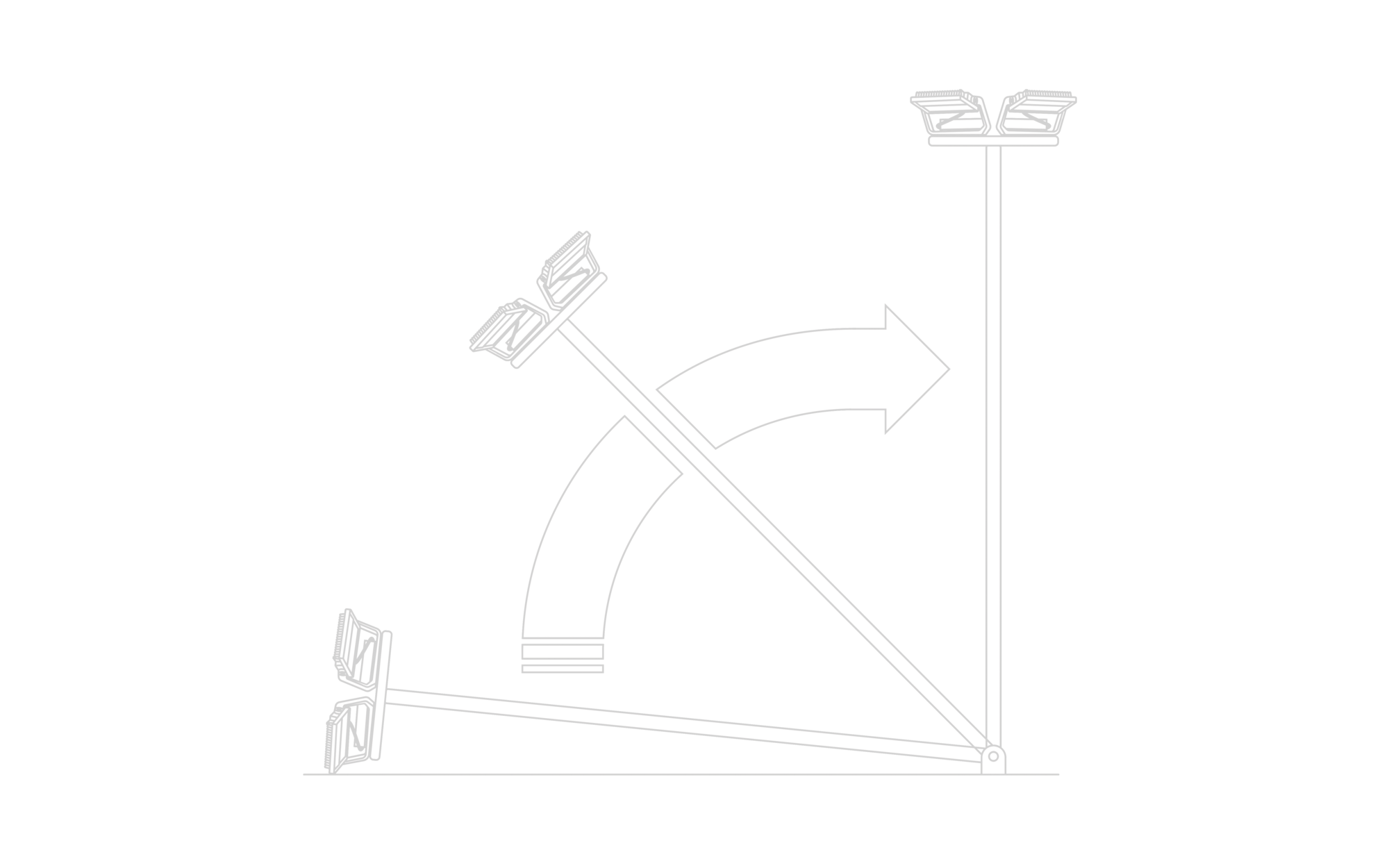

Article raise and lower mast
Product name mast
Weight 744.0kg

mast, raise and lower mast, installation type: screw fastening, raise and lower mast, of steel, galvanised, for up to 7 pcs. Floodlight FL 11 maxi pro in wind zone 1, for up to 5 pcs. Floodlight FL 11 maxi pro in wind zone 2, height: 18m, mast doors, of steel, galvanised, width: 170mm, height: 350mm, standard: DIN EN 40, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type raise and lower mast
Product name mast
Order No. 5NYHALRL182

Certificates, Standards

Standard DIN EN 40

Material, Colour

raise and lower mast steel, galvanised, for up to 7 pcs. Floodlight FL 11 maxi pro in wind zone 1, for up to 5 pcs. Floodlight FL 11 maxi pro in wind zone 2
mast doors steel, galvanised

Mounting

Mounting method, mounting location screw fastening, on foundation
Supplement for heavy loads
Supplement fastening with four fastening bolts M36 x 1200mm, strength class 8.8, not included

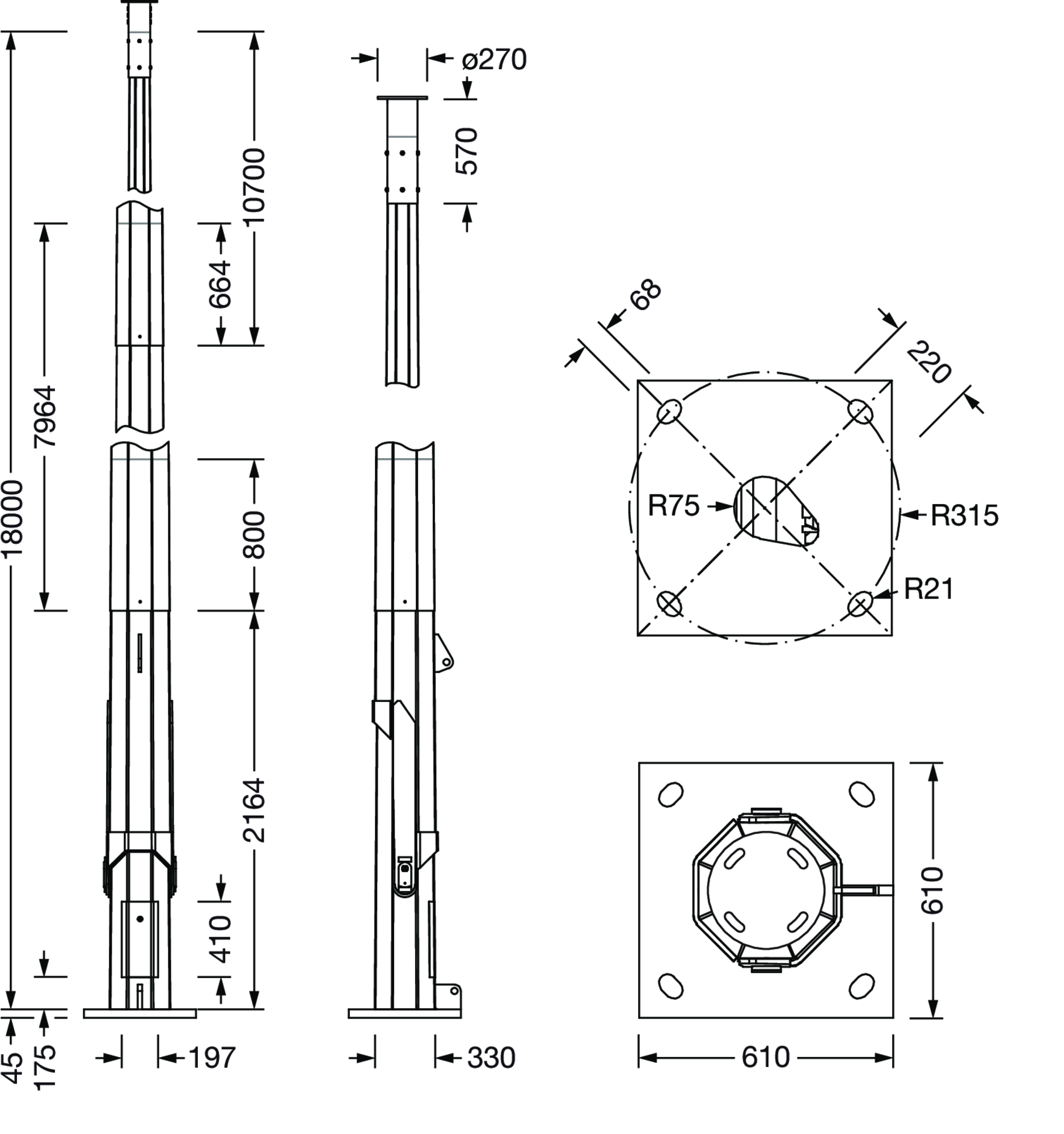

Dimensions, Weight

Height 18m
Weight 744.0kg

Product type
raise and lower mast

Product name
mast

Order No.
5NYHALRL182

Standard
DIN EN 40

raise and lower mast
steel, galvanised, for up to 7 pcs. Floodlight FL 11 maxi pro in wind zone 1, for up to 5 pcs. Floodlight FL 11 maxi pro in wind zone 2

mast doors
steel, galvanised

Mounting method, mounting location
screw fastening, on foundation

Supplement
for heavy loads

Supplement
fastening with four fastening bolts M36 x 1200mm, strength class 8.8, not included

Height
18m

Weight
744.0kg
