Order No.: 5XA769LEDUNITP3
Remember articleRemember article

Article LED unit
Product name Floodlight FL 20 maxi
Lamp LED
Colour temperature 5000K
Colour rendering CRI > 70
Protection rating IP66
Weight 6.4kg

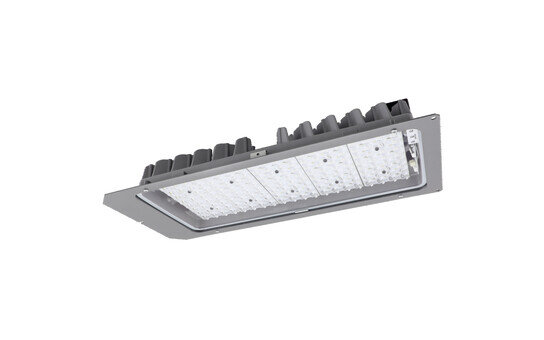

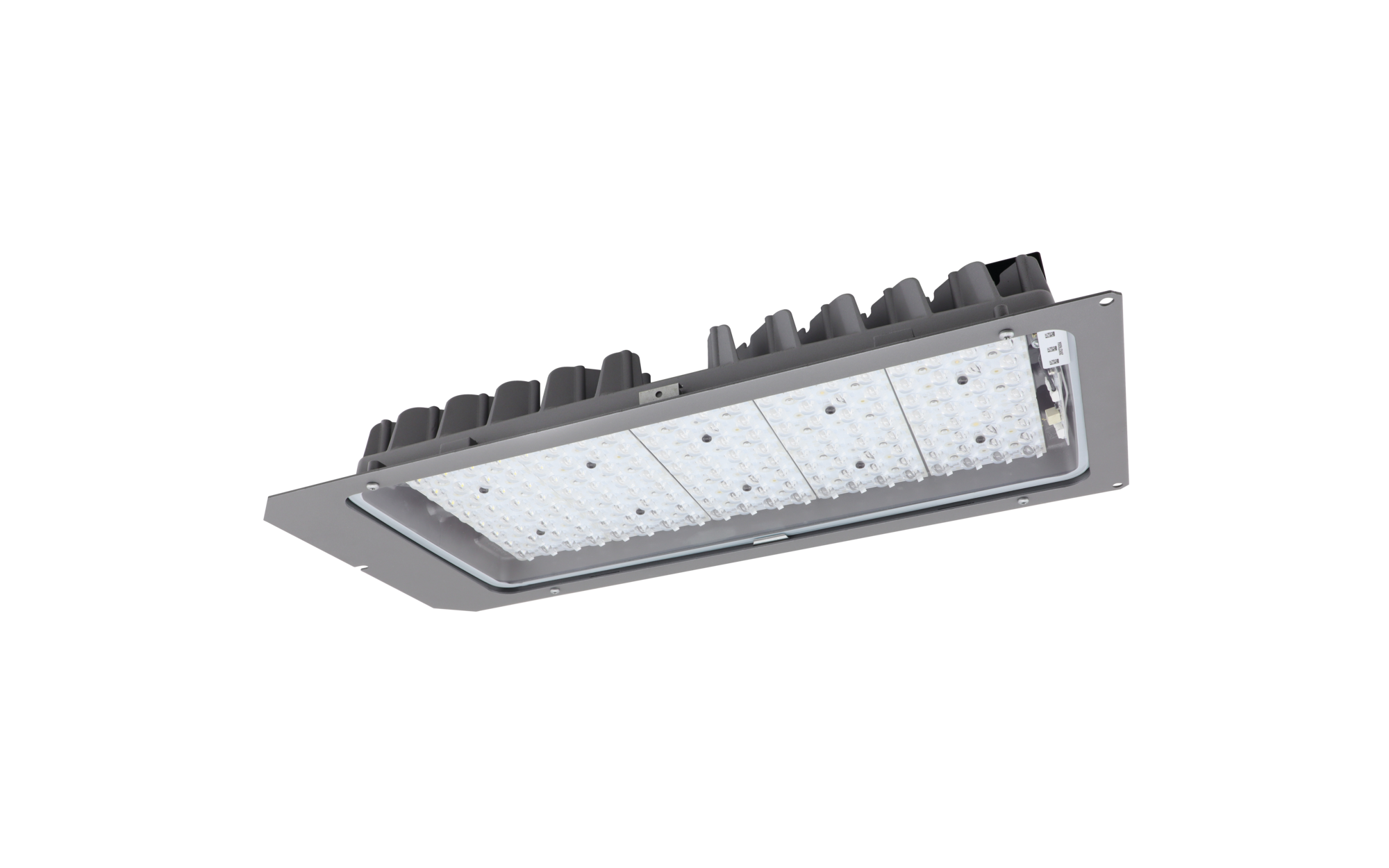

Floodlight FL 20 maxi, LED unit, primary light control with lens, of PMMA, primary optical cover: cover panel, of toughened safety glass, transparent, light distribution: PL33 Backlight Control, light emission: direct distribution, primary light characteristic: asymmetric, installation type: screw fastening, LED, High Power LED, light colour: 750, colour temperature: 5000K, with cable with plug, AC, 50/60Hz, LED unit, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 662mm, width: 298mm, height: 106mm, protection rating (complete): IP66, certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type LED unit
Product name Floodlight FL 20 maxi
Order No. 5XA769LEDUNITP3

Lighting technology

Light control lens of PMMA
Cover cover panel, transparent
Light distribution PL33 Backlight Control
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps High Power LED, LED
Colour temperature 5000K
Colour rendering index CRI > 70
Light colour 750

Certificates, Standards

Protection rating IP66
Certification, designation CE

Material, Colour

LED unit diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover cover panel of toughened safety glass

Mounting

Mounting method, mounting location screw fastening, in housing

Electrical connection

Connection cable with plug

Dimensions, Weight

Length 662mm
Width 298mm
Height 106mm
Weight 6.4kg

Product type
LED unit

Product name
Floodlight FL 20 maxi

Order No.
5XA769LEDUNITP3

Light control
lens of PMMA

Cover
cover panel, transparent

Light distribution
PL33 Backlight Control

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
High Power LED, LED

Colour temperature
5000K

Colour rendering index
CRI > 70

Light colour
750

Protection rating
IP66

Certification, designation
CE

LED unit
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
cover panel of toughened safety glass

Mounting method, mounting location
screw fastening, in housing

Connection
cable with plug

Length
662mm

Width
298mm

Height
106mm

Weight
6.4kg
