Article floodlight

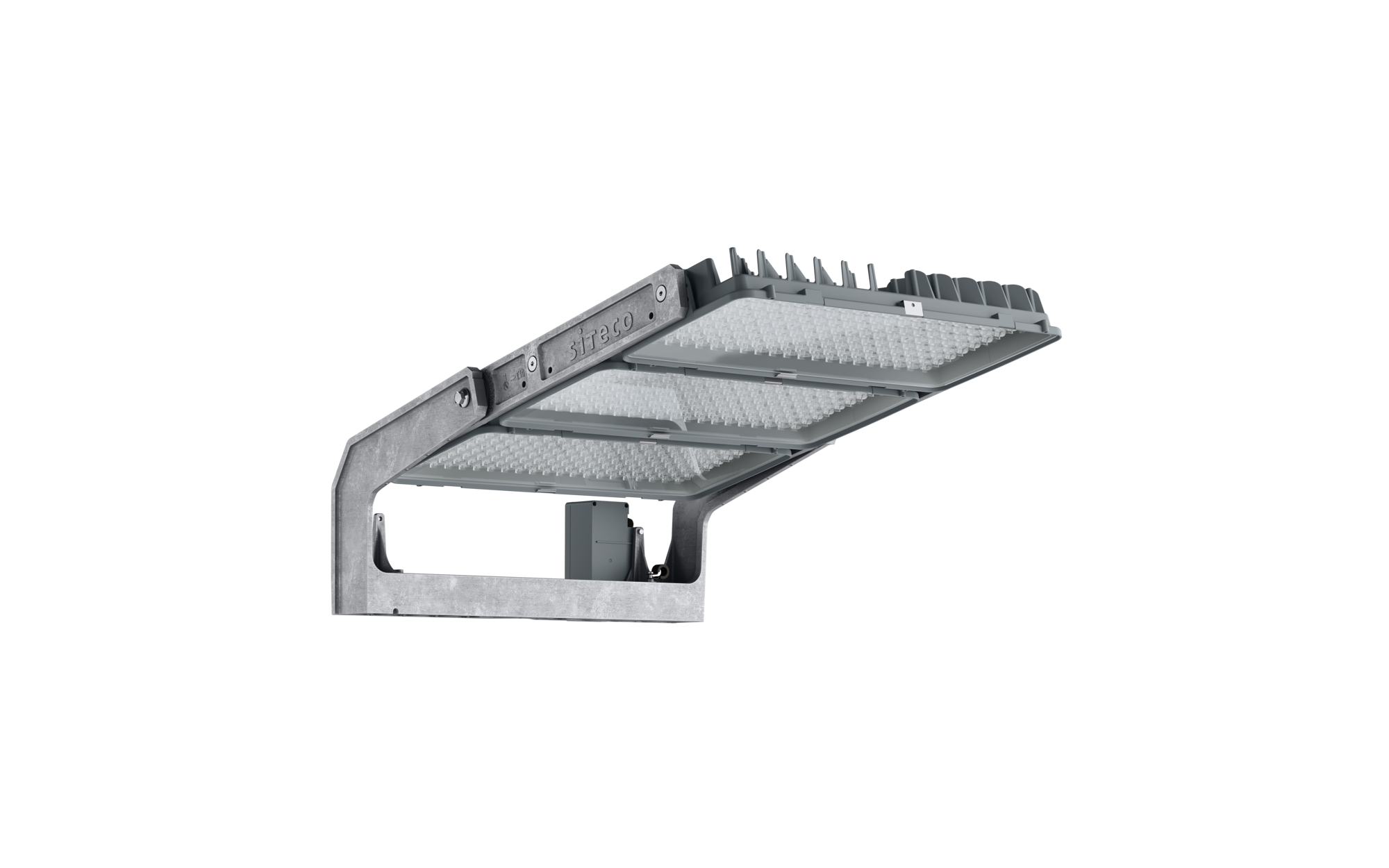

Product name Floodlight FL 11 maxi pro Remote
Lamp LED
Rated luminous flux 166370lm
Luminous efficacy 107lm/W
Colour temperature 5700K
Colour rendering CRI > 70
Rated input power 1561W
Protection rating IP66
Weight 32.2kg

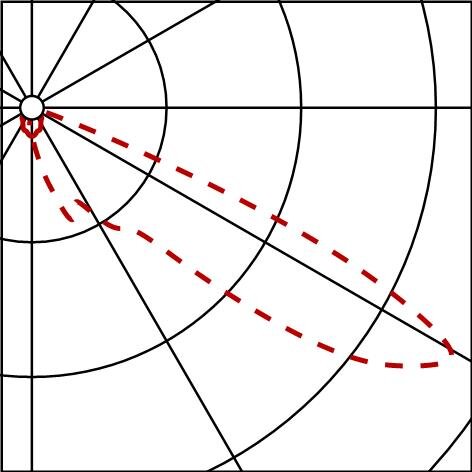

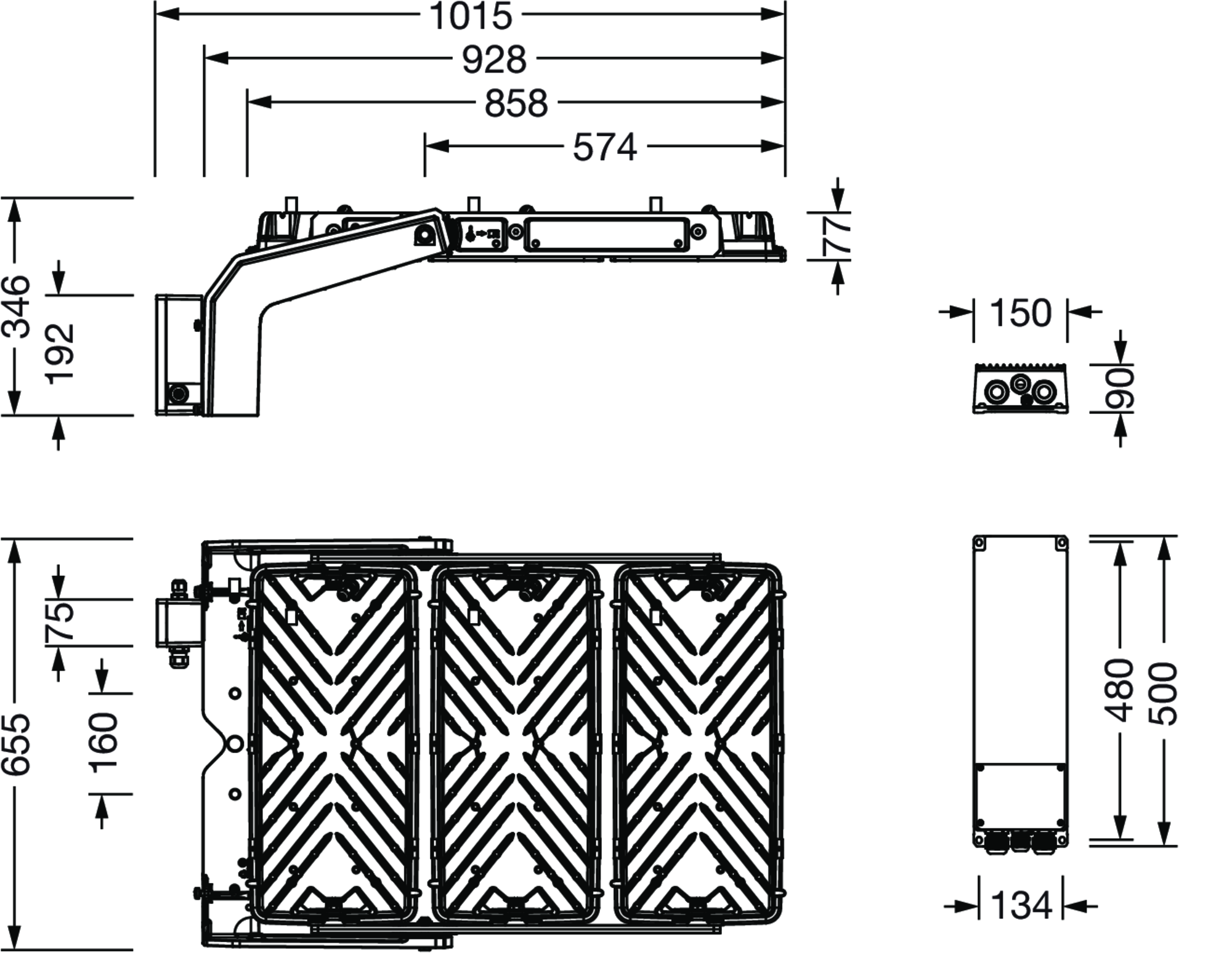

Floodlight FL 11 maxi pro Remote floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: PL33TBLC, asymmetric direct distribution, LED; colour temperature: 5700K, rated luminous flux: 166.370lm, colour rendering: CRI > 70, light colour: 757; luminous efficacy: 107lm/W; brightness control: DMX+RDM; with terminal, 8-pole, max. 2.5mm², mains connection: 220..240V/380..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, service life up to 100,000h L90. Typical operating time: 1000h per year, ECG replaceable separately, LED unit replaceable without ESD environment, dustproof LED module, dimming range 10..100%; 1561W floodlight with 3x LED unit of diecast aluminium, natural; length: 1.003mm / width: 651mm / height: 338mm; mounting bracket, of diecast aluminium, uncoated, natural, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE; ball protection: ball impact resistant, only for outdoor installations in the designated locations, permissible operating ambient temperature: -45..+55°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
Floodlight FL 11
LED, direct asymmetric distribution, surface-mounted, to supporting structure, to the ceiling, to the cross arm
Lamps: 1x LED
Order No.: 5XA779729X02FB
