5XH8H75N08SA

Order No.: 5XH8H75N08SA

Article mast luminaire

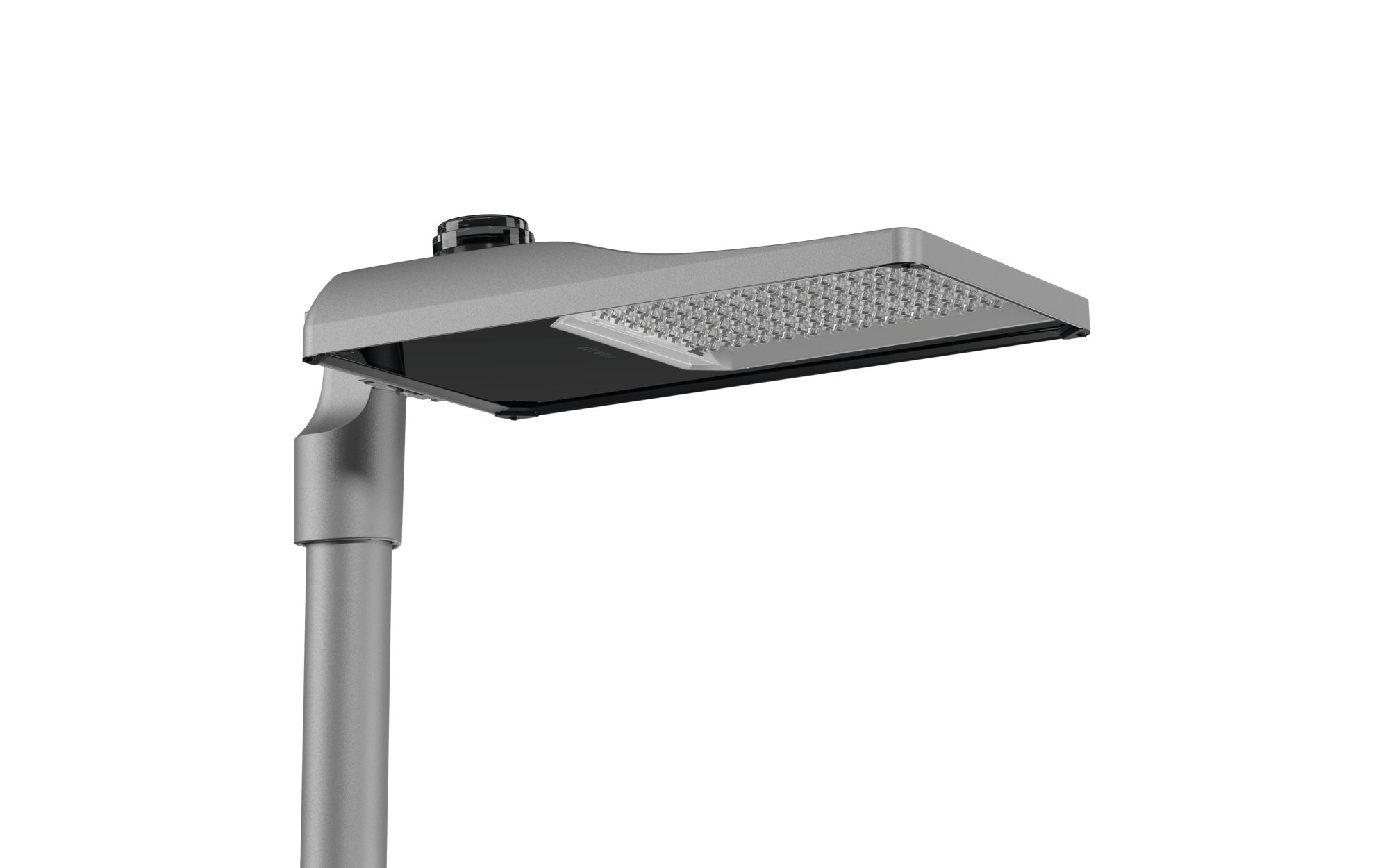

Product name Streetlight SL 31 maxi
Lamp LED
Rated luminous flux 22010lm
Luminous efficacy 106lm/W
Colour temperature 2200K
Colour rendering CRI > 70
P_nom begin service life 209
P_nom end service life 233
P_red at 50% lumin. flux 88
Service life 100000h (L93/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 12.0kg

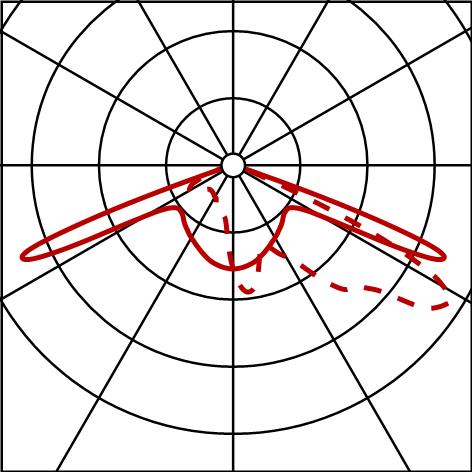

Streetlight SL 31 maxi NEMA (7pin), Desk-Remote mast luminaire for post-top, side-entry; light control with lens of PMMA; light distribution: PL52, direct asymmetric distribution, for standard-compliant lighting for roads and squares; LED: luminous flux: 22.010lm, light colour: 722, colour temperature: 2200K; luminous efficacy: 105,5lm/W; control: pre-setting: linear dimming characteristic, flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, intelligent temperature release in ECG and LED module, overheat protection; luminaire housing, of diecast aluminium, Siteco® metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944; cover of toughened safety glass, transparent, opened without tools; mast flange of diecast aluminium, Siteco® metallic grey (DB 702S), spigot size: 76/60mm, mast flange included unmounted; with cable H07RN-F 3x 1.5mm², cable length: 14,5m, connection cable pre-assembled; mains connection: 220..240V, AC, 50/60Hz; power consumption (at start of service life): 208,6W / (at end of service life): 233,1W / (with reduced operation 50%): 88W; protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); impact resistance: IK10; certification: CE, ENEC, ENEC+, VDE, UKCA; permissible operating ambient temperature for outdoor applications: -40..+50°C; packaging unit: 1 piece
