Article mast luminaire
Product name Small Bell
Lamp LED
Rated luminous flux 1640lm
Luminous efficacy 124lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 13
Pnom end service life 14
Pred at 50% lumin. flux 7
Service life 80000h (L97/B10) at AT = 25°C
Protection rating IP54
Impact resistance IK09
Weight 5.3kg

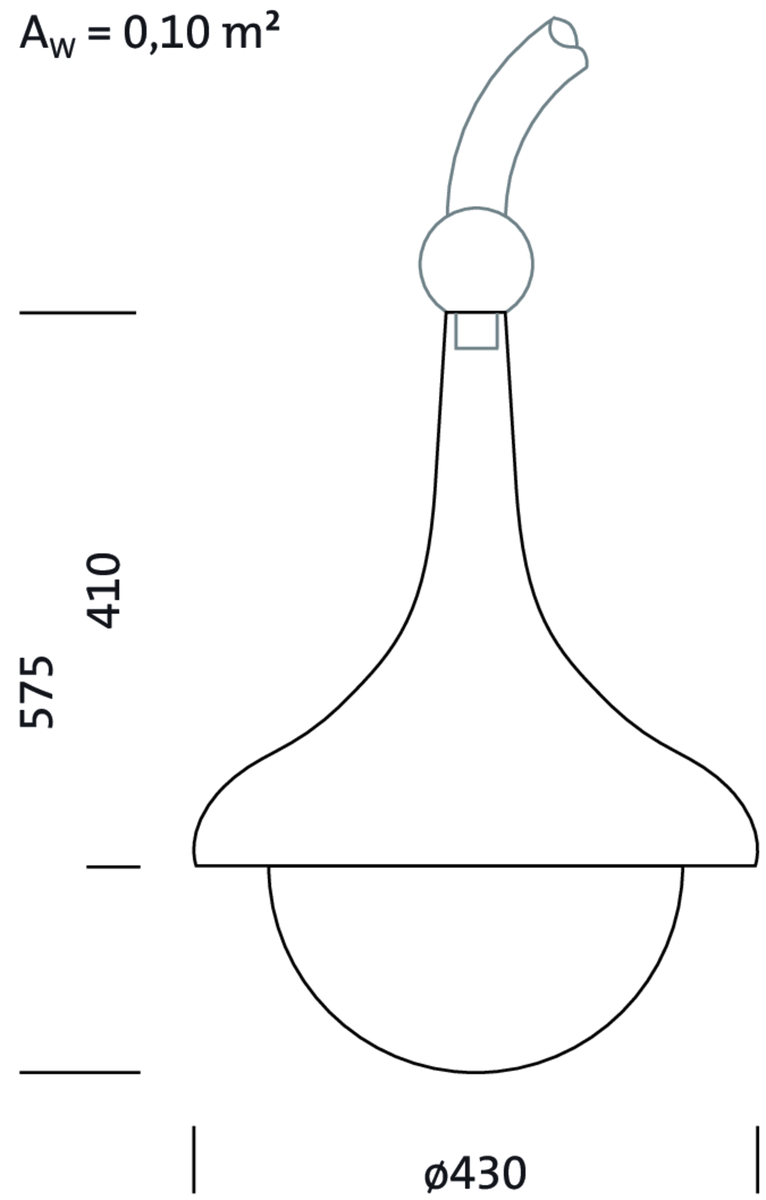

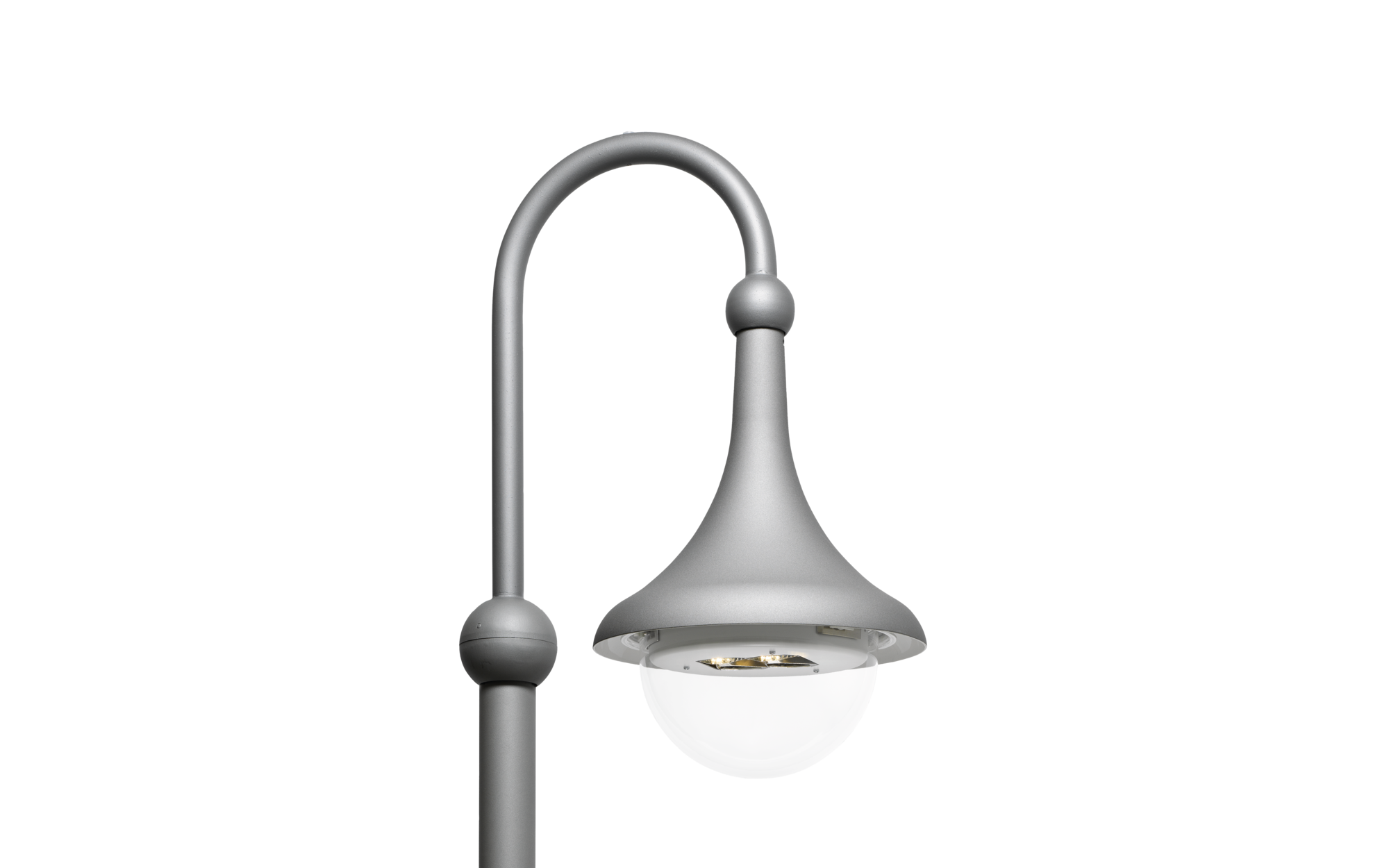

Small Bell, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, aluminium vaporised, primary optical cover: enclosure, of PMMA, transparent, light distribution: ST1.2a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: suspended mounting, LED, High Power LED, rated luminous flux: 1.640lm, luminous efficacy: 124lm/W, light colour: 730, colour temperature: 3000K, control gear: Plus, control: flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, digital communication interface, power reduction, electronic power reduction, mains connection: 230..240V, AC, 50/60Hz, start of lifetime: 13W, end of service life: 14W, reduction: 7W, luminaire housing, bell-shaped, of glass-fibre reinforced polyester, coated, Siteco® metallic grey (DB 702S), please order curved mast extension separately, diameter: 430mm, height: 575mm, mounting height: 2.5..4.0m, protection rating (complete): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK09, standard-compliant lighting for roads and squares, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

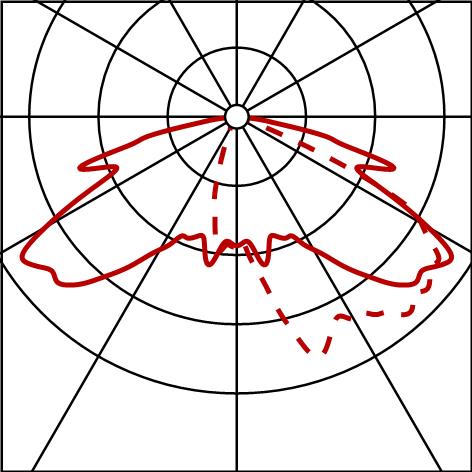

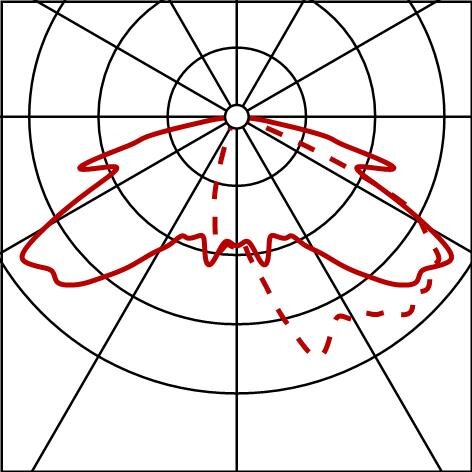

Photometric report / planning data
SmBell
ST1.2a,LED1640lm730,Plus,transp
Lamps: 1x LED
Order No.: 5XA1573E1B108
