Article floodlight

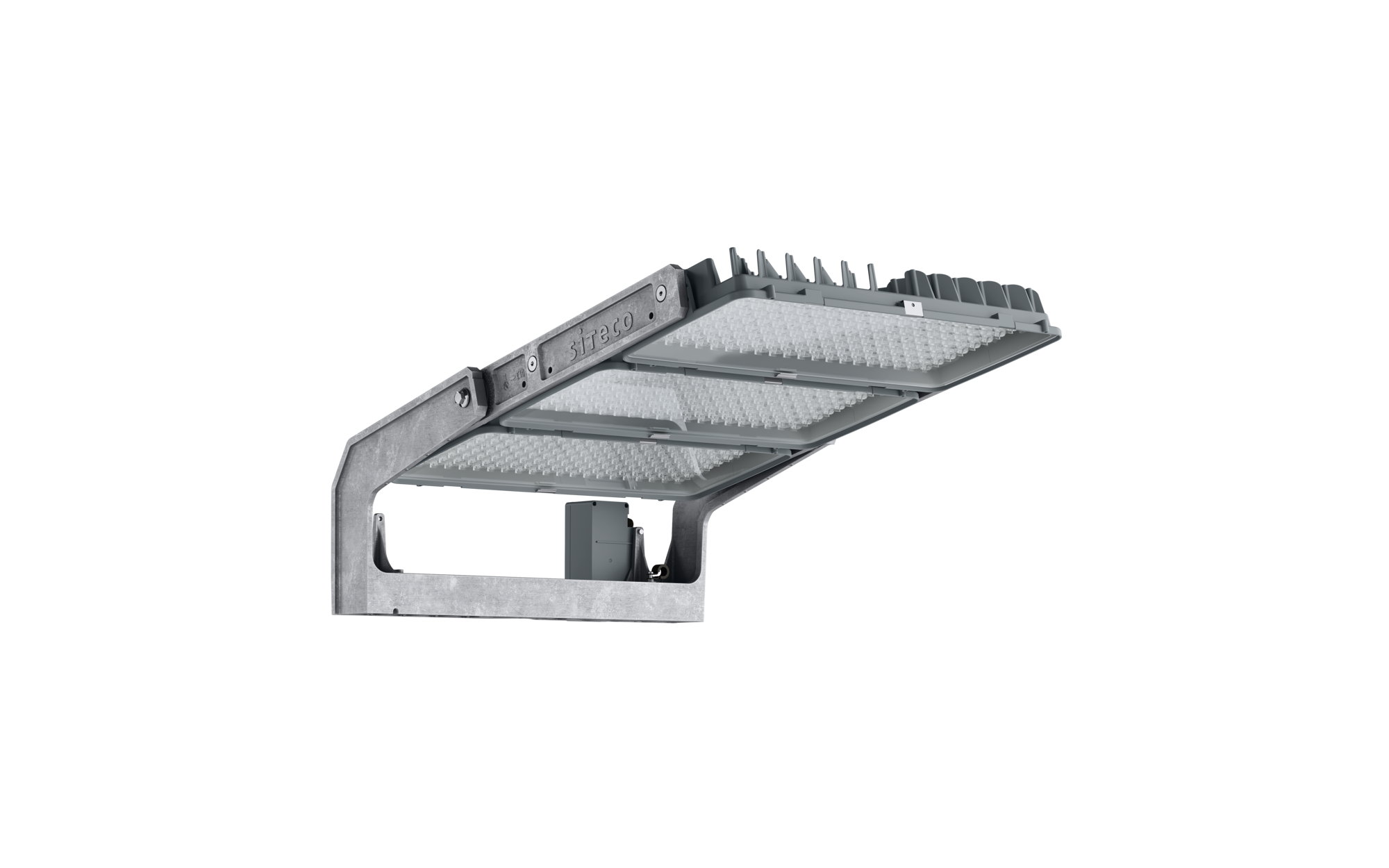

Product name Floodlight FL 11 maxi pro Remote
Lamp LED
Rated luminous flux 132400lm
Luminous efficacy 110lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Rated input power 1200W
Protection rating IP66
Weight 30.6kg

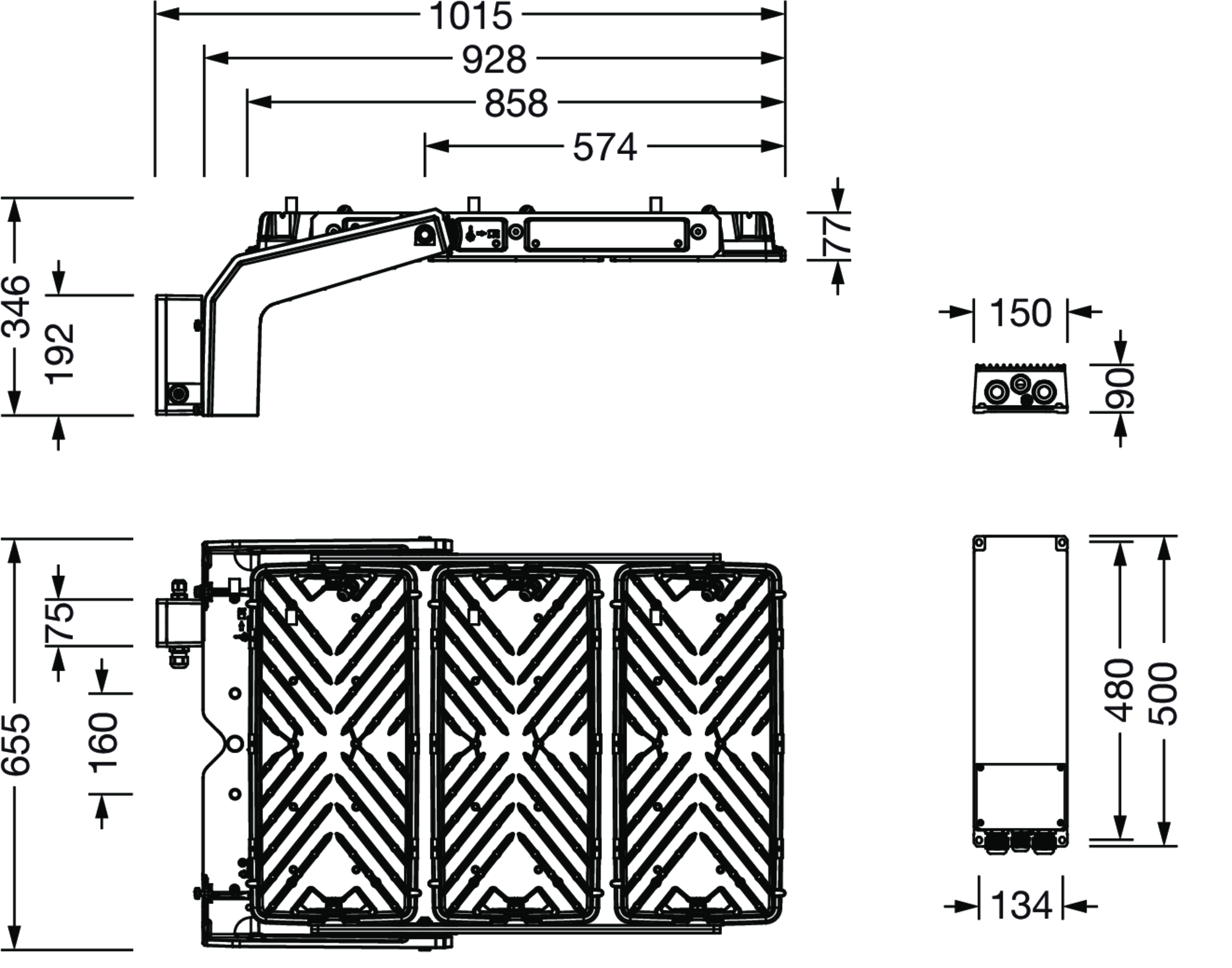

Floodlight FL 11 maxi pro Remote floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: PL33TBLC, asymmetric direct distribution, LED; colour temperature: 4000K, rated luminous flux: 132.400lm, colour rendering: CRI > 70, light colour: 740; luminous efficacy: 110lm/W; brightness control: DMX+RDM; with terminal, 8-pole, max. 2.5mm², mains connection: 220..240V/380..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, service life up to 100,000h L90. Typical operating time: 1000h per year, ECG replaceable separately, LED unit replaceable without ESD environment, dustproof LED module, dimming range 10..100%; 1200W floodlight with 3x LED unit of diecast aluminium, natural; length: 1.003mm / width: 651mm / height: 338mm; mounting bracket, of diecast aluminium, uncoated, natural, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE; ball protection: ball impact resistant, permissible operating ambient temperature: -40..+25°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece
Downloads
Technische Produktinformationen
- Montageanleitung (PDF)
- Montageanleitung (PDF)
- Datenblatt ausführlich (PDF)
- Lichttechnischer Prüfbefund / Planungsdaten
Daten für Anwendungsprogramme
Produktdetails
Lichttechnischer Prüfbefund / Planungsdaten
Floodlight FL 11

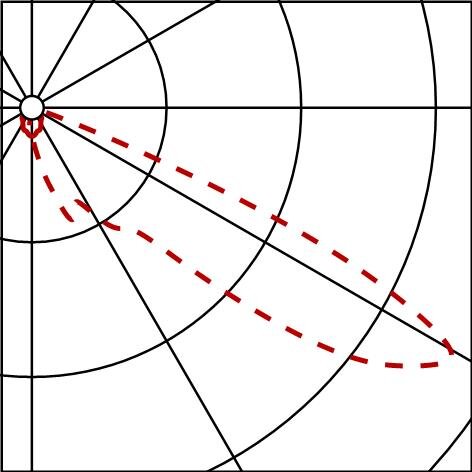

LED, direct asymmetric distribution, surface-mounted, to supporting structure, to the ceiling, to the cross arm
Lamps: 1x LED
Bestellnr.: 5XA779726X01KB
