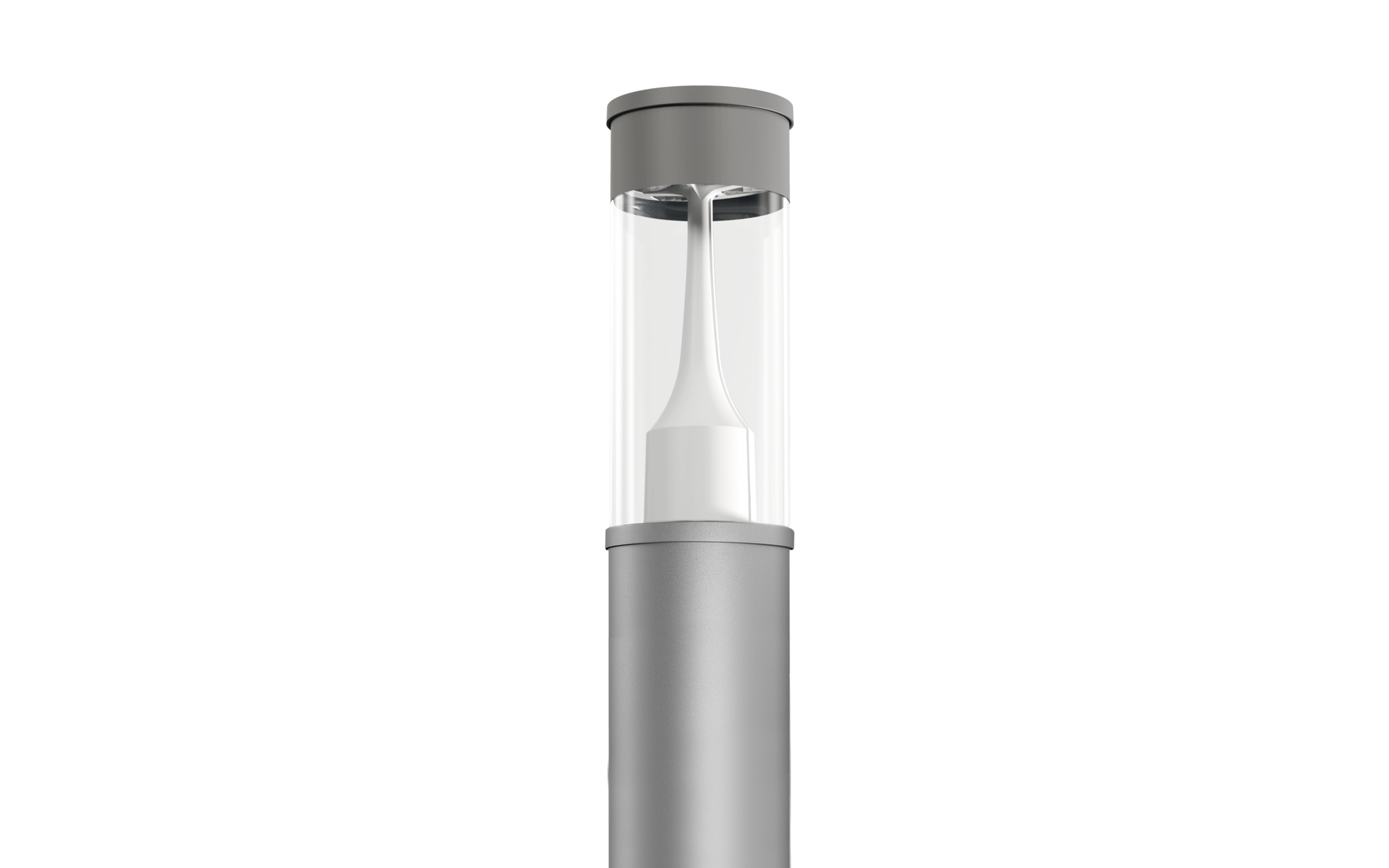

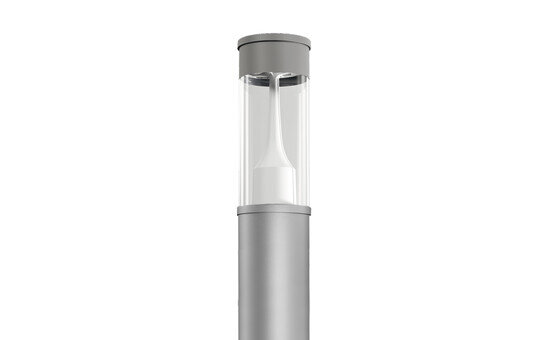

City-Light 400 iQ, P1.0a, highly asymmetric extremely wide distribution, transparent, partly coated, Power

Bestellnr.: 5XA5305LF14HP

Article light pillar
Product name City-Light 400 iQ
Lamp LED
Rated luminous flux 4910lm
Luminous efficacy 146lm/W
Colour temperature 4000K
Colour rendering CRI > 70
P_nom begin service life 34
P_nom end service life 36
P_red at 50% lumin. flux 15
Service life 100000h at AT = 25°C
Protection rating IP65
Weight 31.0kg

City-Light 400 iQ, light pillar, Module 540 iQ-SR, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, structured, primary optical cover: cover, of PMMA, transparent, partly coated, light distribution: P1.0a, primary light characteristic: strongly asymmetric, LED, High Power LED, rated luminous flux: 4.910lm, luminous efficacy: 146lm/W, light colour: 740, colour temperature: 4000K, control gear: iQ Street-Remote, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), with terminal, 6-pole, max. 2.5mm², mains connection: 230..240V, AC, 50/60Hz, start of lifetime: 34W, end of service life: 36W, reduction: 15W, luminaire housing, cylindrical, of extruded aluminium section, coated, Siteco® metallic grey (DB 702S), length: 4.694mm, diameter: 200mm, Module 540 iQ-SR, traffic white (RAL 9016), equipment: Power, protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, packaging unit: 1 piece

mehr anzeigenweniger anzeigen

Downloads

Technische Produktinformationen

Daten für Anwendungsprogramme

Produktdetails

Key data

Product type light pillar
Product name City-Light 400 iQ
Order No. 5XA5305LF14HP

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Cover cover, transparent, partly coated

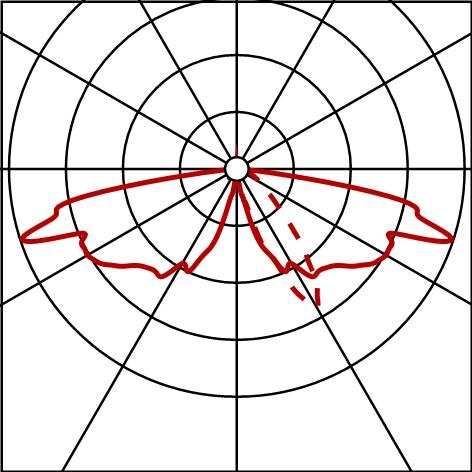

Light distribution P1.0a
Beam angle extremely wide distribution
Symmetry strongly asymmetric

Lamps

Lamps with High Power LED, LED
Rated luminous flux 4910lm
Luminous efficacy 146lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power begin service life 34
Rated input power end service life 36
Rated input power at 50% lumin. flux 15

Operating device

Control gear ECG iQ
Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP65
Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing extruded aluminium section, coated, Siteco® metallic grey (DB 702S), cylindrical
Colour specification Siteco® metallic grey (DB 702S)
Colour specification traffic white (RAL 9016)
Cover cover of PMMA

Electrical connection

Connection terminal, 6-pole, max. 2.5mm²
Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

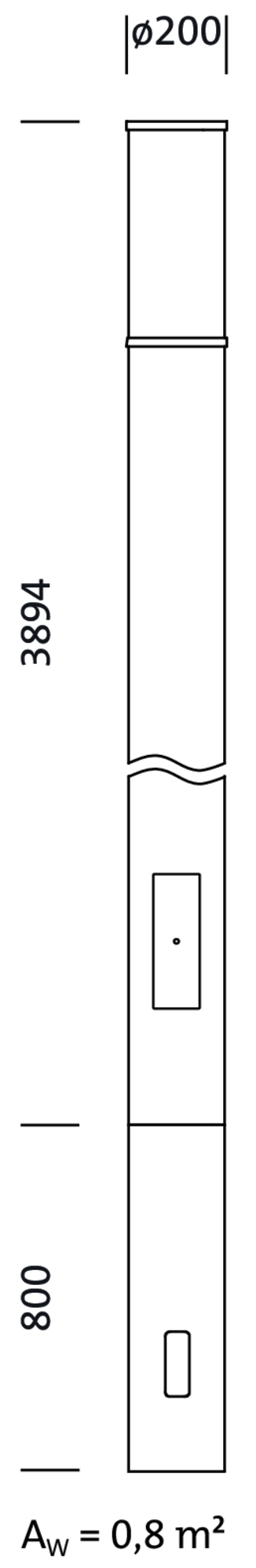

Dimensions, Weight

Length 4694mm
Diameter 200mm
Weight 31.0kg

Service life

Rated service life 100000h at AT = 25°C

Key data

Product type
light pillar

Product name
City-Light 400 iQ

Order No.
5XA5305LF14HP

Lighting technology

Light control
3 zone facetted reflector of plastic, silver coated, highly specular

Cover
cover, transparent, partly coated

Light distribution
P1.0a

Beam angle
extremely wide distribution

Symmetry
strongly asymmetric

Lamps

Lamps
with High Power LED, LED

Rated luminous flux
4910lm

Luminous efficacy
146lm/W

Colour temperature
4000K

Colour rendering index
CRI > 70

Light colour
740

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

Rated input power begin service life
34

Rated input power end service life
36

Rated input power at 50% lumin. flux
15

Operating device

Control gear
ECG iQ

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic
