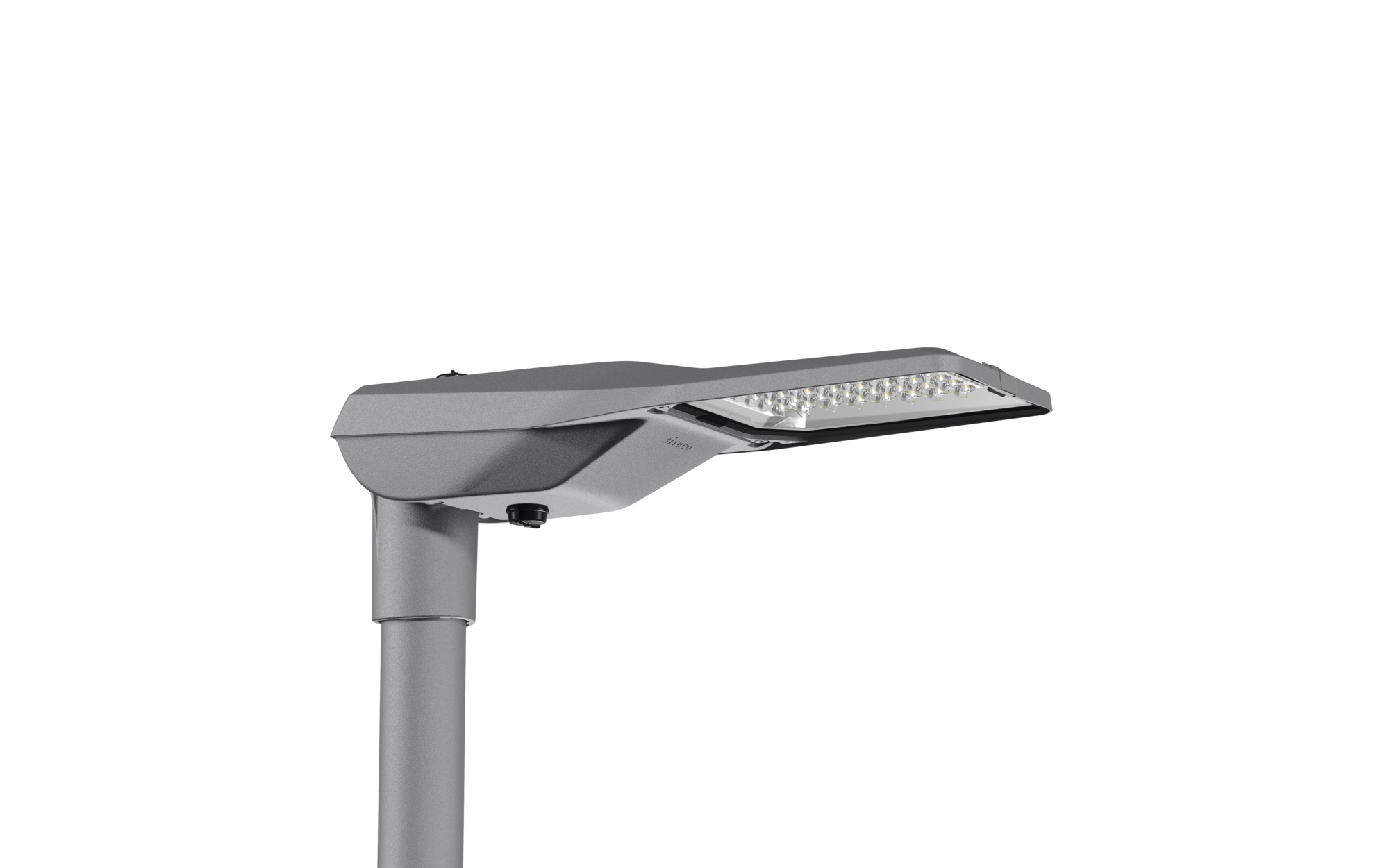

Streetlight SL 21 mini, direct asymmetric wide distribution, P0.8aB, with Smart Interface below and above

Close
Order No.: 5XE2R33T08JB
Remember articleRemember article

Article mast luminaire
Product name Streetlight SL 21 mini
Lamp LED
Rated luminous flux 11230lm
Luminous efficacy 127lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 89
Pnom end service life 92
Pred at 50% lumin. flux 41
Service life 100000h (L96/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 5.6kg

Streetlight SL 21 mini, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: P0.8aB, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, LED, High Power LED, rated luminous flux: 11.230lm, luminous efficacy: 127lm/W, light colour: 730, colour temperature: 3000K, control gear: D4i, control: pre-setting: logarithmic dimming characteristic, flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, overheat protection, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 89W, end of service life: 92W, reduction: 41W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944, multi-level sealing system, sealing non-destructively replaceable, inclination adjustable: 0°, 5°, 10°, 15°, please order mast flange separately, length: 628mm, width: 235mm, height: 110mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, mounting height: 4..8m, Smart Interface below and above, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type mast luminaire
Product name Streetlight SL 21 mini
Order No. 5XE2R33T08JB

Lighting technology

Light control lens of PMMA
Cover cover, transparent
Light distribution P0.8aB
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 11230lm
Luminous efficacy 127lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Rated input power begin service life 89
Rated input power end service life 92
Rated input power at 50% lumin. flux 41

Operating device

Control D4i, Smart Interface below and above
Equipment overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK10
Temperature range (operation) -40..+50°C
Supplement standard-compliant lighting for roads and squares
Corrosion protection corrosivity category C5 high according to DIN EN ISO 12944
Certification, designation CE, ENEC, ENEC+, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable: 0°, 5°, 10°, 15°, sealing non-destructively replaceable, multi-level sealing system
Colour specification Siteco® metallic grey (DB 702S)
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location side-entry, post-top, on mast

Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

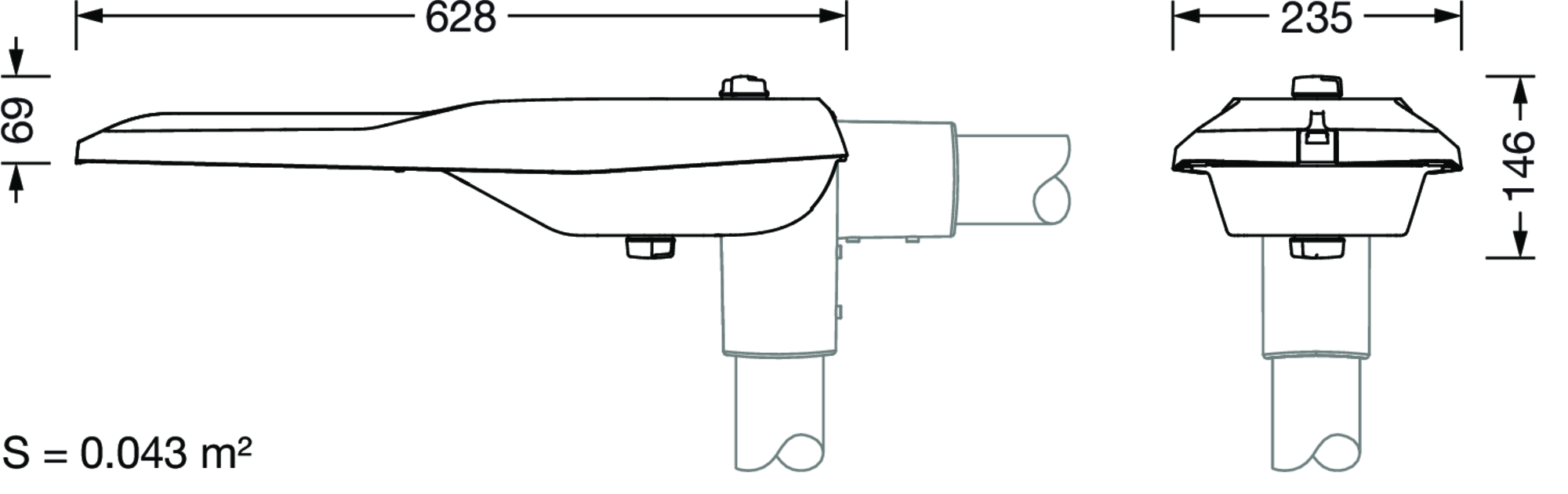

Dimensions, Weight

Length 628mm
Width 235mm
Height 110mm
Weight 5.6kg
Mast spigot mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1

Light emission

Light emission 0% at 0° inclination

Service life

Rated service life 100000h (L96/B10) at AT = 25°C

Product type
mast luminaire

Product name
Streetlight SL 21 mini

Order No.
5XE2R33T08JB

Light control
lens of PMMA

Cover
cover, transparent

Light distribution
P0.8aB

Beam angle
wide distribution

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
11230lm

Luminous efficacy
127lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Rated input power begin service life
89

Rated input power end service life
92

Rated input power at 50% lumin. flux
41

Control
D4i, Smart Interface below and above

Equipment
overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: logarithmic dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK10

Temperature range (operation)
-40..+50°C

Supplement
standard-compliant lighting for roads and squares

Corrosion protection
corrosivity category C5 high according to DIN EN ISO 12944

Certification, designation
CE, ENEC, ENEC+, VDE

luminaire housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable: 0°, 5°, 10°, 15°, sealing non-destructively replaceable, multi-level sealing system

Colour specification
Siteco® metallic grey (DB 702S)

Cover
cover of toughened safety glass

Mounting method, mounting location
side-entry, post-top, on mast

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Length
628mm

Width
235mm

Height
110mm

Weight
5.6kg

Mast spigot
mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1

Light emission
0% at 0° inclination

Rated service life
100000h (L96/B10) at AT = 25°C

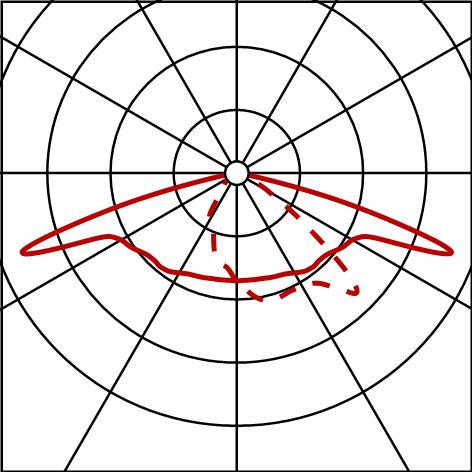

Photometric report / planning data

SL21mn
P0.8aB,11230lm730,D4i,SIa/b
Lamps: 1x LED
Order No.: 5XE2R33T08JB

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
