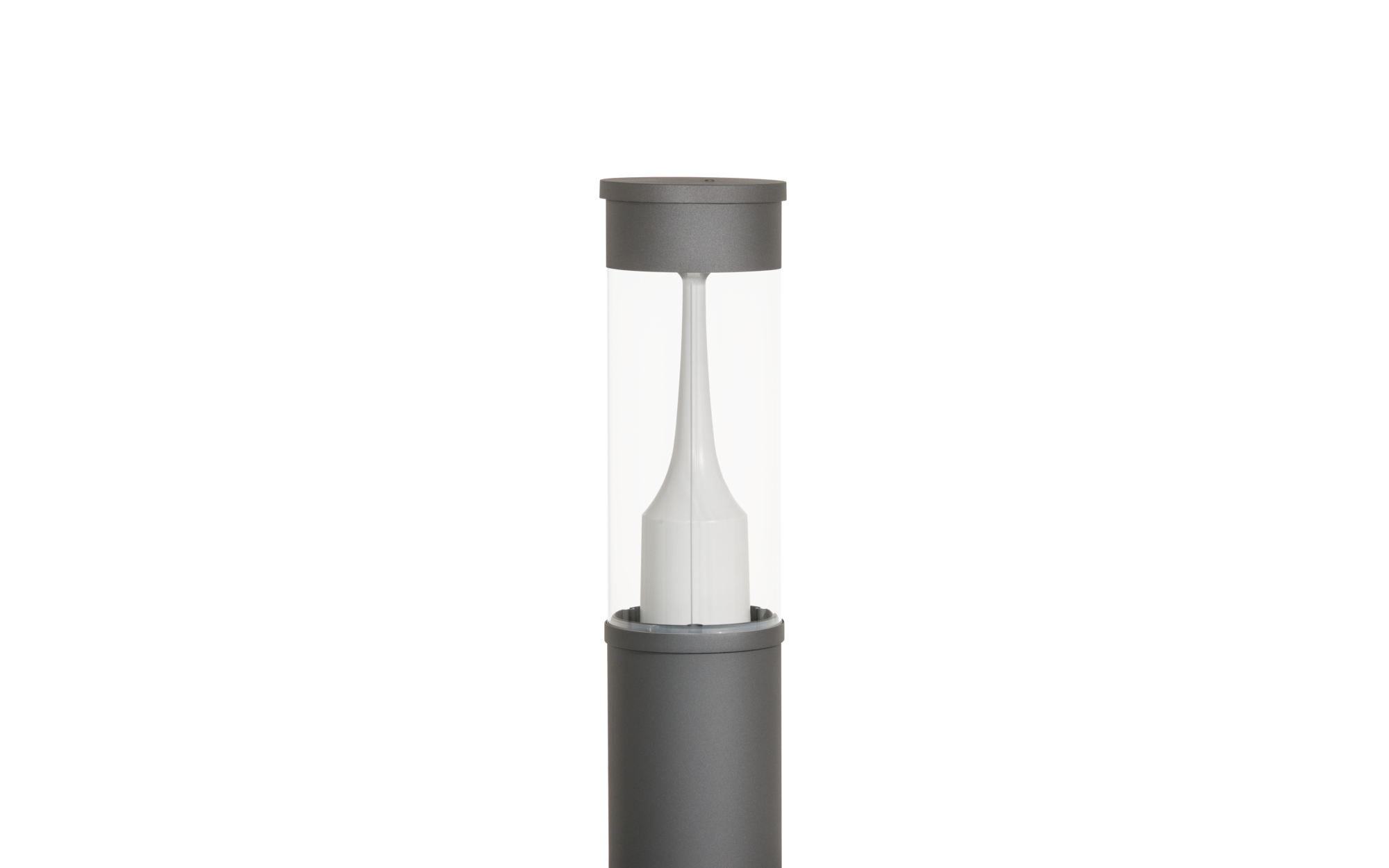

City-Light 260 iQ, P1.0a, highly asymmetric extremely wide distribution, transparent, partly coated, standard

Order No.: 5XA5295LF14H

Article light pillar
Product name City-Light 260 iQ
Lamp LED
Rated luminous flux 1510lm
Luminous efficacy 151lm/W
Colour temperature 4000K
Colour rendering CRI > 70
P_nom begin service life 10
P_nom end service life 10
P_red at 50% lumin. flux 5
Service life 100000h at AT = 25°C
Protection rating IP65
Weight 21.0kg

City-Light 260 iQ, light pillar, Module 540 iQ-SR, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, structured, primary optical cover: cover, of PMMA, transparent, partly coated, light distribution: P1.0a, primary light characteristic: strongly asymmetric, LED, High Power LED, rated luminous flux: 1.510lm, luminous efficacy: 151lm/W, light colour: 740, colour temperature: 4000K, control gear: iQ Street-Remote, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), with terminal, 6-pole, max. 2.5mm², mains connection: 230..240V, AC, 50/60Hz, start of lifetime: 10W, end of service life: 10W, reduction: 5W, luminaire housing, cylindrical, of extruded aluminium section, coated, Siteco® metallic grey (DB 702S), length: 2.600mm, diameter: 200mm, Module 540 iQ-SR, traffic white (RAL 9016), equipment: standard, protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, packaging unit: 1 piece

mehr anzeigenweniger anzeigen

Downloads

Technical product information

Data for applications

Product details

Key data

Product type light pillar
Product name City-Light 260 iQ
Order No. 5XA5295LF14H

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Cover cover, transparent, partly coated

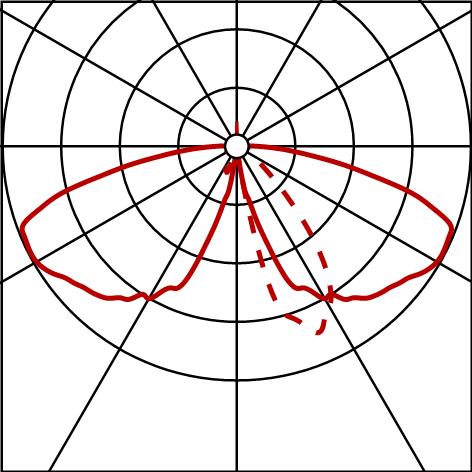

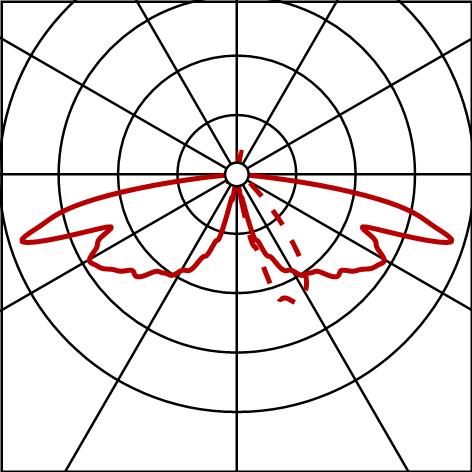

Light distribution P1.0a
Beam angle extremely wide distribution
Symmetry strongly asymmetric

Lamps

Lamps with High Power LED, LED
Rated luminous flux 1510lm
Luminous efficacy 151lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power begin service life 10
Rated input power end service life 10
Rated input power at 50% lumin. flux 5

Operating device

Control gear ECG iQ
Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP65
Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing extruded aluminium section, coated, Siteco® metallic grey (DB 702S), cylindrical
Colour specification Siteco® metallic grey (DB 702S)
Colour specification traffic white (RAL 9016)
Cover cover of PMMA

Electrical connection

Connection terminal, 6-pole, max. 2.5mm²
Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

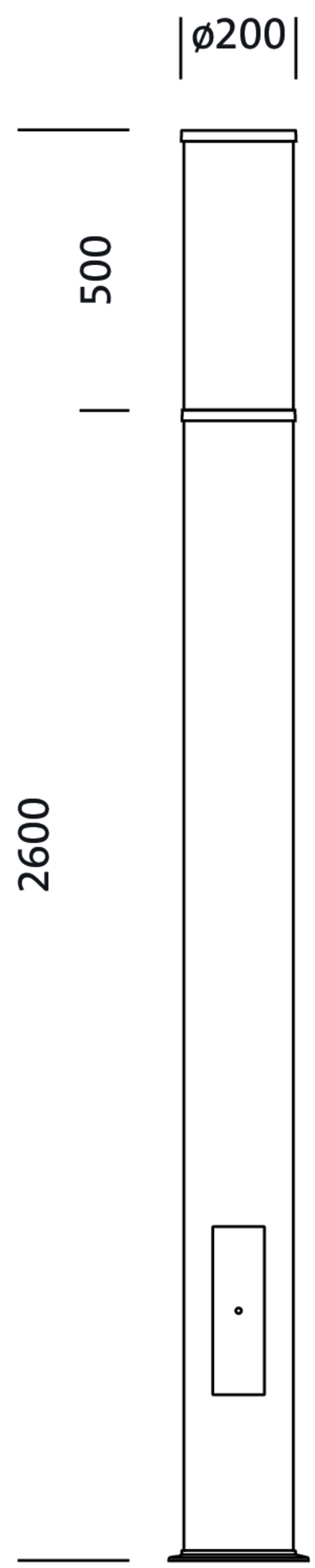

Dimensions, Weight

Length 2600mm
Diameter 200mm
Weight 21.0kg

Service life

Rated service life 100000h at AT = 25°C
