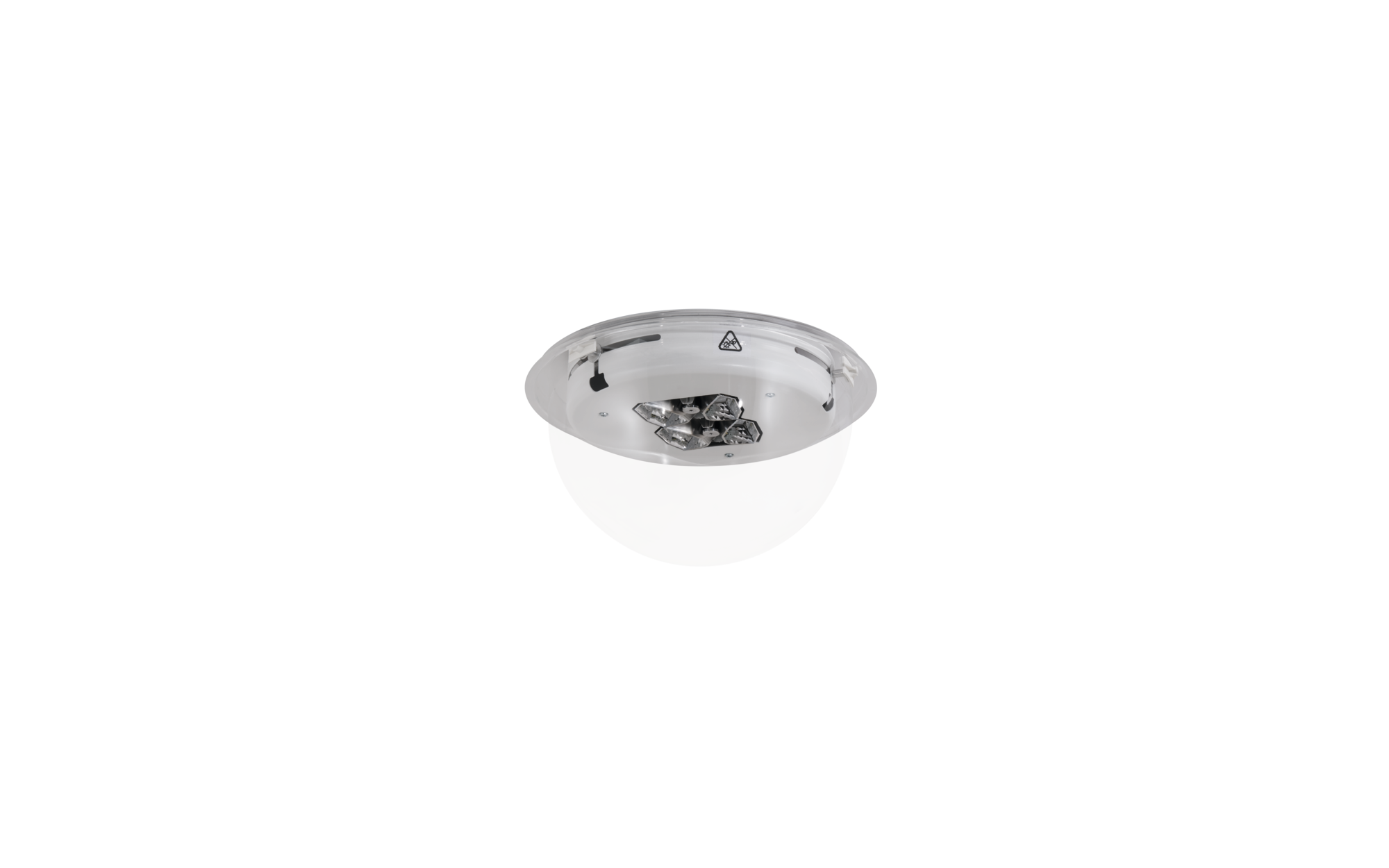

with ECG Plus, enclosure, transparent, for Small Bell

Close
Order No.: 5XA1573E1B1
Remember articleRemember article

Article electrics components group
Product name Small Bell
Lamp LED
Rated luminous flux 1640lm
Luminous efficacy 124lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 13
Pnom end service life 14
Pred at 50% lumin. flux 7
Weight 1.9kg

electrics components group, for Small Bell, control gear: ECG Plus, LED luminous flux: 1.640 lm, colour temperature: 3000K, mains connection: 230..240V, AC, 50/60Hz, start of lifetime: 13 W, end of service life: 14 W, reduction: 7 W, primary light characteristic: asymmetric, primary optical cover: enclosure, of PMMA, transparent, gear tray with cover, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE

Downloads

Technical product information
Data for applications

Product details

Key data

Product type electrics components group
Product name Small Bell
Order No. 5XA1573E1B1

Lighting technology

Light control 3 zone facetted reflector of plastic, aluminium vaporised
Cover enclosure, transparent
Light distribution ST1.2a
Beam angle wide distribution
Symmetry asymmetric distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 1640lm
Luminous efficacy 124lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Rated input power begin service life 13
Rated input power end service life 14
Rated input power at 50% lumin. flux 7

Operating device

Control gear ECG Plus
Control Plus
Equipment power reduction, digital communication interface, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation
Switching method electronic power reduction

Certificates, Standards

Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

Cover enclosure of PMMA

Electrical connection

Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance 6kV 1.2/50µs

Dimensions, Weight

Weight 1.9kg

Light emission

Light emission < 3%

Product type
electrics components group

Product name
Small Bell

Order No.
5XA1573E1B1

Light control
3 zone facetted reflector of plastic, aluminium vaporised

Cover
enclosure, transparent

Light distribution
ST1.2a

Beam angle
wide distribution

Symmetry
asymmetric distribution

Lamps
with High Power LED, LED

Rated luminous flux
1640lm

Luminous efficacy
124lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Rated input power begin service life
13

Rated input power end service life
14

Rated input power at 50% lumin. flux
7

Control gear
ECG Plus

Control
Plus

Equipment
power reduction, digital communication interface, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation

Switching method
electronic power reduction

Insulation class
insulation class II (safety insulation)

Certification, designation
CE, ENEC, VDE

Cover
enclosure of PMMA

Nominal voltage
230..240V, 50/60Hz, AC

Surge voltage resistance
6kV 1.2/50µs

Weight
1.9kg

Light emission
< 3%
