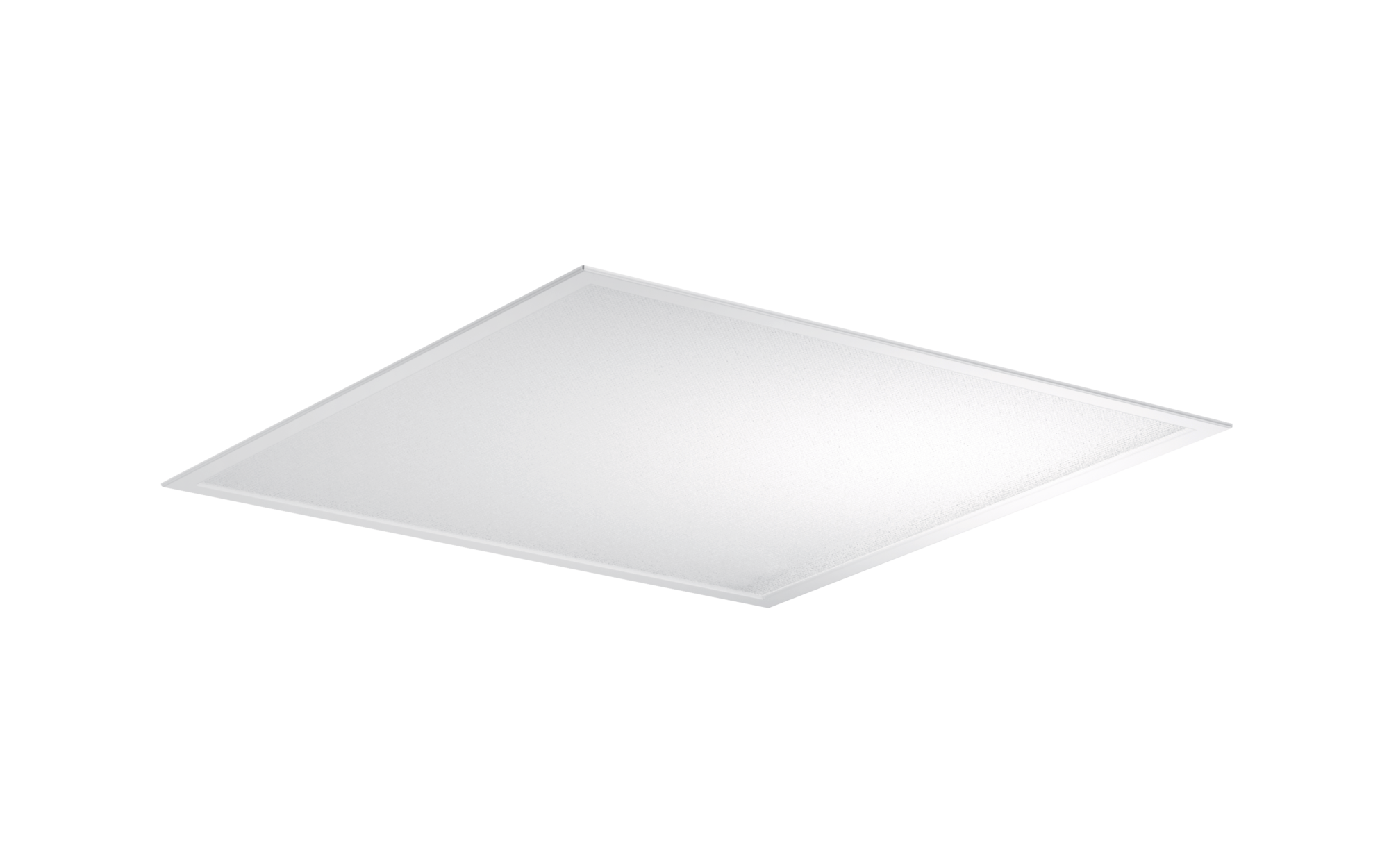

Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, Multilumen, for M600
Close
Article office luminaire
Product name Apollon® 31 square
Lamp LED
Rated luminous flux 3600lm
Luminous efficacy 130lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 27.5W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.8kg

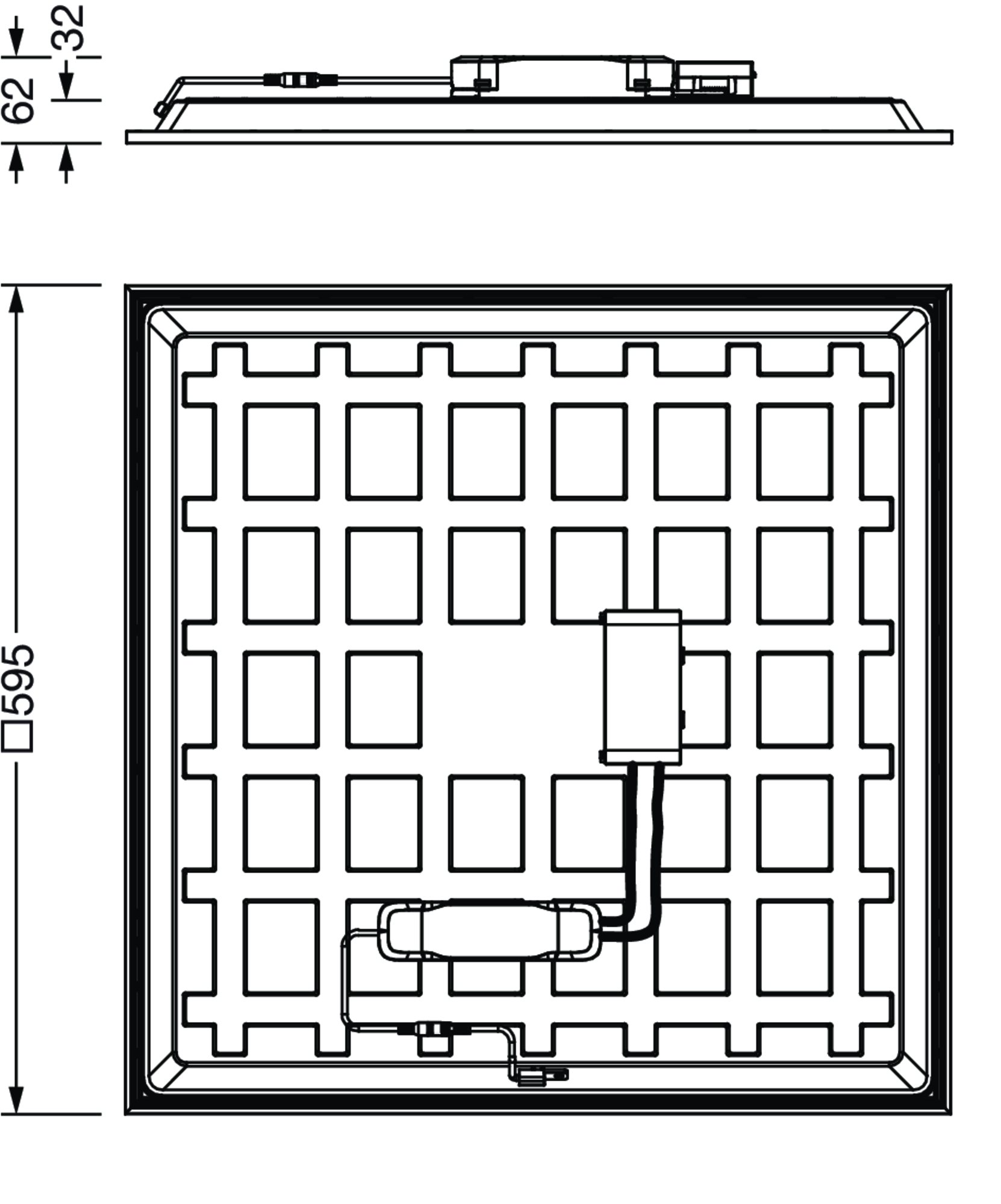

Apollon® 31 square, office luminaire, primary optical cover: micro prismatic cover, of PMMA, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 3.600lm, luminous efficacy: 130lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, Multilumen, with terminal, 5-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 27.5W, suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22, housing, of aluminium, traffic white (RAL 9016), module: M600, length: 595mm, width: 595mm, height: 62mm, recess depth: 180mm, housing upper side, of sheet steel, coated, protection rating (complete): IP20, protection rating (on room side): IP40, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, impact resistance: IK03, permissible operating ambient temperature: -20..+40°C, permissible storage temperature: -20..+60°C, standard: EN 60598-2-22, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

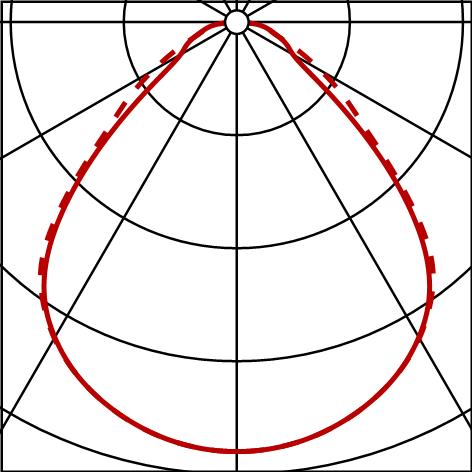

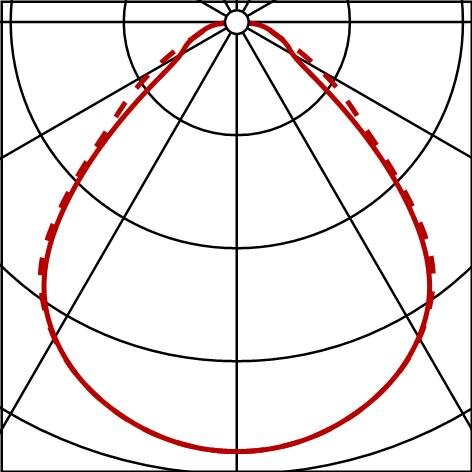

Photometric report / planning data
Apollon® 31 square
office luminaire, traffic white (RAL 9016), DALI 2, Multilumen, 3600lm, 830, 595x595mm, for M600, Connection: terminal
Lamps: 1x LED
Order No.: 51MP12WD2342
