Modario® 31 Gen.2, symmetric wide distribution, IP20, AC, with self-test function according to 60598-2-22, 2-rod battery, with self-contained supply, 3h

Close
Order No.: 53BM812DV4F5D23S
Remember articleRemember article

Article luminaire insert
Product name Modario® 31 Gen.2
Lamp LED
Rated luminous flux 15730lm
Luminous efficacy 173lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 91W
Service life 70000h (L80/B50) at AT = ta max, 70000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 2.0kg

Modario® 31 Gen.2, luminaire insert, of sheet steel, coil coated, white, length: 1.495mm, width: 81mm, height: 82mm, 5x system unit, system units: 299mm, LED rated luminous flux: 15.730lm, light colour: 840, control gear: DALI 2, with plug, 6-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, rated input power: 91W, for emergency light function, through-wiring accessed according to module size, converter,control gear: single battery element, battery: LiFePO4, 9Ah, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP20, protection rating (LED compartment): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, impact resistance: IK03, permissible ambient temperature for indoor applications: +5..+30°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type luminaire insert
Product name Modario® 31 Gen.2
Order No. 53BM812DV4F5D23S

Component 1

Lighting technology
Cover cover, prismatic structure, frosted
Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 28
UGR viewing direction along lateral luminaire axis ≤ 28

Lamps
Lamps with LED
Rated luminous flux 15730lm
Luminous efficacy 173lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 91W
Supplement for emergency light function

Operating device
Control DALI 2

Component 2

Lamps
Supplement with self-test function according to 60598-2-22, 2-rod battery

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment) IP50
Insulation class insulation class I (protective earthing)
Impact resistance IK03
Temperature range (operation) +5..+30°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting
Standard EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

PS LED insert sheet steel, coil coated, white, 5x system unit, for tool-free mounting of luminaire in Modario® trunking rail
Colour specification white
Cover cover of PMMA

Mounting

Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 6-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC

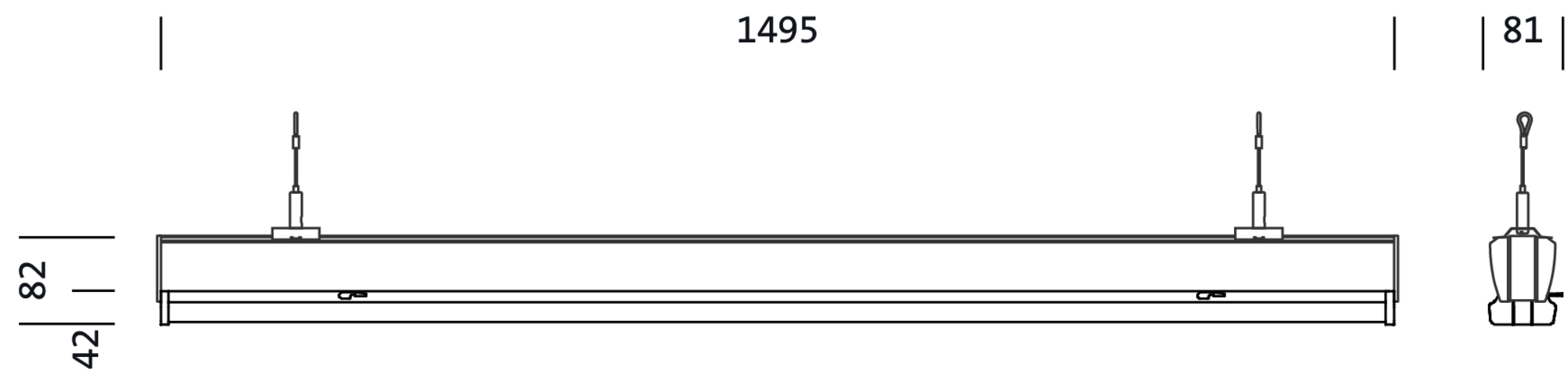

Dimensions, Weight

System units 5x SE
Length 1495mm
Width 81mm
Height 82mm
Weight 2.0kg

Service life

Rated service life 70000h (L80/B50) at AT = 25°C, 70000h (L80/B50) at AT = ta max

Product type
luminaire insert

Product name
Modario® 31 Gen.2

Order No.
53BM812DV4F5D23S

Lighting technology

Cover
cover, prismatic structure, frosted

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 28

UGR viewing direction along lateral luminaire axis
≤ 28

Lamps

Lamps
with LED

Rated luminous flux
15730lm

Luminous efficacy
173lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
91W

Supplement
for emergency light function

Operating device

Control
DALI 2

Lamps

Supplement
with self-test function according to 60598-2-22, 2-rod battery

Operating device

Control gear
single battery element

Battery
LiFePO4

Nominal operating time
3h

Protection rating
IP20

Protection rating (lamp compartment)
IP50

Insulation class
insulation class I (protective earthing)

Impact resistance
IK03

Temperature range (operation)
+5..+30°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting

Standard
EN 60598-2-22

Certification, designation
CE, UKCA

PS LED insert
sheet steel, coil coated, white, 5x system unit, for tool-free mounting of luminaire in Modario® trunking rail

Colour specification
white

Cover
cover of PMMA

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Connection
plug, 6-pole, with phase selection

Nominal voltage
220..240V, 50/60Hz, AC

System units
5x SE

Length
1495mm

Width
81mm

Height
82mm

Weight
2.0kg

Rated service life
70000h (L80/B50) at AT = 25°C, 70000h (L80/B50) at AT = ta max

Photometric report / planning data

Mod31G2
LI,wd,15730lm840,DA2,wh,5su
Lamps: 1x LED, factory setting AC mode: AC-mode
Order No.: 53BM812DV4F5D23S

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES

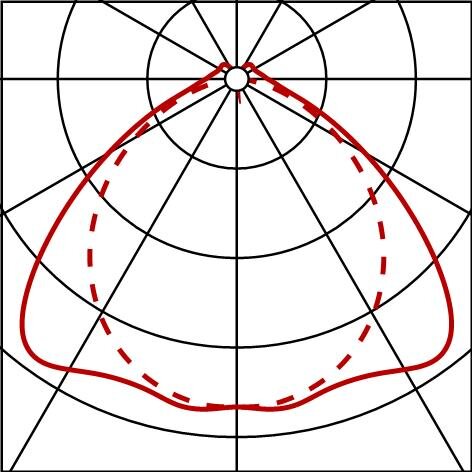

Product versions/accessory

Mod31G2
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 53BM812DV4F5D23S

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
