Key data

Product type luminaire insert

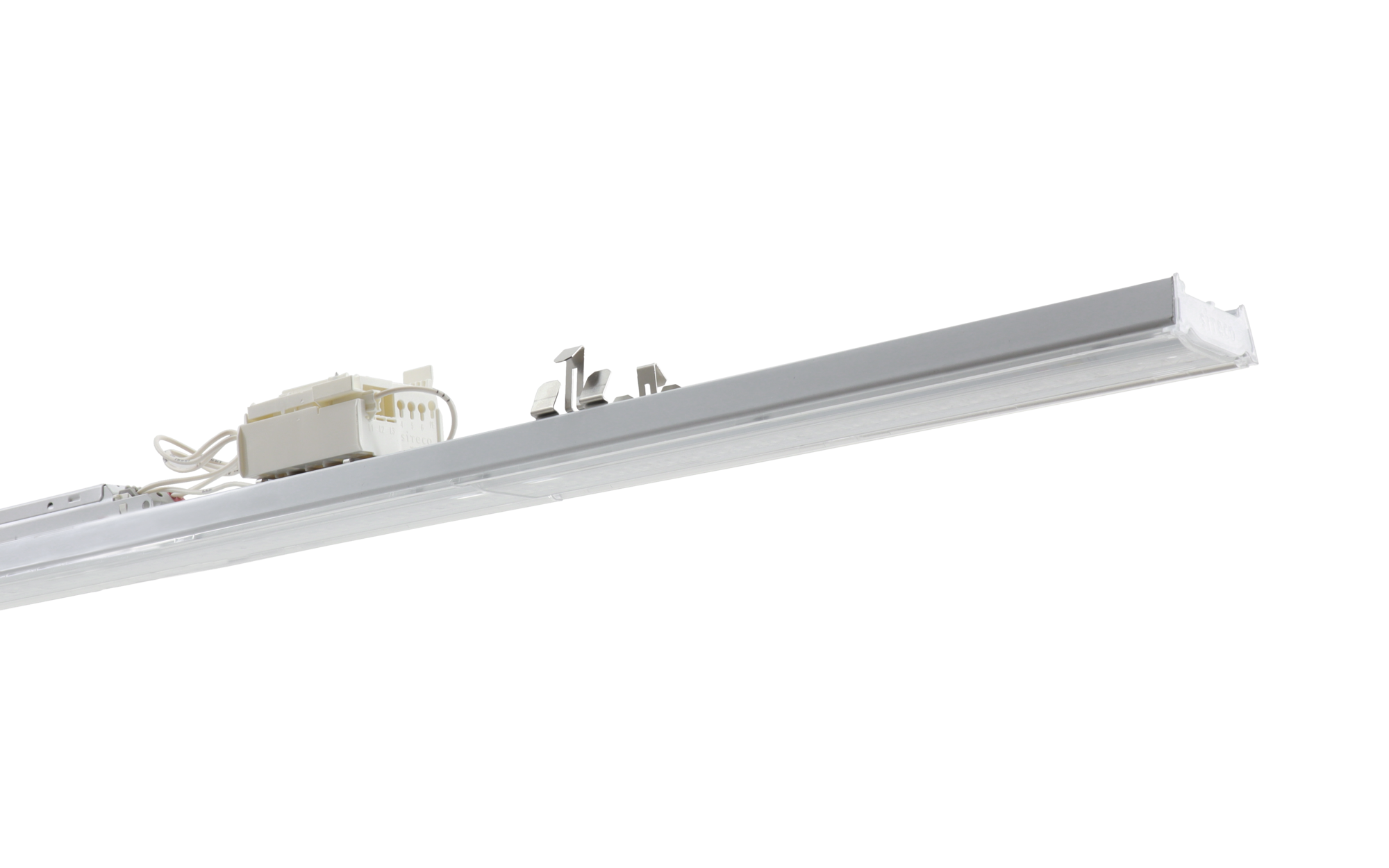

Product name Licross® 11 Recessed MO
Order No. 51TE10CN49XG

Lighting technology

Cover cover

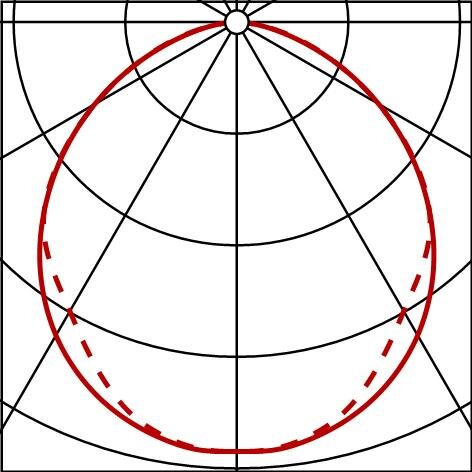

Beam angle diffuse distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 28
UGR viewing direction along lateral luminaire axis ≤ 28

Lamps

Lamps with LED
Rated luminous flux 9050lm
Luminous efficacy 184lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power begin service life 49
Rated input power end service life 55
Supplement internal wiring halogen-free

Operating device

Control ON/OFF Multilumen, CLOi

Certificates, Standards

Protection rating IP54
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D if used in an environment with non-conductive dust loads with corresponding accessories
Temperature range (operation) -35..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

Licross® LED insert sheet steel, galvanised, coil coated, white
Colour specification white
Cover cover of PMMA

Mounting

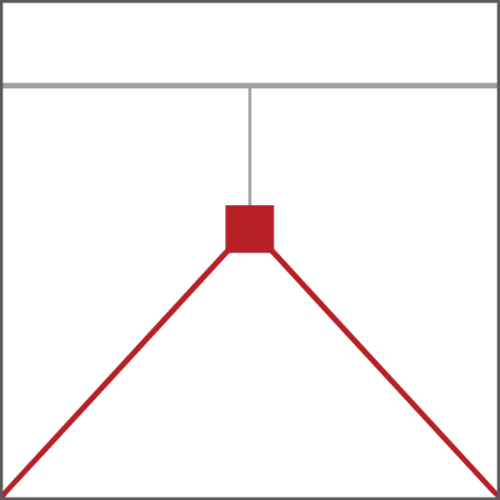

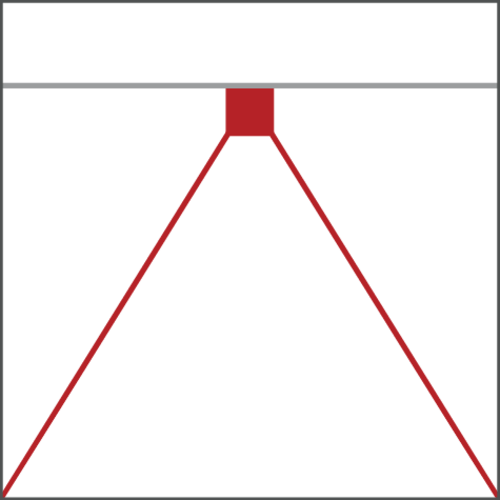

Mounting method, mounting location slip-in mounting, in the Licross® trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 3-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC

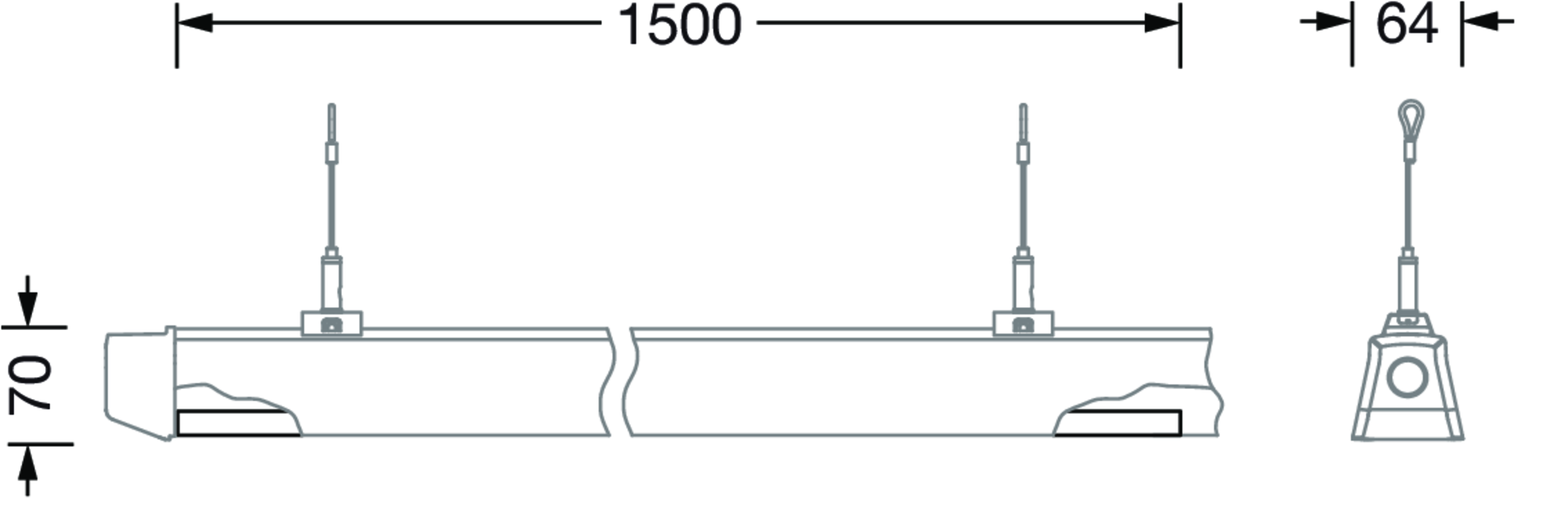

Dimensions, Weight

Length 1500mm
Width 66mm
Height 67mm
Weight 1.4kg

Service life

Rated service life 100000h (L100) at AT = 25°C
