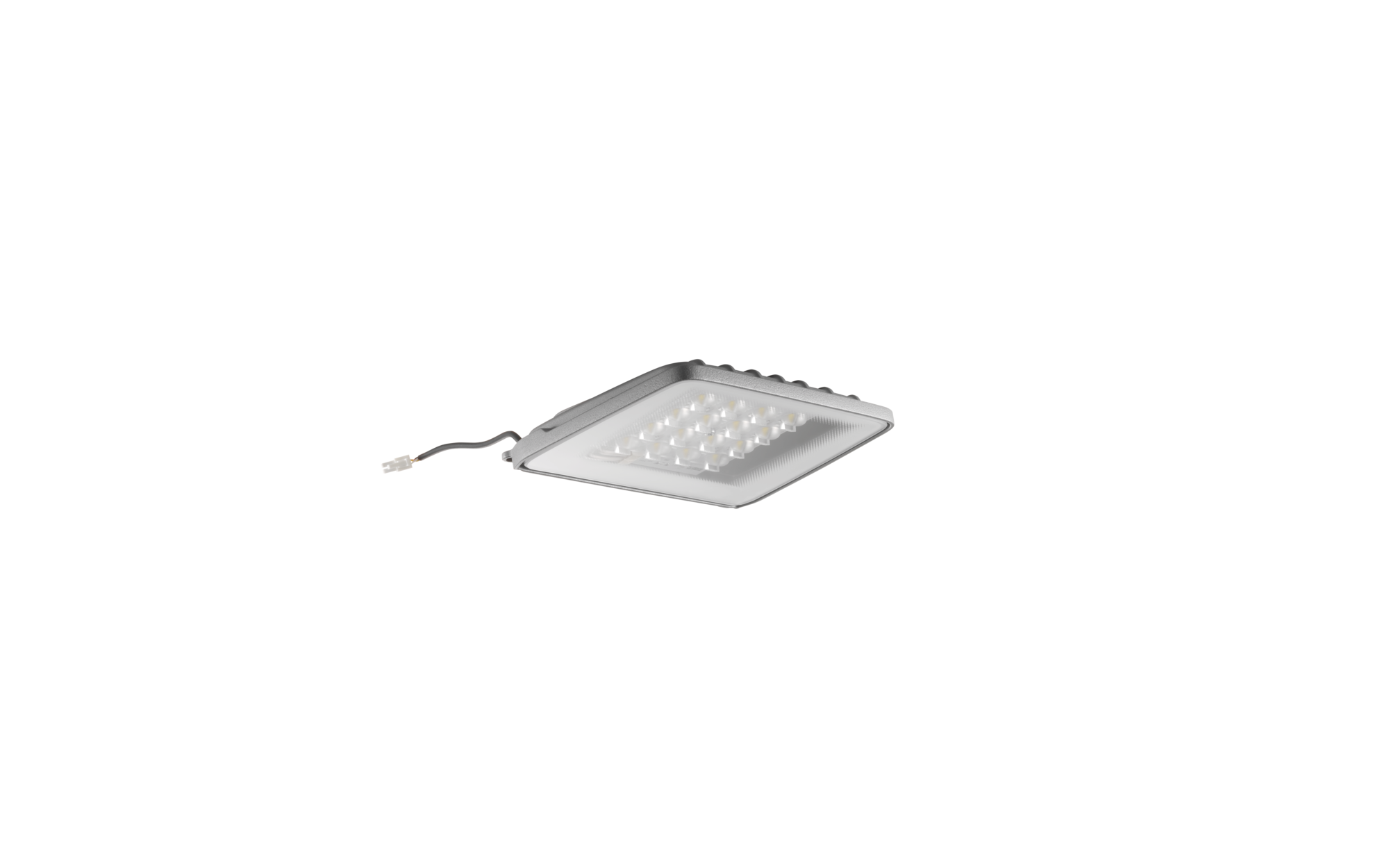

Floodlight FL 20 micro, LED unit, direct rotationally symmetric distribution, RS17

Schließen
Bestellnr.: 5XA7660A1B00C
Artikel merkenArtikel merken

Article LED unit
Product name Floodlight FL 20 micro
Lamp LED
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 27W
Protection rating IP66
Weight 1.1kg

Floodlight FL 20 micro, LED unit, primary light control with lens, of plastic, primary optical cover: cover panel, of toughened safety glass, transparent, light distribution: RS17, light emission: direct distribution, primary light characteristic: rotationally symmetric, installation type: screw fastening, LED, High Power LED, light colour: 830, colour temperature: 3000K, with cable with plug, mains connection: 220..240V, AC, 50/60Hz, rated input power: 27W, LED unit, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 178mm, width: 200mm, height: 40mm, protection rating (complete): IP66, certification: CE, packaging unit: 1 piece

Downloads

Technische Produktinformationen
Daten für Anwendungsprogramme

Produktdetails

Key data

Product type LED unit
Product name Floodlight FL 20 micro
Order No. 5XA7660A1B00C

Lighting technology

Light control lens of plastic
Cover cover panel, transparent
Light distribution RS17
Symmetry rotationally symmetric
Light emission direct distribution

Lamps

Lamps High Power LED, LED
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
Rated input power 27W

Certificates, Standards

Protection rating IP66
Certification, designation CE

Material, Colour

LED unit diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover cover panel of toughened safety glass

Mounting

Mounting method, mounting location screw fastening, in housing

Electrical connection

Connection cable with plug
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 178mm
Width 200mm
Height 40mm
Weight 1.1kg

Product type
LED unit

Product name
Floodlight FL 20 micro

Order No.
5XA7660A1B00C

Light control
lens of plastic

Cover
cover panel, transparent

Light distribution
RS17

Symmetry
rotationally symmetric

Light emission
direct distribution

Lamps
High Power LED, LED

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

Rated input power
27W

Protection rating
IP66

Certification, designation
CE

LED unit
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
cover panel of toughened safety glass

Mounting method, mounting location
screw fastening, in housing

Connection
cable with plug

Nominal voltage
220..240V, 50/60Hz, AC

Length
178mm

Width
200mm

Height
40mm

Weight
1.1kg
