Gateway DALI wireless

Close
Order No.: 5LZ950701A
Remember articleRemember article

Article Gateway
Product name SITECO Connect 11H Wireless
Protection rating IP20
Weight 0.2kg

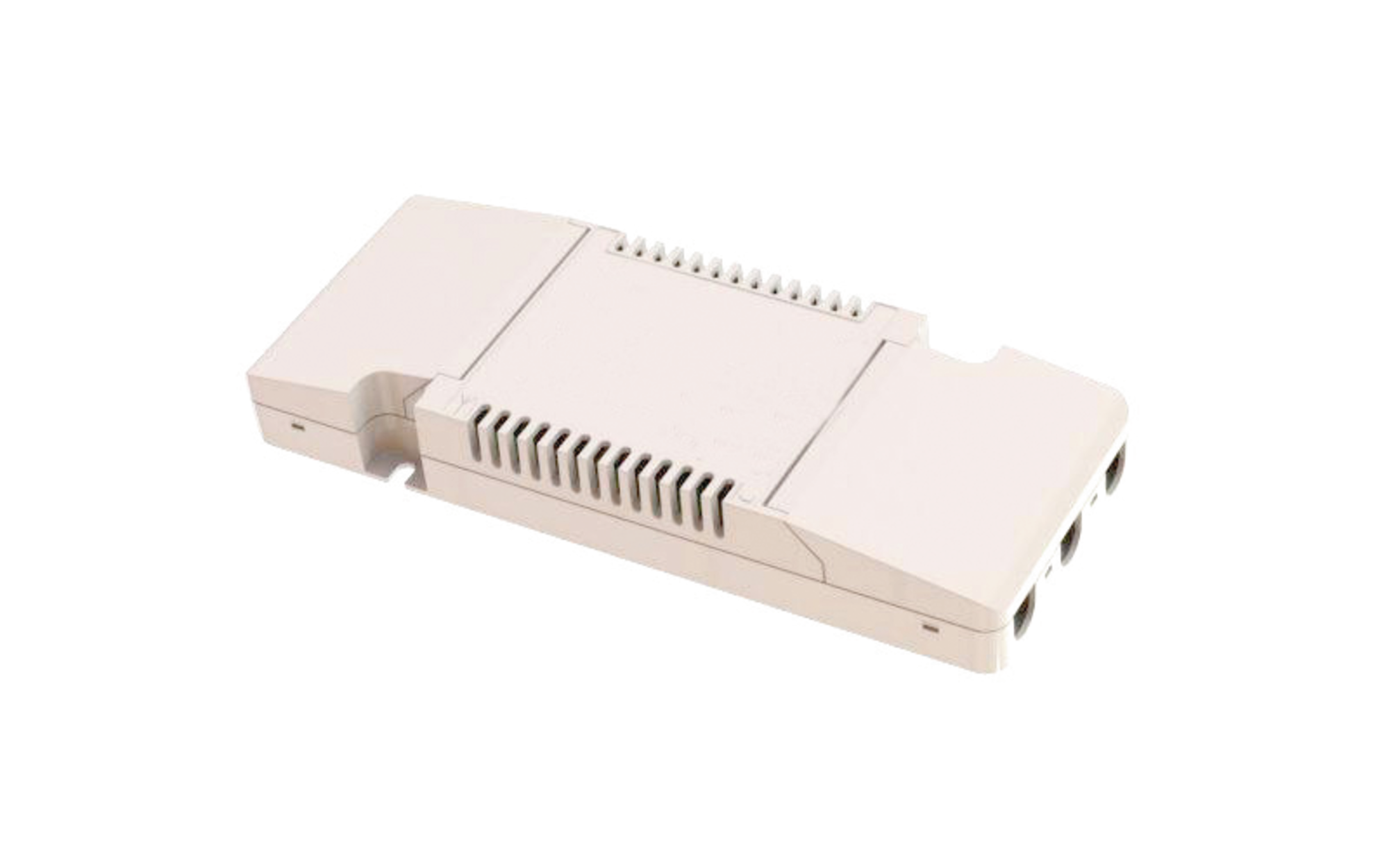

SITECO Connect 11H Wireless, Gateway, installation type: recessed, surface-mounted, control gear: Bluetooth® Mesh, mains connection: 100..240V, AC, 50/60Hz, housing, of plastic, white, length: 208mm, width: 79mm, height: 30mm, Gateway DALI wireless, local control - self-sufficient standalone sensors, equipment: master, dimmable, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, permissible operating ambient temperature: 0..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 11H Wireless
Product type Gateway
Product name SITECO Connect 11H Wireless
Order No. 5LZ950701A

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE, UKCA

Material, Colour

housing plastic, white
Colour specification white

Mounting

Mounting method, mounting location surface-mounted, recessed, to the ceiling, in the ceiling
Supplement only suitable for use in indoor areas

Electrical connection

Nominal voltage 100..240V, 50/60Hz, AC

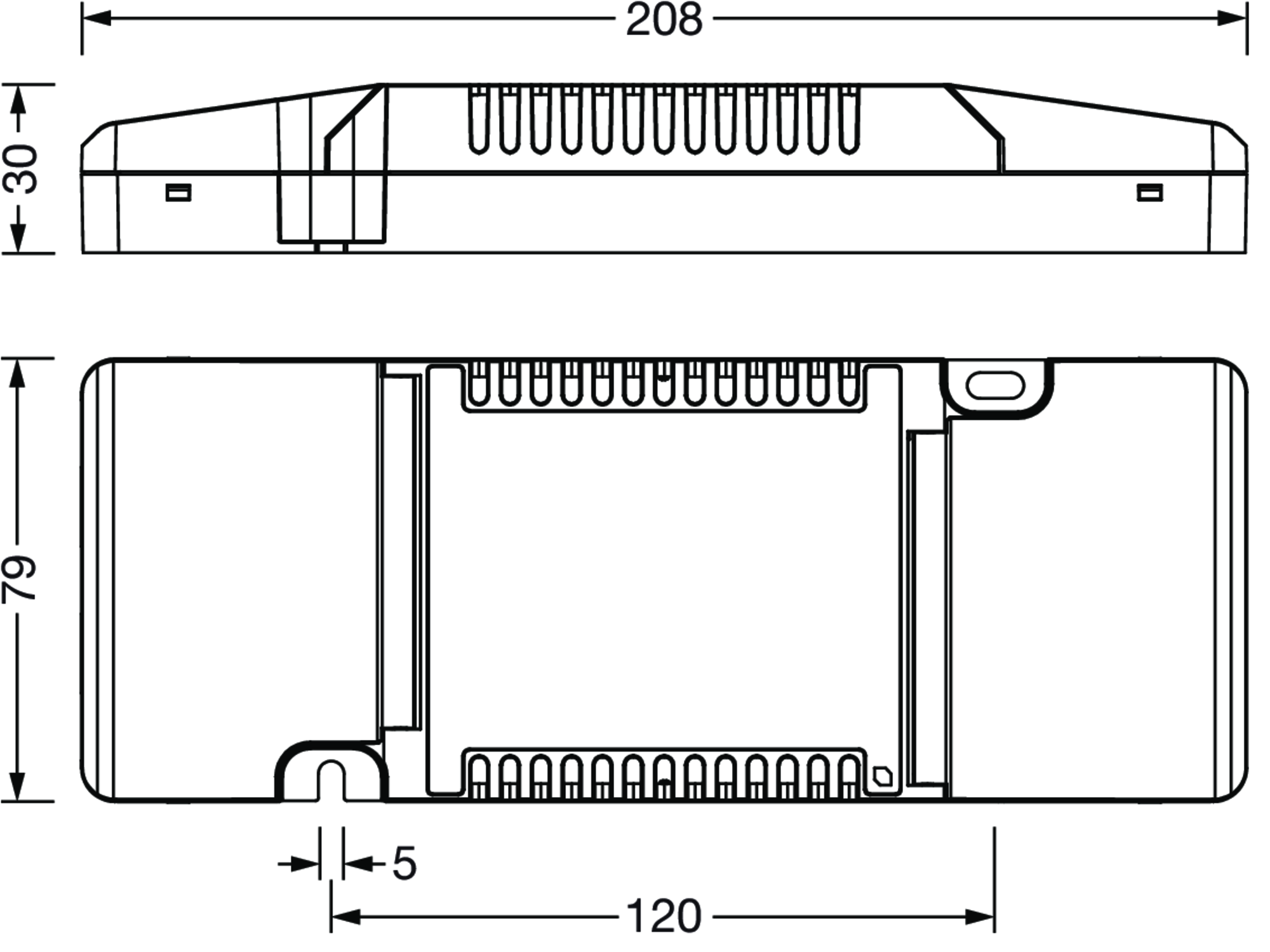

Dimensions, Weight

Length 208mm
Width 79mm
Height 30mm
Weight 0.2kg

Inputs

1x DALI
Feature for connection to a DALI-2 application controller

Outputs

1x Bluetooth® interface
Feature wireless networking

System family
SITECO Connect 11H Wireless

Product type
Gateway

Product name
SITECO Connect 11H Wireless

Order No.
5LZ950701A

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE, UKCA

housing
plastic, white

Colour specification
white

Mounting method, mounting location
surface-mounted, recessed, to the ceiling, in the ceiling

Supplement
only suitable for use in indoor areas

Nominal voltage
100..240V, 50/60Hz, AC

Length
208mm

Width
79mm

Height
30mm

Weight
0.2kg

1x DALI

Feature
for connection to a DALI-2 application controller

1x Bluetooth® interface

Feature
wireless networking
