Article high bay luminaire

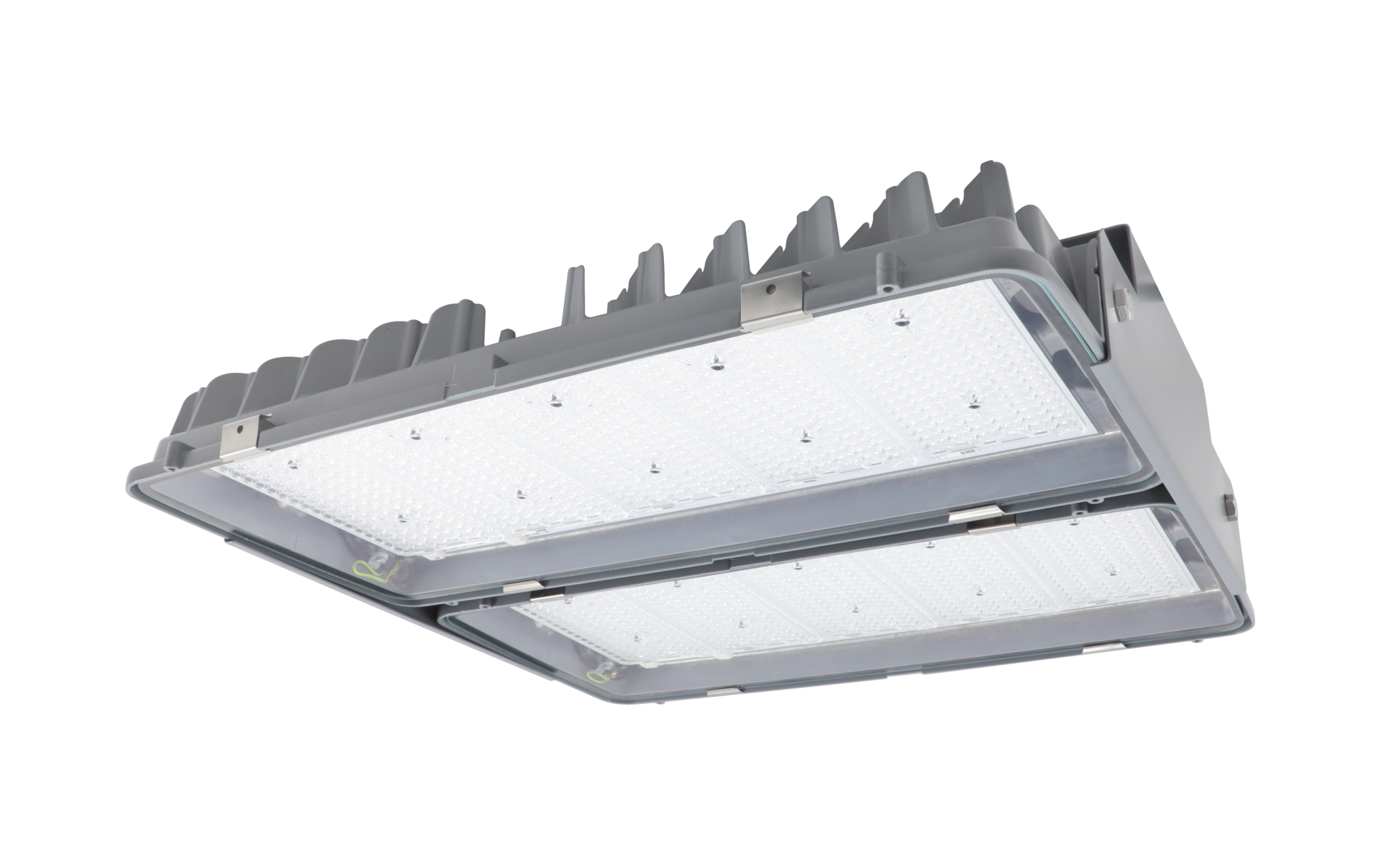

Product name Highbay 11Xtreme
Lamp LED
Rated luminous flux 75000lm
Luminous efficacy 178lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 422W
Service life 50000h (L85/B50) at AT = 45°C
Protection rating IP66
Impact resistance IK08
Weight 15.7kg

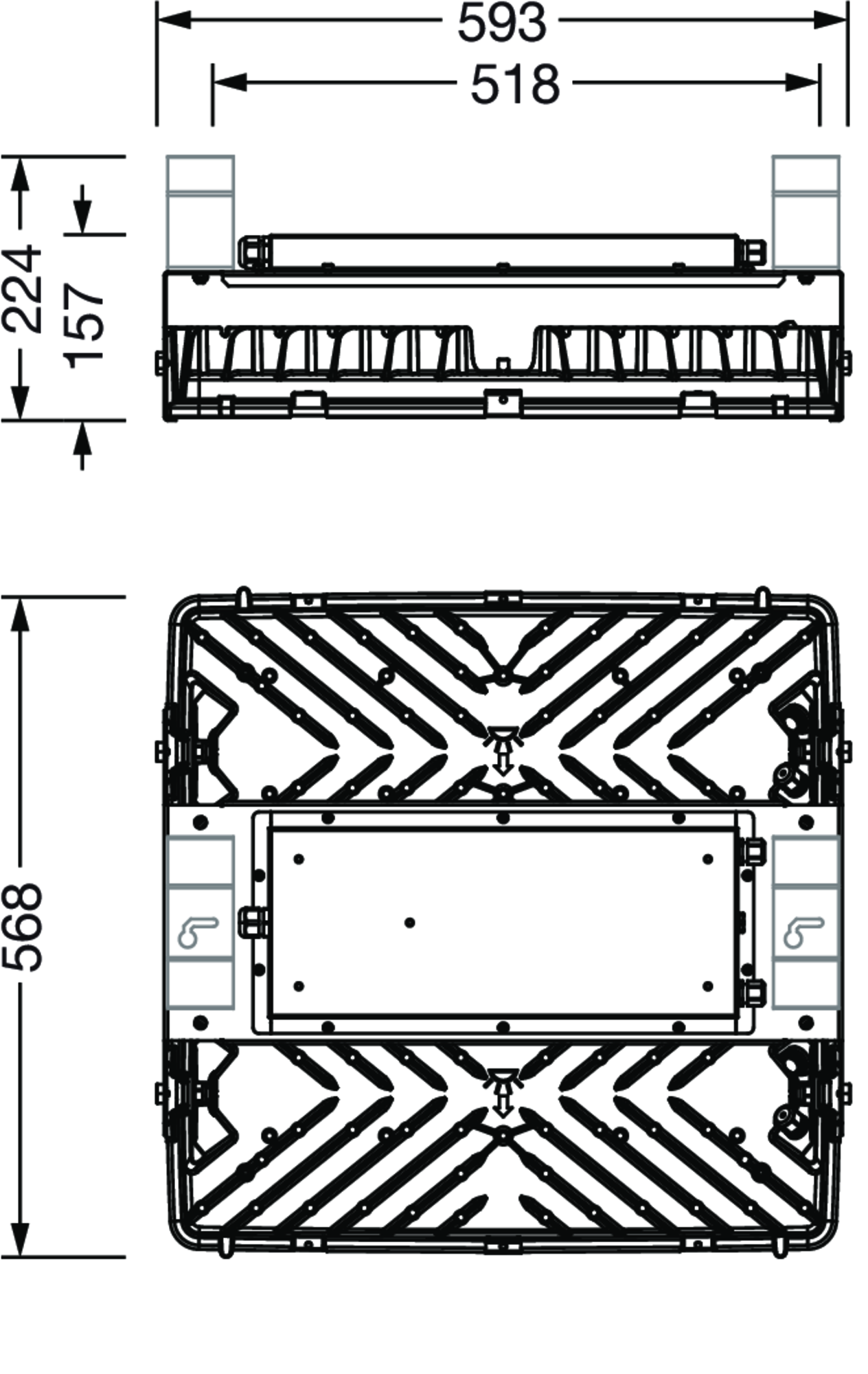

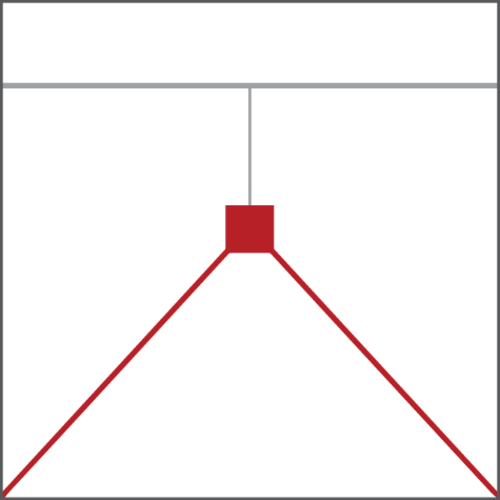

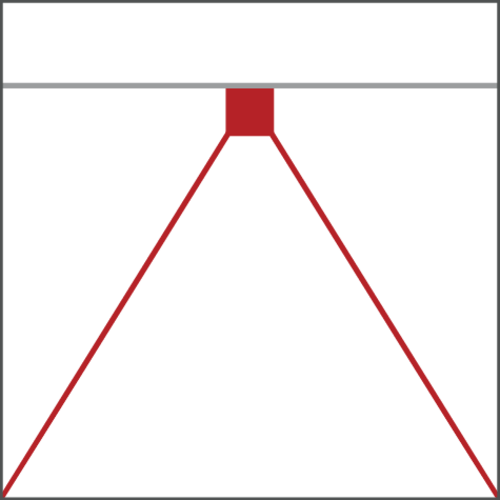

Highbay 11Xtreme, high bay luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, 2x LED module,for 1x 2x LED, rated luminous flux: 75.000lm, luminous efficacy: 178lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2 (with two DALI addresses), with cable H07RN-F 5x 1.5mm², mains connection: 220..240V, AC, 50/60Hz, cable length: 1,5m, rated input power: 422W, luminaire housing, of diecast aluminium, partly coated, silver, length: 595mm, width: 560mm, height: 195mm, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, UKCA, protection symbol: D, ball protection: ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension), impact resistance: IK08, permissible operating ambient temperature: -25..+45°C, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
HB11Xtr
wd,75000lm840,DA2,bir
Lamps: 1x LED
Order No.: 51HF82DB4WMA
