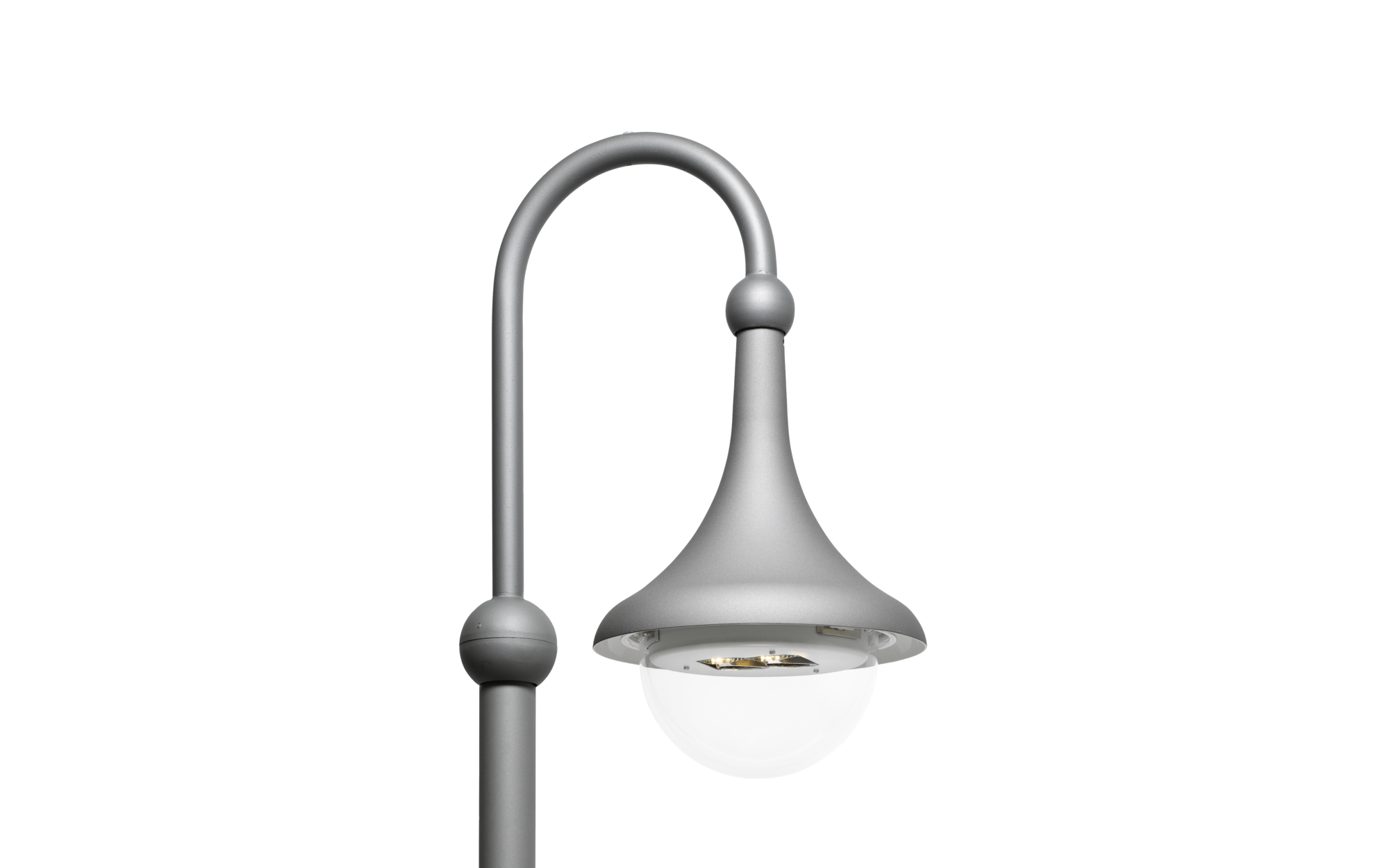

Small Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1575E1F108

Article mast luminaire
Product name Small Bell iQ
Lamp LED
Rated luminous flux 3220lm
Luminous efficacy 160lm/W
Colour temperature 3000K
Colour rendering CRI > 70
P_nom begin service life 20
P_nom end service life 21
P_red at 50% lumin. flux 10
Service life 80000h (L97/B10) at AT = 25°C
Protection rating IP54
Impact resistance IK09
Weight 5.3kg

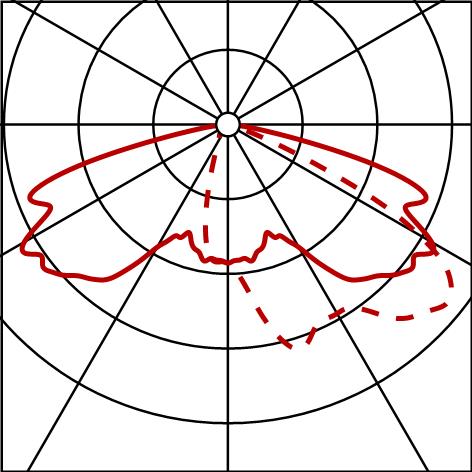

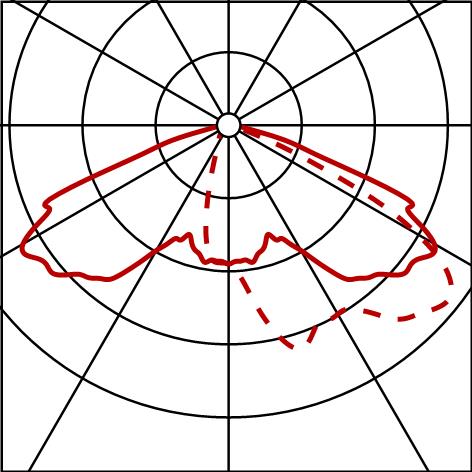

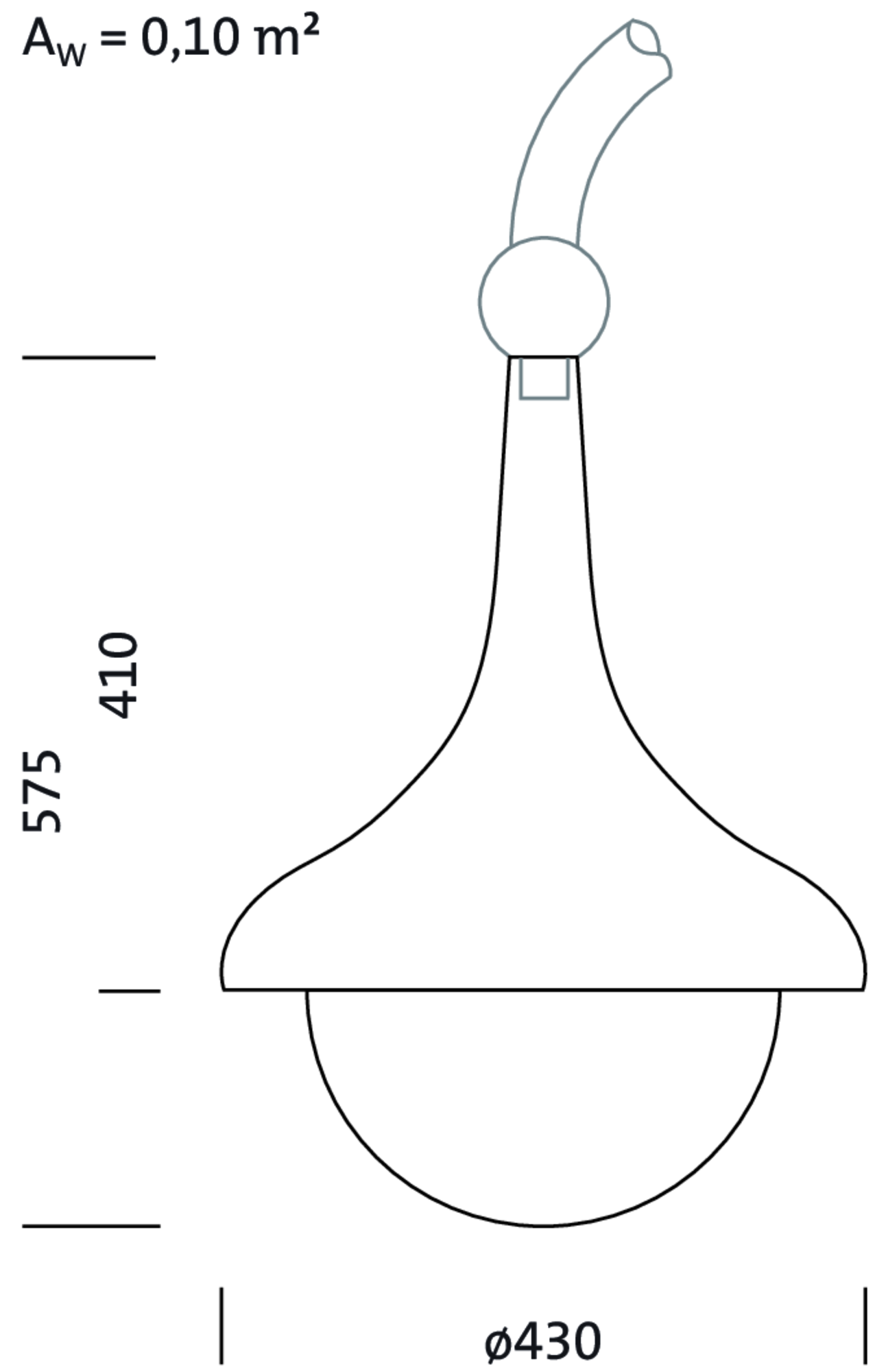

Small Bell iQ, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, primary optical cover: enclosure, of PMMA, transparent, light distribution: ST1.2a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: suspended mounting, LED, High Power LED, rated luminous flux: 3.220lm, luminous efficacy: 160lm/W, light colour: 730, colour temperature: 3000K, control gear: iQ Street-Remote, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic, mains connection: 230..240V, AC, 50/60Hz, start of lifetime: 20W, end of service life: 21W, reduction: 10W, luminaire housing, bell-shaped, of glass-fibre reinforced polyester, coated, Siteco® metallic grey (DB 702S), please order curved mast extension separately, diameter: 430mm, height: 575mm, mounting height: 2.5..4.0m, protection rating (complete): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK09, standard-compliant lighting for roads and squares, packaging unit: 1 piece
