Lunis 41 Flat, Light colour 830/840, DALI 2, 150
Close
Article downlight
Product name Lunis 41 Flat
Lamp LED
Rated luminous flux 1575lm
Luminous efficacy on request
Colour temperature 3000/4000K
Colour rendering CRI > 80
Rated input power on request
Service life 50000h (L70/B50) at AT = 25°C
Protection rating IP20
Weight 0.3kg

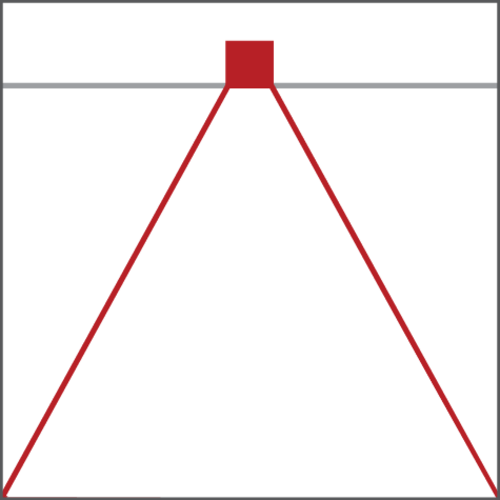

Lunis 41, Flat, downlight, light emission: direct distribution, LED rated luminous flux: 1.575lm, light colour: 830/840, control gear: ECG, mains connection: 230V, AC, 50/60Hz, housing, round, of aluminium, coated, traffic white (RAL 9016), diameter: 170mm, protection rating (complete): IP20, protection rating (on room side): IP44, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

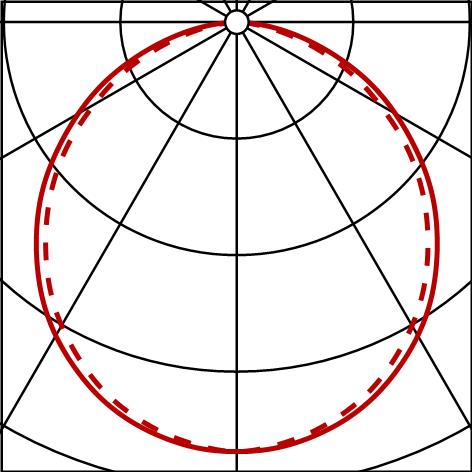

Photometric report / planning data
Lunis 41

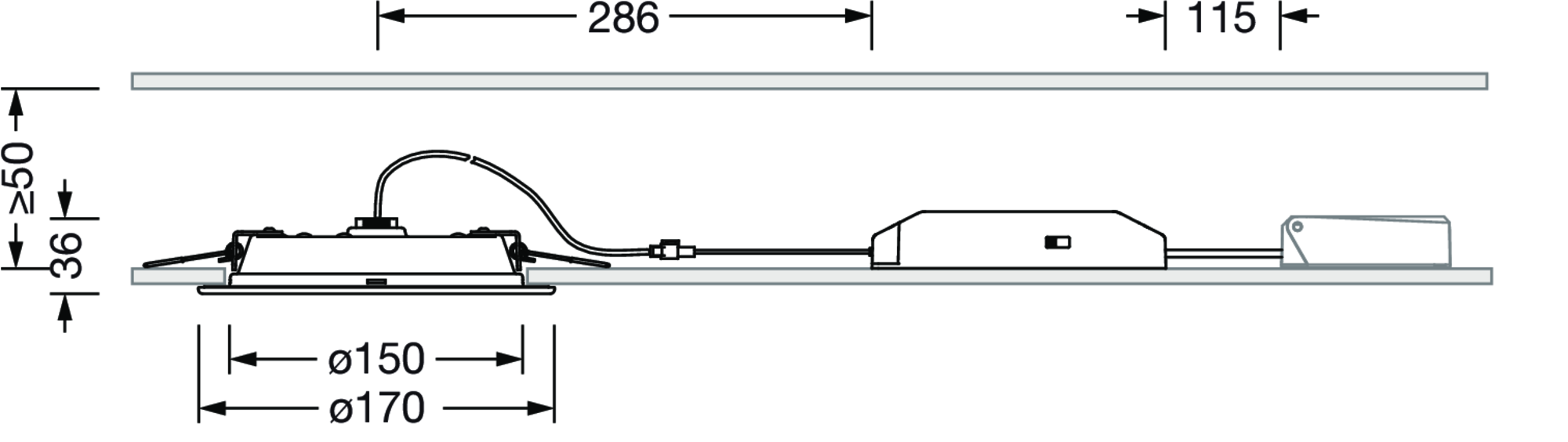

LED, ECG, direct distribution, single arrangement, recessed, in the ceiling, ø= 170mm
Lamps: 1x LED, factory setting: colour temperature 4000K
Order No.: 51DR10DDGBB
Lunis 41
Lamps: 1x LED, individual setting: colour temperature 3000K
Order No.: 51DR10DDGBB
