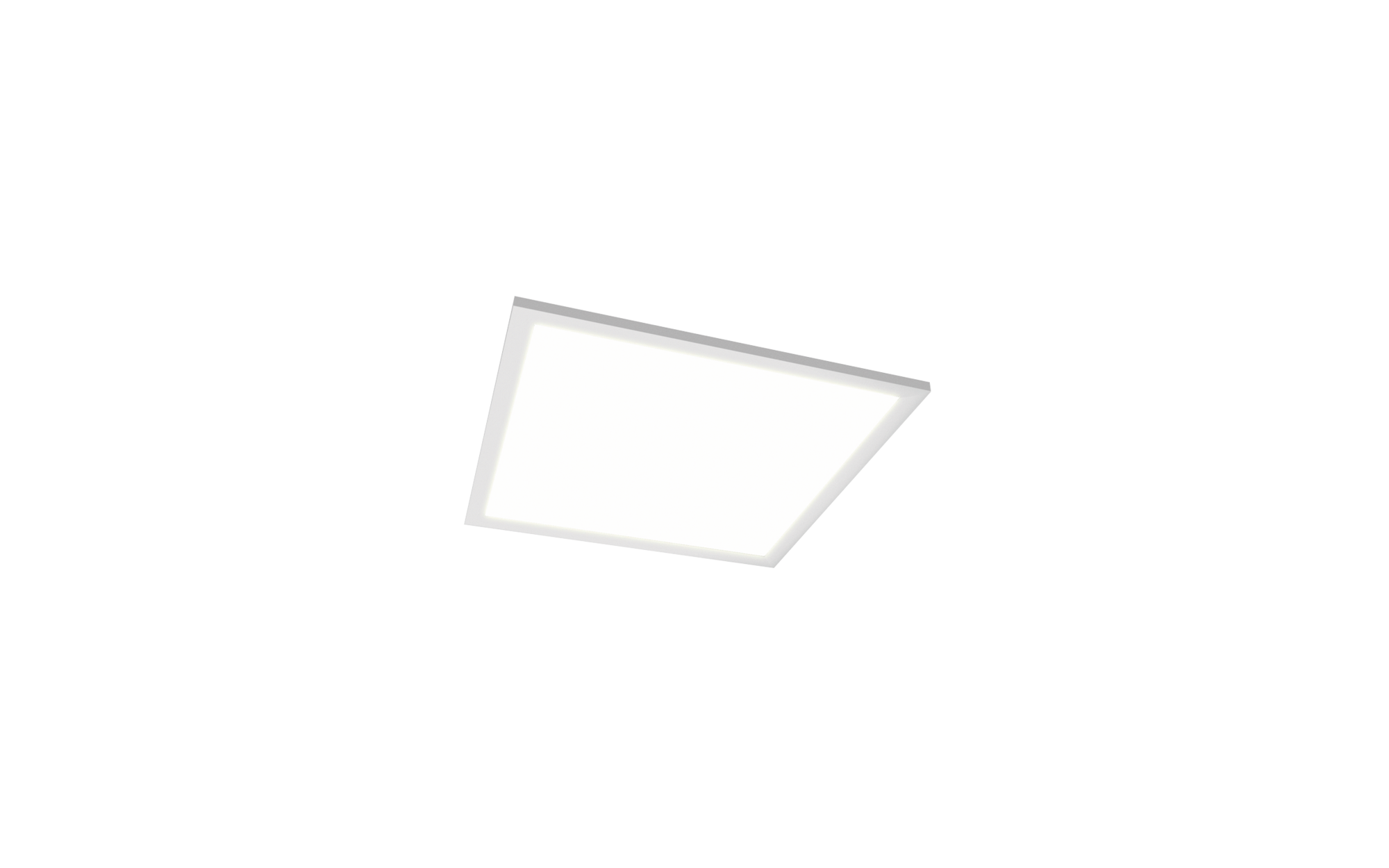

Apollon 21 square, direct distribution, Light colour 830, DALI 2, for cut ceiling aperture
Close
Article office luminaire
Product name Apollon 21 square
Lamp LED
Rated luminous flux 1700lm
Luminous efficacy 115lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 15W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.8kg

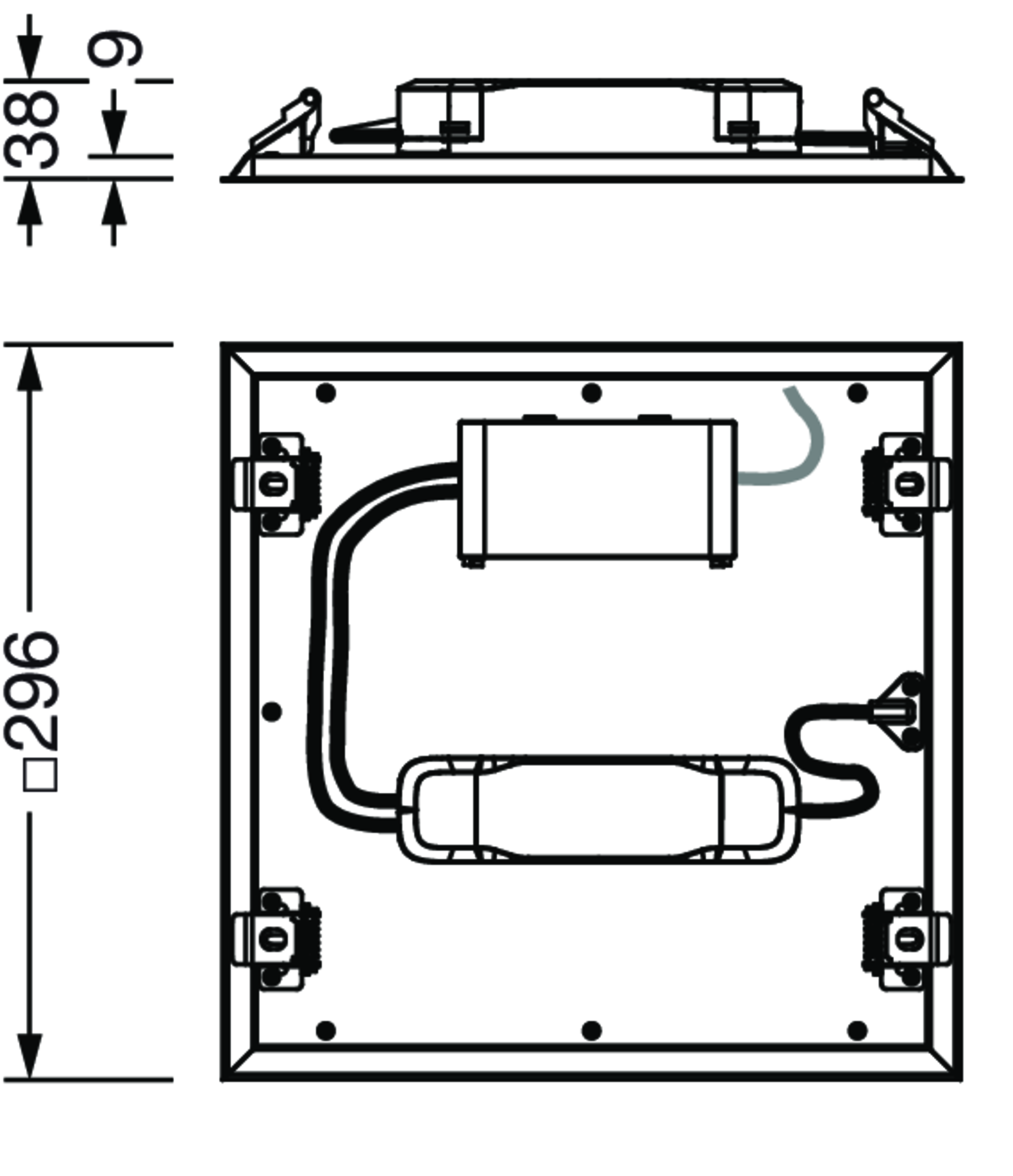

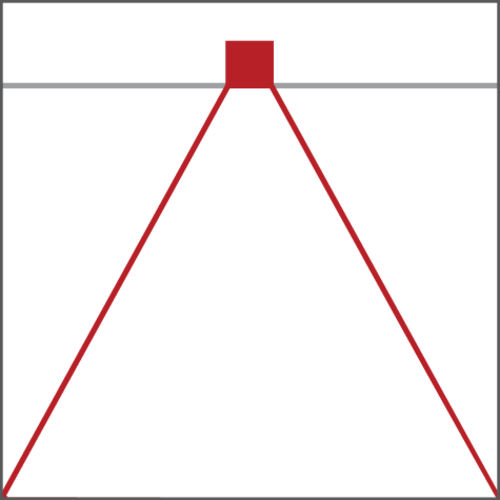

Apollon 21 square, office luminaire, primary optical cover: micro prismatic cover, of PMMA, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: recessed, LED, rated luminous flux: 1.700lm, luminous efficacy: 115lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 15W, housing, of sheet steel, coated, traffic white (RAL 9016), with rapid mounting bracket, length: 296mm, width: 296mm, height: 40mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP50, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, impact resistance: IK02, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

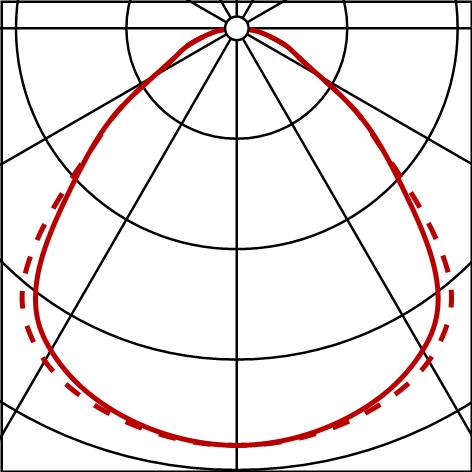

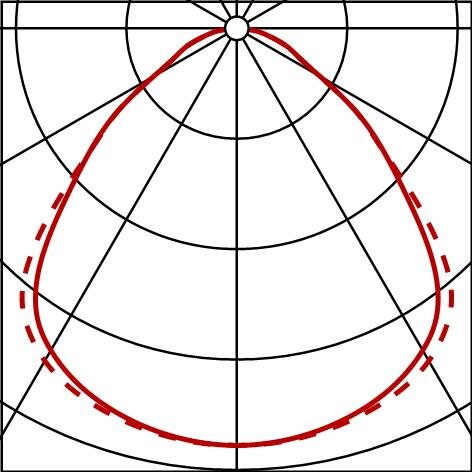

Photometric report / planning data

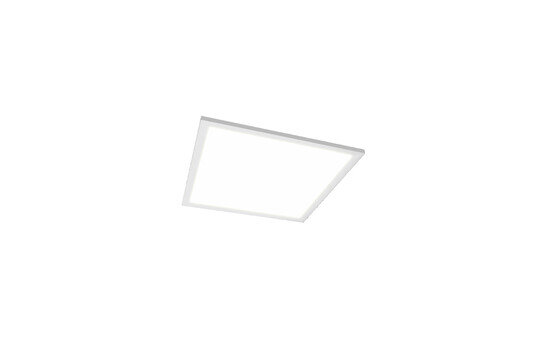

Apollon 21 square
office luminaire, traffic white (RAL 9016), DALI 2, 1700lm, 830, 296x296mm, for cut ceiling aperture, Connection: terminal
Lamps: 1x LED
Order No.: 51MQ13WD2313
