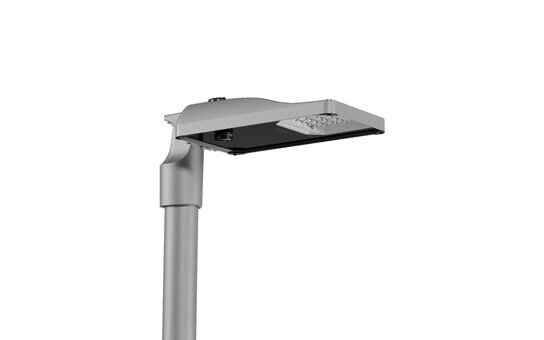

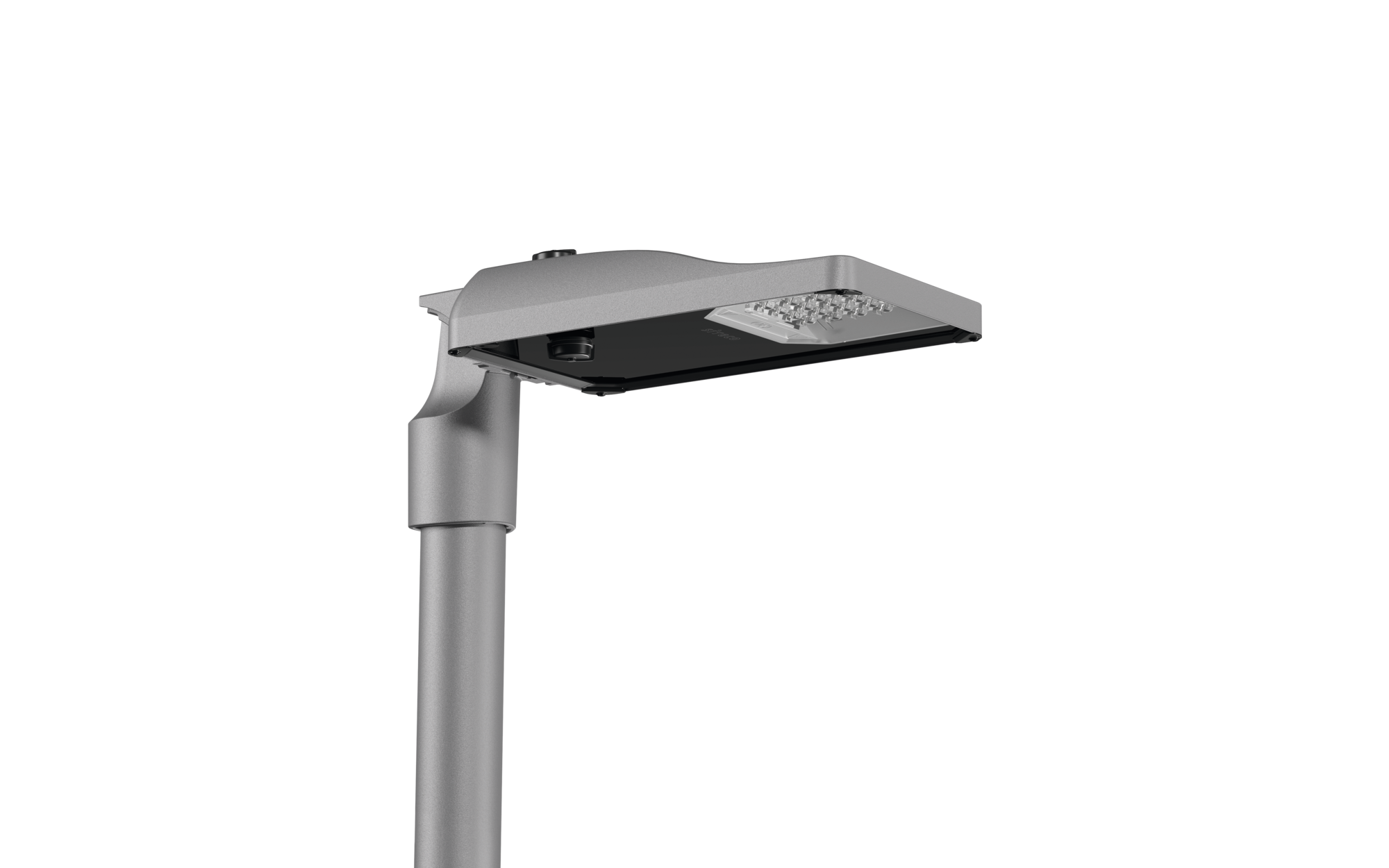

Streetlight SL 31 micro, direct asymmetric wide distribution, ST0.8a, with Smart Interface below and above, opened without tools

Bestellnr.: 5XH5C31T08DA

Article mast luminaire
Product name Streetlight SL 31 micro
Lamp LED
Rated luminous flux 4940lm
Luminous efficacy 131lm/W
Colour temperature 3000K
Colour rendering CRI > 70
P_nom begin service life 38
P_nom end service life 41
P_red at 50% lumin. flux 16
Service life 100000h (L96/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 5.5kg

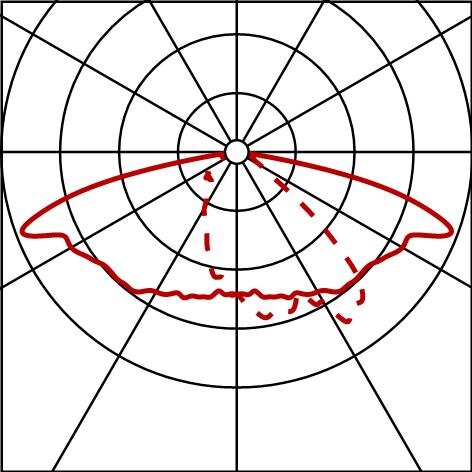

Streetlight SL 31 micro D4i, Desk-Remote mast luminaire for post-top, side-entry; light control with lens of PMMA; light distribution: ST0.8a, direct asymmetric distribution, for standard-compliant lighting for roads and squares; LED: luminous flux: 4.940lm, light colour: 730, colour temperature: 3000K; luminous efficacy: 131lm/W; control: pre-setting: logarithmic dimming characteristic, flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, power reduction, intelligent temperature release in ECG and LED module, overheat protection; luminaire housing, of diecast aluminium, Siteco® metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944; cover of toughened safety glass, transparent, opened without tools; mast flange of diecast aluminium, Siteco® metallic grey (DB 702S), spigot size: 76/60mm, mast flange included unmounted; with cable H07RN-F 2x 1.5mm², cable length: 6,5m, connection cable pre-assembled; mains connection: 220..240V, AC, 50/60Hz; power consumption (at start of service life): 37,7W / (at end of service life): 40,9W / (with reduced operation 50%): 16,3W; protection rating (complete): IP66; insulation class (complete): insulation class II (safety insulation); impact resistance: IK09; certification: CE, ENEC, ENEC+, VDE, UKCA, ZD4i; permissible operating ambient temperature for outdoor applications: -40..+50°C; packaging unit: 1 piece
