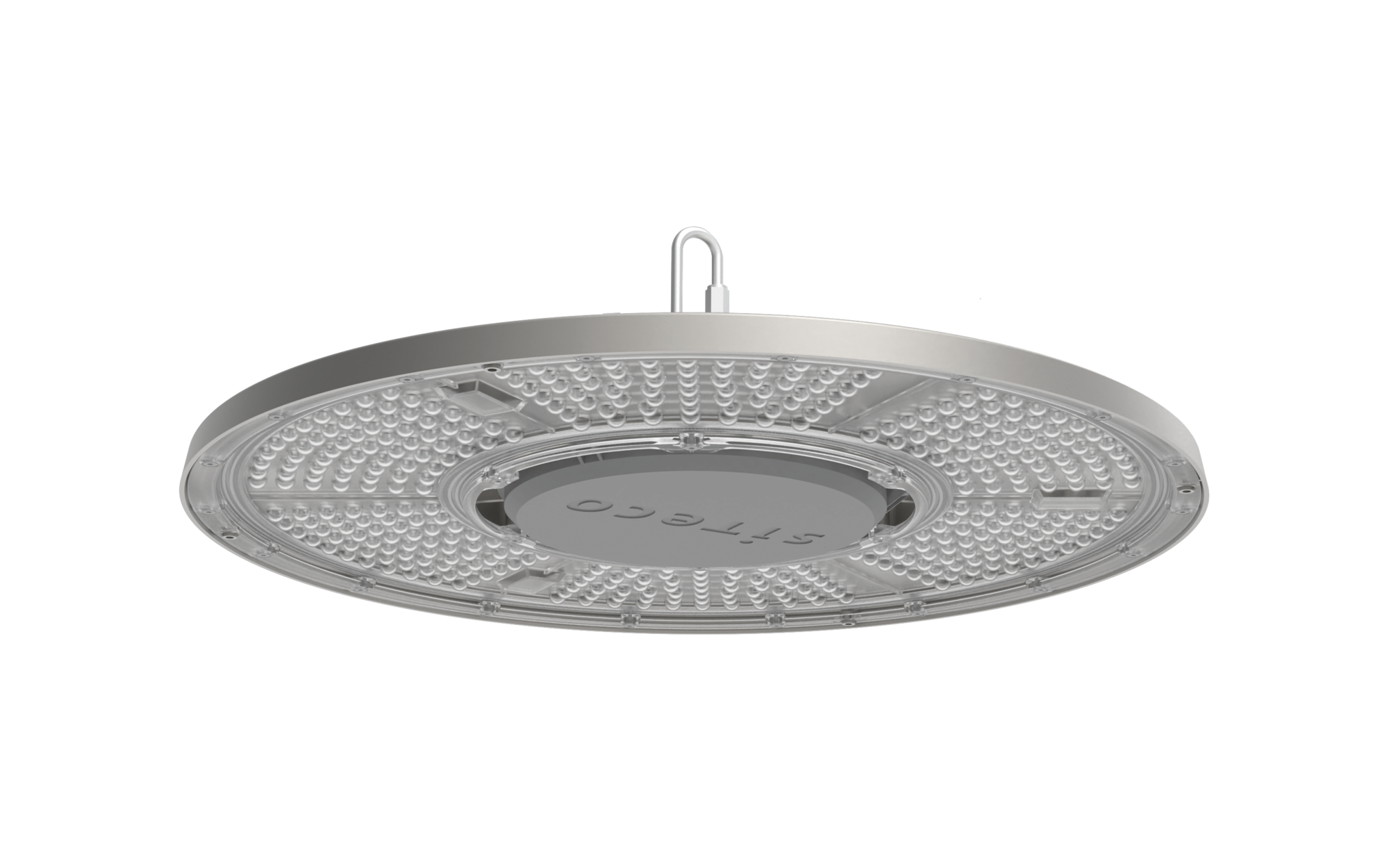

Highbay 31-L, 60°

Schließen
Bestellnr.: 51HC41DA4JMB
Artikel merkenArtikel merken

Article high bay luminaire
Product name Highbay 31-L
Lamp LED
Rated luminous flux 20000lm
Luminous efficacy 150lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 134W
Service life 100000h (L70/B50) at AT = 35°C, 50000h (L85/B50) at AT = 45°C, 70000h (L80/B50) at AT = 45°C
Protection rating IP65
Impact resistance IK08
Weight 3.7kg

Highbay 31-L, high bay luminaire, primary light control with lens, of PC, primary optical cover: cover panel, of PC, transparent, light emission: direct distribution, primary light characteristic: rotationally symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 20.000lm, luminous efficacy: 150lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with cable, 5x 1.0mm², free wire ends, mains connection: 220..240V, AC/DC, 0/50..60Hz, cable length: 1,5m, rated input power: 134W, housing, rotationally symmetric, of diecast aluminium, powder-coated, grey aluminium (RAL 9007), with hook on luminaire side, incl. screw, diameter: 404mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -30..+45°C, standard: EN 60598-2-22, EN 60598, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece

Downloads

Technische Produktinformationen
Daten für Anwendungsprogramme

Produktdetails

Key data

Product type high bay luminaire
Product name Highbay 31-L
Order No. 51HC41DA4JMB

Lighting technology

Light control lens of PC
Cover cover panel, transparent
Beam angle 60°
Symmetry rotationally symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 25
UGR viewing direction along lateral luminaire axis ≤ 25

Lamps

Lamps with LED
Rated luminous flux 20000lm
Luminous efficacy 150lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 134W
Supplement for emergency light function, for central battery installations according to DIN EN 60598-2-22, without flicker

Operating device

Control gear ECG DALI
Control DALI 2

Certificates, Standards

Protection rating IP65
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -30..+45°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Standard EN 60598, EN 60598-2-22
Certification, designation CE, ENEC, UKCA

Material, Colour

housing diecast aluminium, powder-coated, grey aluminium (RAL 9007), rotationally symmetric, with hook on luminaire side, incl. screw
Quantity 1 piece
Colour specification grey aluminium (RAL 9007)
Cover cover panel of PC

Mounting

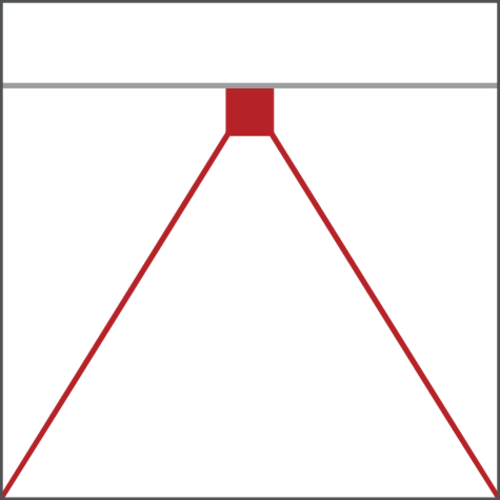

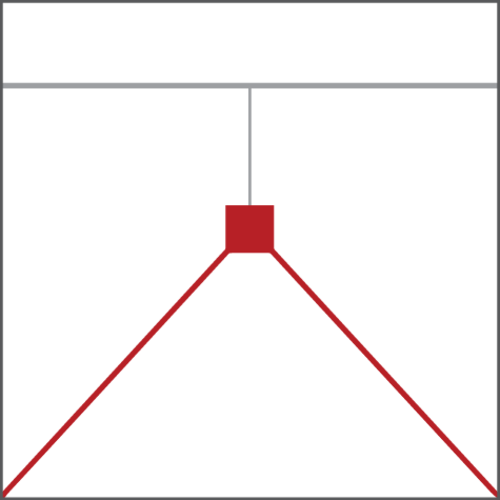

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling, to the chain
Arrangement single arrangement
Supplement only suitable for use in indoor areas, mounting accessories required, please order separately

Electrical connection

Connection cable, 5x 1.0mm², free wire ends
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

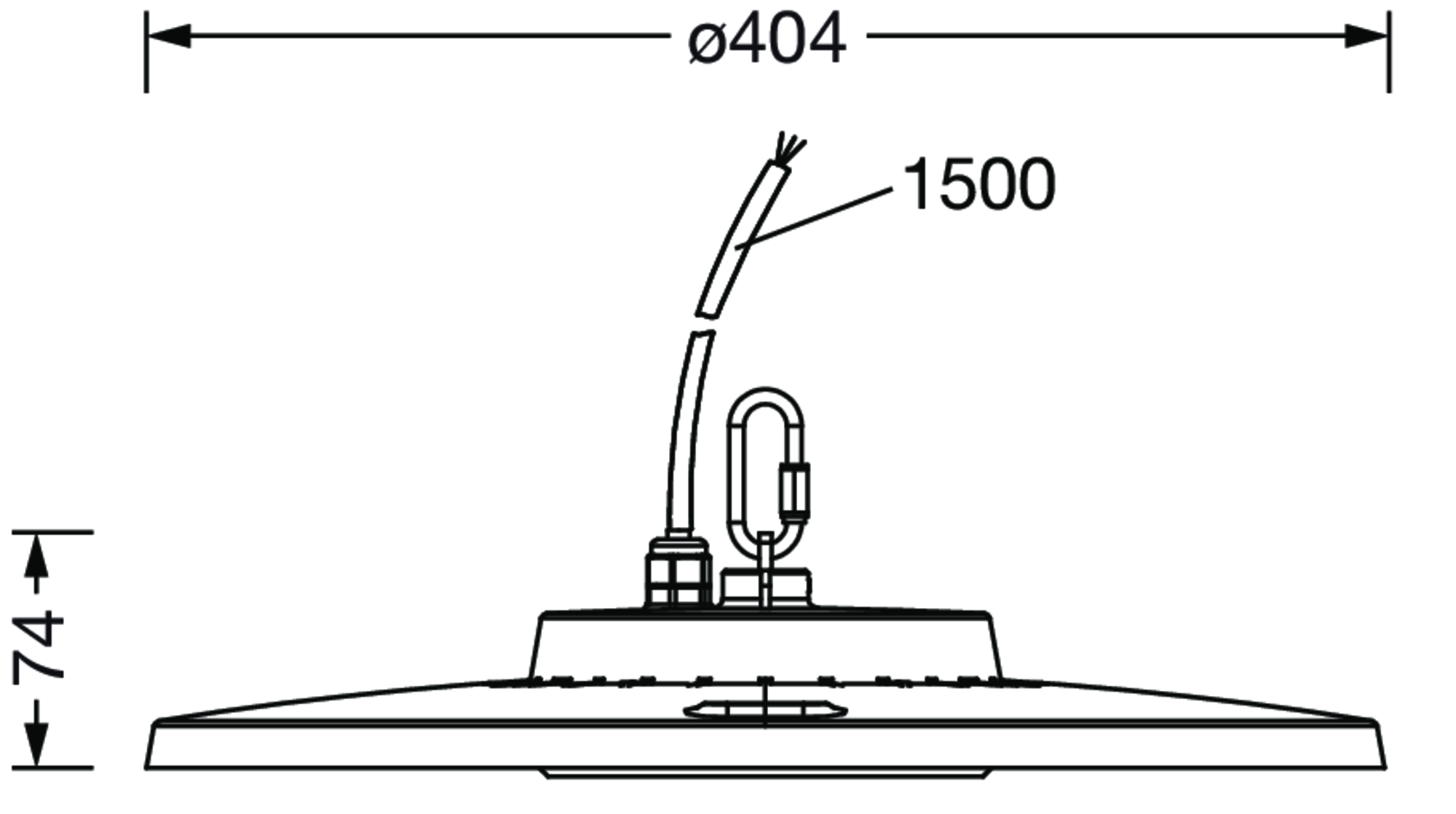

Diameter 404mm
Weight 3.7kg

Service life

Rated service life 100000h (L70/B50) at AT = 35°C, 70000h (L80/B50) at AT = 45°C, 50000h (L85/B50) at AT = 45°C

Product type
high bay luminaire

Product name
Highbay 31-L

Order No.
51HC41DA4JMB

Light control
lens of PC

Cover
cover panel, transparent

Beam angle
60°

Symmetry
rotationally symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 25

UGR viewing direction along lateral luminaire axis
≤ 25

Lamps
with LED

Rated luminous flux
20000lm

Luminous efficacy
150lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 4 SDCM (initial)

Rated input power
134W

Supplement
for emergency light function, for central battery installations according to DIN EN 60598-2-22, without flicker

Control gear
ECG DALI

Control
DALI 2

Protection rating
IP65

Insulation class
insulation class I (protective earthing)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-30..+45°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Standard
EN 60598, EN 60598-2-22

Certification, designation
CE, ENEC, UKCA

housing
diecast aluminium, powder-coated, grey aluminium (RAL 9007), rotationally symmetric, with hook on luminaire side, incl. screw

Quantity
1 piece

Colour specification
grey aluminium (RAL 9007)

Cover
cover panel of PC

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling, to the chain

Arrangement
single arrangement

Supplement
only suitable for use in indoor areas, mounting accessories required, please order separately

Connection
cable, 5x 1.0mm², free wire ends

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Diameter
404mm

Weight
3.7kg

Rated service life
100000h (L70/B50) at AT = 35°C, 70000h (L80/B50) at AT = 45°C, 50000h (L85/B50) at AT = 45°C

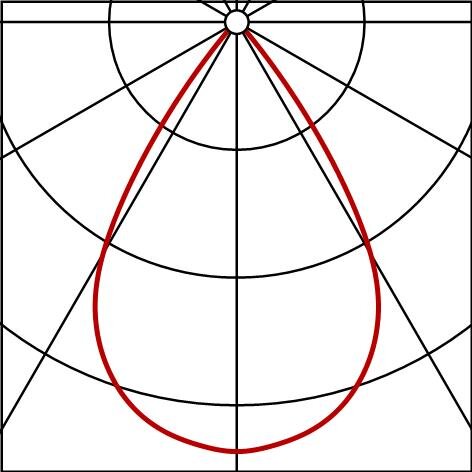

Lichttechnischer Prüfbefund / Planungsdaten

HB31L
rot.sym,60°,20000lm840,DA2
Lamps: 1x LED
Bestellnr.: 51HC41DA4JMB

Lichttechn. Prüfbefund (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
