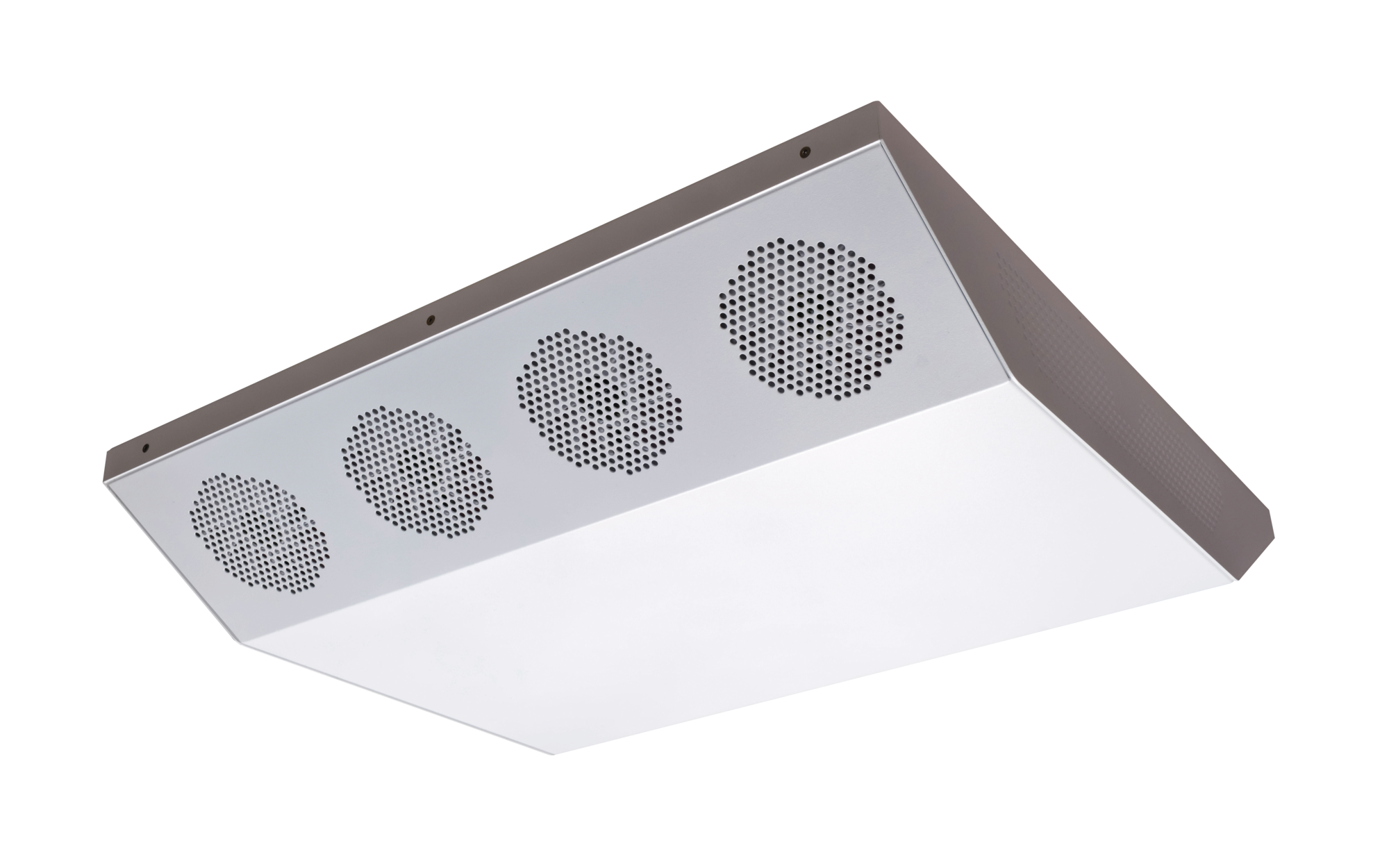

UVC Air Disinfector, UVC air disinfection device

Schließen
Bestellnr.: 51MAUVC
Artikel merkenArtikel merken

Article UVC air disinfection device
Product name UVC Air Disinfector
Lamp TC-LEL-UV
Rated input power max. 360W
Protection rating IP20
Weight 7.2kg

UVC Air Disinfector, UVC air disinfection device, installation type: surface-mounted, for 4x TC-LEL-UV, 60/95W, compact fluorescent lamp UV-C, control gear: ON/OFF, with terminal, 3-pole, max. 2.5mm², mains connection: 220..240V, AC, 50Hz, rated input power: max. 360W, housing, of stainless steel, white, length: 585mm, width: 585mm, height: 102mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: -5..+35°C, packaging unit: 1 piece

Downloads

Technische Produktinformationen
Daten für Anwendungsprogramme

Produktdetails

Key data

Product type UVC air disinfection device
Product name UVC Air Disinfector
Order No. 51MAUVC
Supplement airflow: 385m³/h, recommended number of devices (with a room height of 2.55m) with 6-fold air circulation per hour: 1 device for every 25m² room area

Lamps

Lamps with compact fluorescent lamp UV-C, 4x TC-LEL-UV 60/95W
Socket 2G11
Rated input power max. 360W

Operating device

Control gear ECG
Control ON/OFF

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) -5..+35°C
Certification, designation CE

Material, Colour

housing stainless steel, white
Colour specification white

Mounting

Mounting method, mounting location surface-mounted, to the ceiling / to the wall

Electrical connection

Connection terminal, 3-pole, max. 2.5mm²
Nominal voltage 220..240V, 50Hz, AC

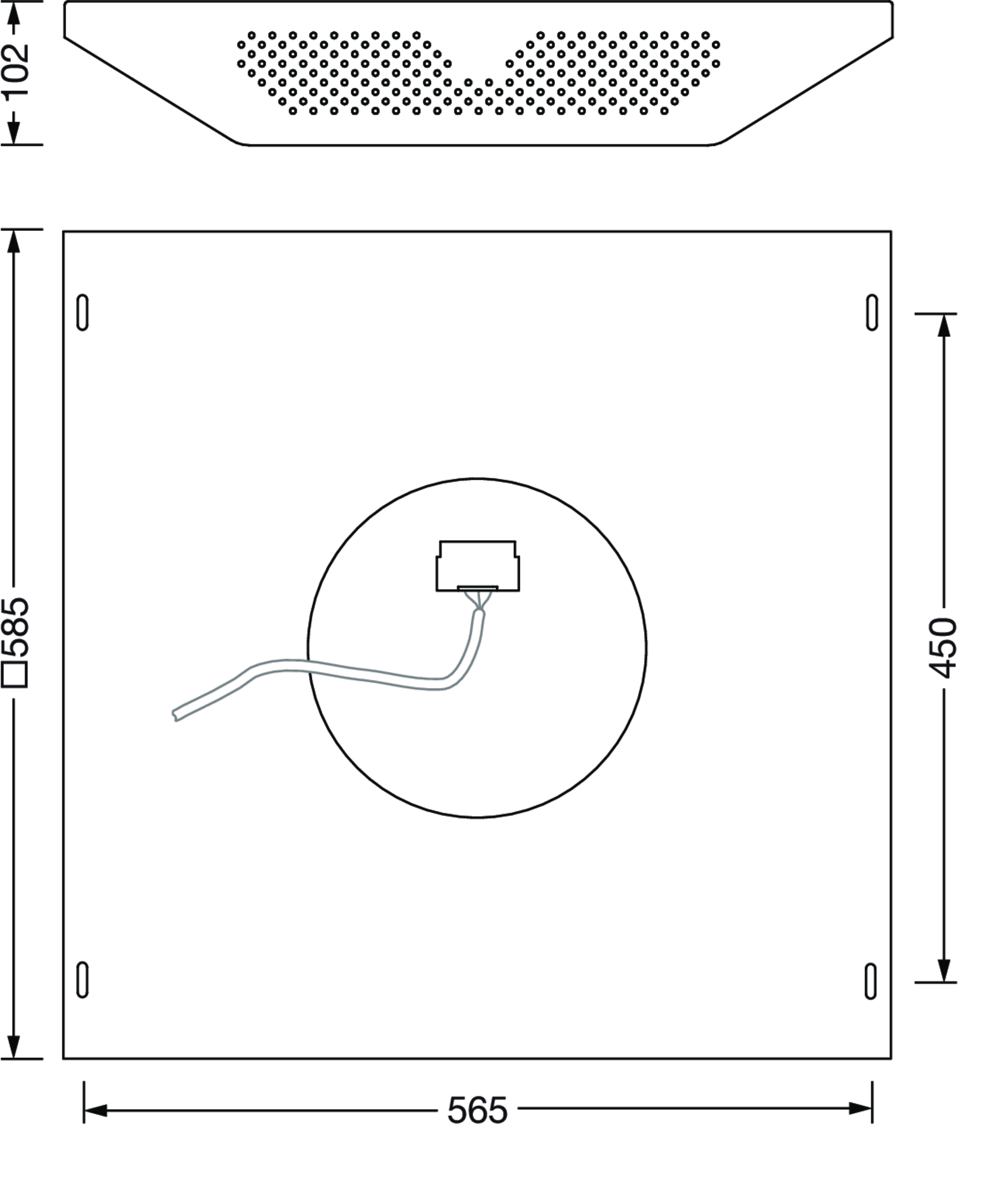

Dimensions, Weight

Length 585mm
Width 585mm
Height 102mm
Weight 7.2kg

Product type
UVC air disinfection device

Product name
UVC Air Disinfector

Order No.
51MAUVC

Supplement
airflow: 385m³/h, recommended number of devices (with a room height of 2.55m) with 6-fold air circulation per hour: 1 device for every 25m² room area

Lamps
with compact fluorescent lamp UV-C, 4x TC-LEL-UV 60/95W

Socket
2G11

Rated input power
max. 360W

Control gear
ECG

Control
ON/OFF

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-5..+35°C

Certification, designation
CE

housing
stainless steel, white

Colour specification
white

Mounting method, mounting location
surface-mounted, to the ceiling / to the wall

Connection
terminal, 3-pole, max. 2.5mm²

Nominal voltage
220..240V, 50Hz, AC

Length
585mm

Width
585mm

Height
102mm

Weight
7.2kg
