Order No.: 51LJ12MNM70A
Remember articleRemember article

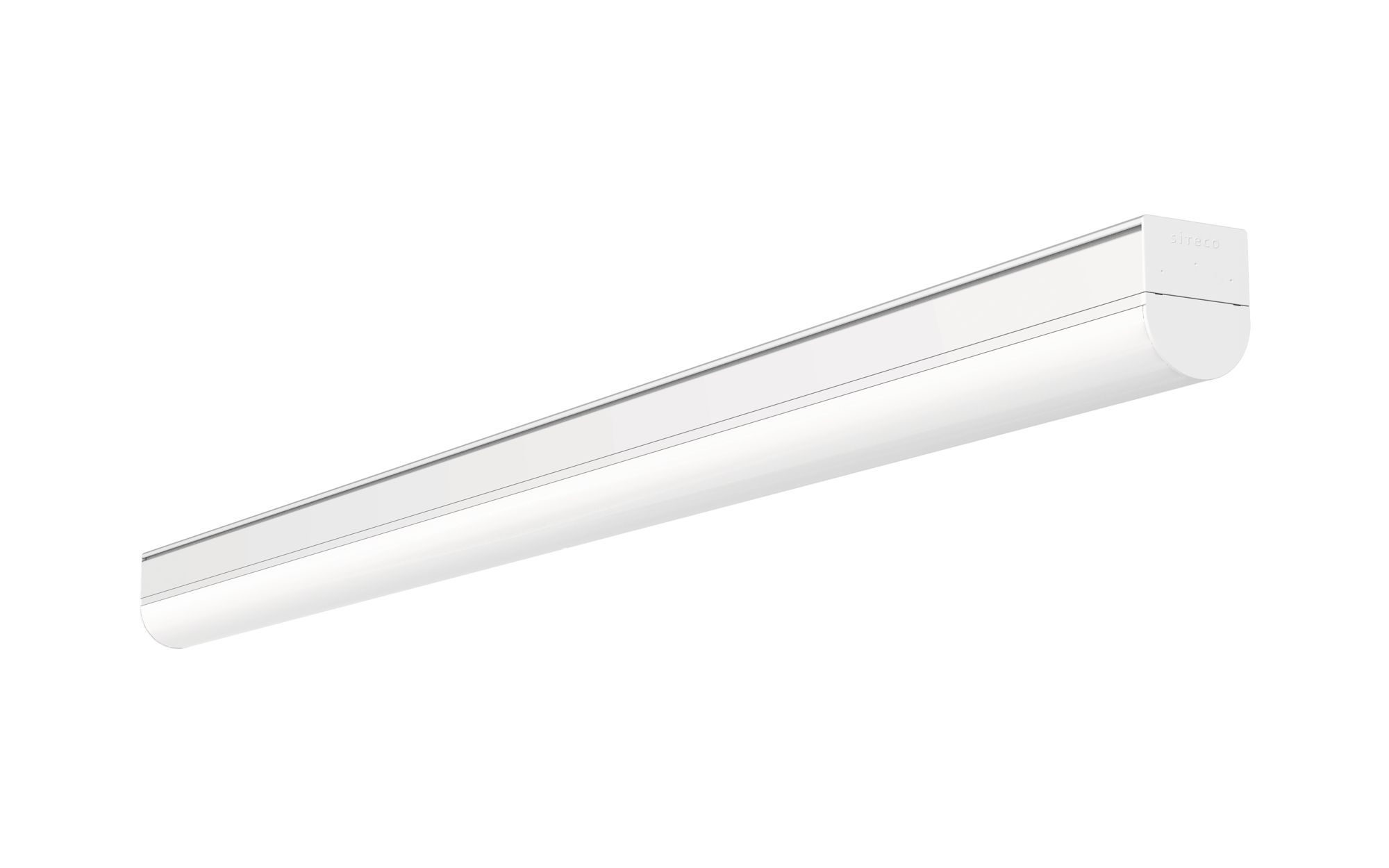

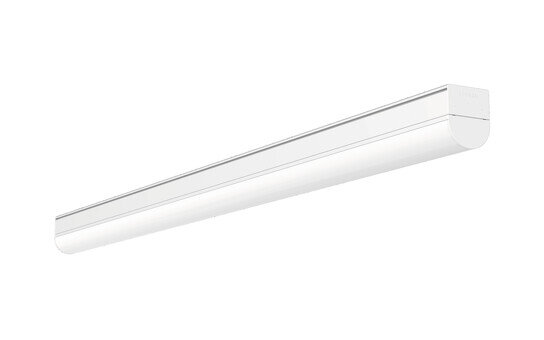

Article diffuser luminaire
Product name Ecopack® 31
Lamp LED
Rated luminous flux 7000lm
Luminous efficacy 140lm/W
Colour temperature 3000/4000/5000K
Colour rendering CRI > 80
Rated input power 50W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK06
Weight 1.5kg

Ecopack® 31, diffuser luminaire, primary optical cover: cover, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 7.000lm, luminous efficacy: 140lm/W, light colour: 830/840/850, colour temperature: 3000/4000/5000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 50W, housing, of aluminium, traffic white (RAL 9016), length: 1.450mm, width: 56mm, height: 68mm, end cap, of PC, white, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK06, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type diffuser luminaire
Product name Ecopack® 31
Order No. 51LJ12MNM70A

Lighting technology

Cover cover, frosted
Beam angle extremely wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 28
UGR viewing direction along lateral luminaire axis ≤ 28

Lamps

Lamps with LED
Rated luminous flux 7000lm
Luminous efficacy 140lm/W
Colour temperature 3000/4000/5000K
Colour rendering index CRI > 80
Light colour 830/840/850
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 50W
Supplement luminous flux adjustable on luminaire in four steps (3800/4800/5900/7000lm), connected load according to luminous flux setting (27/34/42/50W)

Operating device

Control gear ECG
Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Temperature range (operation) -20..+40°C
Certification, designation CE

Material, Colour

housing aluminium, traffic white (RAL 9016)
Colour specification traffic white (RAL 9016)
end cap PC, white
Colour specification white
Cover cover of PC

Mounting

Mounting method, mounting location surface-mounted, to the ceiling, to the wall
Arrangement single arrangement

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

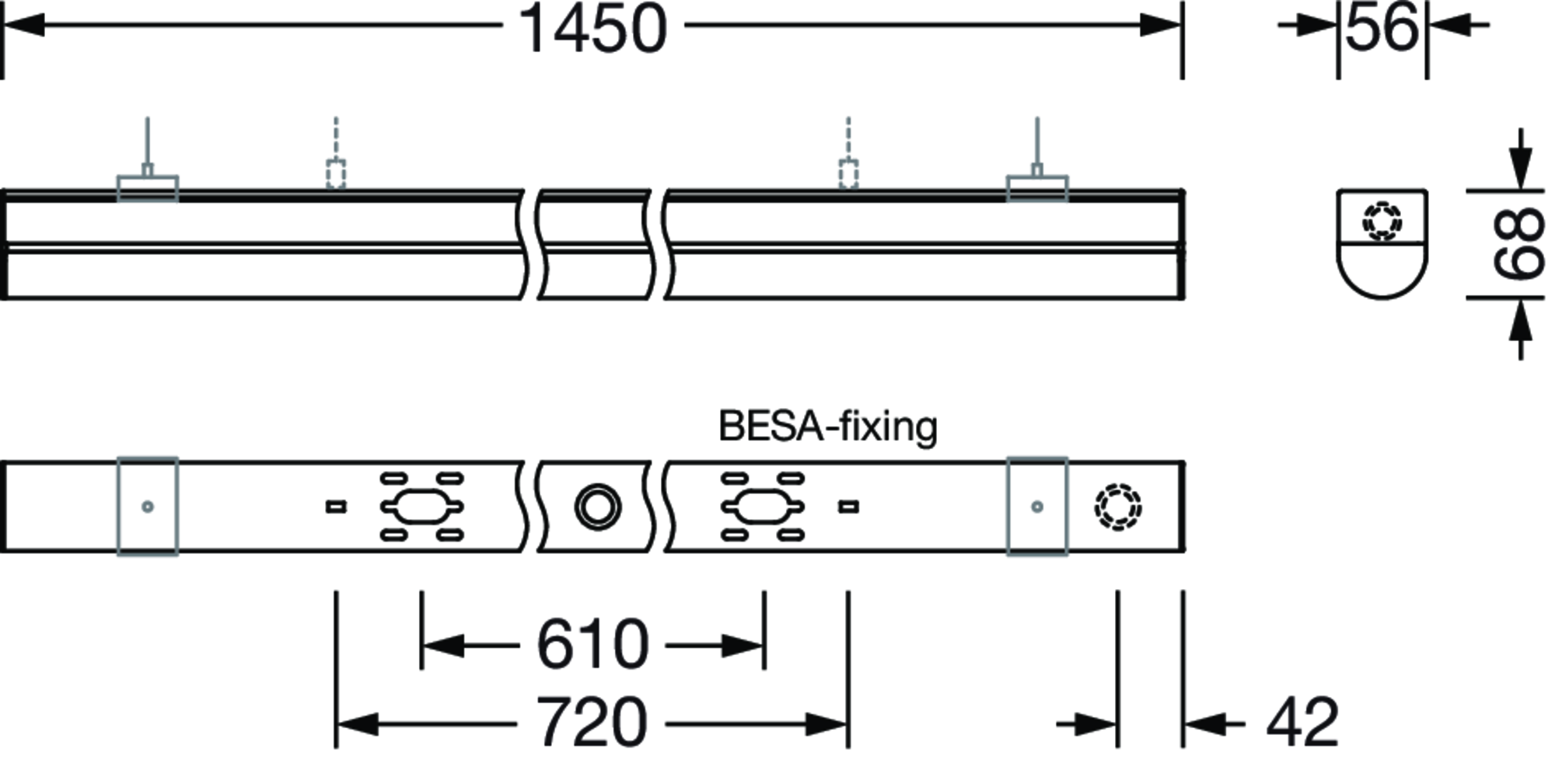

Dimensions, Weight

Length 1450mm
Width 56mm
Height 68mm
Weight 1.5kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
diffuser luminaire

Product name
Ecopack® 31

Order No.
51LJ12MNM70A

Cover
cover, frosted

Beam angle
extremely wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 28

UGR viewing direction along lateral luminaire axis
≤ 28

Lamps
with LED

Rated luminous flux
7000lm

Luminous efficacy
140lm/W

Colour temperature
3000/4000/5000K

Colour rendering index
CRI > 80

Light colour
830/840/850

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 4 SDCM (initial)

Rated input power
50W

Supplement
luminous flux adjustable on luminaire in four steps (3800/4800/5900/7000lm), connected load according to luminous flux setting (27/34/42/50W)

Control gear
ECG

Control
ON/OFF Multilumen

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Temperature range (operation)
-20..+40°C

Certification, designation
CE

housing
aluminium, traffic white (RAL 9016)

Colour specification
traffic white (RAL 9016)

end cap
PC, white

Colour specification
white

Cover
cover of PC

Mounting method, mounting location
surface-mounted, to the ceiling, to the wall

Arrangement
single arrangement

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
1450mm

Width
56mm

Height
68mm

Weight
1.5kg

Rated service life
50000h (L80/B50) at AT = 25°C

Photometric report / planning data

Ecop31
L1450,7000lm8mc,ML
Lamps: 1x LED, factory setting: colour temperature 4000K
Order No.: 51LJ12MNM70A

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
Product versions/accessory

Ecop31
Lamps: 1x LED, individual setting: colour temperature 3000K
Order No.: 51LJ12MNM70A

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES

Ecop31
Lamps: 1x LED, individual setting: colour temperature 5000K
Order No.: 51LJ12MNM70A

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES

Ecop31
Lamps: 1x LED, factory setting: colour temperature 4000K
Order No.: 51LJ12MNM70A

emergency light element
Order No.: 59LJ203

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES

Ecop31
Lamps: 1x LED, individual setting: colour temperature 3000K
Order No.: 51LJ12MNM70A

emergency light element
Order No.: 59LJ203

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES

Ecop31
Lamps: 1x LED, individual setting: colour temperature 5000K
Order No.: 51LJ12MNM70A

emergency light element
Order No.: 59LJ203

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES

Ecop31
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 51LJ12MNM70A

emergency light element
Order No.: 59LJ203

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
