Round 31, Light colour 840, ON/OFF Multilumen, Ø480
Close

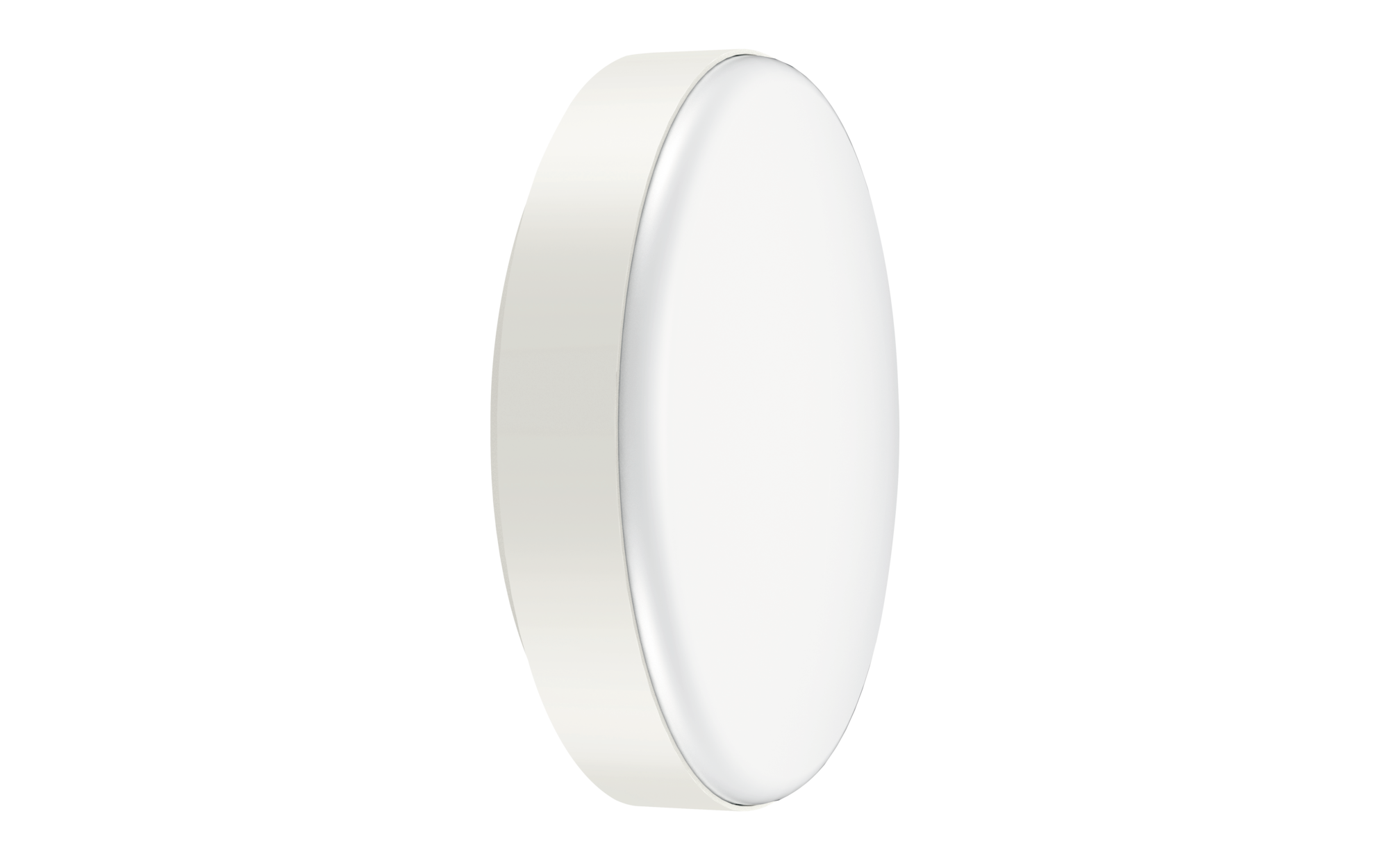

Article wall and ceiling luminaire
Product name Round 31
Lamp LED
Rated luminous flux 4400lm
Luminous efficacy 129lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 34W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP65
Impact resistance IK10
Weight 2.9kg

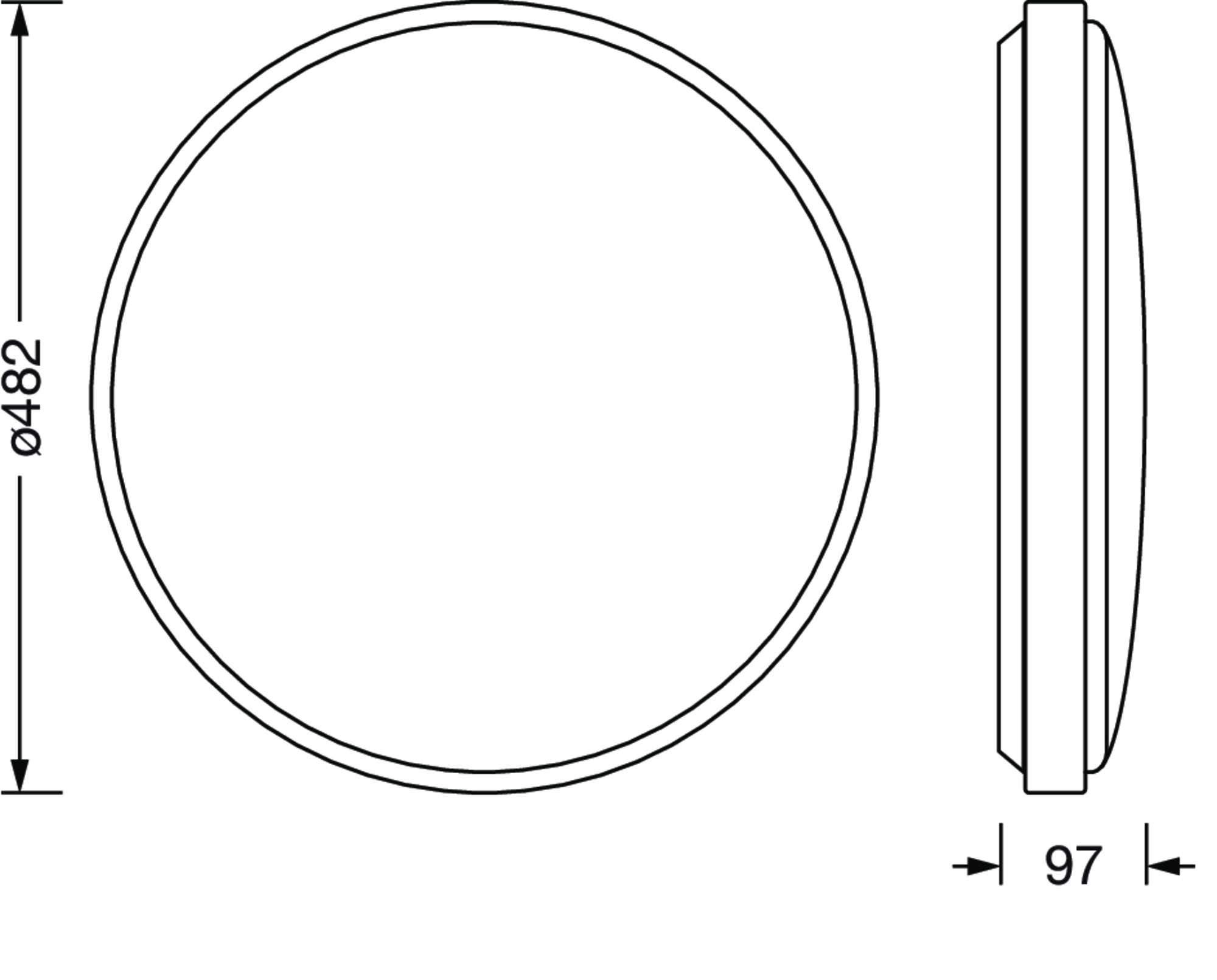

Round 31, wall and ceiling luminaire, primary optical cover: cover, of PC, opal, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 4.400lm, luminous efficacy: 129lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 34W, luminaire housing, of PC, traffic white (RAL 9016), diameter: 480mm, protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK10, permissible operating ambient temperature: -20..+40°C, permissible storage temperature: -20..+60°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
ROU31
4400lm840,ML,Ø480
Lamps: 1x LED
Order No.: 51WC10MB44A
ROU31
Lamps: 1x LED, factory setting AC mode
Order No.: 51WC10MB44A
emergency light element
Order No.: 51WC10E
ROU31
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 51WC10MB44A
emergency light element
Order No.: 51WC10E
