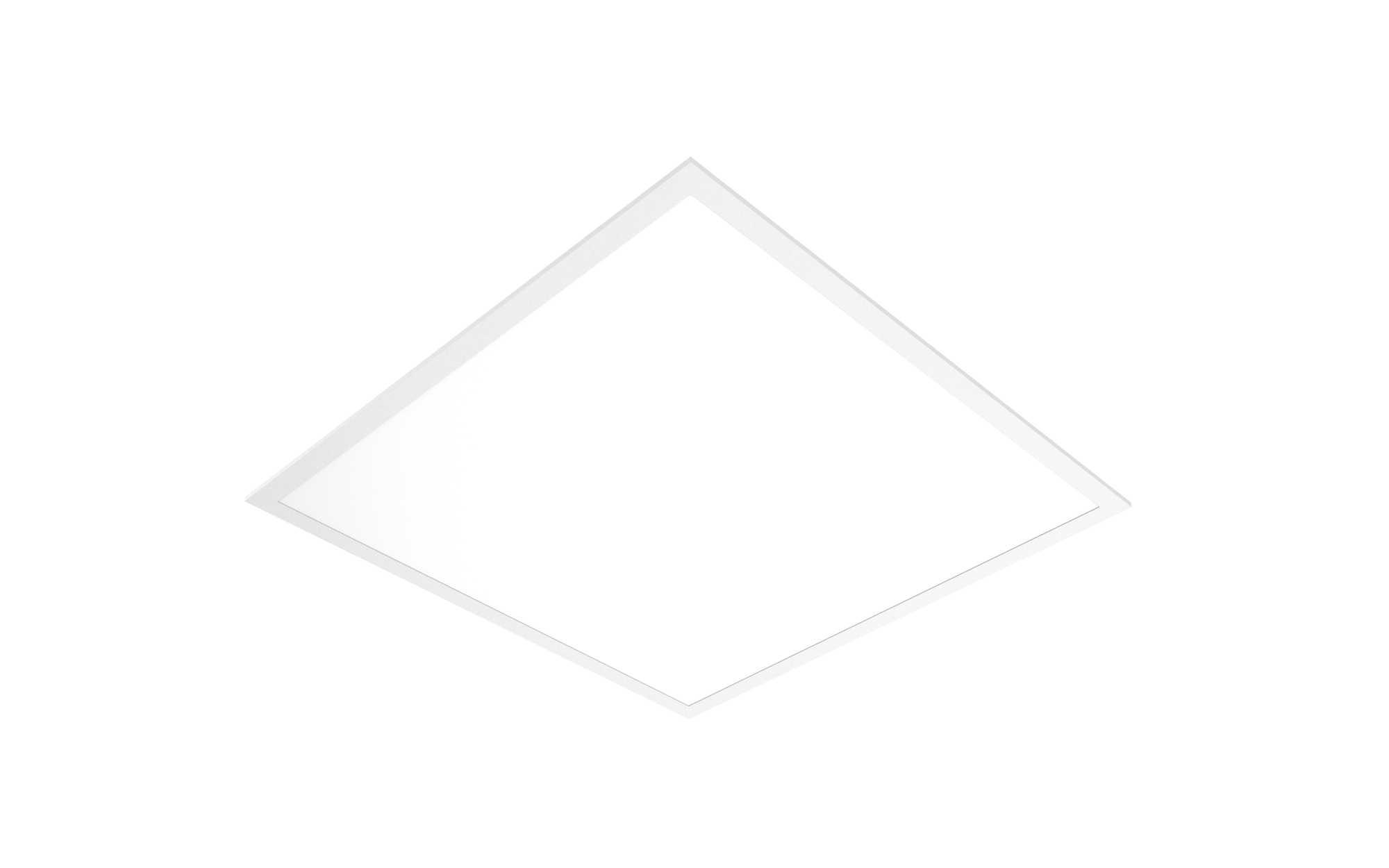

Apollon® 41, Light colour 840, ON/OFF Multilumen, for M600
Close
Article office luminaire
Product name Apollon® 41
Lamp LED
Rated luminous flux 4375lm
Luminous efficacy 125lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 35W
Service life 50000h (L80/B50) at AT = 25°C, 60000h (L70/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.9kg

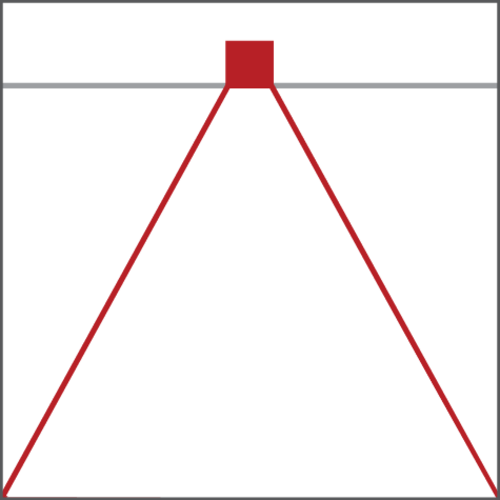

Apollon® 41, office luminaire, primary optical cover: prismatic diffuser, of PS, light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 4.375lm, luminous efficacy: 125lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 35W, housing, of aluminium section, traffic white (RAL 9016), module: M600, length: 595mm, width: 595mm, height: 60mm, recess depth: 180mm, housing upper side, of sheet steel, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP40, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, impact resistance: IK03, permissible operating ambient temperature: -25..+40°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

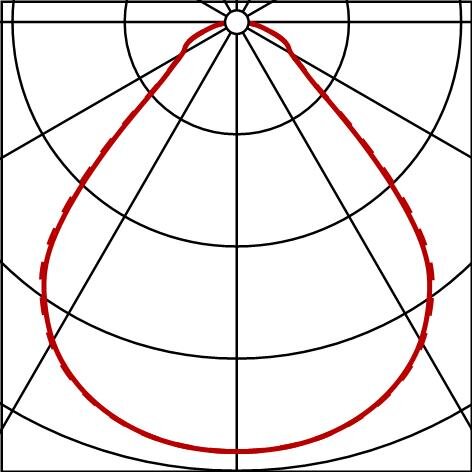

Photometric report / planning data
Apollon® 41
office luminaire, traffic white (RAL 9016), ON/OFF Multilumen, 4375lm, 840, 595x595mm, for M600, Connection: terminal
Lamps: 1x LED
Order No.: 51MH12WM2443
