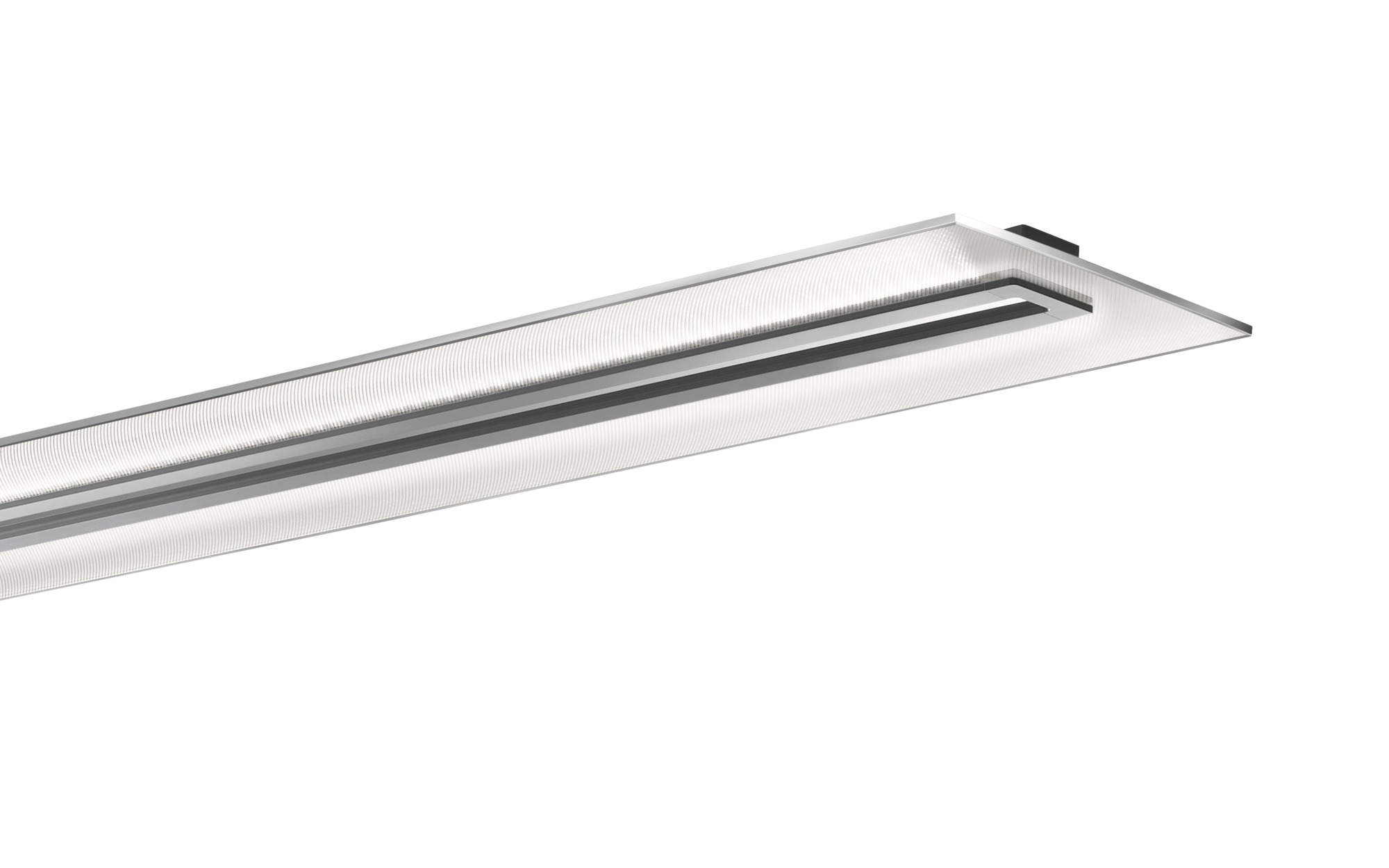

Vega® 11, direct/indirect distribution, Light colour 840, DALI

Bestellnr.: 5MN238DLE

Article office luminaire
Product name Vega® 11
Lamp LED
Rated luminous flux 8130lm
Luminous efficacy 131lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 62W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 7.3kg

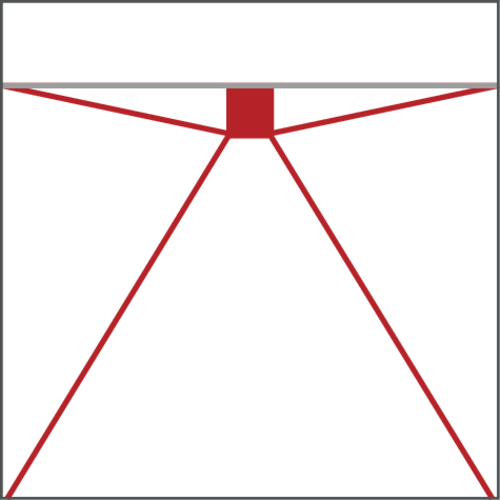

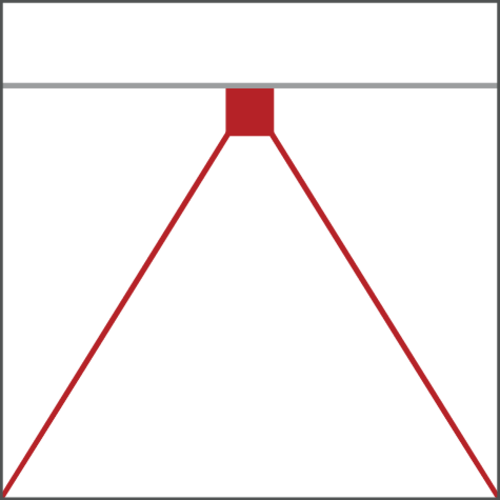

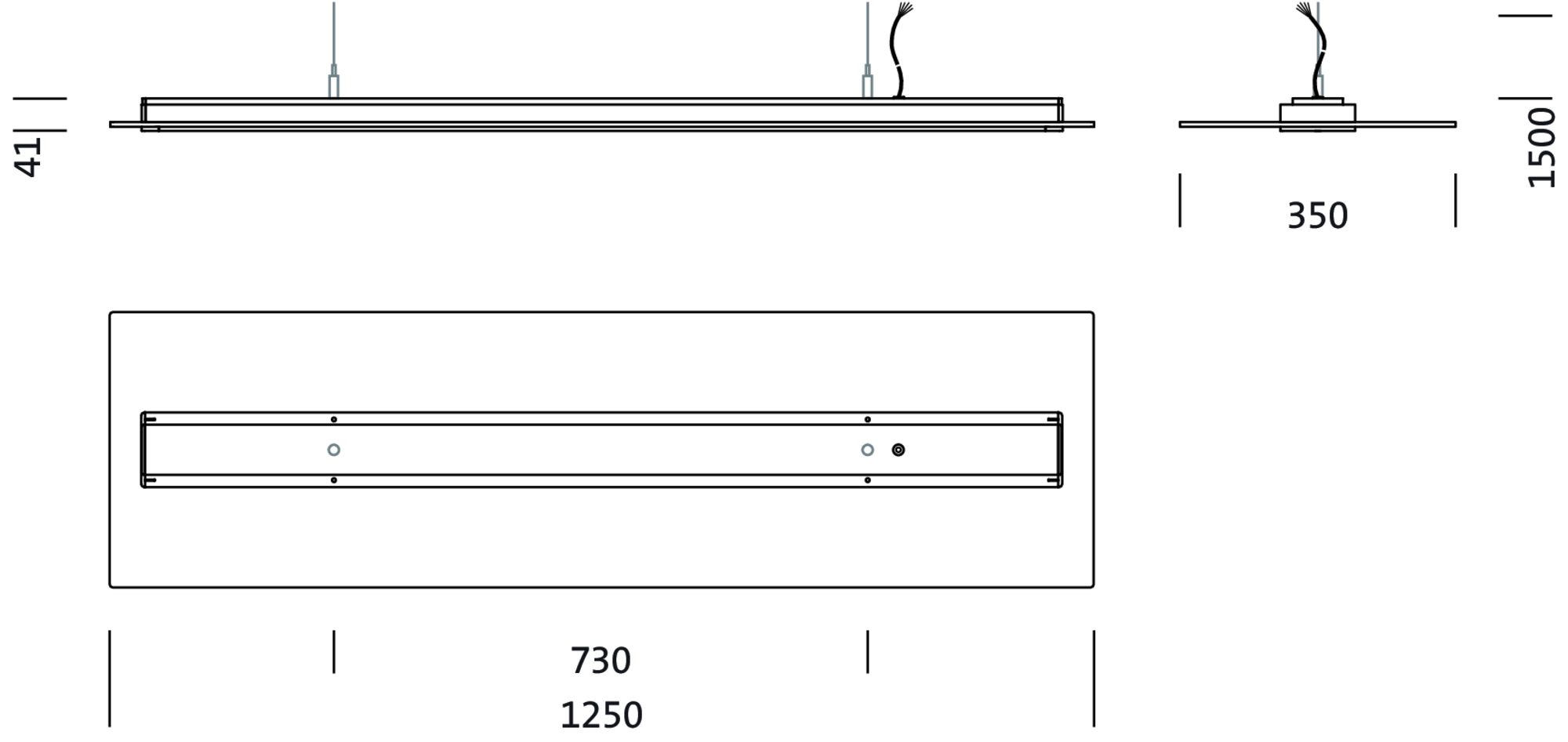

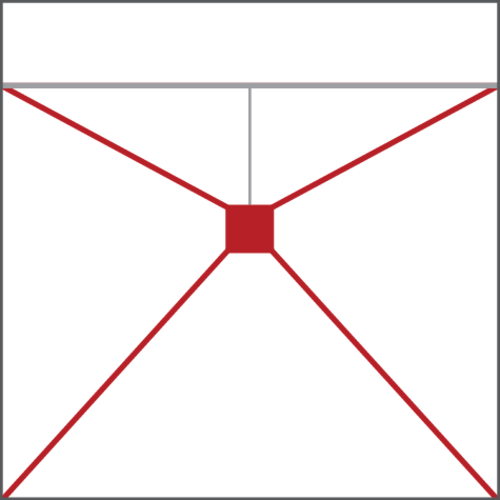

Vega® 11, office luminaire, primary light control with prismatic reflector, of PMMA, transparent prismatic structure, CAT 2 (L<= 1500cd/m²), light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 8.130lm, luminous efficacy: 131lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI, with terminal, 3+2-pole, max. 2.5mm², mains connection: 230V, AC, 50Hz, connection cable inclusive, cable length: 1,5m, rated input power: 62W, luminaire housing, rectangular, rounded, of aluminium section, anodised, metallic grey (RAL 9006), length: 1.250mm, width: 350mm, height: 43mm, luminaire housing, lower part, of aluminium section, anodised, metallic grey (RAL 9006), of PC, grey, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, standard: EN 50419, packaging unit: 1 piece

mehr anzeigenweniger anzeigen

Downloads

Technische Produktinformationen

Daten für Anwendungsprogramme

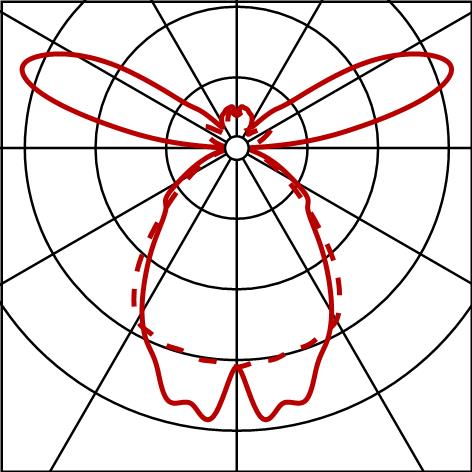

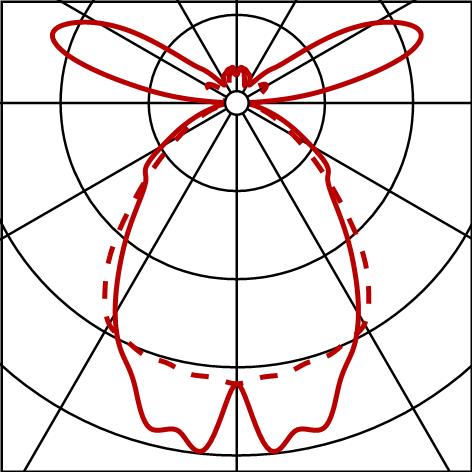

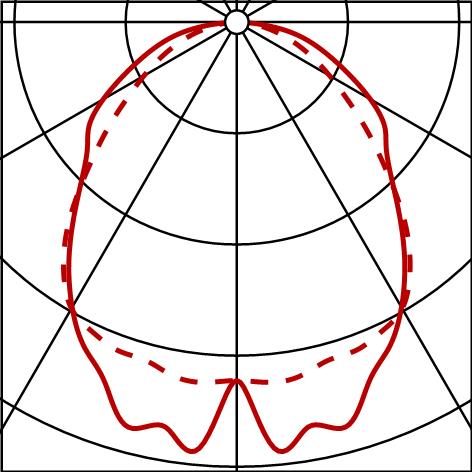

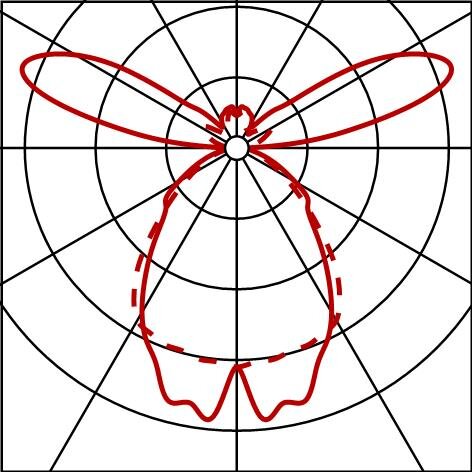

Lichttechnischer Prüfbefund / Planungsdaten

Vega® 11
office luminaire, metallic grey (RAL 9006), DALI, 8130lm, 840, 1250x350mm, Connection: terminal
Lamps: 1x LED 4000K / CRI >= 80
Bestellnr.: 5MN238DLE

Lichttechn. Prüfbefund (PDF)
