Silica® 21, wide distribution, ELDACON® L, darklight reflector, white, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Close

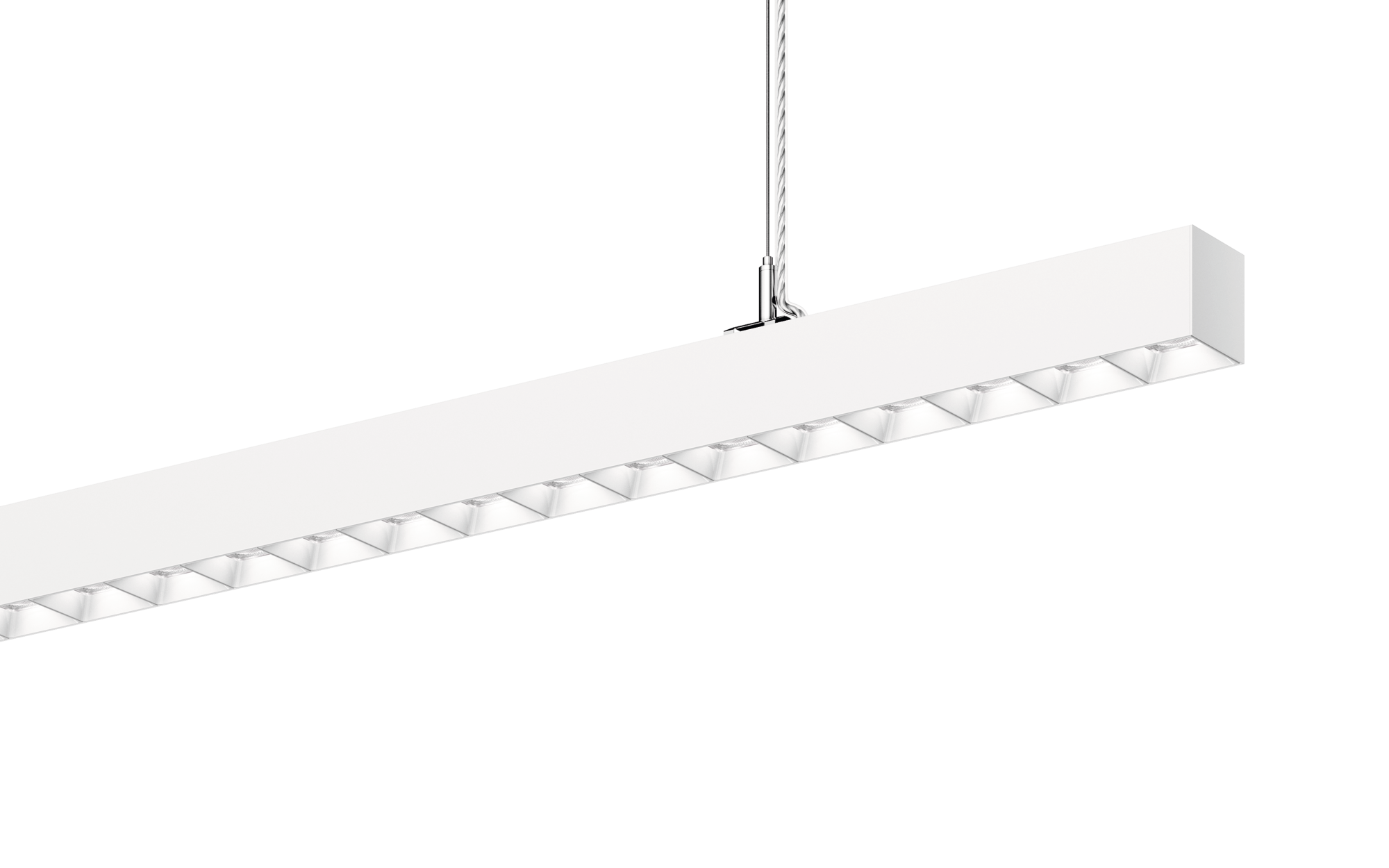

Article office luminaire
Product name Silica® 21
Lamp LED
Rated luminous flux 17650lm
Luminous efficacy 181lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 97.4W
Service life 50000h (L85/B50) at AT = 25°C, 70000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 5.5kg

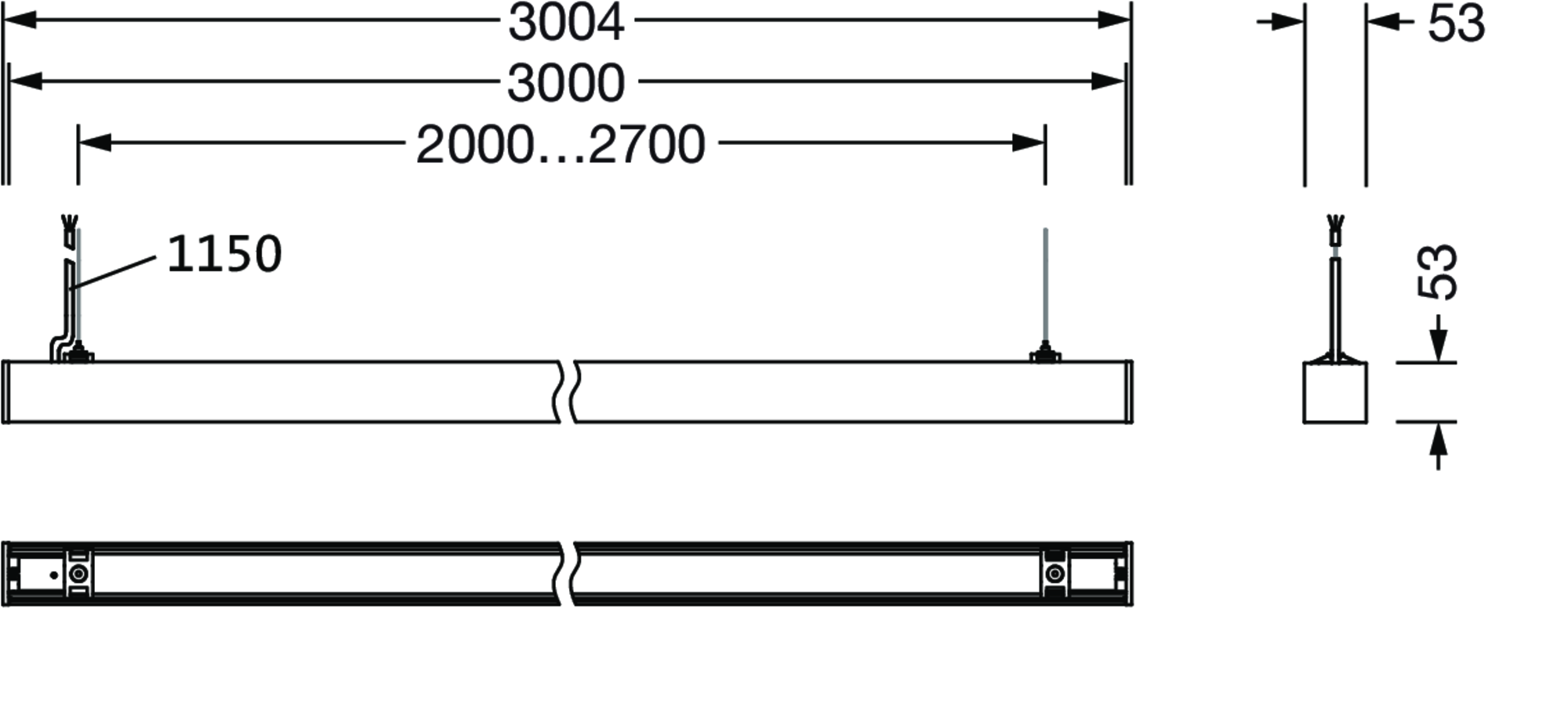

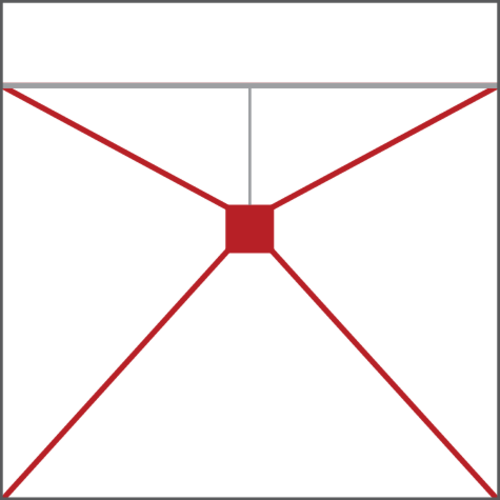

Silica® 21, office luminaire, primary light control with darklight reflector, of PMMA, white, CAT 2 (L<= 3000cd/m²), light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, rated luminous flux: 17.650lm, luminous efficacy: 181lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 97.4W, luminaire housing, of aluminium, traffic white (RAL 9016), length: 3.004mm, width: 53mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

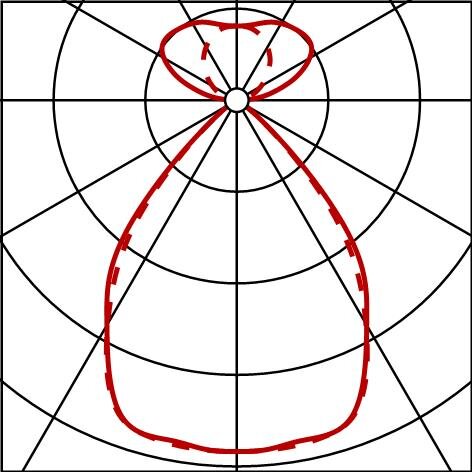

Photometric report / planning data
Silica® 21
office luminaire, traffic white (RAL 9016), DALI 2, 17650lm, 840, 3004x53mm, Connection: terminal
Lamps: 1x LED
Order No.: 51MX36DC4DWB
