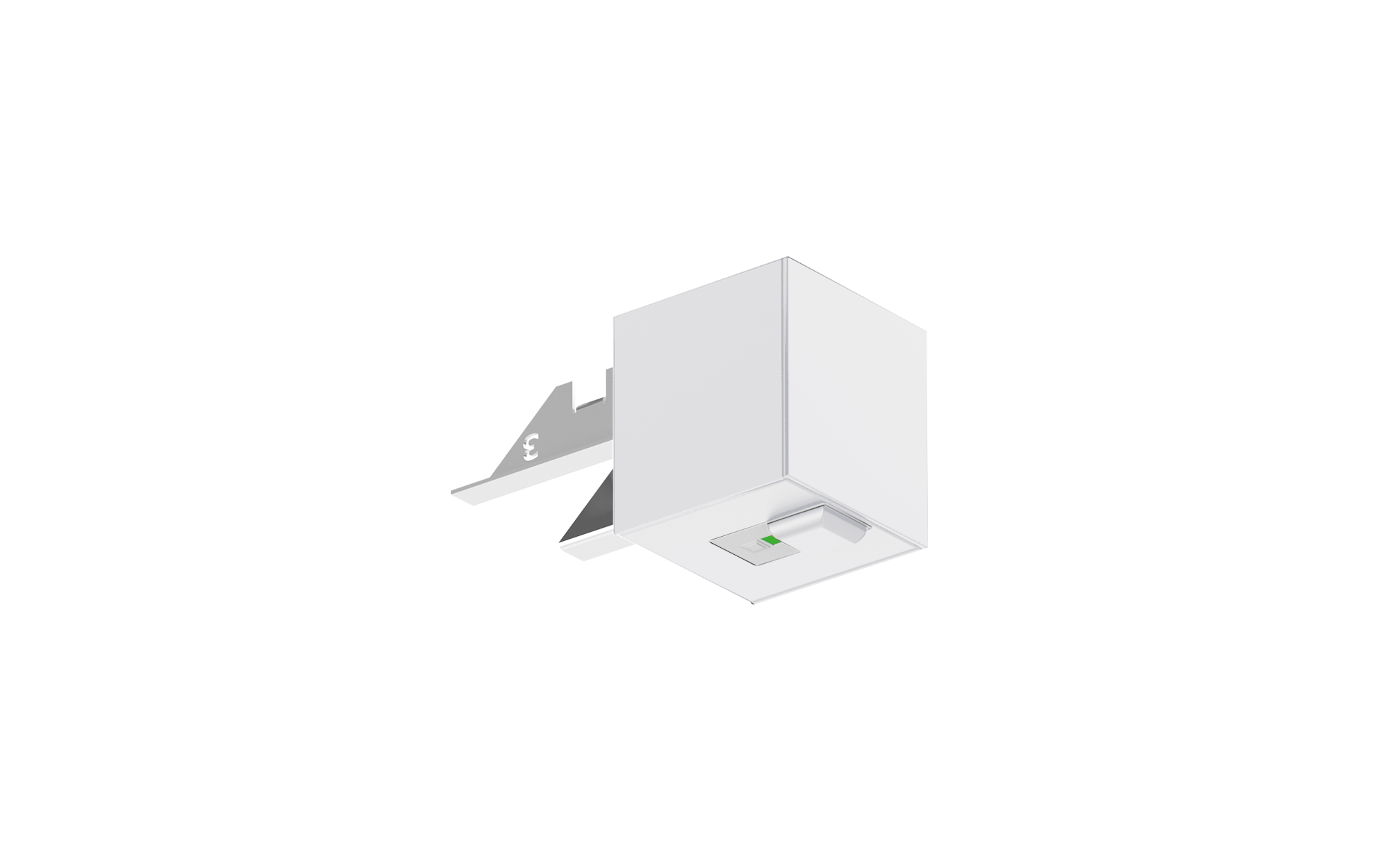

Silica® 21, sensor module PR3-S, traffic white (RAL 9016)

Schließen
Bestellnr.: 59MX2BD000WA
Artikel merkenArtikel merken

Article sensor
Product name Silica® 21
Protection rating IP20
Weight 0.2kg

Silica® 21sensor module PR3-S, slave, central control - connection to lighting or building management, dimmable, installation arrangement: single/continuous arrangement, installation type: slip-in mounting, installation location: to the luminaire, of extruded aluminium section, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, 1 x PIR movement sensor, 1 x light sensor, packaging unit: 1 piece

Downloads

Technische Produktinformationen
Daten für Anwendungsprogramme

Produktdetails

Key data

System family Siteco Connect 11, SITECO Connect 21B, SITECO Connect 21H, SITECO Connect 31 Office
Product type sensor
Product name Silica® 21
Order No. 59MX2BD000WA

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE

Material, Colour

housing extruded aluminium section, anodised, traffic white (RAL 9016), for luminaires with darklight reflector
Colour specification traffic white (RAL 9016)

Mounting

Mounting method, mounting location slip-in mounting, to the luminaire
Mounting height 2.5..5m
Arrangement single/continuous arrangement
Supplement for surface-mounted luminaires, for pendant luminaires

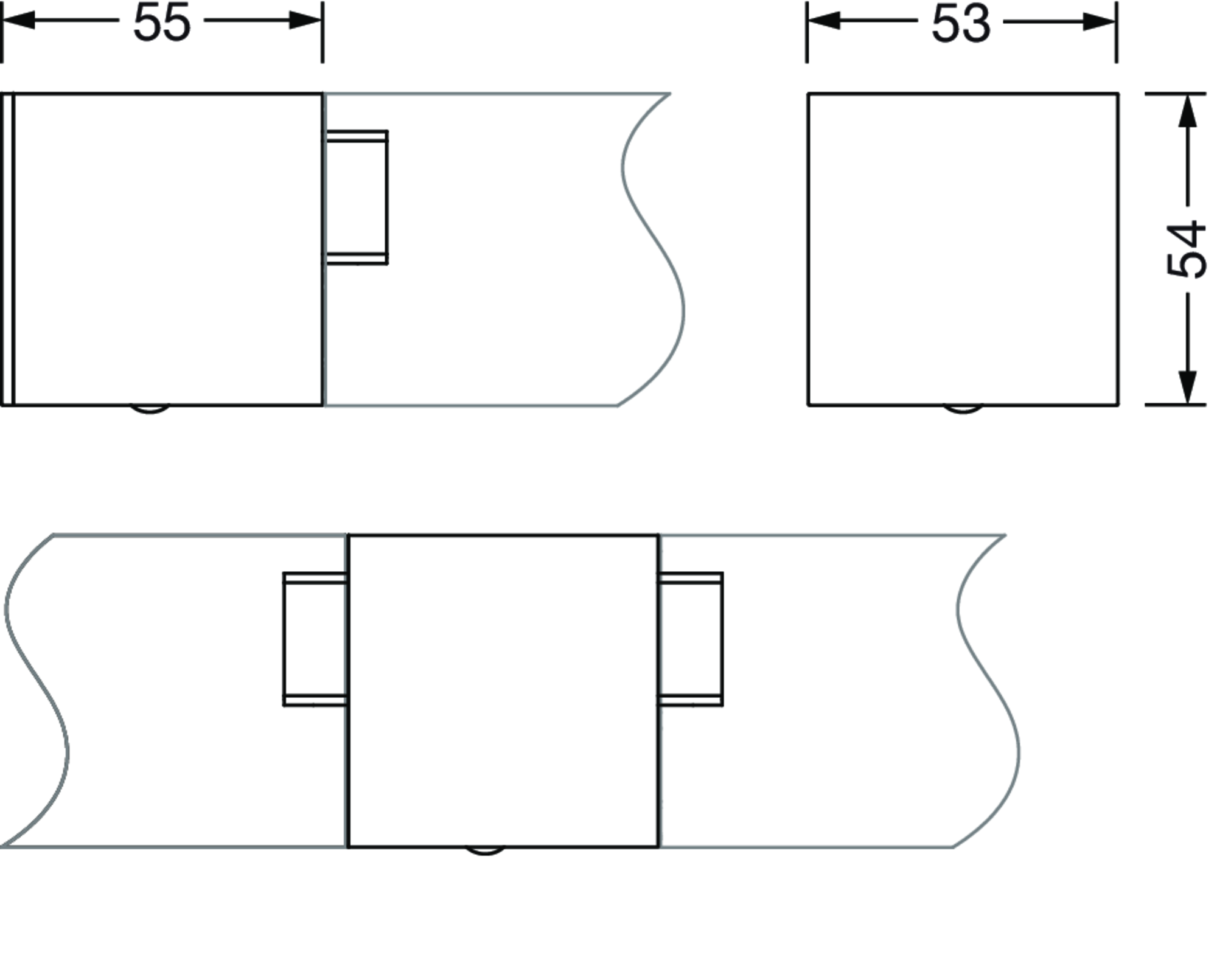

Dimensions, Weight

Length 55mm
Width 53mm
Height 54mm
Weight 0.2kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

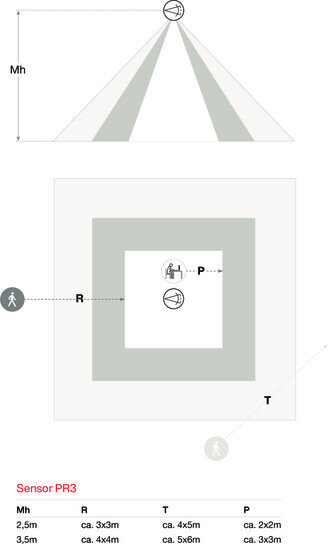

Detection range tangential max. 4x4m
Detection range max. 2x 2m
Feature rectangular detection area

System family
Siteco Connect 11, SITECO Connect 21B, SITECO Connect 21H, SITECO Connect 31 Office

Product type
sensor

Product name
Silica® 21

Order No.
59MX2BD000WA

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

housing
extruded aluminium section, anodised, traffic white (RAL 9016), for luminaires with darklight reflector

Colour specification
traffic white (RAL 9016)

Mounting method, mounting location
slip-in mounting, to the luminaire

Mounting height
2.5..5m

Arrangement
single/continuous arrangement

Supplement
for surface-mounted luminaires, for pendant luminaires

Length
55mm

Width
53mm

Height
54mm

Weight
0.2kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection range
tangential max. 4x4m

Detection range
max. 2x 2m

Feature
rectangular detection area
