Silica 21, extremely wide distribution, opal, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Close
Article office luminaire
Product name Silica 21
Lamp LED
Rated luminous flux 5400lm
Luminous efficacy 144lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 37.4W
Service life 50000h (L85) at AT = 25°C, 70000h (L80) at AT = 25°C
Protection rating IP20
Weight 5.5kg
Silica 21, office luminaire, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: recessed, LED, rated luminous flux: 5.400lm, luminous efficacy: 144lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 37.4W, luminaire housing, of aluminium, traffic white (RAL 9016), length: 2.728mm, width: 79mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

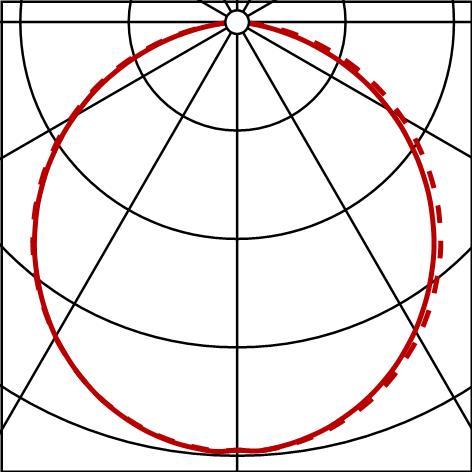

Photometric report / planning data
Silica 21

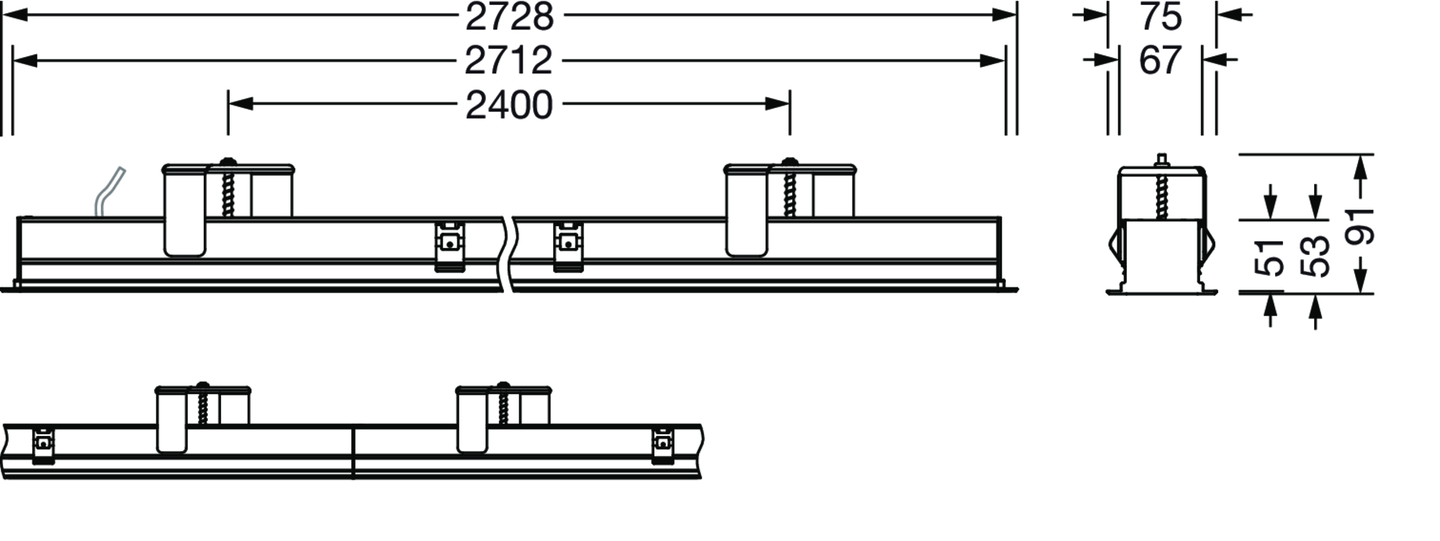

office luminaire, traffic white (RAL 9016), DALI 2, 5400lm, 830, 2728x79mm, for cut ceiling aperture, Connection: terminal
Lamps: 1x LED
Order No.: 51MX10DN35WB
