Lantern iQ

ProdukttypenKonfiguration & Datenblätter

Every city is different - but each wants to be attractive and welcoming. SITECO town and park luminaires can make a decisive contribution to giving your town that certain flair. Our luminaires are effective day and night, set aesthetic accents and can be perfectly combined with designer masts. But the best thing is their inner workings: All luminaires contain the latest generation of Module 540, which is also perfectly suited as a refurbishment solution for old systems. Because this module has it all: for example iQ, our new, patented luminaire electronics, which equips your light with a multitude of new functions and future-oriented control options. In this way, SITECO not only transports cherished design classics into the LED age, but directly into the future.

Flexible and modular into the future of city lighting

Produkttypen

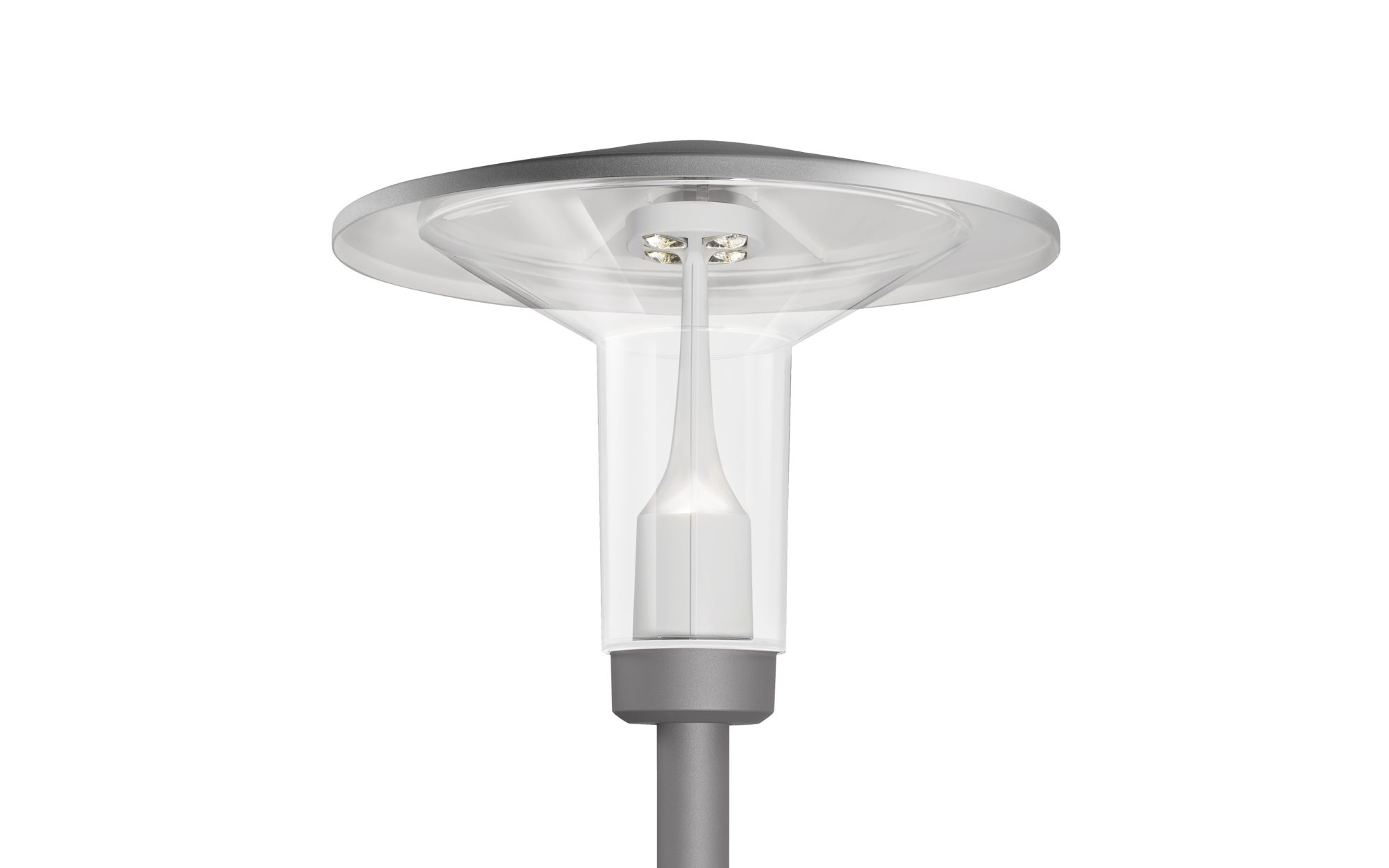

Lantern with Module 540 iQ (as single components)

Lantern with Module 540 iQ (pre-assembled, incl. connection cable)

Lantern Classic with Module 540 iQ (as single components)

Lantern Classic with Module 540 iQ (pre-assembled, incl. connection cable)

Lantern Classic with Module 540 iQ (pre-assembled, incl. connection cable)

Intro Produktfamilie

Kenndaten

Article mast luminaire
Lighting effect direct asymmetric wide distribution; direct highly asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution ST1.2a; P1.0a; PL1.2s
Net luminous flux 1360lm to 2660lm
Colour temperature 3000K
Control iQ Street-Remote; iQ-Street Remote, D4i with power reduction
Smart City with Smart Interface
Supplement Smart Interface above; Smart Interface below; Smart Interface below and above
Protection rating IP65
Insulation class insulation class II (safety insulation)

Besonderheiten

Easy installation and low maintenance due to future-oriented modular design for exchangeable LED module and gear tray
Luminous module body as a visual guidance element with decorative day/night time effect
Low energy consumption due to high luminous efficacy and avoidance of overplanning thanks to the patented CLO 2.0 luminous flux tracking
High visual comfort due to uniform illumination and very good glare control – can be further improved with spreader element

Konfiguration & Datenblätter

Lighting effect

Light distribution

Control

Smart City

Supplement

  • further light colours and connection cable variants on request
  • please order mast reducer separately if required
  • luminaire incl. pre-installed connection cable, l = 5.0m
  • Setting the luminaire with Street-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR02) or your own smart phone
  • SITECO offers the SITECO Connect Group Control (230V or 12/24V) product to use the Smart Wire function '10 levels'. A communication module is also available with which remote access is possible and radio clock functionality is provided.
  • Smart Interface luminaires currently without iQ functionality

Ergebnisse

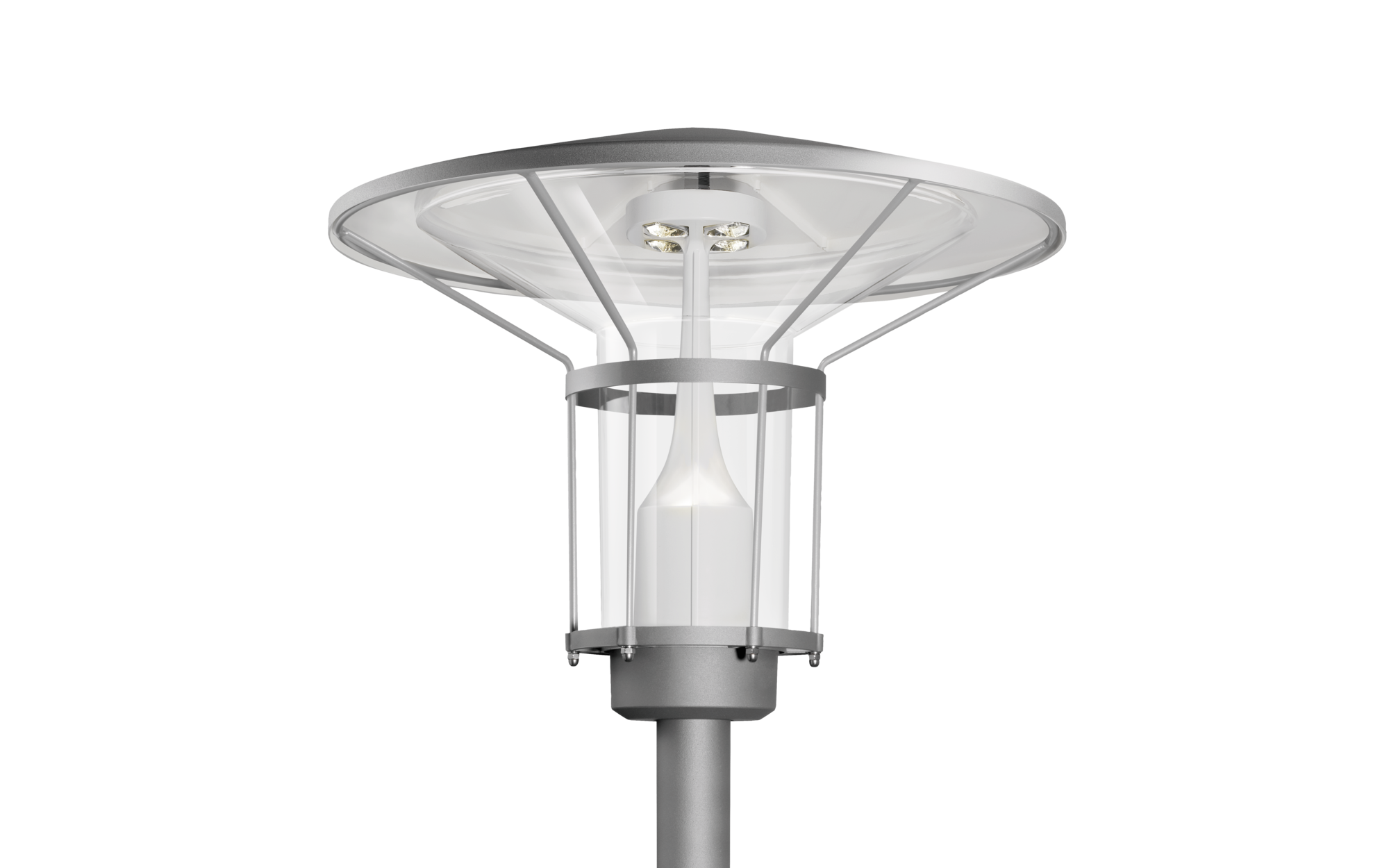

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5245FF14H000022 GTIN (EAN): 4058352635872
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 701360lmP1.0aiQ Street-Remote 111159.02222.90
Alle Details anzeigen
Tender textData sheet (PDF, full)Lichttechnischer Prüfbefund / PlanungsdatenKomplette Downloadliste

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5245EF14H000022 GTIN (EAN): 4058352635162
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 701380lmST1.2aiQ Street-Remote 111159.02222.90
Alle Details anzeigen
Tender textData sheet (PDF, full)Lichttechnischer Prüfbefund / PlanungsdatenKomplette Downloadliste

Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5245JF14H000022 GTIN (EAN): 4058352635919
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 702660lmPL1.2siQ Street-Remote 1921109.02296.40
Alle Details anzeigen
Tender textData sheet (PDF, full)Lichttechnischer Prüfbefund / PlanungsdatenKomplette Downloadliste

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below

Order No.: 5XA5245EU14H000022 GTIN (EAN): 4058352023884
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 701370lmST1.2aiQ-Street Remote, D4i with power reductionSmart Interface below111169.02345.40
Alle Details anzeigen
Tender textData sheet (PDF, full)Lichttechnischer Prüfbefund / PlanungsdatenKomplette Downloadliste

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface above

Order No.: 5XA5245EV14H000022 GTIN (EAN): 4058352023907
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 701370lmST1.2aiQ-Street Remote, D4i with power reductionSmart Interface above111169.02271.90
Alle Details anzeigen
Tender textData sheet (PDF, full)Lichttechnischer Prüfbefund / PlanungsdatenKomplette Downloadliste

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below and above

Order No.: 5XA5245EY14H000022 GTIN (EAN): 4058352023921
Colour temperatureColour renderingLuminous fluxLight distributionControlSupplementPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 701370lmST1.2aiQ-Street Remote, D4i with power reductionSmart Interface below and above111169.02394.50
Alle Details anzeigen
Tender textData sheet (PDF, full)Lichttechnischer Prüfbefund / PlanungsdatenKomplette Downloadliste

Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard

Order No.: 5XA5245FF14H000022GTIN (EAN): 4058352635872

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1360lm
Light distributionP1.0a
ControliQ Street-Remote
Supplement
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux5
Wt. (kg)9.0
Price (EUR)2222.90
Alle Details anzeigen

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard

Order No.: 5XA5245EF14H000022GTIN (EAN): 4058352635162

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1380lm
Light distributionST1.2a
ControliQ Street-Remote
Supplement
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux5
Wt. (kg)9.0
Price (EUR)2222.90
Alle Details anzeigen

Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Order No.: 5XA5245JF14H000022GTIN (EAN): 4058352635919

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2660lm
Light distributionPL1.2s
ControliQ Street-Remote
Supplement
Pnom begin service life19
Pnom end service life21
Pred at 50% lumin. flux10
Wt. (kg)9.0
Price (EUR)2296.40
Alle Details anzeigen

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below

Order No.: 5XA5245EU14H000022GTIN (EAN): 4058352023884

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1370lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction
SupplementSmart Interface below
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux6
Wt. (kg)9.0
Price (EUR)2345.40
Alle Details anzeigen

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface above

Order No.: 5XA5245EV14H000022GTIN (EAN): 4058352023907

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1370lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction
SupplementSmart Interface above
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux6
Wt. (kg)9.0
Price (EUR)2271.90
Alle Details anzeigen

Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard, with Smart Interface below and above

Order No.: 5XA5245EY14H000022GTIN (EAN): 4058352023921

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux1370lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction
SupplementSmart Interface below and above
Pnom begin service life11
Pnom end service life11
Pred at 50% lumin. flux6
Wt. (kg)9.0
Price (EUR)2394.50
Alle Details anzeigen

Optionales Zubehör

Articlespreader elementPU1 pc.Wt. (kg)0.2Price (EUR)43.40Order No.: 5XA54000XSGTIN (EAN): 4050737730073Alle Details anzeigen
Articlespreader elementPU1 pc.Wt. (kg)0.2Price (EUR)67.40Order No.: 5XA54000XSAGTIN (EAN): 4058352161326Alle Details anzeigen
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Price (EUR)96.50Order No.: 5XA54000XBSGTIN (EAN): 4050737971445Alle Details anzeigen
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Price (EUR)108.70Order No.: 5XA54000XBLGTIN (EAN): 4050737971421Alle Details anzeigen
Articleshield, rear shieldingPU1 pc.Wt. (kg)0.5Price (EUR)117.60Order No.: 5XA54000XBXLGTIN (EAN): 4058352415573Alle Details anzeigen
Articledecorative ring, silverPU1 pc.Wt. (kg)0.2Price (EUR)43.40Order No.: 5XA54001XSGTIN (EAN): 4050737754895Alle Details anzeigen
Articlereducer, spigot size: 76/60mmPU1 pc.Wt. (kg)0.1Price (EUR)31.10Order No.: 5LA52201XRGTIN (EAN): 4039806232175Alle Details anzeigen
Articlecable junction box, 2x E14, for 3 cables to 5x 16mm²PU1 pc.Wt. (kg)0.8Price (EUR)174.50Order No.: 5NY70062DKGTIN (EAN): 4058352552247Alle Details anzeigen
Articlewall bracket, rocker-type, single, DB 702S, a= 600mmPU1 pc.Wt. (kg)7.4Price (EUR)623.60Order No.: 5NY52660XG18GTIN (EAN): 4039806215932Alle Details anzeigen
Articlemast arm, rocker-type, single, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)9.5Price (EUR)793.40Order No.: 5NY52650XG18GTIN (EAN): 4039806216694Alle Details anzeigen
Articlemast arm, rocker-type, twin, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)13.8Price (EUR)1598.50Order No.: 5NY52650XG28GTIN (EAN): 4039806215833Alle Details anzeigen
Articlewall bracket, rail-type, single, DB 702S, a= 600mmPU1 pc.Wt. (kg)7.9Price (EUR)514.00Order No.: 5NY52660XN18GTIN (EAN): 4039806216014Alle Details anzeigen
Articlemast arm, rail-type, single, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)9.8Price (EUR)715.50Order No.: 5NY52650XN18GTIN (EAN): 4039806215857Alle Details anzeigen
Articlemast arm, rail-type, twin, DB 702S, a= 600mm, d_a= 76mmPU1 pc.Wt. (kg)15.9Price (EUR)1293.20Order No.: 5NY52650XN28GTIN (EAN): 4039806215895Alle Details anzeigen
Articlecover, PMMA, transparent, ø= 185mmPU1 pc.Wt. (kg)2.0Price (EUR)240.50Order No.: 5NC54700XGGTIN (EAN): 4039806180513Alle Details anzeigen
