SITECO Connect 31

Product typesConfiguration & data sheets

SITECO Connect for indoor use unlocks the full potential of your lighting system. Sensor-based control saves energy and extends luminaire service life through targeted dimming. In turn, increasing illuminance as needed creates greater visibility and safety when necessary. Lighting management systems automate control, create transparency, and optimize operations, allowing you to focus on what matters most

With SITECO Connect 31, lighting automatically adapts to movement and daylight – saving energy, reducing costs and working without a central lighting or building management system

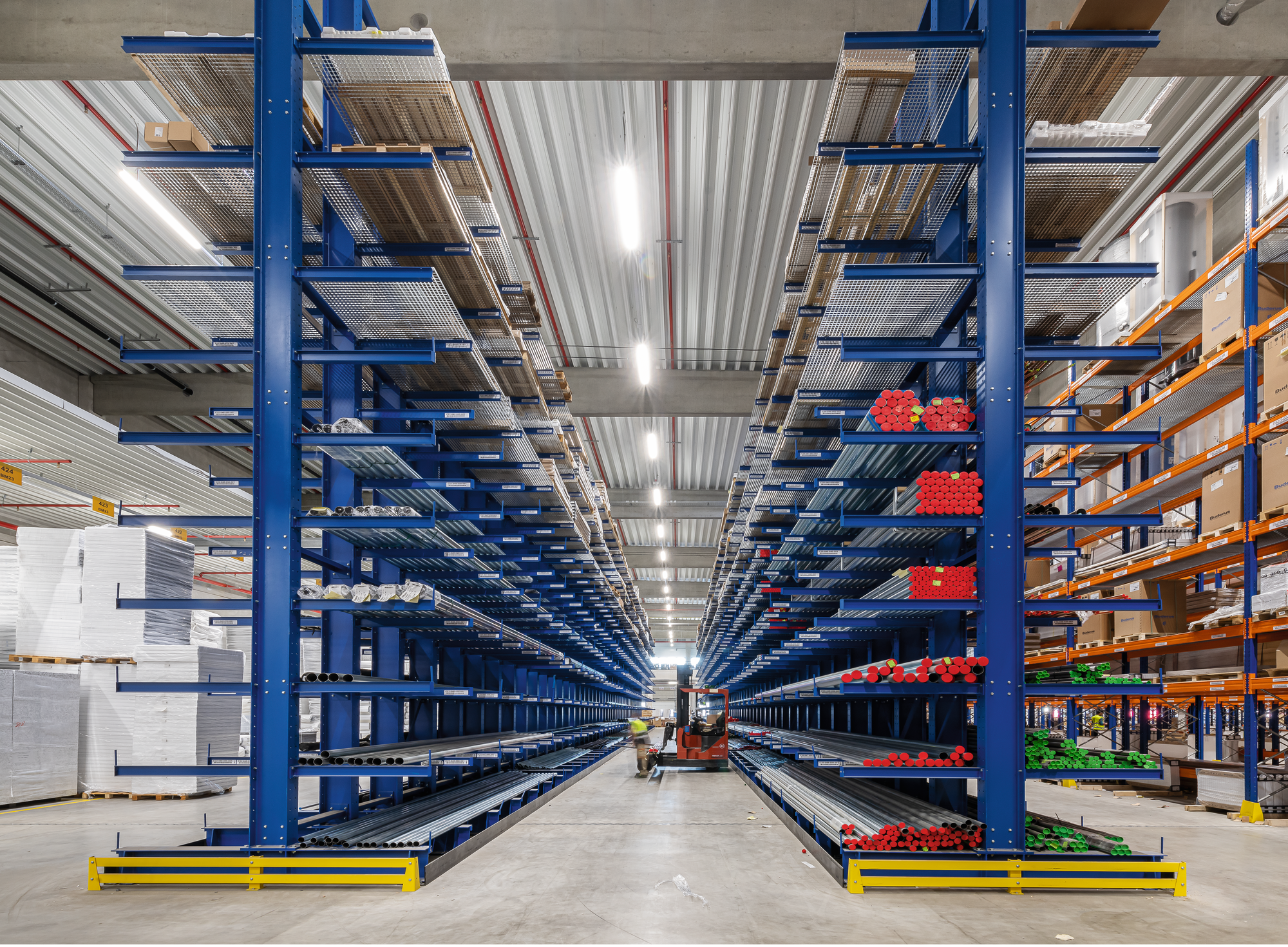

sensors in shelving systems with mesh floors or data centres help to save energy and reduce CO₂ (ECG DALI)

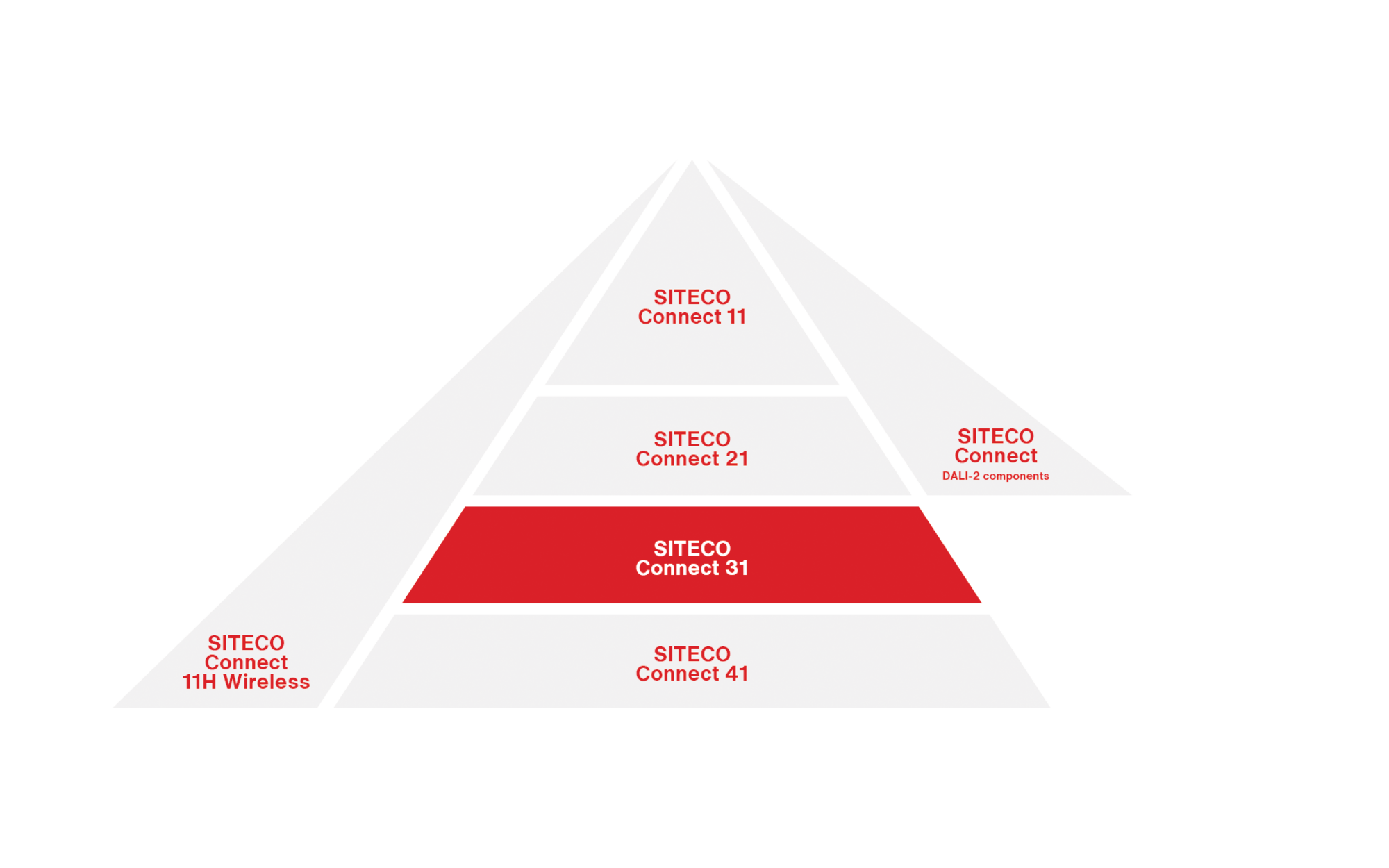

Intro product family

Key data

Article sensor
Control DALI

Special features

Light only when and where and to the extent that it is actually needed
Maximise your energy, CO₂ and cost savings with the help of state-of-the-art light and motion sensors
The master sensor bundles the entire control intelligence for the room in one device
Significantly less installation and cabling effort than with central lighting or building management systems
Easy commissioning via commissioning remote control – no DALI knowledge is required

Configuration & data sheets

  • suitable from 7-core wiring
  • commissioning remote control 5LZ904307 required for setting the follow-up time, dimming level and sensor range

Results

Sensor-Module HE1-M

Order No.: 56TL1MBMHE1B GTIN (EAN): 4058352542378
EquipmentControlColourInstallation locationMounting heightFeatureDetection range movementApplication areaProtection ratingWt. (kg)Price (EUR)
masterDALIwhiteto the Licross® trunking rail2.5..6mellipsoid detection areamax. ø25m (radial)corridor and magazineIP200.5328.40

Sensor-Module HE1-M

Order No.: 56TL1MBMHE1BGTIN (EAN): 4058352542378

Equipmentmaster
ControlDALI
Colourwhite
Installation locationto the Licross® trunking rail
Mounting height2.5..6m
Featureellipsoid detection area
Detection range movementmax. ø25m (radial)
Application areacorridor and magazine
Protection ratingIP20
Wt. (kg)0.5
Price (EUR)328.40

Mandatory accessories

Articlecommissioning remote controlPU1 pc.Wt. (kg)0.2Price (EUR)171.70Order No.: 5LZ904307GTIN (EAN): 4052899195967Show all details
