Streetlight SL 31 Area

Product typesConfiguration & data sheets

If you want the maximum, you have to focus on the essentials. And that's exactly what Streetlight SL 31 does. With its special light distribution for areas, the Streetlight SL 31 Area impresses with perfect light, high comfort, and optimal energy efficiency. Thanks to various interfaces, it offers flexibility, both today and tomorrow. Environmental protection and sustainability are evident in every detail, and on-site development and production in Traunreut ensure short delivery times and routes.

Focused on what matters. For maximum results in area lighting. That's Streetlight SL 31 Area

Product types

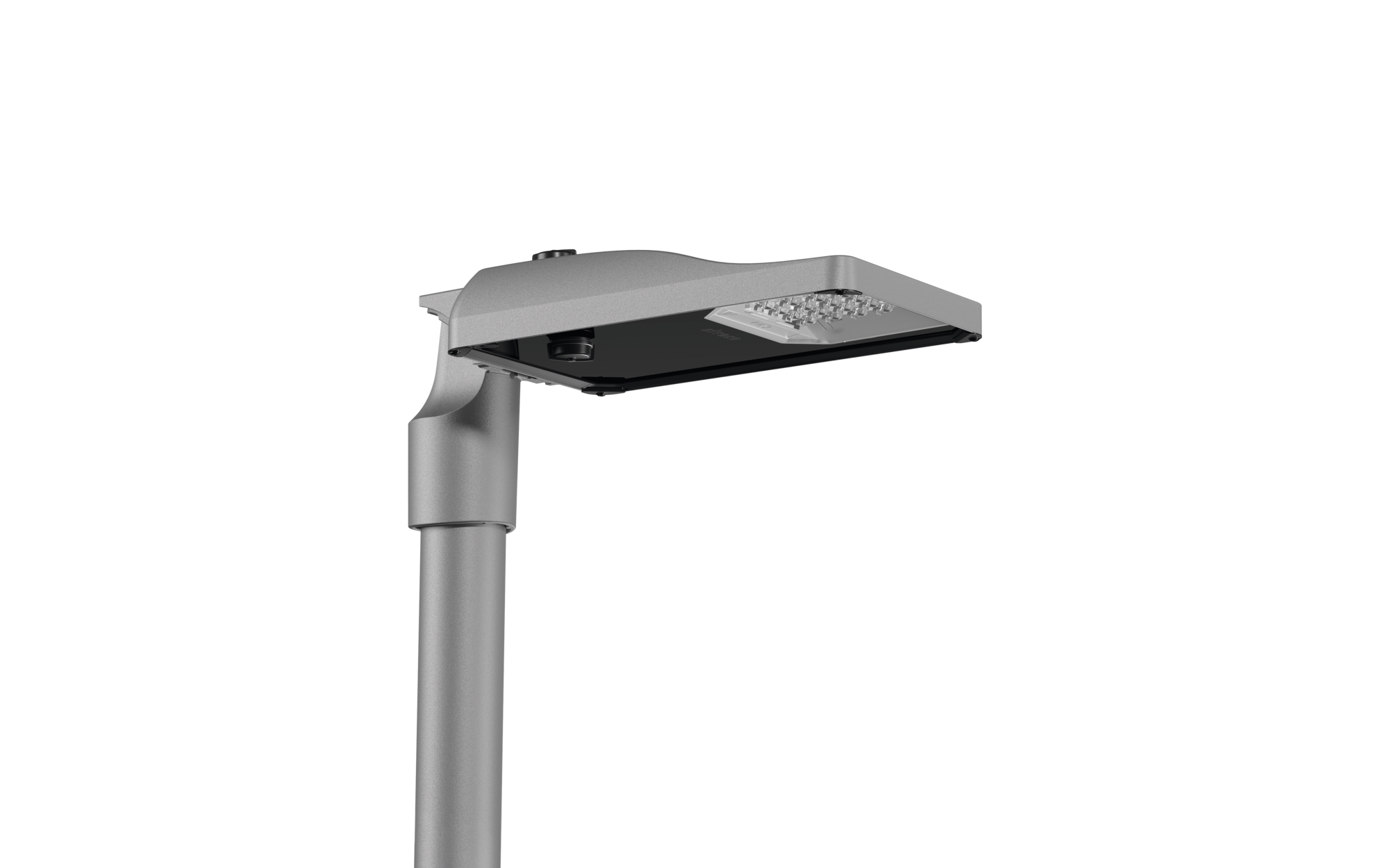

Streetlight SL 31 micro Area

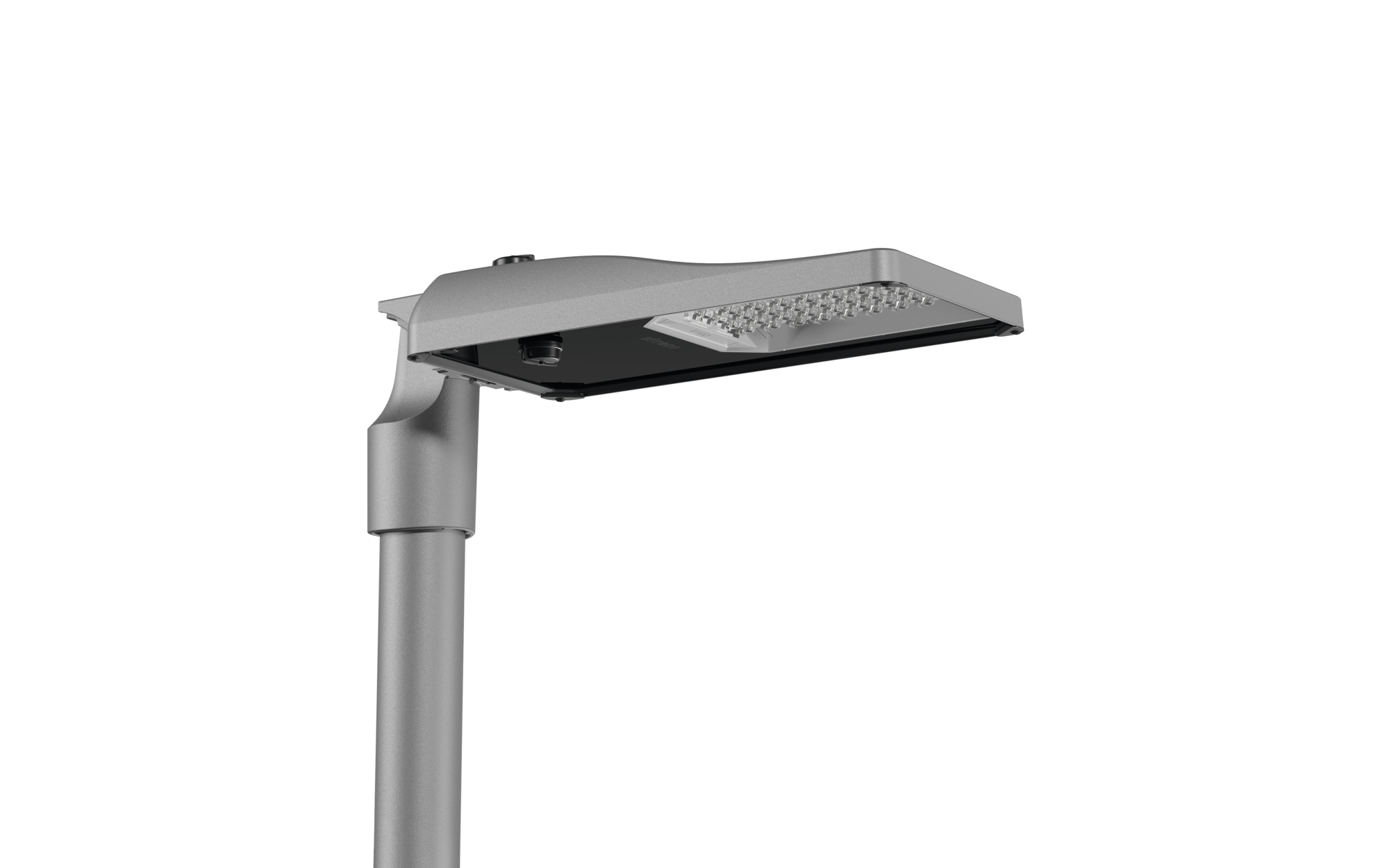

Streetlight SL 31 mini Area

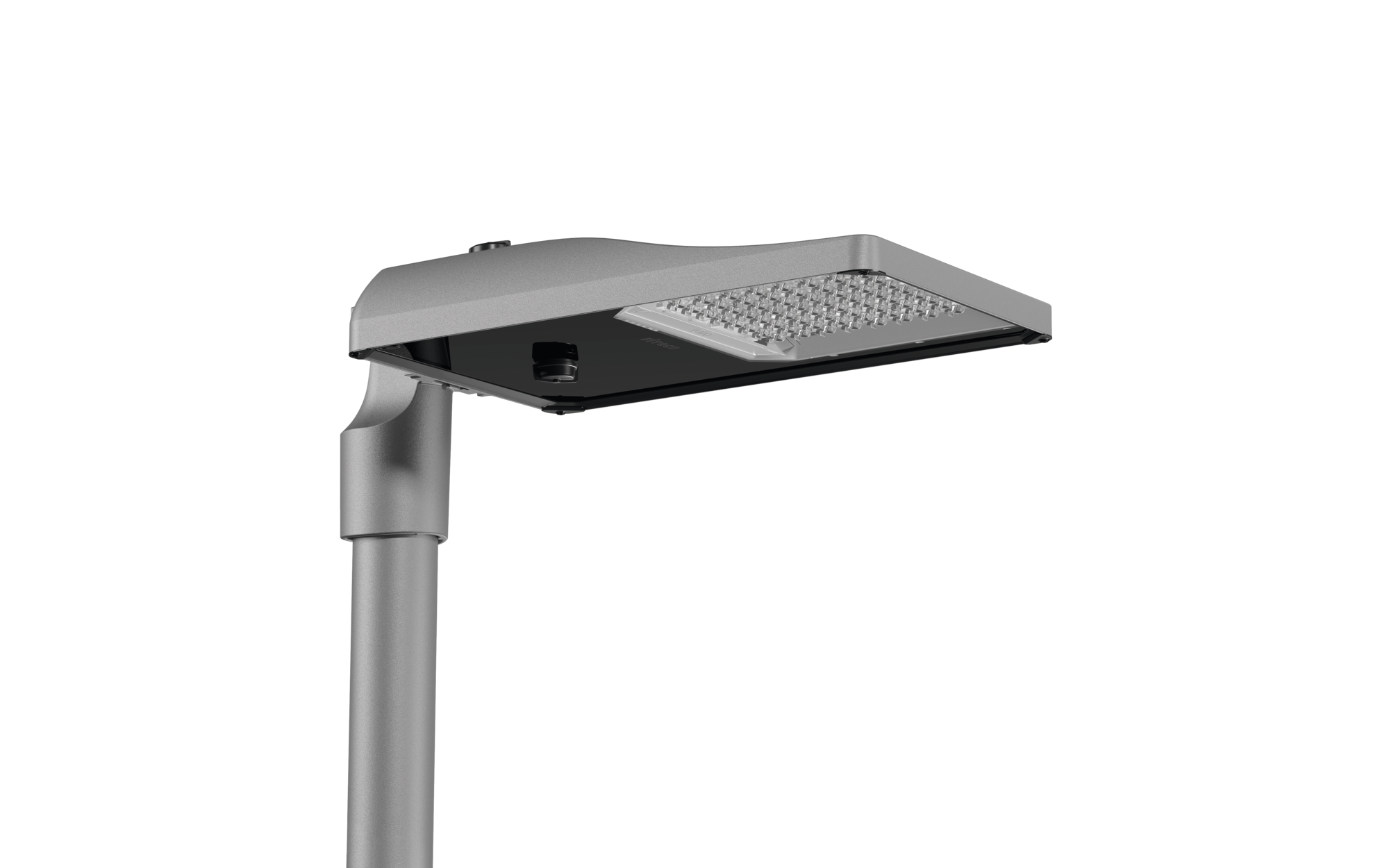

Streetlight SL 31 midi Area

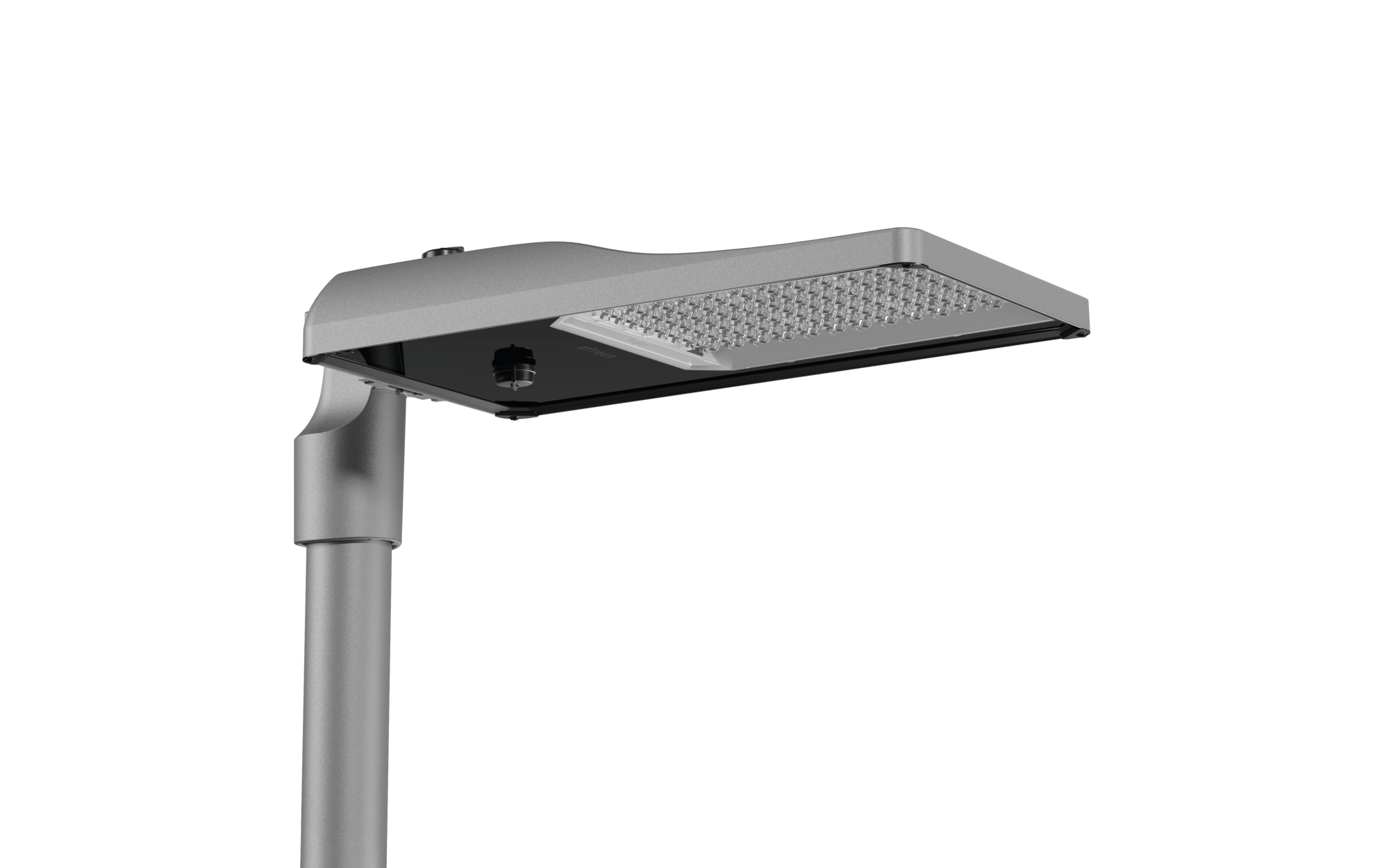

Streetlight SL 31 maxi Area

Streetlight SL 31 maxi Area

Intro product family

Key data

Article mast luminaire
Net luminous flux 22010lm
Colour temperature 2200K
Lighting effect direct asymmetric wide distribution
Light distribution PL52
Protection rating IP66
Insulation class insulation class I (protective earthing)

Special features

Long service life of more than 100,000h, also thanks to future-proof product concept and long-life components
Light distributions are based on our non-yellowing PMMA lens platform. Mixing and rotating the lens plates for other light distributions is possible on request if required.
Easy installation thanks to pre-assembled connection cable as standard
Mast flange for spigot size 60/76mm with inclination adjustment (-15°…+20° (post-top), -20°…+20° (side-entry) included in delivery
All variants of the Streetlight SL 31 can be individually parameterized either with our SITECO® Service Box (5EA6TEF03) or wirelessly and without voltage with our Desk-Remote variant via our SITECO® Handheld (5EA6HBR02)
Easy and Easy LST variants are the basic variants of the new Streetlight SL 31. The variants can be operated as an ON/OFF luminaire, with a Night-Set profile or Lumen-Switch. The Easy LST variant also has the function of being controlled via a reducing wire
Smart-City-ready: future-proof thanks to two optional Zhaga or NEMA interfaces (7pin) for state-of-the-art lighting control, wireless networking and versatile sensors
Desk-Remote: voltage-free transmission of data to the luminaire via application-optimized NFC function/RFID function, even through the packaging

Configuration & data sheets

  • mast flange for mast spigot diameter 76mm and 60mm contained in product
  • mast flange 60/48/42mm or 76…34mm available on request
  • Pre-assembled connection cable (H07RN-F)
  • Other connection cable types and lengths available on request

Results

Streetlight SL 31 maxi, direct asymmetric wide distribution, PL52, with Smart Interface above, opened without tools

Order No.: 5XH8H75N08SA GTIN (EAN): 4069025105035
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
2200KCRI > 7022010lmPL52NEMA (7pin), Desk-Remote2092338812.01333.30
Show all details
Tender textTender text neutralData sheet (PDF, full)Environmental Product Declaration EPDPhotometric report / planning dataComplete download list

Streetlight SL 31 maxi, direct asymmetric wide distribution, PL52, with Smart Interface above, opened without tools

Order No.: 5XH8H75N08SAGTIN (EAN): 4069025105035

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux22010lm
Light distributionPL52
ControlNEMA (7pin), Desk-Remote
Pnom begin service life209
Pnom end service life233
Pred at 50% lumin. flux88
Wt. (kg)12.0
Price (EUR)1333.30
Show all details

Optional accessories

Articleshield, rear shieldingPU1 pc.Wt. (kg)0.3Price (EUR)74.30Order No.: 5XEBLC40AGTIN (EAN): 4069025237965Show all details
