Highbay 21

ProdukttypenKonfiguration & Datenblätter

The Highbay 21 has the same mechanical concept as the Highbay 11 with all its advantages.
Thanks to the innovative housing concept, the Highbay 21 also has a low weight and excellent thermal management.
The modified light engine with other LEDs offers a specification tailored to the target applications with adapted efficiency, lifetime and ambient temperatures.

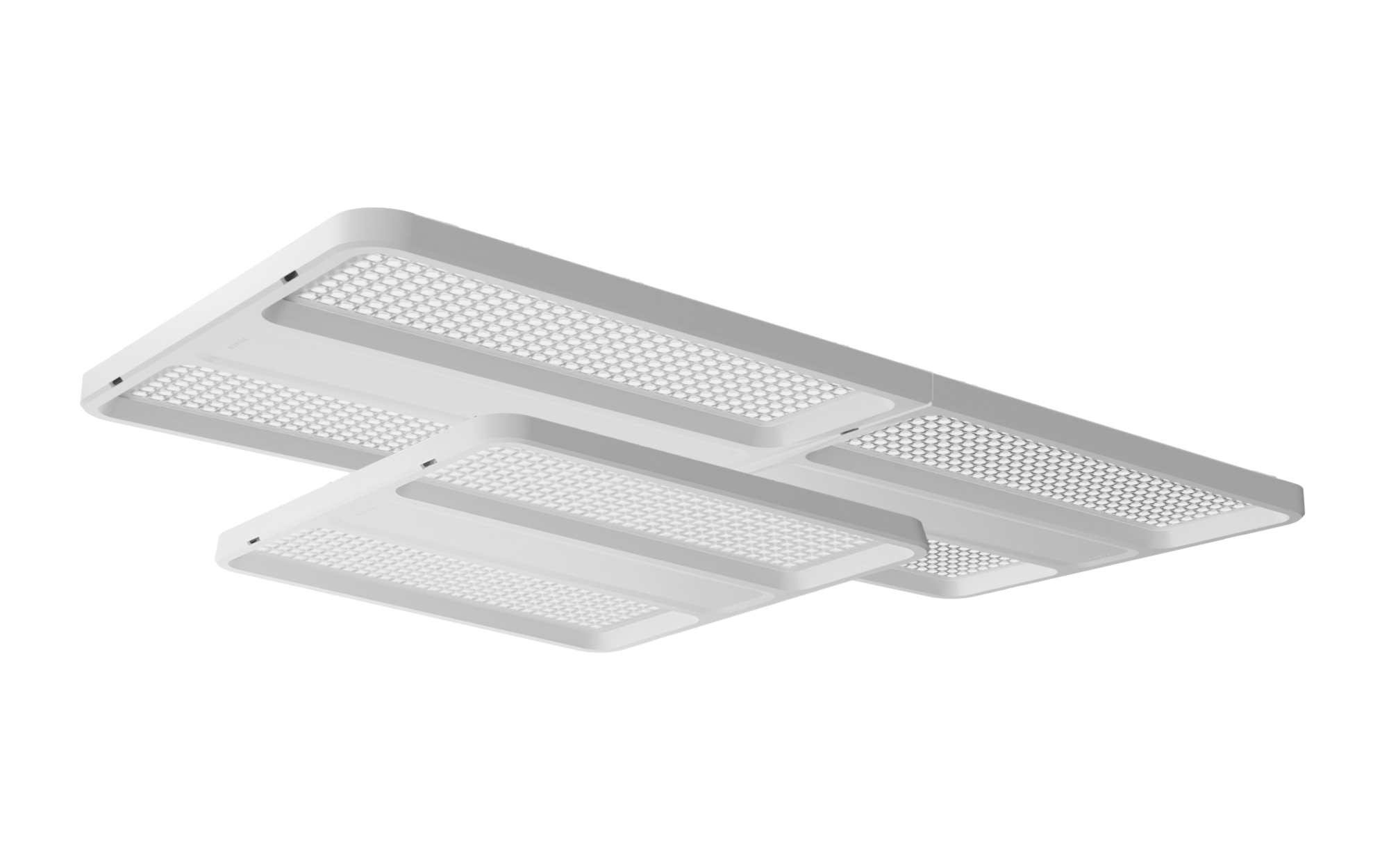

The Highbay 21 is also available in two construction sizes, midi and maxi, various light distributions and mounting variants with a large selection of different lumen packages for a wide range of applications.

Our core portfolio for demanding applications: 14,000…64,000lm | up to 190lm/W | 75,000h service life L90 | -35…+65°C

Produkttypen

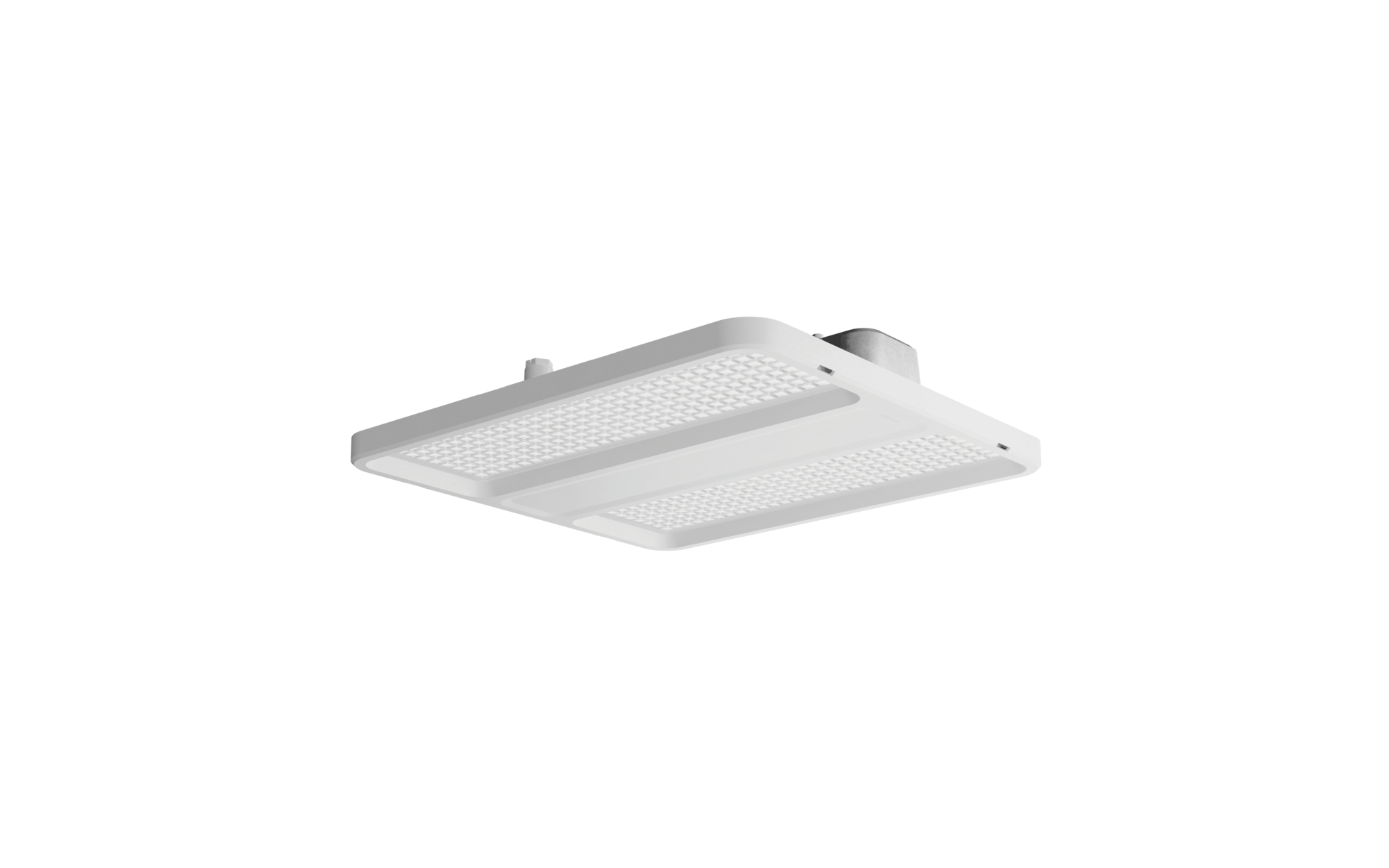

Highbay 21 midi

Highbay 21 maxi

Highbay 21 maxi

Intro Produktfamilie

Kenndaten

Article high bay luminaire
Lighting effect direct symmetric wide distribution
Net luminous flux 28000lm to 38000lm
Luminous efficacy up to 194lm/W
Colour temperature 4000K
ta according to version/application in the range from -40°C to +65°C
Cover PMMA
Protection rating IP40
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
LABS LABS conformity tested according to VDMA 24364:2018-05
Halogen freeness internal wiring halogen-free

Besonderheiten

Highly efficient lens-based optical system with extremely good efficiency of up to 190lm/W and very good glare control (UGR ≤ 22) with a long service life of up to 75,000 hours (L95 B50)
Innovative housing concept made of high-performance plastic and aluminum with a high protection class of IP66. Thanks to the special thermal concept, it is suitable for permanent ambient temperatures of -35 to +50°C. The extremely low weight and the external plug-in terminal make installation quick and easy
Developed for a very wide range of applications through various light packages up to 41,000lm with different light distributions and a wide range of mounting accessories
Luminaire validated and approved for operation on central battery systems according to DIN EN 60598-2-22
Variants with integrated sensors for light control concepts depending on movement and daylight, wired or easily wirelessly networkable with automatic swarm function
The use of control and sensor technology reduces energy costs and CO2 consumption and supports the fulfillment of legal regulations (GEG / EPDB)
Minimal material consumption and recyclable components protect the environment. The modular design enables easy maintenance. Manufactured in Germany, delivered quickly and in an environmentally friendly manner

Konfiguration & Datenblätter

Rated luminous flux

Operating ambient temperature

  • luminaire according to the requirements of the automotive industry (LABS free)
  • Luminaire meets the requirements of the IFS for use in the food industry

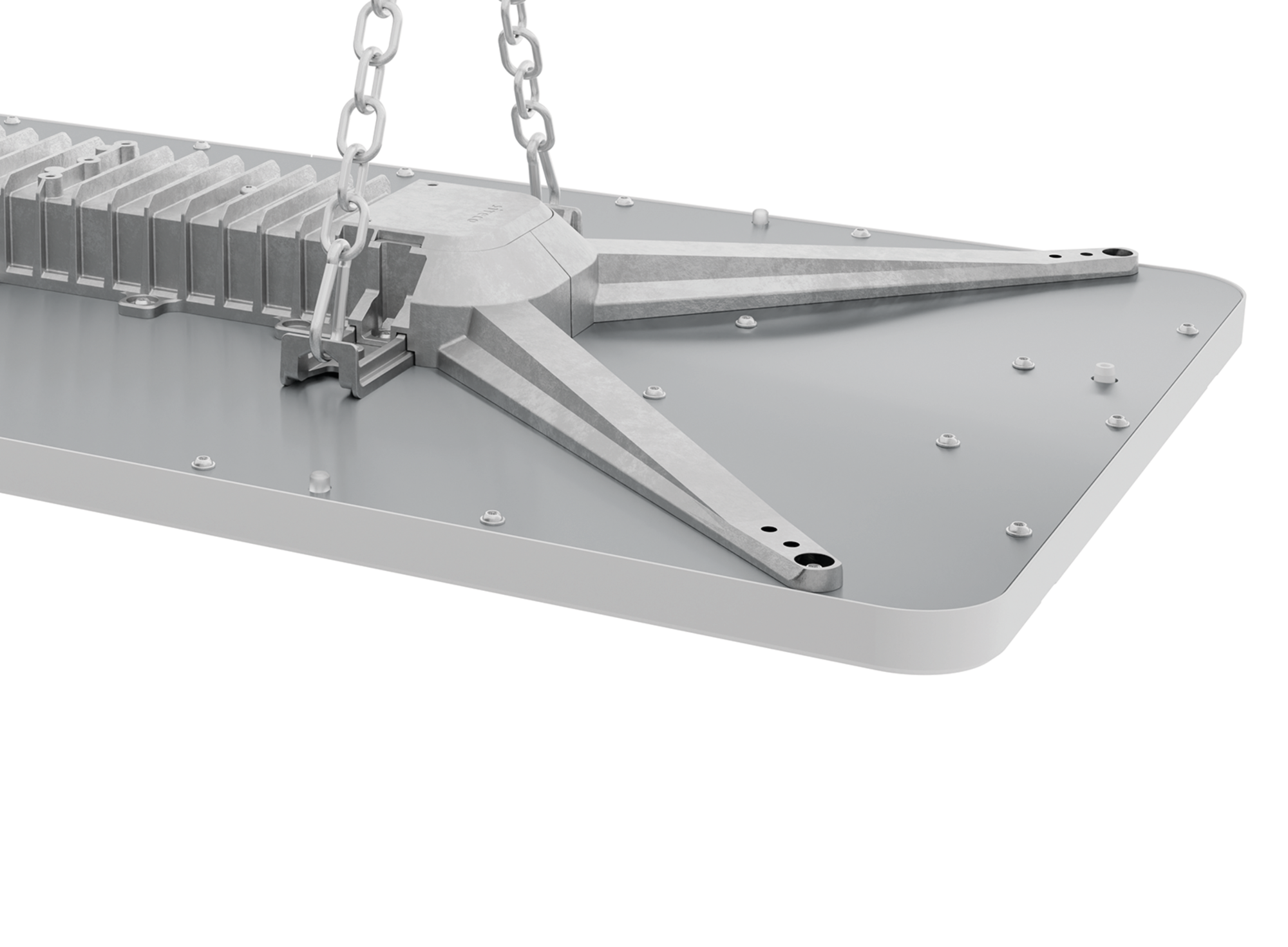

  • suspended mounting with wire or chain with 4 suspension points on luminaire side (4-fold suspension on ceiling side with one fixing point / 2-fold suspension on ceiling side with two fixing points)
  • near-ceiling mounting or wall mounting with mounting bracket
  • please order mounting accessories (in required quantities) separately
  • please order supplementary chain for higher suspension heights separately if required (as replacement for standard chain of chain suspension | please consider desired suspension height and number of chain strands)
  • versions with colour temperature 3000K, 5000K or 6500K on request

Ergebnisse

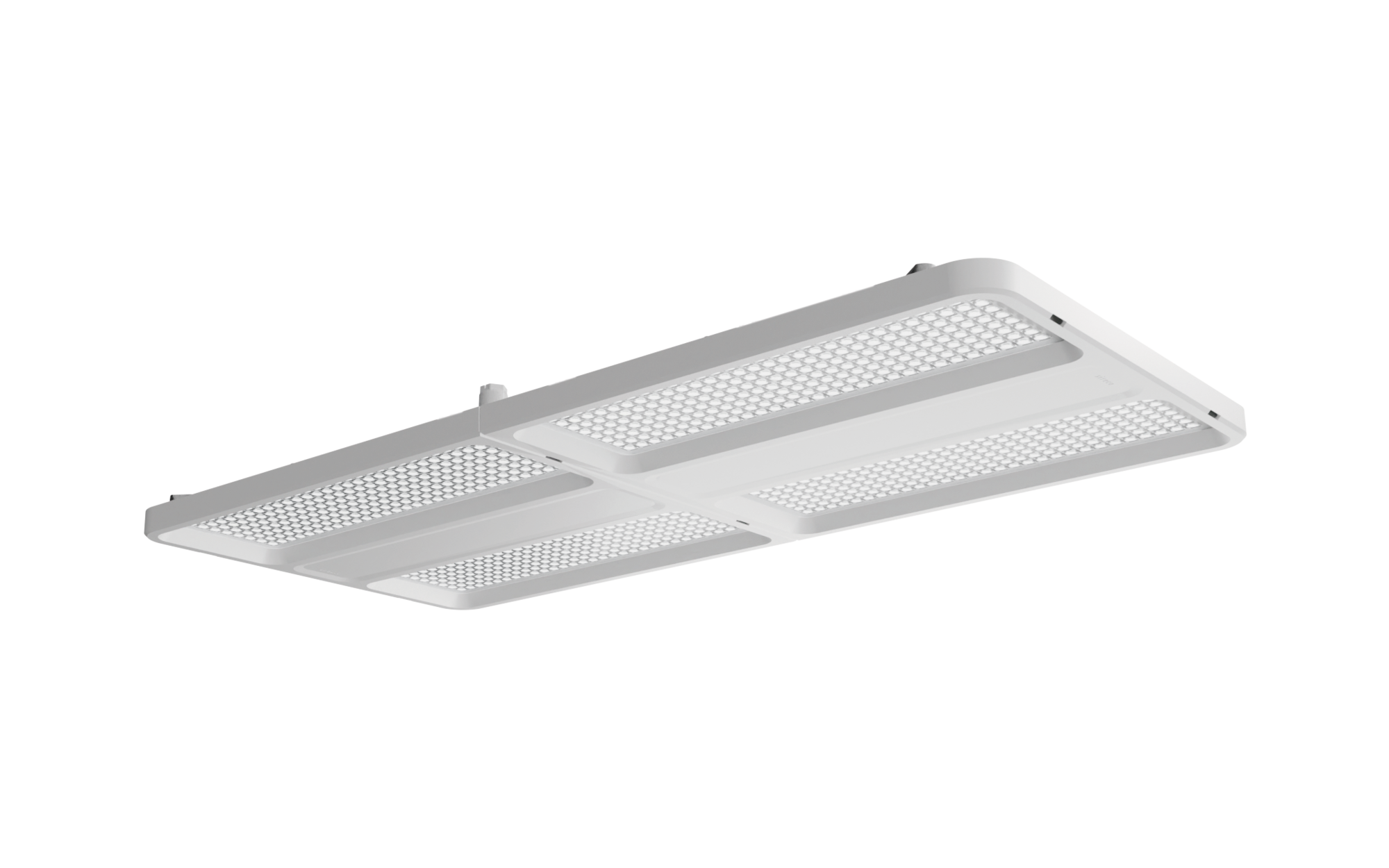

Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension

Order No.: 52HN12DB4MBA GTIN (EAN): 4069025441102
LampsColour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControltaDimension (mm)Wt. (kg)Price (EUR)
LED4000KCRI > 8028000lm144W194lm/WDALI 2-40..+65°C946x4427.0686.30
Alle Details anzeigen
Tender textTender text neutralData sheet (PDF, full)Lichttechnischer Prüfbefund / PlanungsdatenKomplette Downloadliste

Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension

Order No.: 52HN12DB4QBA GTIN (EAN): 4069025441133
LampsColour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControltaDimension (mm)Wt. (kg)Price (EUR)
LED4000KCRI > 8038000lm197.7W192lm/WDALI 2-40..+60°C946x4427.0725.50
Alle Details anzeigen
Tender textTender text neutralData sheet (PDF, full)Lichttechnischer Prüfbefund / PlanungsdatenKomplette Downloadliste

Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension

Order No.: 52HN12DB4MBAGTIN (EAN): 4069025441102

LampsLED
Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load144W
Luminous efficacy194lm/W
ControlDALI 2
ta-40..+65°C
Dimension (mm)946x442
Wt. (kg)7.0
Price (EUR)686.30
Alle Details anzeigen

Highbay 21 maxi, wide distribution, LED, 840, DALI 2, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension

Order No.: 52HN12DB4QBAGTIN (EAN): 4069025441133

LampsLED
Colour temperature4000K
Colour renderingCRI > 80
Luminous flux38000lm
Connected load197.7W
Luminous efficacy192lm/W
ControlDALI 2
ta-40..+60°C
Dimension (mm)946x442
Wt. (kg)7.0
Price (EUR)725.50
Alle Details anzeigen

Optionales Zubehör

Article4-fold chain suspension, suspension height 660mm, ball impact resistantPU1 pc.Wt. (kg)0.6Price (EUR)on requestOrder No.: 59HN92001GTIN (EAN): 4069025445711Alle Details anzeigen
Article2-fold chain suspension, suspension height 690mm, ball impact resistantPU Wt. (kg)0.6Price (EUR)on requestOrder No.: 59HN92002GTIN (EAN): 4069025445728Alle Details anzeigen
Articleceiling mounting bracket, adjustable, suspension height 150mm, ball impact resistantPU1 pc.Wt. (kg)0.7Price (EUR)on requestOrder No.: 59HN92011GTIN (EAN): 4069025356994Alle Details anzeigen
