SITECO Connect 21

Product typesConfiguration & data sheets

SITECO Connect for indoor use unlocks the full potential of your lighting system. Sensor-based control saves energy and extends luminaire service life through targeted dimming. In turn, increasing illuminance as needed creates greater visibility and safety when necessary. Lighting management systems automate control, create transparency, and optimize operations, allowing you to focus on what matters most.

SITECO Connect 21 controls lighting as needed using sensors, allows individual groups and scenes, tests self-contained emergency luminaires, and offers monitoring and analysis options from a central location.

Product types

SITECO Connect 21 controls lighting as needed using sensors, allows individual groups and scenes, tests self-contained emergency luminaires, and offers monitoring and analysis options from a central location

SITECO Connect 21 controls the lighting as needed using sensors, allowing individual groups and scenes from a central location

SITECO Connect 21 controls lighting as needed using sensors, allows individual groups and scenes, tests self-contained emergency luminaires, and offers monitoring and analysis options from a central location

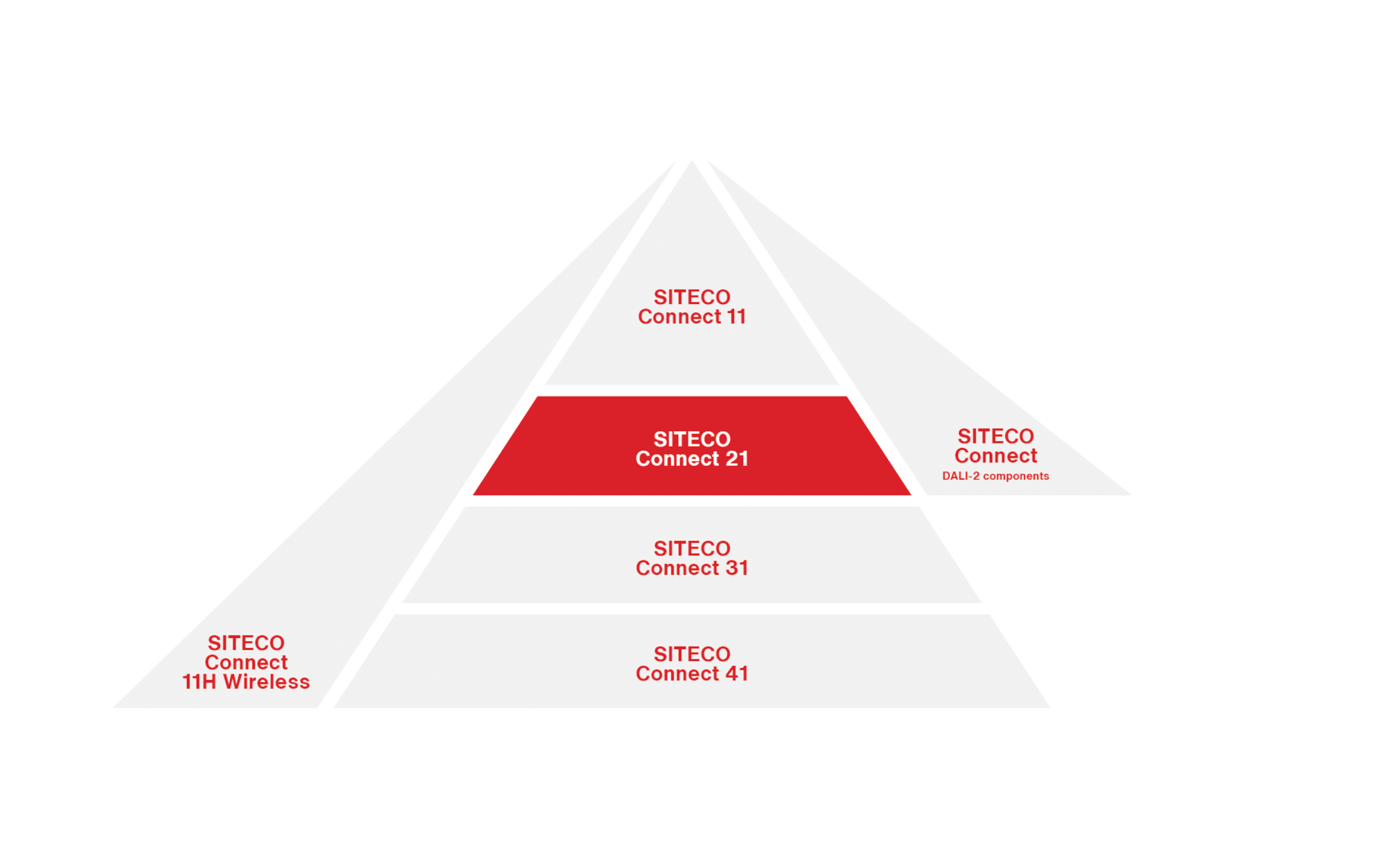

Intro product family

Key data

Article control unit
Control DALI 2

Special features

Light only when and where and to the extent that it is actually needed
Users can control the lighting themselves at any time (on/off/dimming/colour temperature)
Controller in compact design for DIN rail mounting bundles the entire control intelligence for a maximum of 128 DALI ECGs in one device
In larger projects, a maximum of 5 controllers can be networked together
Controller can be combined with all SITECO Connect DALI-2 components as required
Future-proofing and flexibility: through individual addressing and grouping of luminaires and sensors
Intelligent control of luminaires depending on partition walls (e.g. sports halls, meeting rooms, etc.)
Display of energy consumption; identification of optimization opportunities; technical requirement: DALI-2 certified ECGs according to IEC62386, parts 251, 252, 253; possible on request
Easy and quick access to the individual operating hours of the luminaires for better planning of the maintenance calendar; technical requirement: DALI-2 certified ECGs according to IEC62386, parts 251, 252, 253; possible on request
Dashboard provides an overview of the status of the lighting system; technical requirement DALI-2 certified ECGs according to IEC62386, parts 251, 252, 253; possible on request
SITECO HCLlive: light influences our body visually, emotionally and biologically. It sets the pace for our internal clock

Configuration & data sheets

With SITECO Connect 21O, the complete control intelligence is combined in one device
Incl. 2 DALI lines
Per DALI line max. 250mA power supply
Per DALI line max. 64 ECG and 64 sensor addresses
DALI-2 certified according to parts 101, 103, 303 and 304
Max. 5 controllers can be networked with each other
Maintenance Assistant: technical requirement DALI-2 certified ECGs according to IEC62386, parts 251, 252, 253
Energy Monitoring: technical requirement DALI-2 certified ECGs according to IEC62386, parts 251, 252, 253; possible on request
Dashboard: technical requirement DALI-2 certified ECGs according to IEC62386, parts 251, 252, 253; possible on request
compatible DALI-2 sensors and DALI-2 push button couplers see "SITECO Connect DALI-2 components"

Results

controller

Order No.: 5LZ904712A GTIN (EAN): 4058352548448
EquipmentControlColourInstallation locationLengthWt. (kg)Price (EUR)
masterDALI 2greyin an electrical distributor6 part units0.21341.20
Show all details
Tender textData sheet (PDF, full)Complete download list

controller

Order No.: 5LZ904712AGTIN (EAN): 4058352548448

Equipmentmaster
ControlDALI 2
Colourgrey
Installation locationin an electrical distributor
Length6 part units
Wt. (kg)0.2
Price (EUR)1341.20
