Trunking Flex 31 refurbishment luminaire insert
The universal light carrier is available with different light distributions and light colours and can be adapted to existing trunkings with the appropriate accessories. The length is adjusted using individual end caps for butt-to-butt installation. The electrical contact is made using separately available plugs including supply cable. Versions with pre-assembled through-wiring in a fixed length of 1438mm.
Light carrier for refurbishment
Trunking Flex 31 refurbishment luminaire insert
Intro product family
Key data
Article luminaire insert
Protection rating IP20
Colour temperature 3500K; 4000K; 5000K; 6500K
Lighting effect direct narrow distribution; direct medium distribution; direct wide distribution; direct asymmetric distribution; direct double asymmetric distribution
Special features
Simple refurbishment of all standard continuous trunking systems: Always suitable and secure thanks to solid universal spring catch
Maximum cost-effectiveness: rapid amortisation thanks to simple refurbishment and luminous efficacies of up to 174lm/W
Flexible in use: with optimised light distribution and multi-lumen function
Can be integrated into modern lighting control systems: with DALI 2 variants
Eligible: fulfils all requirements for BEG funding
Configuration & data sheets

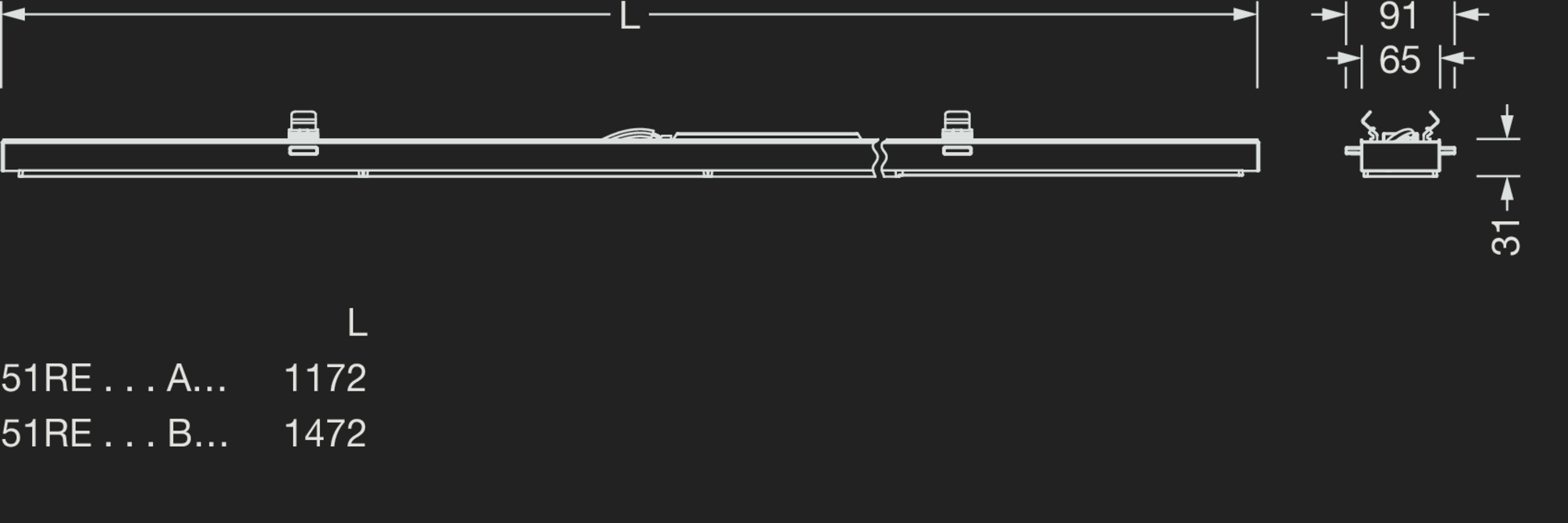

- standard lengths 1172mm and 1472mm individually adaptable with different end caps
- Multilumen on/off ECG with four or eight luminous flux levels (1172mm variants: 6400lm/5610lm/4450lm/3300lm; 1472mm versions: 8000lm/6850lm/5610lm/4120lm or 11500lm/10500lm/9200lm/8350lm/6700lm/5800lm/4380lm/3450lm)
- please order end caps and connecting cables separately
- further renovation solutions are possible on request (e.g. DALI, etc…)
Results

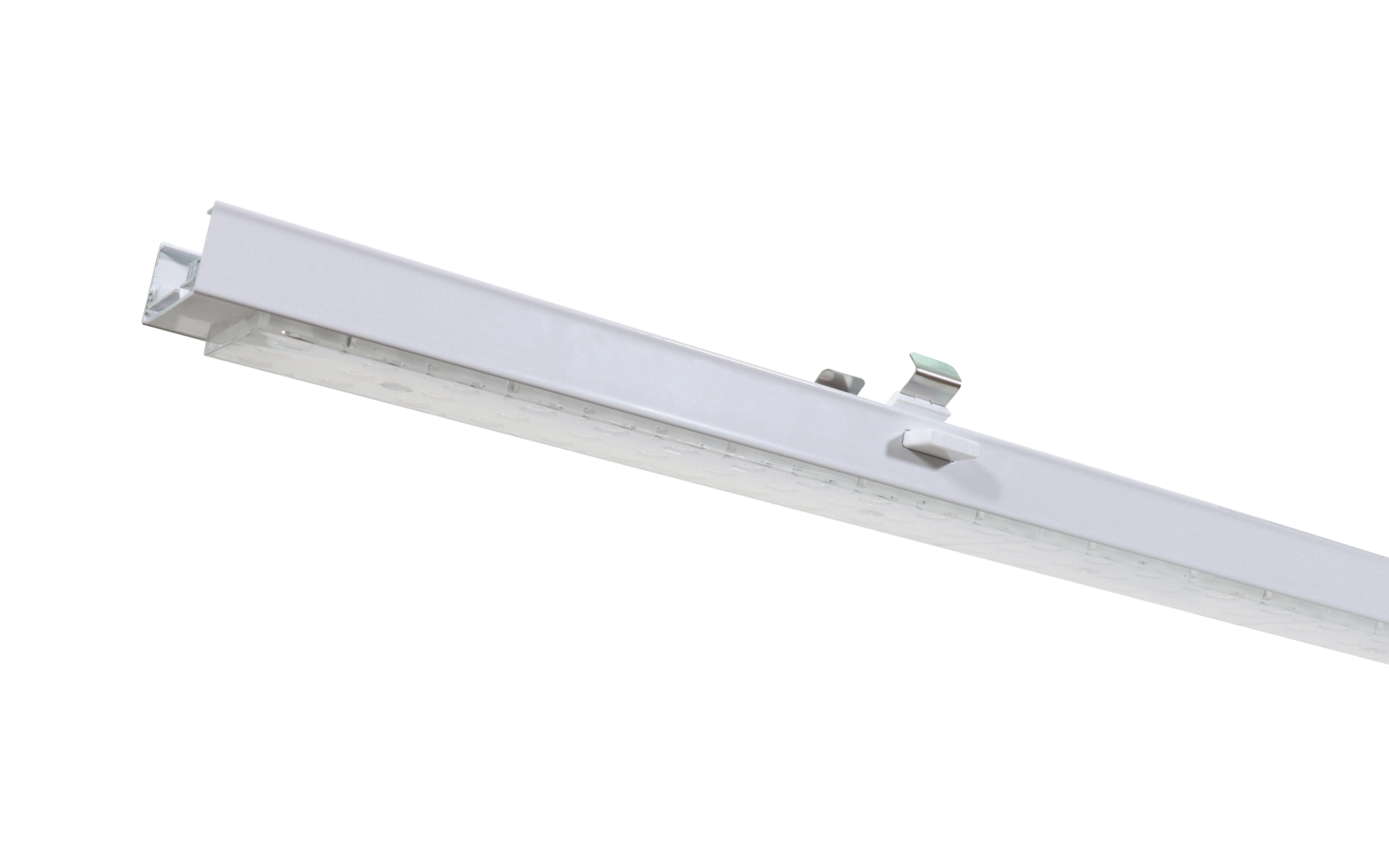

Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MA46B GTIN (EAN): 4058352586600
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6400 | 40W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1172 | 1.2 | 121.50 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB48B GTIN (EAN): 4058352586617
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8000 | 50W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 131.40 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MA16B GTIN (EAN): 4058352581872
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3500K | CRI > 80 | 6400 | 40W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1172 | 1.2 | 121.50 |

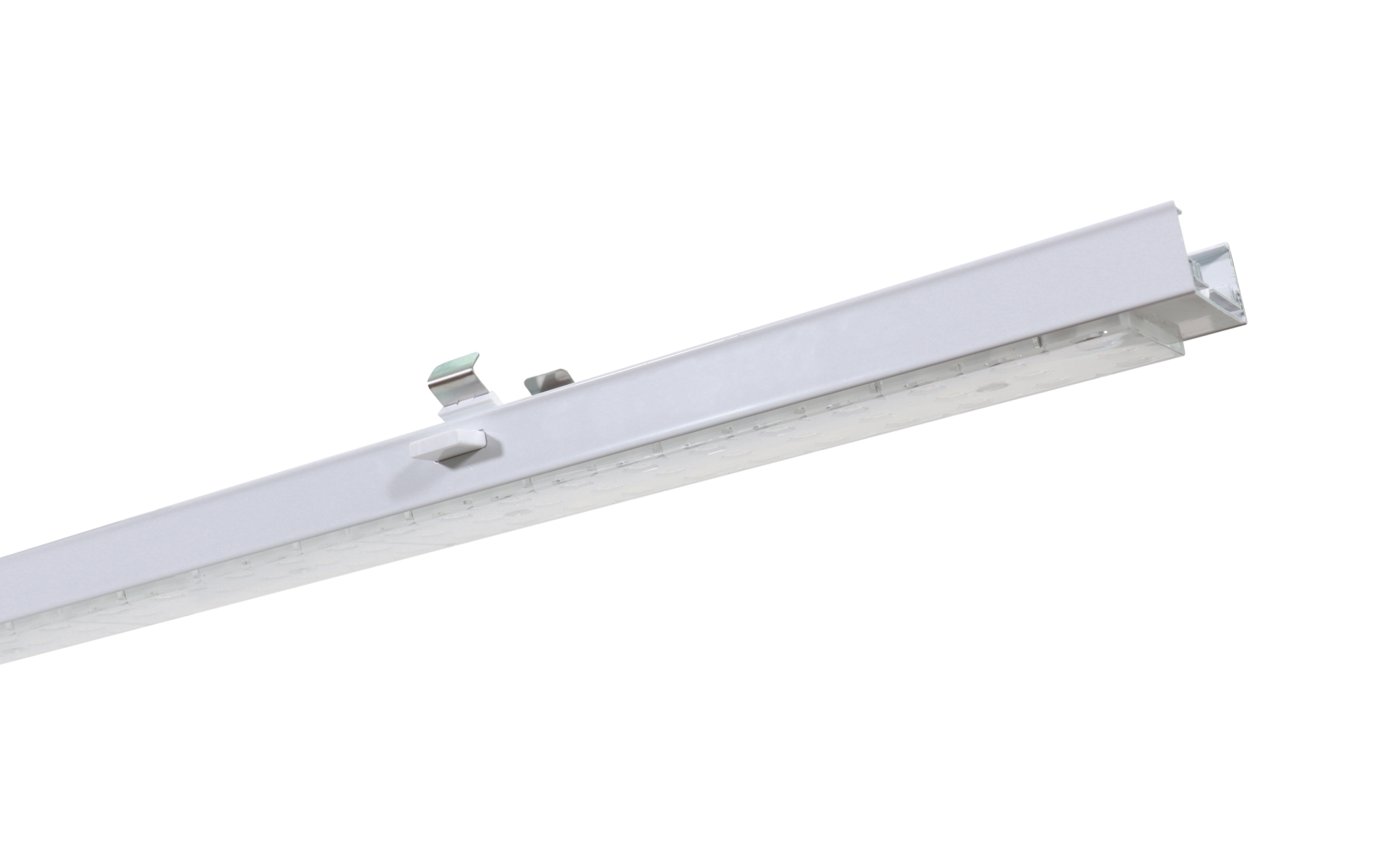

Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB18B GTIN (EAN): 4058352577417
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3500K | CRI > 80 | 8000 | 50W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 131.30 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MA66B GTIN (EAN): 4058352581896
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 6400 | 40W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1172 | 1.2 | 121.50 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB68B GTIN (EAN): 4058352581919
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 8000 | 50W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 131.30 |
Trunking Flex 31, asymmetric distribution, IP20, AC
Order No.: 51RE14MA66B GTIN (EAN): 4058352581957
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 6400 | 40W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1172 | 1.2 | 121.50 |
Trunking Flex 31, asymmetric distribution, IP20, AC
Order No.: 51RE14MB68B GTIN (EAN): 4058352581971
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 8000 | 50W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 131.30 |
Trunking Flex 31, narrow distribution, IP20, AC
Order No.: 51RE11MA46B GTIN (EAN): 4058352586563
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6400 | 40W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1172 | 1.2 | 121.50 |
Trunking Flex 31, narrow distribution, IP20, AC
Order No.: 51RE11MB48B GTIN (EAN): 4058352586570
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8000 | 50W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 131.40 |
Trunking Flex 31, medium distribution, IP20, AC
Order No.: 51RE18MA46B GTIN (EAN): 4058352586624
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6400 | 40W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1172 | 1.2 | 121.50 |
Trunking Flex 31, medium distribution, IP20, AC
Order No.: 51RE18MB48B GTIN (EAN): 4058352586631
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8000 | 50W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 131.40 |
Trunking Flex 31, narrow distribution, IP20, AC
Order No.: 51RE11MB4CB GTIN (EAN): 4058352701409
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 11500 | 66W | 174lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 175.30 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB4CB GTIN (EAN): 4058352701423
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 11500 | 66W | 174lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 175.30 |
Trunking Flex 31, asymmetric distribution, IP20, AC
Order No.: 51RE14MB4CB GTIN (EAN): 4058352701447
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 11500 | 66W | 174lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 175.30 |
Trunking Flex 31, medium distribution, IP20, AC
Order No.: 51RE18MB4CB GTIN (EAN): 4058352701461
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 11500 | 66W | 174lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 175.30 |
Trunking Flex 31, double asymmetric distribution, IP20, AC
Order No.: 51RE19MB4CB GTIN (EAN): 4058352701485
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 11500 | 66W | 174lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 175.30 |
Trunking Flex 31, narrow distribution, IP20, AC
Order No.: 51RE11DB49B GTIN (EAN): 4058352794586
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8900 | 53W | 168lm/W | DALI 2 | -20..+40°C | IP20 | 1472 | 1.6 | 183.80 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12DB49B GTIN (EAN): 4058352794609
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8900 | 53W | 168lm/W | DALI 2 | -20..+40°C | IP20 | 1472 | 1.6 | 183.80 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB58B GTIN (EAN): 4058352791363
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 8000 | 50W | 160lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 131.40 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB5CB GTIN (EAN): 4058352807224
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 11500 | 66W | 174lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.5 | 175.30 |
Trunking Flex 31, medium distribution, IP20, AC
Order No.: 51RE18MB1CB GTIN (EAN): 4058352811375
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3500K | CRI > 80 | 11500 | 66W | 174lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.4 | 175.30 |
Trunking Flex 31, narrow distribution, IP20, AC
Order No.: 51RE11DB4CB GTIN (EAN): 4058352909386
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 11500 | 66W | 174lm/W | DALI 2 | -20..+40°C | IP20 | 1472 | 1.4 | 220.10 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12DB4CB GTIN (EAN): 4058352913574
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 11500 | 66W | 174lm/W | DALI 2 | -20..+40°C | IP20 | 1472 | 1.4 | 220.10 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MA47C GTIN (EAN): 4069025156631
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7200 | 40W | 180lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1172 | 1.3 | 121.60 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB49C GTIN (EAN): 4069025156655
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9000 | 49W | 183lm/W | ON/OFF Multilumen | -20..+40°C | IP20 | 1472 | 1.5 | 131.40 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MA46BGTIN (EAN): 4058352586600
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 6400 |
| Connected load | 40W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1172 |
| Wt. (kg) | 1.2 |
| Price (EUR) | 121.50 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB48BGTIN (EAN): 4058352586617
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8000 |
| Connected load | 50W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 131.40 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MA16BGTIN (EAN): 4058352581872
| Colour temperature | 3500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 6400 |
| Connected load | 40W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1172 |
| Wt. (kg) | 1.2 |
| Price (EUR) | 121.50 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB18BGTIN (EAN): 4058352577417
| Colour temperature | 3500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8000 |
| Connected load | 50W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 131.30 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MA66BGTIN (EAN): 4058352581896
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 6400 |
| Connected load | 40W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1172 |
| Wt. (kg) | 1.2 |
| Price (EUR) | 121.50 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB68BGTIN (EAN): 4058352581919
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8000 |
| Connected load | 50W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 131.30 |
Trunking Flex 31, asymmetric distribution, IP20, AC
Order No.: 51RE14MA66BGTIN (EAN): 4058352581957
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 6400 |
| Connected load | 40W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1172 |
| Wt. (kg) | 1.2 |
| Price (EUR) | 121.50 |
Trunking Flex 31, asymmetric distribution, IP20, AC
Order No.: 51RE14MB68BGTIN (EAN): 4058352581971
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8000 |
| Connected load | 50W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 131.30 |
Trunking Flex 31, narrow distribution, IP20, AC
Order No.: 51RE11MA46BGTIN (EAN): 4058352586563
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 6400 |
| Connected load | 40W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1172 |
| Wt. (kg) | 1.2 |
| Price (EUR) | 121.50 |
Trunking Flex 31, narrow distribution, IP20, AC
Order No.: 51RE11MB48BGTIN (EAN): 4058352586570
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8000 |
| Connected load | 50W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 131.40 |
Trunking Flex 31, medium distribution, IP20, AC
Order No.: 51RE18MA46BGTIN (EAN): 4058352586624
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 6400 |
| Connected load | 40W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1172 |
| Wt. (kg) | 1.2 |
| Price (EUR) | 121.50 |
Trunking Flex 31, medium distribution, IP20, AC
Order No.: 51RE18MB48BGTIN (EAN): 4058352586631
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8000 |
| Connected load | 50W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 131.40 |
Trunking Flex 31, narrow distribution, IP20, AC
Order No.: 51RE11MB4CBGTIN (EAN): 4058352701409
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 11500 |
| Connected load | 66W |
| Luminous efficacy | 174lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 175.30 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB4CBGTIN (EAN): 4058352701423
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 11500 |
| Connected load | 66W |
| Luminous efficacy | 174lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 175.30 |
Trunking Flex 31, asymmetric distribution, IP20, AC
Order No.: 51RE14MB4CBGTIN (EAN): 4058352701447
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 11500 |
| Connected load | 66W |
| Luminous efficacy | 174lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 175.30 |
Trunking Flex 31, medium distribution, IP20, AC
Order No.: 51RE18MB4CBGTIN (EAN): 4058352701461
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 11500 |
| Connected load | 66W |
| Luminous efficacy | 174lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 175.30 |
Trunking Flex 31, double asymmetric distribution, IP20, AC
Order No.: 51RE19MB4CBGTIN (EAN): 4058352701485
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 11500 |
| Connected load | 66W |
| Luminous efficacy | 174lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 175.30 |
Trunking Flex 31, narrow distribution, IP20, AC
Order No.: 51RE11DB49BGTIN (EAN): 4058352794586
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8900 |
| Connected load | 53W |
| Luminous efficacy | 168lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.6 |
| Price (EUR) | 183.80 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12DB49BGTIN (EAN): 4058352794609
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8900 |
| Connected load | 53W |
| Luminous efficacy | 168lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.6 |
| Price (EUR) | 183.80 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB58BGTIN (EAN): 4058352791363
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 8000 |
| Connected load | 50W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 131.40 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB5CBGTIN (EAN): 4058352807224
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 11500 |
| Connected load | 66W |
| Luminous efficacy | 174lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.5 |
| Price (EUR) | 175.30 |
Trunking Flex 31, medium distribution, IP20, AC
Order No.: 51RE18MB1CBGTIN (EAN): 4058352811375
| Colour temperature | 3500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 11500 |
| Connected load | 66W |
| Luminous efficacy | 174lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 175.30 |
Trunking Flex 31, narrow distribution, IP20, AC
Order No.: 51RE11DB4CBGTIN (EAN): 4058352909386
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 11500 |
| Connected load | 66W |
| Luminous efficacy | 174lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 220.10 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12DB4CBGTIN (EAN): 4058352913574
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 11500 |
| Connected load | 66W |
| Luminous efficacy | 174lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.4 |
| Price (EUR) | 220.10 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MA47CGTIN (EAN): 4069025156631
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 7200 |
| Connected load | 40W |
| Luminous efficacy | 180lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1172 |
| Wt. (kg) | 1.3 |
| Price (EUR) | 121.60 |
Trunking Flex 31, wide distribution, IP20, AC
Order No.: 51RE12MB49CGTIN (EAN): 4069025156655
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 9000 |
| Connected load | 49W |
| Luminous efficacy | 183lm/W |
| Control | ON/OFF Multilumen |
| ta | -20..+40°C |
| Protection rating | IP20 |
| L (mm) | 1472 |
| Wt. (kg) | 1.5 |
| Price (EUR) | 131.40 |
Mandatory accessories
| Order No.: 59RC1DGTIN (EAN): 4058352516232 | Show all details |
| Order No.: 59RC1KGTIN (EAN): 4058352516355 | Show all details |
| Order No.: 59RL0CDGTIN (EAN): 4058352695548 | Show all details |
| Order No.: 59RP004GTIN (EAN): 4058352516454 | Show all details |
| Order No.: 59RP054DGTIN (EAN): 4058352680650 | Show all details |
| Order No.: 59RP005KGTIN (EAN): 4058352741511 | Show all details |
| Order No.: 59RP057GTIN (EAN): 4058352609873 | Show all details |
| Order No.: 59RP007GTIN (EAN): 4058352549599 | Show all details |
Optional accessories
| Order No.: 59RE10AGTIN (EAN): 4058352777169 | Show all details |
| Order No.: 59RE10BGTIN (EAN): 4058352777183 | Show all details |
