Apollon® 21

Product typesConfiguration & data sheets

The Apollon® family impresses with its integrative design, homogeneous illumination and advanced technology. Thanks to the different geometries and installation variants, the versatile family of luminaires is perfect for the entire office building. Thanks to the optional Tunable White function, the Apollon® 21 is ideally suited for SITECO HCLlive applications. Efficient lighting technology and the availability of standard panel sizes mean that high energy savings and thus short amortization times can be achieved in the simplest way during renovations.

Our core portfolio: Apollon® 21 is our surface-mounted luminaire with the highest standards of efficiency, quality and flexibility for your project

Product types

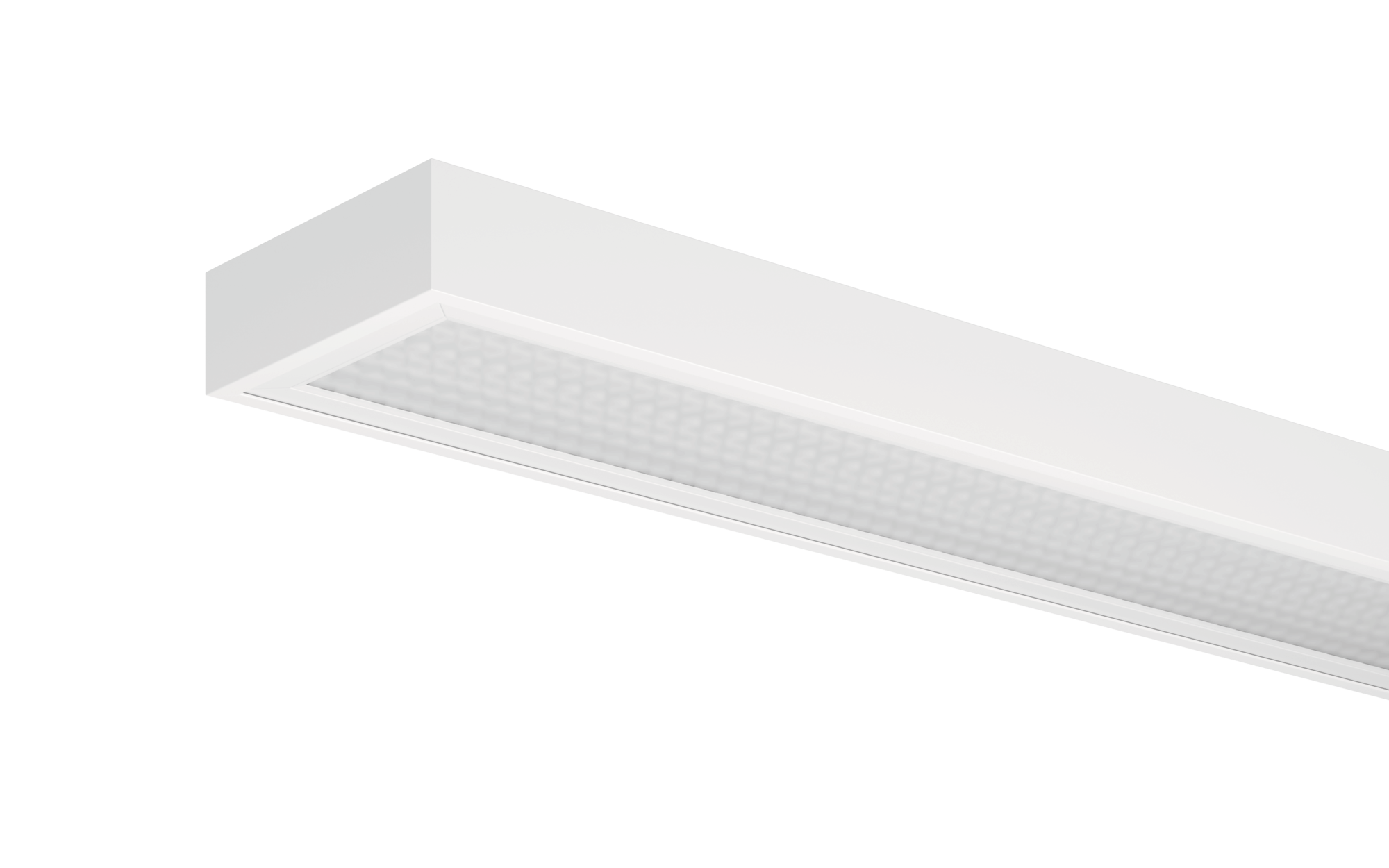

Apollon® 21 with rectangular housing (Edge LED)

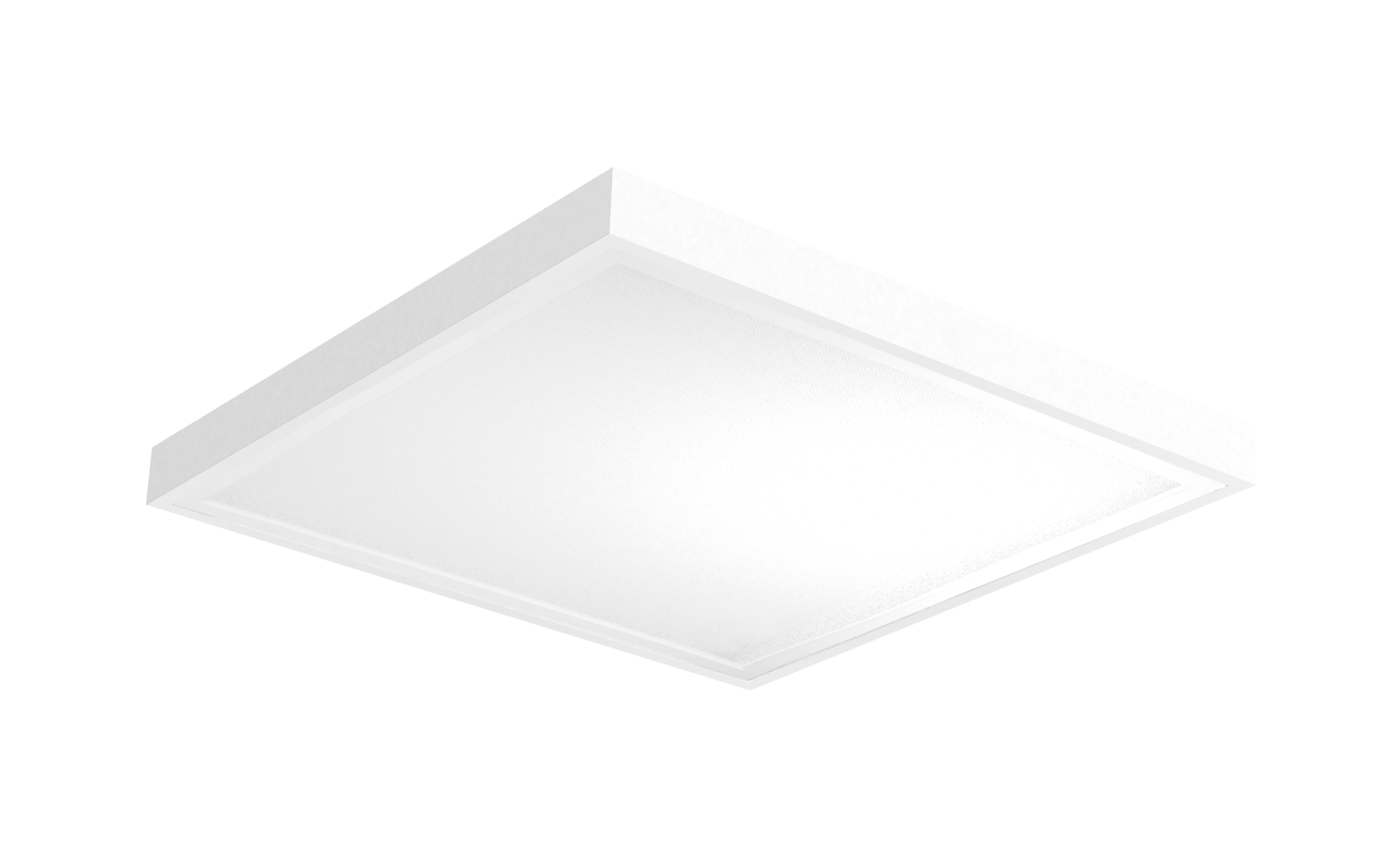

Apollon® 21 with square housing (Edge LED)

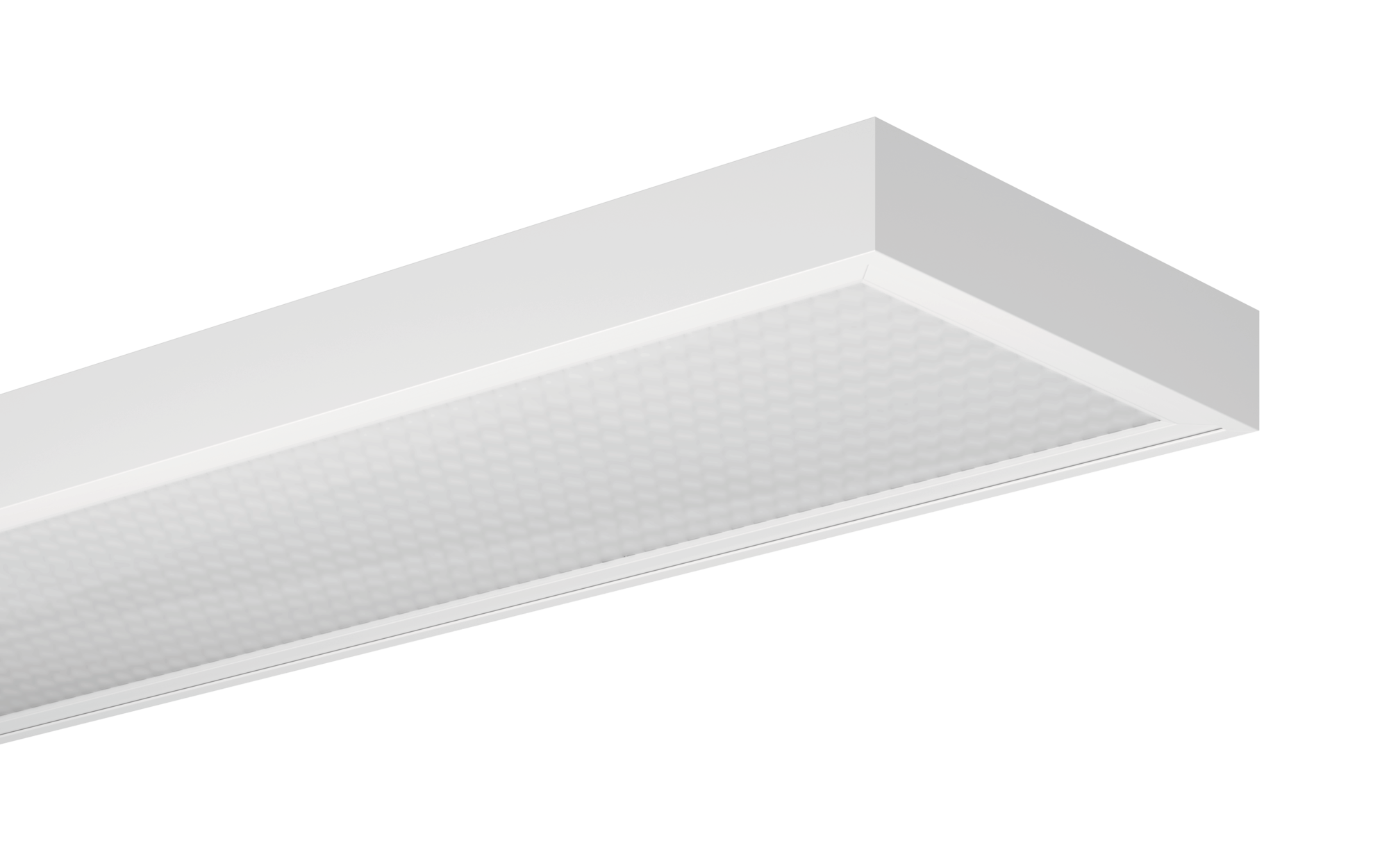

Apollon® 21 with rectangular housing (Back LED)

Apollon® 21 with square housing (Back LED)

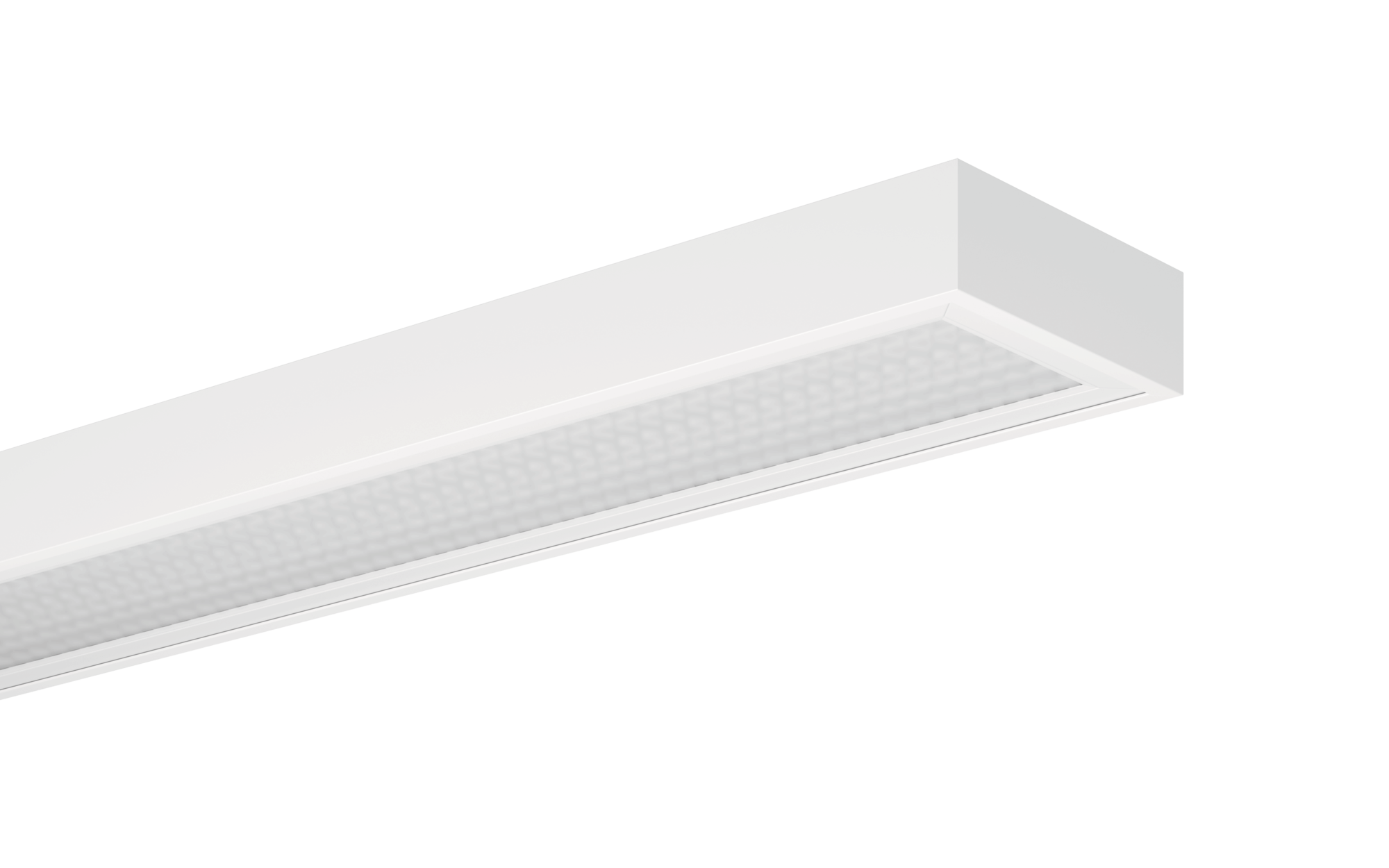

Apollon® 21 with rectangular housing (Back LED)

Intro product family

Key data

Article office luminaire
Lighting effect direct symmetric wide distribution, 90°
Net luminous flux 2520lm to 7300lm
Colour temperature 3000K; 4000K
Control ON/OFF; ON/OFF Multilumen; DALI 2, Multilumen
Protection rating IP20/IP50
Service life 50000h (L90/B50) at AT = 25°C; 100000h (L80/B50) at AT = 25°C

Special features

Highly efficient for low energy consumption – with refurbishment projects (T5/T8), feasible energy savings are up to 55 %
Durability in application due to high protection ratings of up to IP54 – also suitable for more adverse environments and clean rooms
Available with tunable white function as an ideal basis for HCLlive applications – for more well-being and motivation

Configuration & data sheets

Colour temperature

Light colour

Rated luminous flux (lm)

Control

Dimension (mm)

  • for ceiling surface-mounting: please order luminaire and surface-mount housing individually in the matching size
  • push button interface and multi-sensor only usable in combination with controller

Results

Apollon 21 linear, direct distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51MQ14WD2414 GTIN (EAN): 4058352959800
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 804200lm24.7W172lm/WDALI 2, Multilumeninsulation class II (safety insulation)IP20/IP501245x3071 piece3.2218.90
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51MQ14WM2414 GTIN (EAN): 4058352959817
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 804390lm25.3W174lm/WON/OFF Multilumeninsulation class II (safety insulation)IP20/IP501245x3071 piece3.1175.20
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51MQ15WD2414 GTIN (EAN): 4058352928356
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 802520lm17.4W145lm/WDALI 2, Multilumeninsulation class II (safety insulation)IP20/IP501245x1791 piece2.2191.60
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51MQ15WM2414 GTIN (EAN): 4058352959848
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 802540lm17.3W147lm/WON/OFF Multilumeninsulation class II (safety insulation)IP20/IP501245x1791 piece2.2141.60
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51MQ16WD2414 GTIN (EAN): 4058352959879
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 803400lm23.2W147lm/WDALI 2, Multilumeninsulation class II (safety insulation)IP20/IP501545x1791 piece2.6273.10
Show all details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51MQ16WM2414 GTIN (EAN): 4058352959886
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 803520lm23.4W151lm/WON/OFF Multilumeninsulation class II (safety insulation)IP20/IP501545x1791 piece2.5224.10
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF

Order No.: 51MQ17W72414 GTIN (EAN): 4058352928370
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 807000lm39.8W176lm/WON/OFFinsulation class II (safety insulation)IP20/IP501545x3071 piece3.9256.80
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51MQ17WD2414 GTIN (EAN): 4058352928394
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 807300lm44.5W164lm/WDALI 2, Multilumeninsulation class II (safety insulation)IP20/IP501545x3071 piece3.9305.70
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51MQ17WM2414 GTIN (EAN): 4058352959916
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 807300lm44.5W164lm/WON/OFF Multilumeninsulation class II (safety insulation)IP20/IP501545x3071 piece3.9256.80
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 830, DALI 2, Multilumen

Order No.: 51MQ18WD2314 GTIN (EAN): 4058352928417
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
3000KCRI > 804090lm25.5W160lm/WDALI 2, Multilumeninsulation class II (safety insulation)IP20/IP501195x2951 piece2.2207.90
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51MQ18WD2414 GTIN (EAN): 4058352928424
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 804190lm25.5W164lm/WDALI 2, Multilumeninsulation class II (safety insulation)IP20/IP501195x2951 piece2.2207.90
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51MQ18WM2414 GTIN (EAN): 4058352959947
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)PUWt. (kg)Price (EUR)
4000KCRI > 804190lm25.5W164lm/WON/OFF Multilumeninsulation class II (safety insulation)IP20/IP501195x2951 piece2.1170.10
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51MQ14WD2414GTIN (EAN): 4058352959800

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4200lm
Connected load24.7W
Luminous efficacy172lm/W
ControlDALI 2, Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1245x307
PU1 piece
Wt. (kg)3.2
Price (EUR)218.90
Show all details

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51MQ14WM2414GTIN (EAN): 4058352959817

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4390lm
Connected load25.3W
Luminous efficacy174lm/W
ControlON/OFF Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1245x307
PU1 piece
Wt. (kg)3.1
Price (EUR)175.20
Show all details

Apollon 21 linear, direct distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51MQ15WD2414GTIN (EAN): 4058352928356

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux2520lm
Connected load17.4W
Luminous efficacy145lm/W
ControlDALI 2, Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1245x179
PU1 piece
Wt. (kg)2.2
Price (EUR)191.60
Show all details

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51MQ15WM2414GTIN (EAN): 4058352959848

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux2540lm
Connected load17.3W
Luminous efficacy147lm/W
ControlON/OFF Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1245x179
PU1 piece
Wt. (kg)2.2
Price (EUR)141.60
Show all details

Apollon 21 linear, direct distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51MQ16WD2414GTIN (EAN): 4058352959879

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3400lm
Connected load23.2W
Luminous efficacy147lm/W
ControlDALI 2, Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1545x179
PU1 piece
Wt. (kg)2.6
Price (EUR)273.10
Show all details

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51MQ16WM2414GTIN (EAN): 4058352959886

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3520lm
Connected load23.4W
Luminous efficacy151lm/W
ControlON/OFF Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1545x179
PU1 piece
Wt. (kg)2.5
Price (EUR)224.10
Show all details

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF

Order No.: 51MQ17W72414GTIN (EAN): 4058352928370

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux7000lm
Connected load39.8W
Luminous efficacy176lm/W
ControlON/OFF
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1545x307
PU1 piece
Wt. (kg)3.9
Price (EUR)256.80
Show all details

Apollon 21 linear, direct distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51MQ17WD2414GTIN (EAN): 4058352928394

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux7300lm
Connected load44.5W
Luminous efficacy164lm/W
ControlDALI 2, Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1545x307
PU1 piece
Wt. (kg)3.9
Price (EUR)305.70
Show all details

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51MQ17WM2414GTIN (EAN): 4058352959916

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux7300lm
Connected load44.5W
Luminous efficacy164lm/W
ControlON/OFF Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1545x307
PU1 piece
Wt. (kg)3.9
Price (EUR)256.80
Show all details

Apollon 21 linear, direct distribution, Light colour 830, DALI 2, Multilumen

Order No.: 51MQ18WD2314GTIN (EAN): 4058352928417

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4090lm
Connected load25.5W
Luminous efficacy160lm/W
ControlDALI 2, Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1195x295
PU1 piece
Wt. (kg)2.2
Price (EUR)207.90
Show all details

Apollon 21 linear, direct distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51MQ18WD2414GTIN (EAN): 4058352928424

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4190lm
Connected load25.5W
Luminous efficacy164lm/W
ControlDALI 2, Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1195x295
PU1 piece
Wt. (kg)2.2
Price (EUR)207.90
Show all details

Apollon 21 linear, direct distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51MQ18WM2414GTIN (EAN): 4058352959947

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4190lm
Connected load25.5W
Luminous efficacy164lm/W
ControlON/OFF Multilumen
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1195x295
PU1 piece
Wt. (kg)2.1
Price (EUR)170.10
Show all details

Mandatory accessories

Articlesurface-mounted housing (premounted frame), white, for luminaire Lx B= 1245 x 307mmPU1 pc.Wt. (kg)1.8Price (EUR)61.80Order No.: 59MQ24004024GTIN (EAN): 4069025012197Show all details
Articlesurface-mounted housing (premounted frame), white, for luminaire Lx B= 1245 x 179mmPU1 pc.Wt. (kg)1.7Price (EUR)56.70Order No.: 59MQ25004024GTIN (EAN): 4069025012180Show all details
Articlesurface-mounted housing (premounted frame), white, for luminaire Lx B= 1545 x 179mmPU1 pc.Wt. (kg)2.1Price (EUR)58.70Order No.: 59MQ26004024GTIN (EAN): 4069025012173Show all details
Articlesurface-mounted housing (premounted frame), white, for luminaire Lx B= 1195 x 295mmPU1 pc.Wt. (kg)1.9Price (EUR)61.80Order No.: 59MQ28004024GTIN (EAN): 4069025012159Show all details
Articlesurface-mounted housing (unmounted frame), white, for luminaire Lx B= 1245 x 181mmPU1 pc.Wt. (kg)1.1Price (EUR)47.00Order No.: 59MQ25004021GTIN (EAN): 4058352465462Show all details
Articlesurface-mounted housing (unmounted frame), white, for luminaire Lx B= 1545 x 181mmPU1 pc.Wt. (kg)1.4Price (EUR)54.80Order No.: 59MQ26004021GTIN (EAN): 4058352465479Show all details
Articlesurface-mounted housing (unmounted frame), white, for luminaire Lx B= 1545 x 310mmPU1 pc.Wt. (kg)1.5Price (EUR)54.80Order No.: 59MQ27004021GTIN (EAN): 4058352465486Show all details

Optional accessories

Articlepresence detector, multi-sensor PS2, master, DALI, recessedPU1 pc.Wt. (kg)0.1Price (EUR)411.30Order No.: 5LZ925600GTIN (EAN): 4058352364048Show all details
Articlemulti-sensor PS2, h= 2.5..10m, recessed in the ceilingPU1 pc.Wt. (kg)0.2Price (EUR)333.00Order No.: 5LZ925601GTIN (EAN): 4058352362020Show all details
Articlesurface-mounted housingPU1 pc.Wt. (kg)0.1Price (EUR)15.70Order No.: 5LZ925APGTIN (EAN): 4050737767505Show all details
Articlepresence detector, multi-sensor PS2, master, DALI, surface-mountedPU1 pc.Wt. (kg)0.3Price (EUR)411.30Order No.: 5LZ925602GTIN (EAN): 4058352364062Show all details
Articlecontroller, master, DALI, central control - connection to lighting or building managementPU1 pc.Wt. (kg)0.4Price (EUR)1941.20Order No.: 5LZ904712GTIN (EAN): 4008321710871Show all details
ArticleSmart RemotePU1 pc.Wt. (kg)0.1Price (EUR)192.70Order No.: 59UC3RCAGTIN (EAN): 4058352363713Show all details
Articlerotary dimmer, local control - self-sufficient standalone sensors, recessed in the switch boxPU1 pc.Wt. (kg)0.1Price (EUR)160.50Order No.: 5LZ902050TWGTIN (EAN): 4058352145807Show all details
