5XA51283WS008P

Order No.: 5XA51283WS008P
Remember articleRemember article

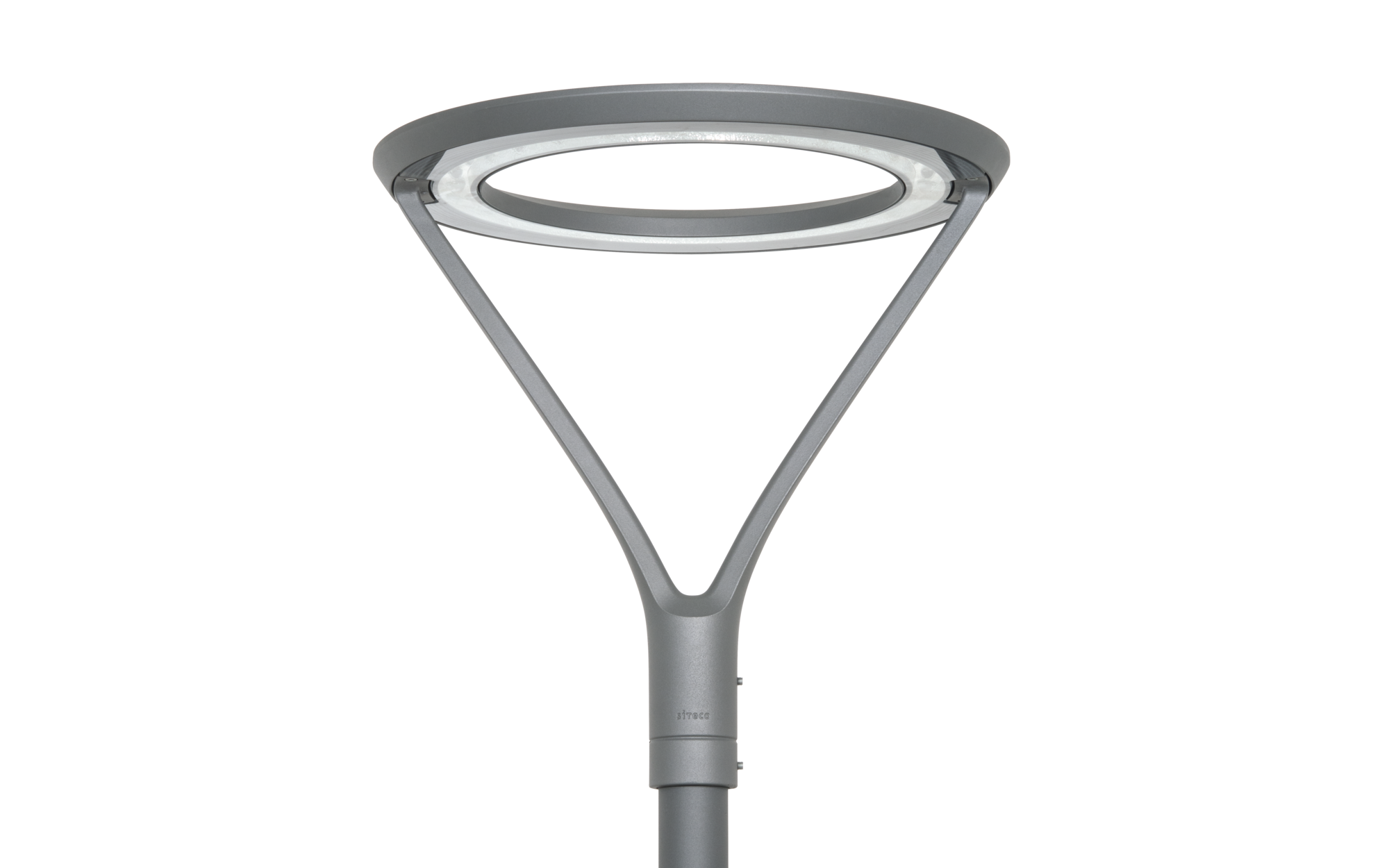

Article mast luminaire
Product name DL 20
Lamp LED
Rated luminous flux 4210lm
Luminous efficacy 80lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 53
Pnom end service life 54
Pred at 50% lumin. flux 24
Service life 100000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 13.5kg

DL 20, mast luminaire, primary light control with reflector, highly specular, primary optical cover: cover, of toughened safety glass of clear glass with excellent transmission level, light distribution: C120001, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: symmetric, installation type: post-top, lamps: LED, rated values: 4.250lm | 34,3W | 123,9lm/W (begin service life); end service life: 4.250lm | 35,1W; at 50% lumin. flux: 2.121lm | 17,2W | 123,3lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 4.250lm | 34,3W | 123,9lm/W | 3.000K (begin service life); end service life: 35,1W, control gear: Plus, control: overheat protection, power reduction, digital communication interface, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, mains connection: 230..240V, 50/60Hz, surge voltage resistance: 6kV 1.2/50µs, luminaire housing, upper part, of cast aluminium, powder-coated, SITECO metallic grey (DB 702S), diameter: 690mm, height: 690mm, spigot size: 76mm (post-top), luminaire housing, of cast aluminium, powder-coated, SITECO metallic grey (DB 702S), equipment: Power, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK08, permissible operating ambient temperature: -25..+30°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type mast luminaire
Product name DL 20
Order No. 5XA51283WS008P

Lighting technology

Light control reflector, highly specular
Cover cover
Light distribution PL1.2s
Beam angle wide distribution
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 4210lm
Luminous efficacy 80lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power begin service life 53
Rated input power end service life 54
Rated input power at 50% lumin. flux 24

Operating device

Control gear ECG Plus
Control Plus
Equipment overheat protection, power reduction, digital communication interface, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation
Switching method electronic power reduction

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Temperature range (operation) -25..+30°C
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing, upper part cast aluminium, powder-coated, SITECO metallic grey (DB 702S)
luminaire housing cast aluminium, powder-coated, SITECO metallic grey (DB 702S)
Cover cover of toughened safety glass of clear glass with excellent transmission level

Mounting

Mounting method, mounting location post-top, on mast

Electrical connection

Nominal voltage 230..240V, 50/60Hz
Surge voltage resistance 6kV 1.2/50µs
Connection cable pre-assembled, L= 5m

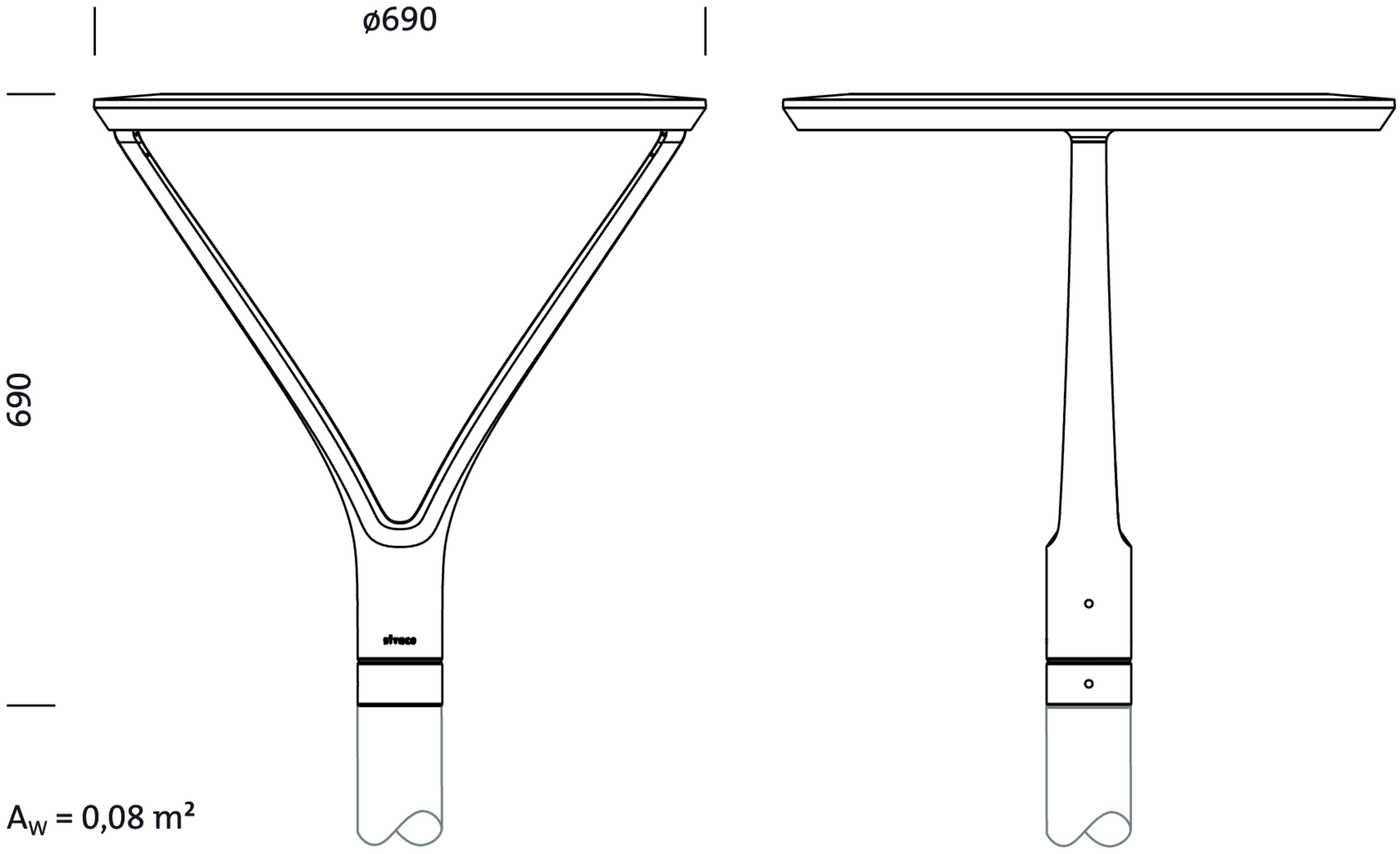

Dimensions, Weight

Diameter 690mm
Height 690mm
Weight 13.5kg
Mast spigot spigot size: 76mm

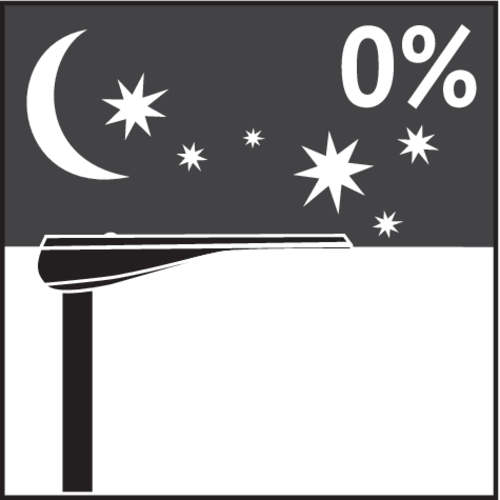

Light emission

Light emission 0%

Service life

Rated service life 100000h (L95/B10) at AT = 25°C

Product type
mast luminaire

Product name
DL 20

Order No.
5XA51283WS008P

Light control
reflector, highly specular

Cover
cover

Light distribution
PL1.2s

Beam angle
wide distribution

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
4210lm

Luminous efficacy
80lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

Rated input power begin service life
53

Rated input power end service life
54

Rated input power at 50% lumin. flux
24

Control gear
ECG Plus

Control
Plus

Equipment
overheat protection, power reduction, digital communication interface, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation

Switching method
electronic power reduction

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Temperature range (operation)
-25..+30°C

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE, ENEC, VDE

luminaire housing, upper part
cast aluminium, powder-coated, SITECO metallic grey (DB 702S)

luminaire housing
cast aluminium, powder-coated, SITECO metallic grey (DB 702S)

Cover
cover of toughened safety glass of clear glass with excellent transmission level

Mounting method, mounting location
post-top, on mast

Nominal voltage
230..240V, 50/60Hz

Surge voltage resistance
6kV 1.2/50µs

Connection cable
pre-assembled, L= 5m

Diameter
690mm

Height
690mm

Weight
13.5kg

Mast spigot
spigot size: 76mm

Light emission
0%

Rated service life
100000h (L95/B10) at AT = 25°C

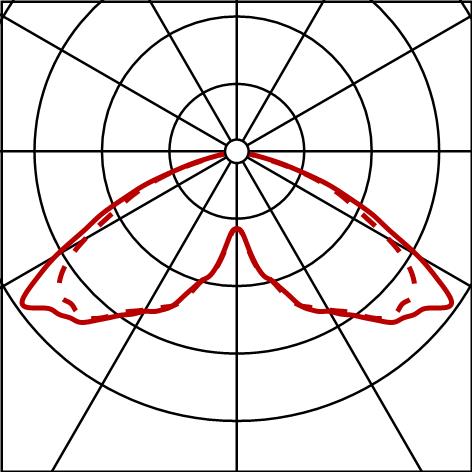

Photometric report / planning data

DL20
C120001,4250lm730,Plus
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA51283WS008P

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
