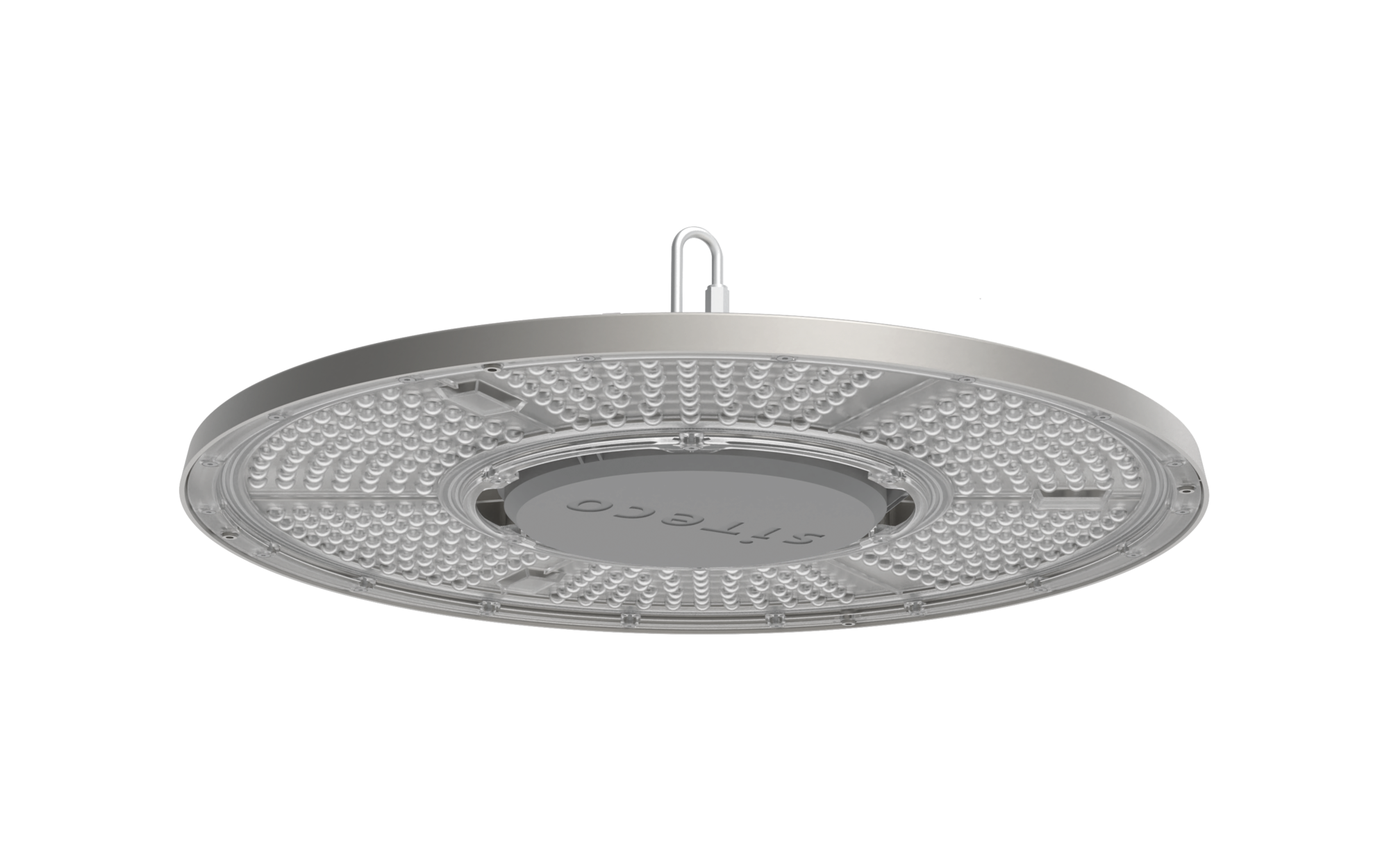

Highbay 31
Investments in sustainability pay off. Better light and savings at the same time - Highbay 31 makes your high bay lighting efficient and inexpensive, regardless of whether it is a 1:1 refurbishment of your old system or a new installation. The Highbay 31 stands for longevity and long-term reliability - even in harsh environmental conditions. High-quality electronic components, well thought-out thermal management and an optimized housing design that enables easy installation and prevents dirt deposits ensure low overall costs over the entire life cycle.
Our basic solution for simple standard applications: 14,000-28,000lm | up to 170lm/W | 50,000h service life L85 | -25…+45°C
Product types
Highbay 31 S
Intro product family
Key data
Article high bay luminaire
Lighting effect direct rotationally symmetric distribution, 60°; direct rotationally symmetric distribution, 90°
Net luminous flux 14000lm to 28000lm
Colour temperature 4000K
Control ON/OFF; DALI 2
Cover PC
Protection rating IP65
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Special features
Configuration & data sheets
- incl. connection cable (l= 1500mm) with free wire ends; please order system plug connection separately if required
- includes suspension eyelet and screw carabiner of V2A; Fixing to on-site eyelet without further luminaire-specific installing accessories; for further installation methods: please order mounting accessory separately
- please order photometric accessories separately if required
Results
Highbay 31-S, 60°
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000lm | 94W | 150lm/W | ON/OFF | 2.3 | 282.70 |
Highbay 31-S, 60°
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000lm | 94W | 150lm/W | DALI 2 | 2.9 | 323.10 |
Highbay 31-S, 60°
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 20000lm | 134W | 150lm/W | ON/OFF | 2.4 | 323.10 |
Highbay 31-S, 90°
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000lm | 94W | 150lm/W | ON/OFF | 2.3 | 282.70 |
Highbay 31-S, 90°, PIR sensor
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000lm | 94W | 150lm/W | ON/OFF | 2.4 | 323.10 |
Highbay 31-S, 90°
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000lm | 94W | 150lm/W | DALI 2 | 2.9 | 323.10 |
Highbay 31-S, 90°
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 20000lm | 134W | 150lm/W | ON/OFF | 2.4 | 323.10 |
Highbay 31-S, 90°, PIR sensor
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 20000lm | 134W | 150lm/W | ON/OFF | 2.6 | 363.50 |
Highbay 31-S, 90°
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000lm | 83W | 170lm/W | ON/OFF | 2.3 | 282.70 |
Highbay 31-L, 90°, PIR sensor
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000lm | 187W | 150lm/W | ON/OFF | 3.1 | 414.10 |
Highbay 31-S, 60°
Order No.: 51HC417A4FMBGTIN (EAN): 4058352700013
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14000lm |
| Connected load | 94W |
| Luminous efficacy | 150lm/W |
| Control | ON/OFF |
| Wt. (kg) | 2.3 |
| Price (EUR) | 282.70 |
Highbay 31-S, 60°
Order No.: 51HC41DA4FMBGTIN (EAN): 4058352700075
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14000lm |
| Connected load | 94W |
| Luminous efficacy | 150lm/W |
| Control | DALI 2 |
| Wt. (kg) | 2.9 |
| Price (EUR) | 323.10 |
Highbay 31-S, 60°
Order No.: 51HC417A4JMBGTIN (EAN): 4058352700037
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 20000lm |
| Connected load | 134W |
| Luminous efficacy | 150lm/W |
| Control | ON/OFF |
| Wt. (kg) | 2.4 |
| Price (EUR) | 323.10 |
Highbay 31-S, 90°
Order No.: 51HC427A4FMBGTIN (EAN): 4058352700136
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14000lm |
| Connected load | 94W |
| Luminous efficacy | 150lm/W |
| Control | ON/OFF |
| Wt. (kg) | 2.3 |
| Price (EUR) | 282.70 |
Highbay 31-S, 90°, PIR sensor
Order No.: 51HC427A4FMB01GTIN (EAN): 4058352700150
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14000lm |
| Connected load | 94W |
| Luminous efficacy | 150lm/W |
| Control | ON/OFF |
| Wt. (kg) | 2.4 |
| Price (EUR) | 323.10 |
Highbay 31-S, 90°
Order No.: 51HC42DA4FMBGTIN (EAN): 4058352700259
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14000lm |
| Connected load | 94W |
| Luminous efficacy | 150lm/W |
| Control | DALI 2 |
| Wt. (kg) | 2.9 |
| Price (EUR) | 323.10 |
Highbay 31-S, 90°
Order No.: 51HC427A4JMBGTIN (EAN): 4058352700174
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 20000lm |
| Connected load | 134W |
| Luminous efficacy | 150lm/W |
| Control | ON/OFF |
| Wt. (kg) | 2.4 |
| Price (EUR) | 323.10 |
Highbay 31-S, 90°, PIR sensor
Order No.: 51HC427A4JMB01GTIN (EAN): 4058352700204
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 20000lm |
| Connected load | 134W |
| Luminous efficacy | 150lm/W |
| Control | ON/OFF |
| Wt. (kg) | 2.6 |
| Price (EUR) | 363.50 |
Highbay 31-S, 90°
Order No.: 51HC427A4FMCGTIN (EAN): 4069025251169
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14000lm |
| Connected load | 83W |
| Luminous efficacy | 170lm/W |
| Control | ON/OFF |
| Wt. (kg) | 2.3 |
| Price (EUR) | 282.70 |
Highbay 31-L, 90°, PIR sensor
Order No.: 51HC427A4MMB01GTIN (EAN): 4058352700235
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 28000lm |
| Connected load | 187W |
| Luminous efficacy | 150lm/W |
| Control | ON/OFF |
| Wt. (kg) | 3.1 |
| Price (EUR) | 414.10 |
Optional accessories
| Order No.: 5NX30003GTIN (EAN): 4058352143254 | Show all details |
| Order No.: 5NX30005GTIN (EAN): 4058352143391 | Show all details |
| Order No.: 59HC91001GTIN (EAN): 4058352463192 | Show all details |
| Order No.: 59HC91003GTIN (EAN): 4058352463215 | Show all details |
| Order No.: 59HC92001GTIN (EAN): 4058352463239 | Show all details |
