51FD20NN480A
Article damp-proof luminaire

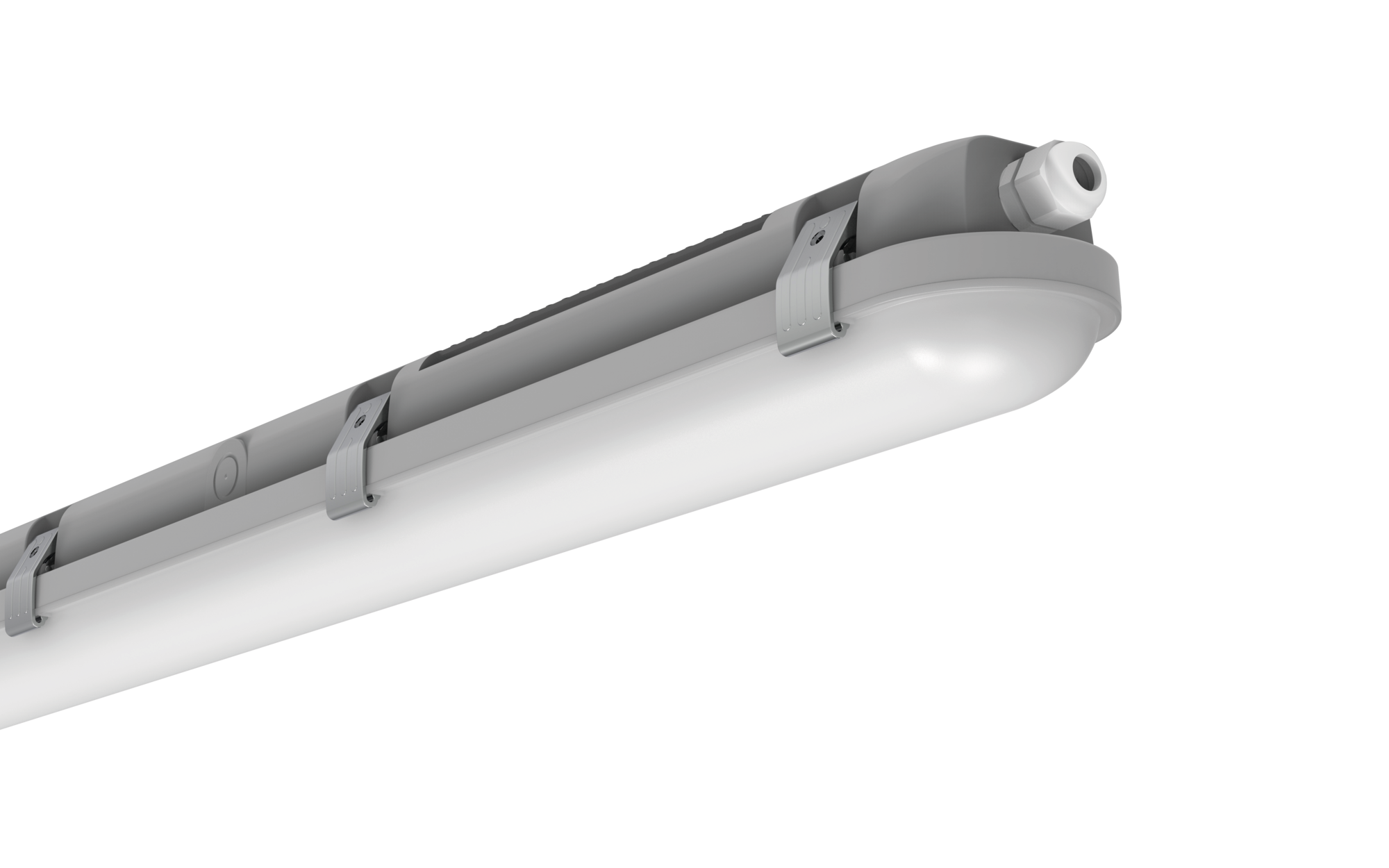

Product name Monsun 31
Lamp LED
Rated luminous flux 7970lm
Luminous efficacy 163lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 49W
Service life 70000h (L85) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 2.1kg

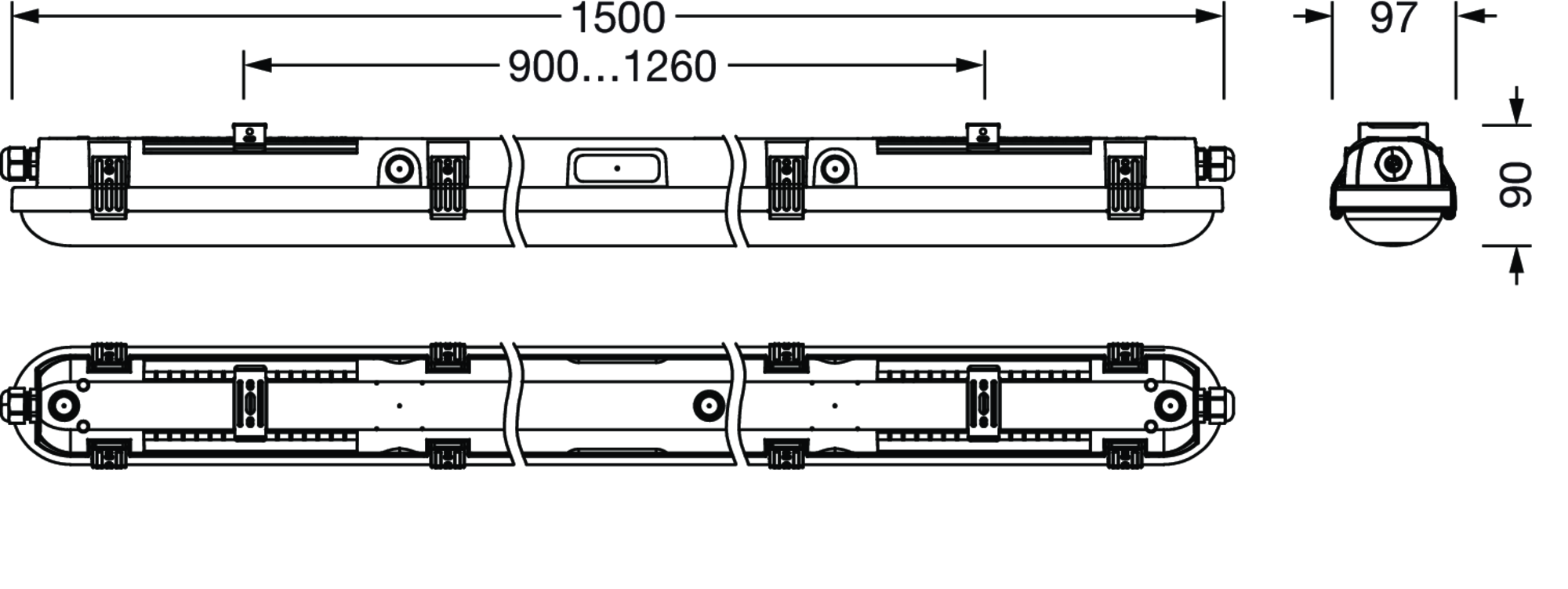

Monsun 31, damp-proof luminaire, primary optical cover: diffuser, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 7.970lm, luminous efficacy: 163lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 5-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 49W, housing, of PC, matt metallic grey (RAL 9006), with mounting bracket, length: 1.500mm, width: 95mm, height: 80mm, clip for enclosure, of spring steel V2A, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -20..+40°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

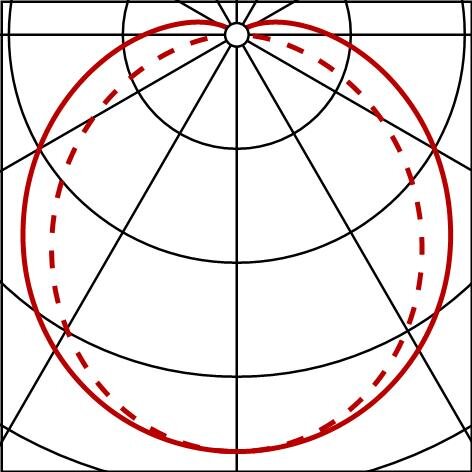

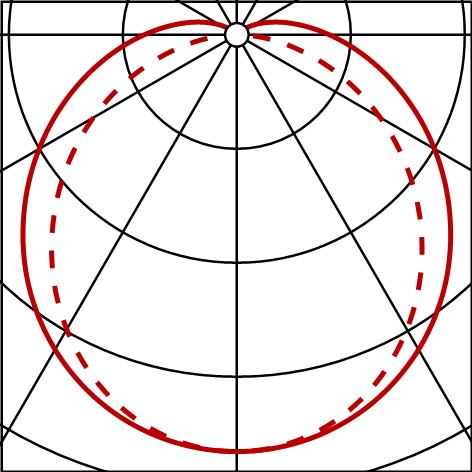

Photometric report / planning data
Monsun 31
LED, diffuser, surface-mounted, L= 1500mm
Lamps: LED 4000K / CRI >= 80
Order No.: 51FD20NN480A
