51MC33D54LWA
Article office luminaire

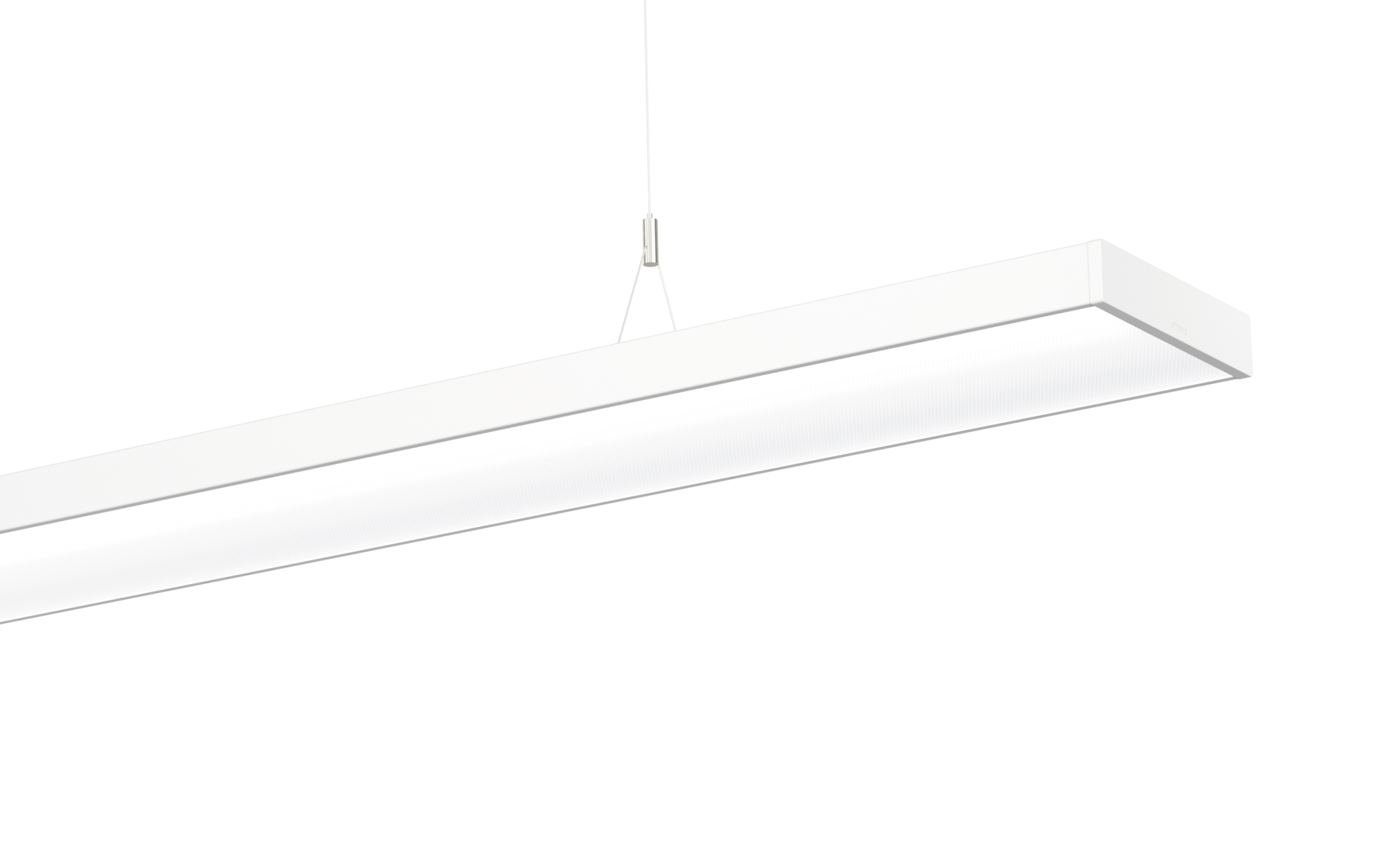

Product name Silica 21 Rectangular Prismatic X
Lamp LED
Rated luminous flux 6000lm
Luminous efficacy 177lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 33.9W
Service life 100000h (L85) at AT = 25°C
Protection rating IP40
Impact resistance IK03
Weight 4.1kg

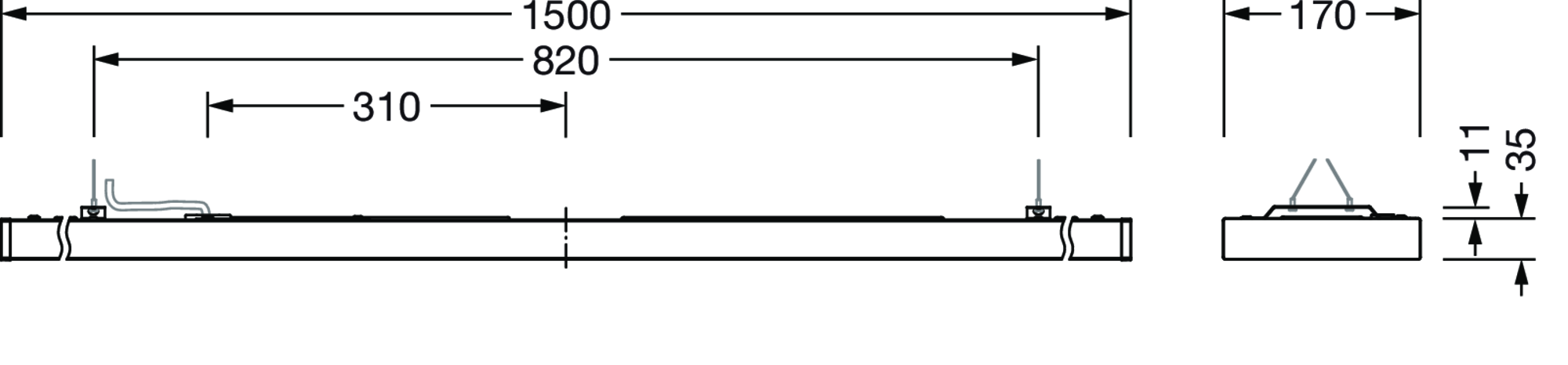

Silica 21 Rectangular Prismatic X, office luminaire, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L= 3000cd/m²), light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, rated luminous flux: 6.000lm, luminous efficacy: 177lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 33.9W, luminaire housing, of sheet steel, traffic white (RAL 9016), length: 1.500mm, width: 170mm, height: 53mm, equipment: performance, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK03, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

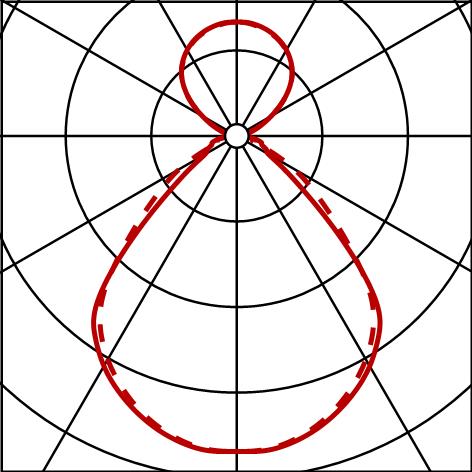

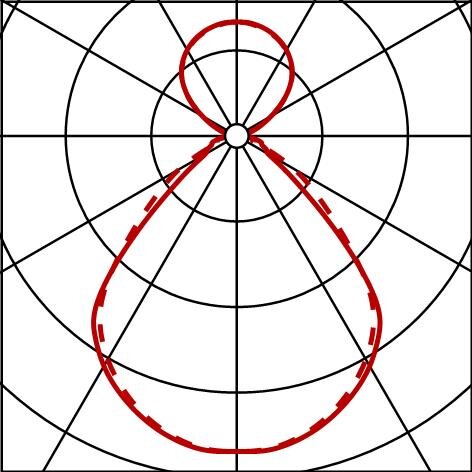

Photometric report / planning data
Silica 21 Rectangular Prismatic X
office luminaire, traffic white (RAL 9016), DALI 2, 6000lm, 840, 1500x170mm, Connection: terminal
Lamps: LED 4000K / CRI >= 80
Order No.: 51MC33D54LWA
