5XJ3EQ3AG108

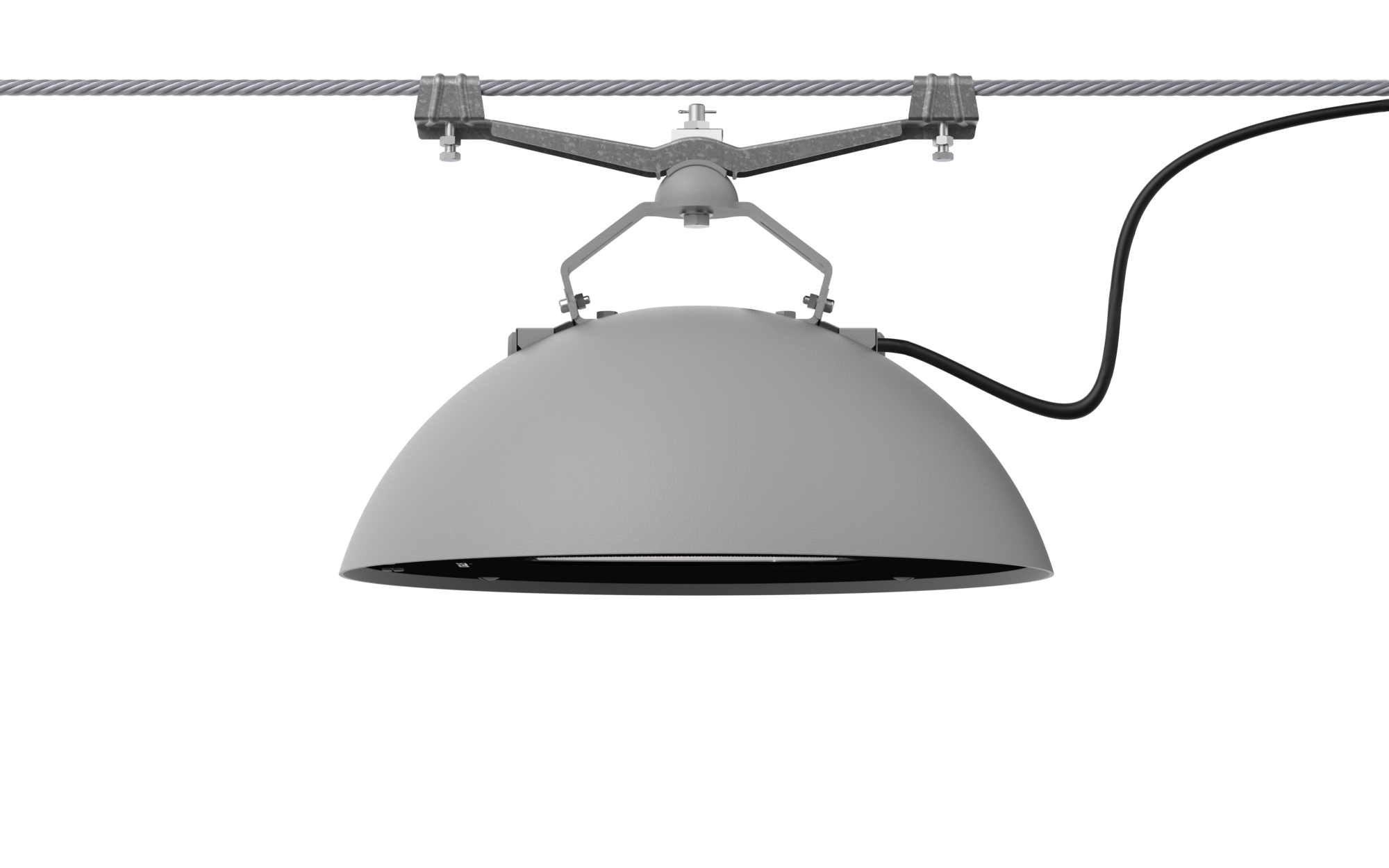

Article catenary luminaire
Product name DL 500 iQ
Lamp LED
Rated luminous flux 15610lm
Luminous efficacy 157.8lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 98.9W
Pnom end service life 105.4W
Pred at 50% lumin. flux 45.3W
Service life 100000h at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 9.9kg
DL 500 iQ, catenary luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: S100004, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, lamps: LED, rated values: 15.610lm | 98,9W | 157,8lm/W (begin service life); end service life: 15.610lm | 105,4W; at 50% lumin. flux: 7.805lm | 45,3W | 172,3lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 15.610lm | 98,9W | 157,8lm/W | 3.000K (begin service life); end service life: 105,4W, control gear: iQ Street-Remote, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, mains connection: 230..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), diameter: 500mm, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK09, standard-compliant lighting for roads and squares, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
DL500iQ
cat,S100004,15610lm730,SR
Lamps: LED 3000K / CRI >= 70
Order No.: 5XJ3EQ3AG108
