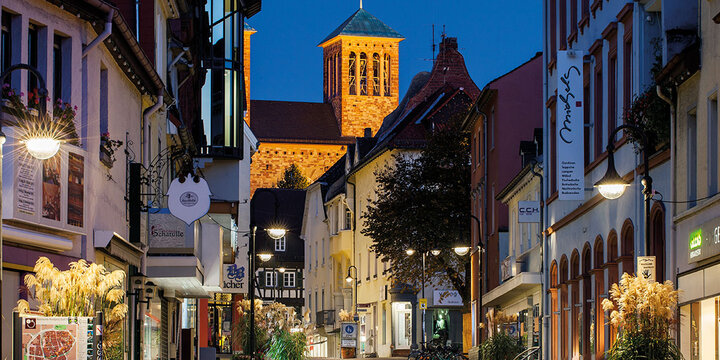

Stadt Bensheim, Deutschland
Mehr erfahren

Family

Bell iQ

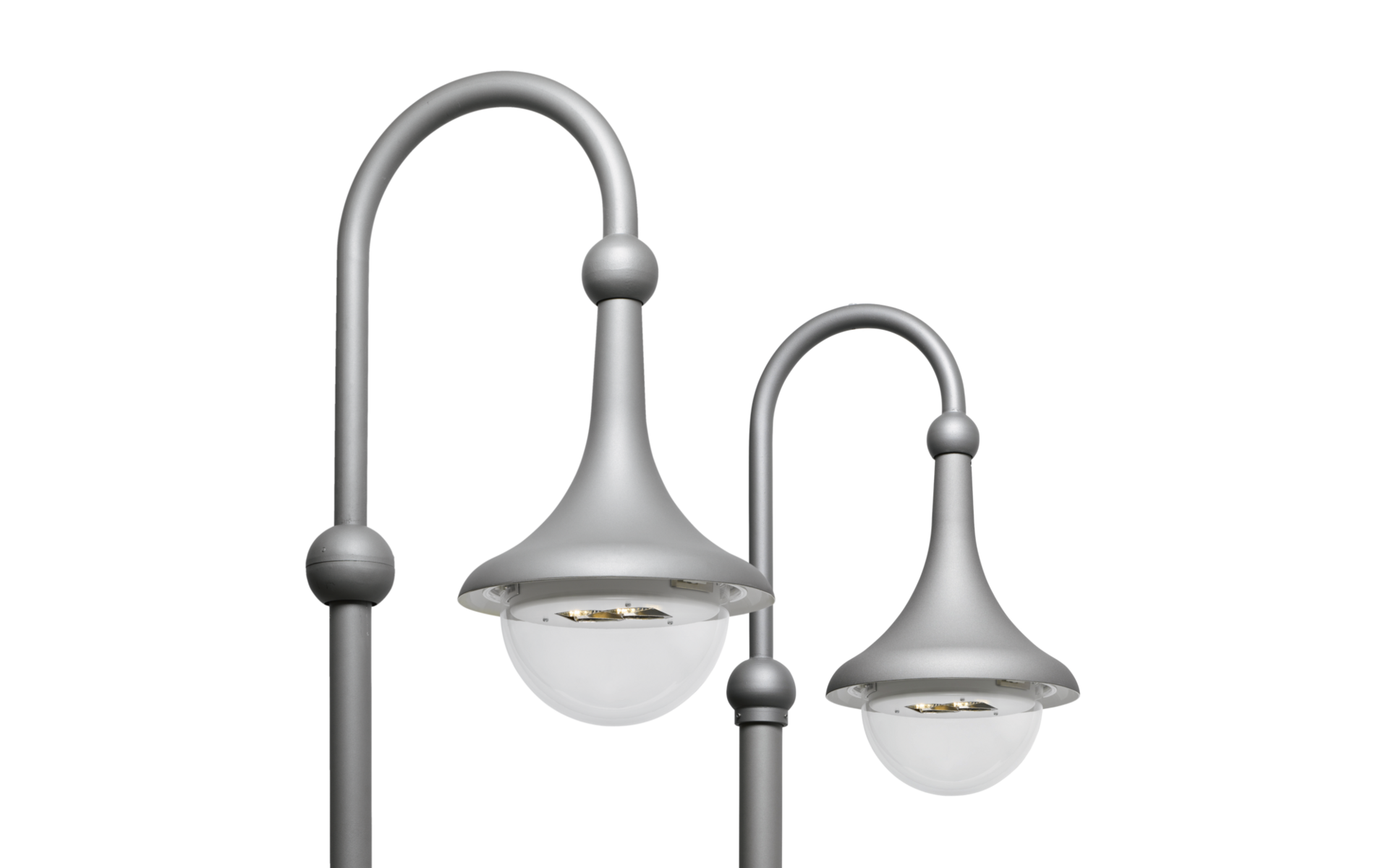

Large Bell iQ

Key data

Article mast luminaire
Luminous flux 4180lm to 5420lm
Colour temperature 2200K; 2700K; 3000K; 4000K
Lighting effect direct asymmetric wide distribution; direct asymmetric extremely wide distribution
Light distribution P100006; S120009; S120016
Control iQ Street-Remote; iQ-Street Remote, D4i with power reduction; iQ Smart Interface; D4i
Smart Interface above Zhaga
Protection rating IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK09; IK08

Special features

Classic appearance with innovative components including HD faceted reflector for precise, glare-free light distribution
Flexible solution in two sizes, available both as complete luminaire and as LED module for refurbishing existing bell luminaires
High energy savings of over 80% compared to old systems with SON lamps – fast payback of less than 3 years
Siteco iQ Street-Remote (iQ-SR): transmission of all parameters without tools and cable connection via a stable Bluetooth connection
Siteco iQ Smart Interface (Zhaga & D4i) for smart city applications with a modular design for component upgrades
Siteco iQ: Auto-Match: Replacement of spare parts with automatic data exchange without manually reading out and transferring the data

Links

To the product page

Configuration & data sheets

Lighting effect

Light distribution

Colour temperature

Control

Cover

  • please order curved mast extension separately
  • please order shielding on building side separately if required
  • luminaire colour: Siteco® metallic grey (DB 702S) as standard; (further DB and RAL colours on request)

Results

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1565E1F108 GTIN (EAN): 4069025073754
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 705180lmST1.2aiQ Street-Remote3438167.81431.60
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1565A1F108 GTIN (EAN): 4069025123329
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
2200KCRI > 704180lmST1.2aiQ Street-Remote3438167.81431.60
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1565M1F108 GTIN (EAN): 4069025123466
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
2700KCRI > 704470lmST1.2aiQ Street-Remote3438167.81431.60
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1565K1F108 GTIN (EAN): 4069025123428
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
4000KCRI > 705420lmST1.2aiQ Street-Remote3438167.81431.60
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Large Bell iQ, direct asymmetric extremely wide distribution, P1.0a, enclosure, transparent

Order No.: 5XA1565F1F108 GTIN (EAN): 4069025123381
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 705070lmP1.0aiQ Street-Remote3438167.81431.60
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, cover panel, transparent

Order No.: 5XA1565E1F308 GTIN (EAN): 4069025073792
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 704750lmST1.2aiQ Street-Remote3438168.91634.90
Show all details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataComplete download list

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1565E1V108 GTIN (EAN): 4069025073815
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)Price (EUR)
3000KCRI > 705180lmST1.2aiQ-Street Remote, D4i with power reduction, iQ Smart Interface, D4i3438167.91482.50
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1565E1F108GTIN (EAN): 4069025073754

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux5180lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life38
Pred at 50% lumin. flux16
Wt. (kg)7.8
Price (EUR)1431.60
Show all details

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1565A1F108GTIN (EAN): 4069025123329

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux4180lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life38
Pred at 50% lumin. flux16
Wt. (kg)7.8
Price (EUR)1431.60
Show all details

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1565M1F108GTIN (EAN): 4069025123466

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux4470lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life38
Pred at 50% lumin. flux16
Wt. (kg)7.8
Price (EUR)1431.60
Show all details

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1565K1F108GTIN (EAN): 4069025123428

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5420lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life38
Pred at 50% lumin. flux16
Wt. (kg)7.8
Price (EUR)1431.60
Show all details

Large Bell iQ, direct asymmetric extremely wide distribution, P1.0a, enclosure, transparent

Order No.: 5XA1565F1F108GTIN (EAN): 4069025123381

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux5070lm
Light distributionP1.0a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life38
Pred at 50% lumin. flux16
Wt. (kg)7.8
Price (EUR)1431.60
Show all details

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, cover panel, transparent

Order No.: 5XA1565E1F308GTIN (EAN): 4069025073792

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux4750lm
Light distributionST1.2a
ControliQ Street-Remote
Pnom begin service life34
Pnom end service life38
Pred at 50% lumin. flux16
Wt. (kg)8.9
Price (EUR)1634.90
Show all details

Large Bell iQ, direct asymmetric wide distribution, ST1.2a, enclosure, transparent

Order No.: 5XA1565E1V108GTIN (EAN): 4069025073815

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux5180lm
Light distributionST1.2a
ControliQ-Street Remote, D4i with power reduction, iQ Smart Interface, D4i
Pnom begin service life34
Pnom end service life38
Pred at 50% lumin. flux16
Wt. (kg)7.9
Price (EUR)1482.50
Show all details

Mandatory accessories

Articlecurved mast extension, aligned, SITECO metallic grey (DB 702S), steel, galvanised, coated, 1-arm, spigot size: 76..89mmPU1 pc.Wt. (kg)12.8Price (EUR)1083.30Order No.: 5NY15621XX08GTIN (EAN): 4039806214737Show all details
Articlecurved mast extension, aligned, SITECO metallic grey (DB 702S), steel, galvanised, coated, 2-arm, spigot size: 76..89mmPU1 pc.Wt. (kg)23.2Price (EUR)2757.50Order No.: 5NY15622XX08GTIN (EAN): 4039806370624Show all details
Articlecurved mast extension, offset, SITECO metallic grey (DB 702S), steel, galvanised, coated, 1-arm, spigot size: 76mmPU1 pc.Wt. (kg)10.3Price (EUR)1061.60Order No.: 5NY15621XA08GTIN (EAN): 4039806214577Show all details
Articlecurved mast extension, offset, SITECO metallic grey (DB 702S), steel, galvanised, coated, 2-arm, spigot size: 76mmPU1 pc.Wt. (kg)13.5Price (EUR)1945.60Order No.: 5NY15622XA08GTIN (EAN): 4039806214812Show all details
Articlecurved mast extension, standard, SITECO metallic grey (DB 702S), steel, galvanised, coated, 1-arm, spigot size: 76mmPU1 pc.Wt. (kg)9.6Price (EUR)952.00Order No.: 5NY15621XF08GTIN (EAN): 4039806214652Show all details
Articlewall bracketPU1 pc.Wt. (kg)13.0Price (EUR)1271.10Order No.: 5NY15601XW08GTIN (EAN): 4039806214416Show all details

Optional accessories

Articleshield, rear shieldingPU1 pc.Wt. (kg)0.1Price (EUR)80.20Order No.: 5NA15600XB1GTIN (EAN): 4050737087955Show all details
